Specifications: Industry Standards:
IEEE 802.3af PoE, IEEE 802.3at PoE+
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
Ports: 4
Maximum Cable Length: 328 ft [100 m]
Maximum Data Transfer Rate: 2 Gbps (Full-Duplex)
MTBF: 50,000 Hours
Power Output: 52V DC at 30.8W (PoE+)
Connector Type(s): 8 - RJ-45 Female
Enclosure Type: Steel
LED Indicators: 1-Power, 4-PoE In-Use
Center Tip Polarity: Positive
Input Current: 2-1 A
Input Voltage: 100 ~ 240 AC
Output Current: 2.31 A
Output Voltage: 52 DC
Plug Type: M
Power Consumption: 120 W Max
Power Source: AC Adapter Included
Included in Package:
1 - 4 Port Gigabit PoE+ Injector
1 - Universal Power Adapter
3 - Power Cords (NA/UK/EU)
1 - Instruction Manual
Specifications: Interfaces:
PoE IN:1 x 10/100/1000BASE-T Ethernet with IEEE 802.3at PoE "Data + DC power" in auto MDI/MDI-X, auto-negotiation RJ45 connector
PoE OUT: 2 x 10/100/1000BASE-T Ethernet with IEEE 802.3at/802.3af PoE "Data + DC power" out auto MDI/MDI-X, auto-negotiation RJ45 connector
Power over Ethernet
PoE Standard:
"PoE In" Port: IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD class 4 PD
Per "PoE Out" Port:
IEEE 802.3at Power over Ethernet Plus end-span PSE
IEEE 802.3af Power over Ethernet end-span PSE
PoE Power Supply Type: End-span (Type A)
PoE Power:
"PoE In" Port: 52 - 56V DC, max. 30.8 watts
Per "PoE Out" Port: 44 - 55V DC, max. 25 watts
Power Pin Assignment:
"PoE In" Port: 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
Per "PoE Out" Port: 1/2 (+), 3/6 (-)
Data Rate: 10/100/1000Mbps
MAC Address Table: 2K
Data Bu...

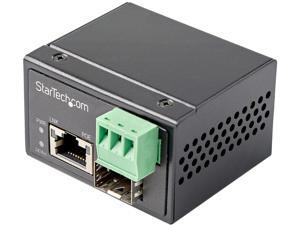

Specifications: Network Technology: 1000Base-TX, 1000Base-T
Power Description Plug/Connector Type: Terminal Block (3 Wire), Type N
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 1
Total Number of Expansion Slots: 1.0
Network (RJ-45): Yes
Number of PoE (RJ-45) Ports: 1
Total Number of Ports: 1
Media Type Supported: Twisted Pair
Fiber Mode Supported: Optical Fiber, Single-mode, Multi-mode
Weight (Approximate) 2.80 oz
Height 1.9", Width 1.4", Depth 2.3"
Environmental Compliance: Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Specifications: Interfaces/Ports
Total Number of Ports:
1
Network (RJ-45):
Yes
Number of PoE (RJ-45) Ports:
1
Media & Performance
Media Type Supported:
Optical Fiber
Twisted Pair
Fiber Mode Supported:
Multi-mode
Single-mode
I/ O Expansions
Total Number of Expansion Slots:
1
Expansion Slot Type:
SFP (mini-GBIC)
Number of SFP Slots:
1
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
1000Base-T
1000Base-TX
100Base-TX
100Base-T
Power Description
Power Source:
PoE+
Power Consumption:
60 W
Plug/Connector Type:
Terminal Block (3 Wire)
Type N
Physical Characteristics
Form Factor:
DIN Rail Mountable
Wall Mountable
Height:
1.3"
Width:
3.2"
Depth:
4.1"
Weight (Approximate):
5.40 oz
...
Specifications: Interfaces/Ports
Total Number of Ports:
1
Network (RJ-45):
Yes
Number of PoE (RJ-45) Ports:
1
Media & Performance
Media Type Supported:
Optical Fiber
Twisted Pair
Fiber Mode Supported:
Multi-mode
Single-mode
I/ O Expansions
Total Number of Expansion Slots:
1
Expansion Slot Type:
SFP (mini-GBIC)
Number of SFP Slots:
1
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
1000Base-T
1000Base-TX
100Base-TX
100Base-T
Power Description
Power Source:
PoE+
Power Consumption:
60 W
Plug/Connector Type:
Terminal Block (3 Wire)
Type N
Physical Characteristics
Form Factor:
DIN Rail Mountable
Wall Mountable
Height:
1.3"
Width:
3.2"
Depth:
4.1"
Weight (Approximate...
Specifications: Cable Type: Twinaxial
Cable Length: 4.92 ft
Connector On First End: 1 x SFP+ Network
Connector On Second End: 1 x SFP+ Network
Device Supported: Network Device
Data Transfer Rate: 1.25 GB/s
Specifications: Technical Information
Host Interface:
USB 3.0 Type A
Interfaces/Ports
Total Number of USB Ports:
3
Number of USB 3.0 Ports:
3
Number of Network (RJ-45) Ports:
1
Software
Operating System Supported:
Windows XP
Windows Vista
Windows 7
Windows 8
Windows 8.1
Windows 10
Windows 11
Windows Server 2003
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019
Windows Server 2022
Mac OS X 10.6 Snow Leopard
Mac OS X 10.8 Mountain Lion
Mac OS X 10.10 Yosemite
Mac OS X 10.11 El Capitan
Mac OS X 10.12 Sierra
Mac OS X 10.13 High Sierra
Mac OS X 10.14 Mojave
Mac OS X 10.15 Catalina
Mac OS X 11.0 Big Sur
Mac OS X 12.0 Monterey
Mac OS X 13.0 Ventura
ChromeOS
Linux...
Specifications: 2 - Connector Type(s): RJ-45 (PoE+)
Operating Temperature: -40°C to 75°C
Storage Temperature: -40°C to 85°C
Humidity: 5 to 95% (non-condensing)
Industry Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3x
- IEEE 802.3z 1000BASE-TX
- IEEE 802.3af Power over Ethernet
- IEEE 802.3at PoE Plus
- IEEE 802.3bt
Dimension: 1.30" x 3.20" x 4.10"
Weight: 0.20 lb.
Features: 100M EXTENSION: Extend a PSE source (up to 95W) by 100m using this Gigabit PoE Extender; power PoE devices like cameras & access points; 4 extenders can be cascaded to extend up to 400m using CAT 5e/6
60W PoE IEEE 802.3bt: Powered by the PSE source, this Power over Ethernet range extender provides up to 15W/30W/60W of auto-negotiated power output to target PD ...
Specifications: Video Channel: 1 channel bi-direction
Signal Mode: NTSC / PAL / SECAM
Video Connector: BNC
Video Bandwidth: 60MHz
Video Input / Output Voltage: 1.0 Vpp / typical peak-to-peak value
Video Input / Output Impedance: 75ohm / unbalanced interface
Supported Video Type:
1080p: AHD / TVI / CVI
480p: CVBS
Video Digital Bit Width: 8 / 10 bit
Differential Gain (DG): < 1.3% (typical value)
Differential Phase (DP): < 1.3 degree (typical value)
SNR Weighted: > 67 dB (typical value)
Data Channel: 1 channel
Physical Protocol: RS485
Operation Mode: Simplex
Data Connector: 3-pin terminal block with screw clamps
Data Rate: DC-115.2 Kbps
Bit Error Rate (BER): < 10ns
LED Indicators:
Power
Video
Link (fiber optic)
Power Requirement: 5V DC, 2A
Power Consumption: 4.8 watts (maximum)
Mechanical: Metal
Installation: Wall-mountable, DIN-rail (with ...
