Specifications: Interfaces/Ports
Total Number of Ports:
1
Network (RJ-45):
Yes
Number of PoE (RJ-45) Ports:
1
Media & Performance
Media Type Supported:
Optical Fiber
Twisted Pair
Fiber Mode Supported:
Multi-mode
Single-mode
I/ O Expansions
Total Number of Expansion Slots:
1
Expansion Slot Type:
SFP (mini-GBIC)
Number of SFP Slots:
1
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
1000Base-T
1000Base-TX
100Base-TX
100Base-T
Power Description
Power Source:
PoE+
Power Consumption:
60 W
Plug/Connector Type:
Terminal Block (3 Wire)
Type N
Physical Characteristics
Form Factor:
DIN Rail Mountable
Wall Mountable
Height:
1.3"
Width:
3.2"
Depth:
4.1"
Weight (Approximate...
Specifications: Network Technology: 1000Base-TX, 1000Base-T
Power Description Plug/Connector Type: Terminal Block (3 Wire), Type N
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 1
Total Number of Expansion Slots: 1.0
Network (RJ-45): Yes
Number of PoE (RJ-45) Ports: 1
Total Number of Ports: 1
Media Type Supported: Twisted Pair
Fiber Mode Supported: Optical Fiber, Single-mode, Multi-mode
Weight (Approximate) 2.80 oz
Height 1.9", Width 1.4", Depth 2.3"
Environmental Compliance: Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Specifications: Interfaces/Ports
Total Number of Ports:
1
Network (RJ-45):
Yes
Number of PoE (RJ-45) Ports:
1
Media & Performance
Media Type Supported:
Optical Fiber
Twisted Pair
Fiber Mode Supported:
Multi-mode
Single-mode
I/ O Expansions
Total Number of Expansion Slots:
1
Expansion Slot Type:
SFP (mini-GBIC)
Number of SFP Slots:
1
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
1000Base-T
1000Base-TX
100Base-TX
100Base-T
Power Description
Power Source:
PoE+
Power Consumption:
60 W
Plug/Connector Type:
Terminal Block (3 Wire)
Type N
Physical Characteristics
Form Factor:
DIN Rail Mountable
Wall Mountable
Height:
1.3"
Width:
3.2"
Depth:
4.1"
Weight (Approximate):
5.40 oz
...

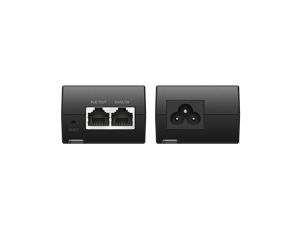

Specifications: Interface: LAN:
1 x RJ-45 STP, "Data" Input Port
POE: 1 x RJ-45 STP, "Data + Power" Output Port
AC Connector: 1 x AC Input power socket, IEC-320 C6
Network Cable:
Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328 ft.)
802.3af / at PoE(15W / 30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328 ft.)
LED Indicator:
System: Power x 1 (Green)
PoE Port: Active, PoE ready / In Use x 1 (Green)
Data Rate: 10/100/1000 Mbps
Unit Output Voltage: DC 50-57V, 1.2A
Power Requirements: 100-240V AC @ 50/60 Hz, 1.5A max.
Power Consumption: 60 watts max.
PoE Standard:
Ultra PoE over 4-pairs UTP,
High Power over Ethernet End-Span / Mid-Span PSE
PoE Power Supply Type: End-Span + Mid-Span
Power Pin Assignment:
Pair 1 End-Span: 1/2 (+), 3/6 (-)
Pair 2 Mid-Span: 4/5 (+), 7/8 (-)
PoE Power Output:
DC 50-57V/60-w...
Specifications: Power consumption: 1.3 watts via POE
Forwarded PoE Power:
Up to 75 watts depending on standard
Maximum current 0.7 amps on data pairs
Maximum current 1.5 amps on spare pairs
PoE Standards:
IEEE 802.3af POE (15W) and IEEE 802.3at at POE Plus (2-event signature) (25-30W)
IEEE 802.3bt POE (to 75W)
Custom POE (incl. "always-on 48V" and "4-pair" POE)
Ethernet Interface:
Two independently auto-configuring 10/100 ports
(10Base-T / 100Base-TX, half / full duplex)
Patch or crossover cables supported
LEDs Status indicators:
Green LED - shows POE Power good
Yellow LED - shows Ethernet link / activity
Dimensions: 1.22" x 8.27" x 1.97"
Weight: 0.23 lb.
Mounting: 2/4 Bolt 7mm mounting holes. On 50/60mm centres
Operating temperature: -40 degree C to 70 degree C [-40 degree F to 158 degree F]
Relative humidity: Up to 85%, non-condensi...
Specifications: Ethernet Interface:
Copper:
10/100BASE-TX RJ45
auto-negotiation / auto-MDI / MDI-X
Power over Ethernet Standard: IEEE 802.3at/af PoE PSE (Power Source Equipment)
PoE Output: 56V DC, 600mA max.
PoE Budget: Up to 25 watts
PoE Mode: End-span, RJ45 Pin 1/2 (+), 3/6 (-)
Data Rate: 100/100 Mbps
Cabling: Cat5e or above
Maximum Distance: 100 meters
Maximum Frame Size: 1522 bytes
LED Indicators:
4 x LEDs
PWR
LRP LNK
PoE-in-use
LNK / ACT
ESD Protection: 4KV DC
Enclosure: Metal case
Installation: Wall mount or DIN rail with optional kit
Power Requirements: BNC Power over Coaxial Input: 44~56V DC
Standards Compliance:
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3af Power over Ethernet (802.3at Type 1)
IEEE 802.3at Power over Ethernet Plus(802.3at Type 2)
Specifications: Ethernet Interface:
Copper: 10/100BASE-TX RJ45, auto-negotiation / auto-MDI / MDI-X
Power over Ethernet Standard: IEEE 802.3at/af PoE PD (Powered Device)
PoE Input: Supports both mid-span and end-span PSE
Input Range: 48~56V DC
Data Rate: 100/100 Mbps
Cabling: Cat5e or above
Maximum Distance: 100m
Maximum Frame Size: 1522 bytes
LED Indicators:
4 x LEDs
PWR
LRP LNK
PoE IN
LNK / ACTESD Protection: 4 KV DC
EFT Protection: 2 KV
Enclosure Metal: case
Installation: Wall mount or DIN rail with optional kit
Power Requirements:
RJ45 PoE Input: 802.3at/af 48~56V DC
DC Input: 48~56V DC
Standards Compliance:
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3af Power over Ethernet (802.3at Type 1)
IEEE 802.3at Power over Ethernet (802.3at Type 2)
Specifications: Cable Type:
Twinaxial
Cable Length:
9.84 ft
Connector Type on First End:
SFP+ Network
Connector Gender on First End:
Male
Connector on First End Details:
1 x SFP+ Network
Connector Type on Second End:
SFP+ Network
Connector Gender on Second End:
Male
Connector on Second End Details:
1 x SFP+ Network
Conductor:
Copper
Device Supported:
Network Device
Specifications: Hardware Version: 4
Interface:
Data Input Ports: 24 x RJ45
Data + Power Output Ports: 24 x RJ45
Management Port: 1 x RJ45; 10/100/1000BASE-T, auto-negotiation, auto-MDI/MDIX
Data Rate: 10/100/1000 Mbps
LED:
System:
1 x SYS PWR (Green)
1 x PoE1 Fail (Red)
1 x PoE2 Fail (Red)
1 x Fan1 Fail (Red)
1 x Fan2 Fail (Red)
Per PoE Port: 1 x PoE-in-Use (Green)
2 x Management port: 1000 (Green), 10/100 (Orange)
Network Cable:
10BASE-T: 4-pair UTP Cat5 up to 100m (328 ft.)
100BASE-TX: 4-pair UTP Cat5 up to 100m (328 ft.)
1000BASE-T: 4-pair UTP Cat5e, 6, up to 100m (328 ft.)
EIA/TIA- 568 100-ohm STP (100m)
Power Requirements: 100-240V AC, 50/60 Hz, 8A
Power Consumption: 800 watts max.
Cooling: 3 x Fan
PoE Power Supply Type: Mid-span
PoE Power Output: Per port DC 50-57V 30.8 / 15.4 watts
Power Pin Assignment...
