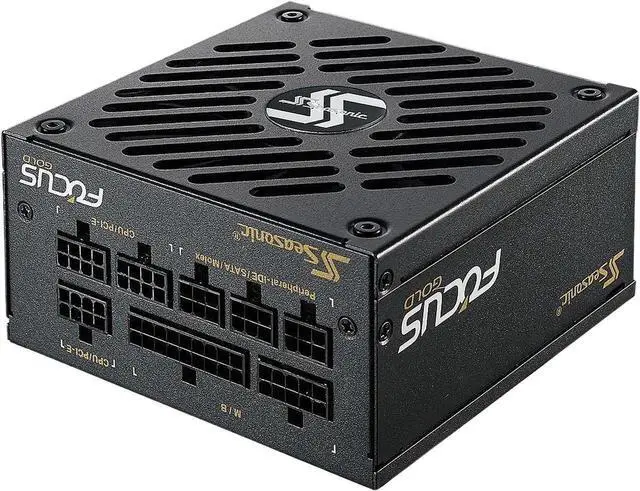

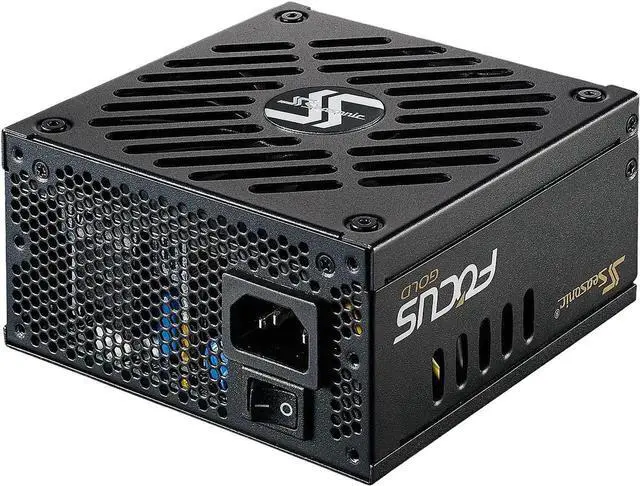

Seasonic FOCUS SGX-650, 650W 80+ Gold, Full-Modular, SFX-L Form Factor, Compact Size, Fan Control in Fanless, Silent, and Cooling Mode, 10 Year Warranty, Power Supply, SSR-650SGX.
- Item #: 9SIVMRNKWP8156
- Mfr. Part #: FOCUS SGX-650
- UNSPSC: 39121004
REFURBISHED Product Type
- COMPACT SIZE: 125 mm (L) x 125 mm (W) x 63.5 mm (H).
- FULL MODULAR: Use only the cables you need to reduce clutter to maximize airflow for a better ventilated system.
- 80 PLUS GOLD: Less energy gets wasted during power conversion; Cut down your electricity usage and be Eco-Friendly.
- PREMIUM HYBRID FAN CONTROL: Unsurpassed silent performance in Fanless Mode. Functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
- 10 YEAR WORRY-FREE WARRANTY: Our commitment to superior quality.
+
+
Specs
Reviews
Learn more about the SeaSonic USA FOCUS SGX-650 (SSR-650SGX)
| Brand | SeaSonic |
|---|---|
| Series | FOCUS SGX |
| Model | FOCUS SGX-650 (SSR-650SGX) |
| Type | SFX 12 V / ATX 12 V |
|---|---|
| Maximum Power | 650 W |
| Fans | 1 x 120mm Fluid Dynamic Bearing fan |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 6 |
| Max PSU Length | 125 mm |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Over Voltage Protection | Yes |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 9 - 4.5 A |

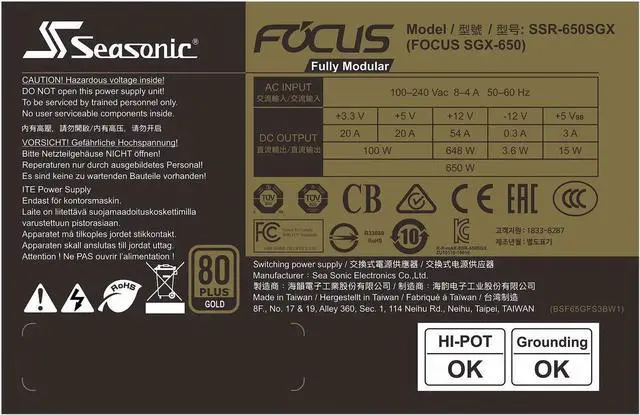

| Output | +3.3V@20A, +5V@20A, +12V@54A, [email protected], +5VSB@3A |
| MTBF | 100,000 hours MTBF @ 25 °C, excl. fan |
| Approvals | cTUVus, TUV, CB, CCC, BSMI, EAC, CE Energy Star, RoHS, WEEE, ErP Lot 6, REACH |

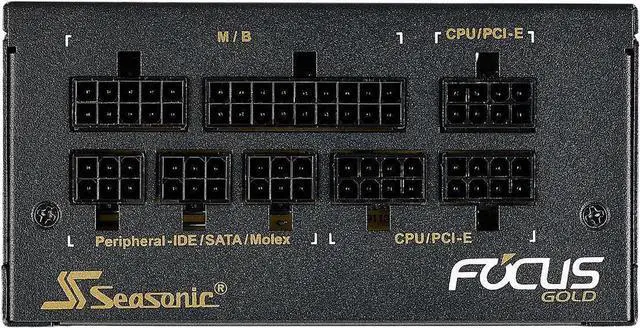

| Connectors | 1 x MB (24/20 pins) 1 x CPU (8/4 pins) 4 x PCIe (8/6 pins) 6 x SATA 3 x Molex |
| Cable Spec | 20+4Pin MB: One cable (350mm) 4+4Pin CPU: One cable (400mm) 2 x PCI-E 6+2Pin: Two cables (500mm) 3 x SATA: Two cables (600mm) 3 x Molex: One cable (700mm) |
| Features | 80 PLUS Gold certified Compact SFX-L Size - 125 (L) x 125 (W) x 63.5 (H) mm Tight Voltage Regulation Cable-free Connection Design S3FC - Fanless until 30 % load SFX to ATX Expandability Gold plated connectors |
|---|
| Dimensions | 2.50" x 4.92" x 4.92" |
|---|
| First Listed on Newegg | May 14, 2026 |
|---|
