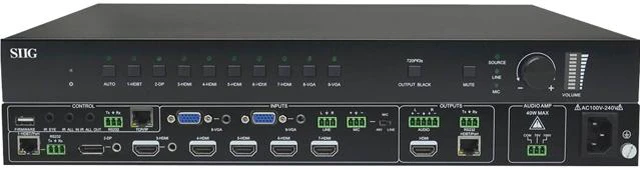

SIIG CE-H24311-S1 9x1 HDBaseT 4K Scaler Switcher

Item #: 9B-12-191-430
Mfr. Part #: CE-H24311-S1

Be the first to review this product...

Scales and switches up to 9 inputs of different formats to an HDMI and HDBaseT outputs simultaneously
Output resolution can be selected between720p, 4K @60Hz YUV 4:2:0, or 4K @30Hz YUV 4:4:4
Receives signals via HDBaseT Input up to 40m (131ft) at 4K or 70m (230ft) at 1080p
Transmits signals via HDBaseT Output up to 70m (230ft) at 4K or 100m (328ft) at 1080p
Device switching controllable via push buttons, IR remote, RS232 and GUI
Supports Bi-directional IR control and RS232 pass-through

Overview

Specs

Reviews

Model
Brand	SIIG
Model	CE-H24311-S1

Details
Type	9x1 HDBaseT 4K Scaler Switcher
Color	Black
Ports	4x 19-pin HDMI, Type A, Female, Input 1x 19-pin HDMI with 3.5mm jack external audio, Input 1x 20-pin DP with 3.5mm jack external audio, Input 1x 8P8C RJ-45, HDBaseT signal with 48V PoH, Input 2x 15-pin VGA D-sub with 3.5mm jack external audio, Input 1x 3-pin Line Audio, Input 1x 3-pin MIC Audio, Input 1x 19-pin HDMI Type-A, Output 1x 8P8C RJ-45, HDBaseT signal with 48V PoH, Output 1x 4-pin USB Type-A, Firmware update 1x 3.5mm IR EYE with IR Receiver 1x 3.5mm IR with IR Receiver, Input 1x 3.5mm IR with IR Emitter, Output 1x 3-pin terminal block RS-232, control device 1x 8P8C RJ-45, TCP/IP control Switcher via GUI 1x 5-pin terminal block Audio, Output 1x 3-pin terminal block RS-232, pass-through function 1x 3-pin terminal block Audio AMP, Output 1x 3-pin Power port
Specifications	Compliant with HDMI 1.4 and HDCP 2.2 Supports video source auto-switching function HDBaseT Input port: Transmission distances: up to 70m (230ft) at 1080p and 40m (131ft) at 4K on a single CAT5e/6/7 cable HDBaseT Output port: Transmission distances: up to 100m (328ft) at 1080p and 70m (230ft) at 4Kx2K on a single CAT5e/6/7 cable Output resolutions: 1280x720(default), 1920x1080, 1024x768, 1360x768, 3840x2160@30Hz, 3840x2160@60Hz DP, HDMI and VGA video inputs can be embedded with external audio Supports Line or Mic audio inputs, and MIC port supports balance/unbalance signal, suppress the external noise effectively Bi-directional IR and RS232 pass-through Convenient firmware update port Metal housing

Features
Features	Scales and switches up to 9 inputs of different formats to an HDMI and HDBaseT outputs simultaneously Output resolution can be selected between720p, 4K @60Hz YUV 4:2:0, or 4K @30Hz YUV 4:4:4 Receives signals via HDBaseT Input up to 40m (131ft) at 4K or 70m (230ft) at 1080p Transmits signals via HDBaseT Output up to 70m (230ft) at 4K or 100m (328ft) at 1080p Device switching controllable via push buttons, IR remote, RS232 and GUI Supports Bi-directional IR control and RS232 pass-through

Dimensions & Weight
Dimensions	17.18" (W) x 1.74" (H) x 10.89" (D)
Weight	7.72 lbs.

Additional Information
First Listed on Newegg	May 27, 2020
