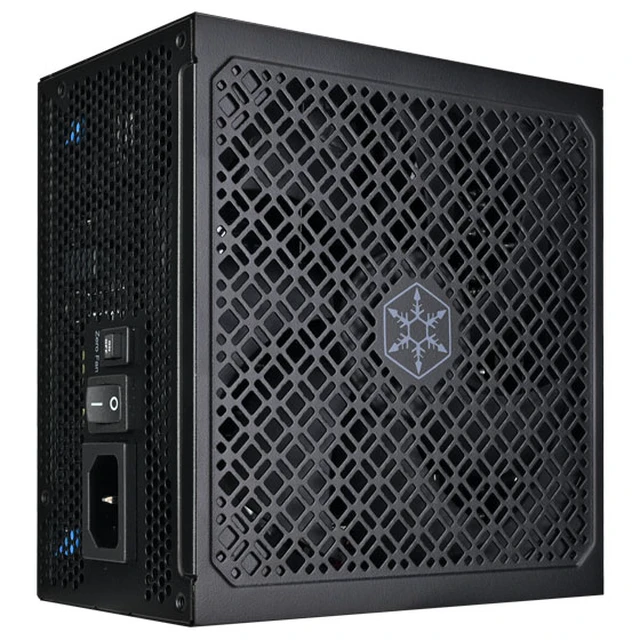

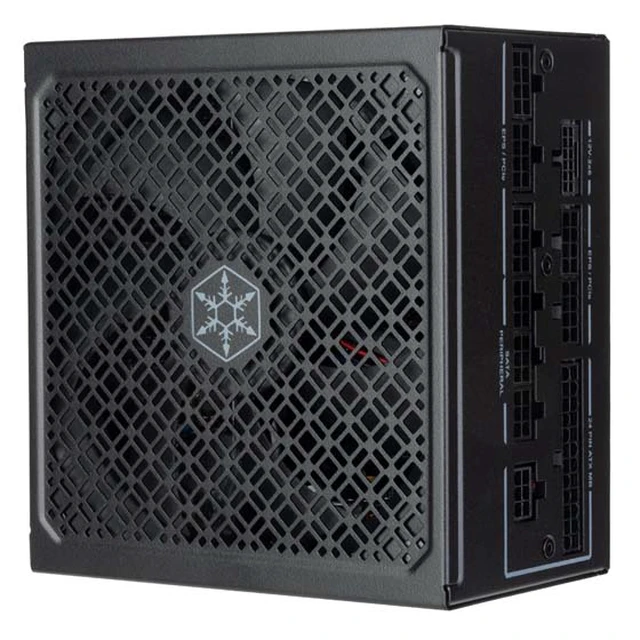

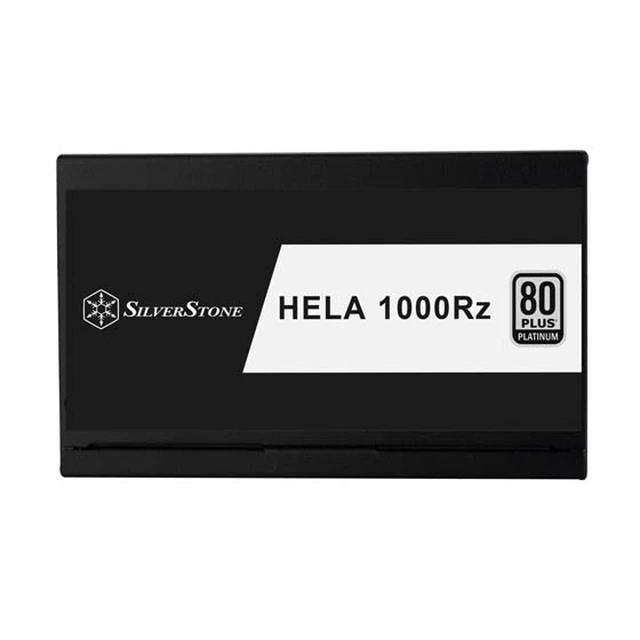

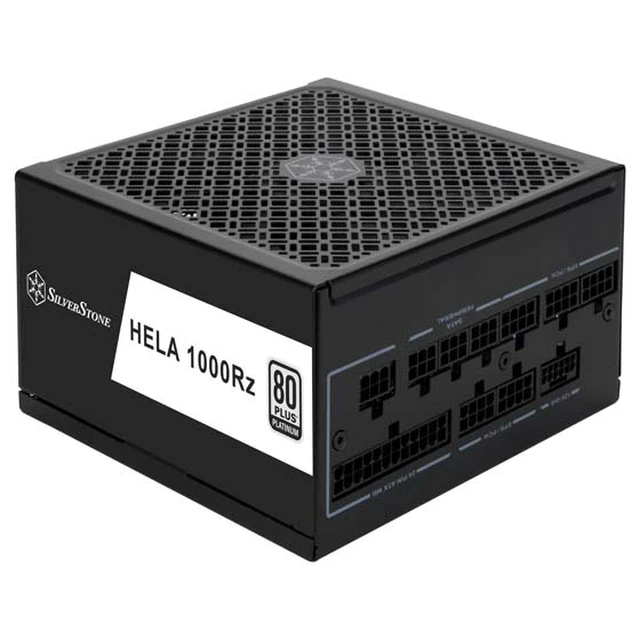

    SilverStone PS-HA1000R-PM 80 PLUS Platinum 1000W ATX 3.1 & PCIe 5 Fully Modular ATX Power Supply

    • Item #: 9B-17-256-244
    • Mfr. Part #: PS-HA1000R-PM
    • UNSPSC: 39121004
    Be the first to review this product...
    • Supports 12V-2x6 PCIe connector with ATX 3.1 and PCIe Gen 5 standard
    • High efficiency with 80 PLUS Platinum certification
    • 100% modular cables with black embossed flat cable design
    • 24/7 continuous power output with 40°C operating temperature
    • All Japanese electrolytic capacitors

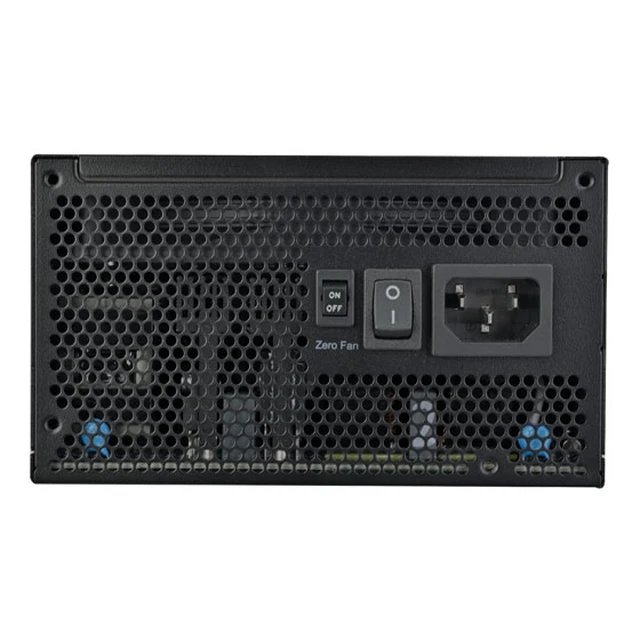

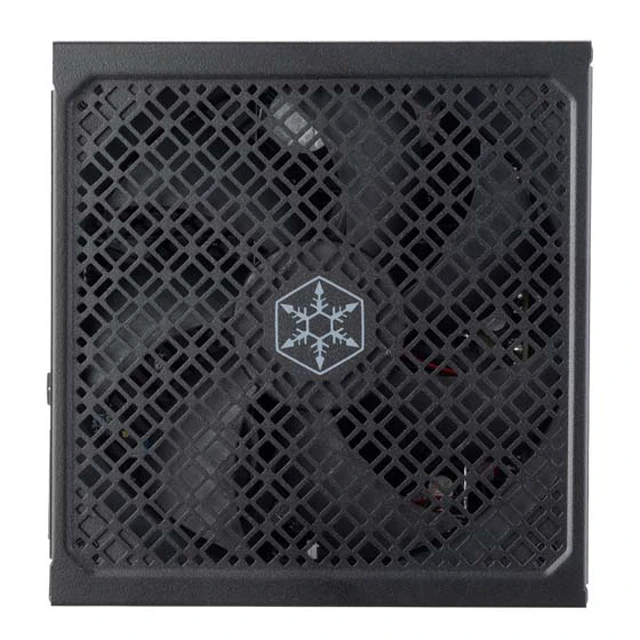

    • Silent running 135mm FDB fan with auto semi-fanless function
    • Included 180° angled SATA connectors designed for stack mounted hard drives
    +
    +
    Specs
    Reviews

    Learn more about the SilverStone HELA 1000Rz

    Model
    Brand SilverStone
    Model HELA 1000Rz
    Part Number PS-HA1000R-PM
    Details
    Type ATX 3.1
    Maximum Power 1000W
    Fans Single 135mm FDB fan
    Main Connector 20+4Pin

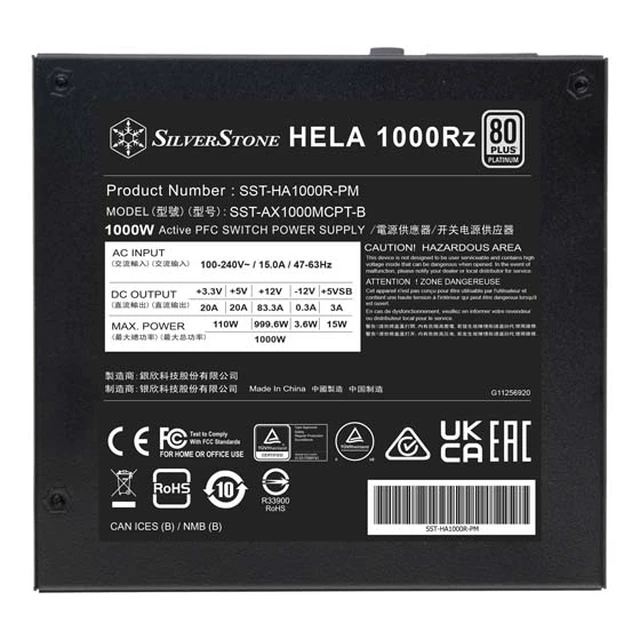

    Output +3.3V@20A, +5V@20A, [email protected], [email protected], [email protected]
    Input Voltage 90 - 264 V
    Input Frequency Range 47 - 63 Hz
    MTBF 100,000 hours
    Energy-Efficient 80 PLUS PLATINUM Certified
    PSU Noise Level 18 dBA min.
    Protection Over power protection
    Over current protection
    Over voltage protection
    Short circuit protection
    Over Temperature protection

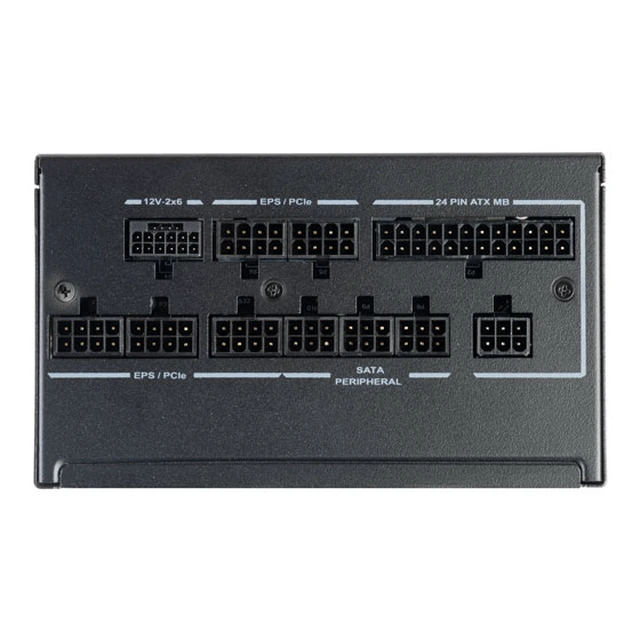

    Connectors 1 x 24/20-Pin motherboard connector
    2 x 8 / 4-Pin EPS / ATX 12V connector
    2 x 12+4-Pin 12V-2x6 connector
    5 x 8 / 6-Pin PCIe connectors
    8 x SATA connector
    4 x 4-Pin Peripheral connector
    Cable Spec 1 x 24 Pin motherboard cable (600mm, 1 connector / cable)
    1 x 12V-2x6 cable (600mm, 1 connector / cable)
    2 x CPU 4+4P cable (700mm, 1 connector / cable)
    1 x PCIe 6+2P cable (600mm, 1 connector / cable)
    2 x PCIe 6+2P cable (600mm + 150mm, 2 connectors / cable)
    2 x SATA cable (600mm + 150mm + 150mm + 150mm, 4 connectors / cable)
    1 x Peripheral 4P cable (600mm + 150mm + 150mm + 150mm, 4 connectors / cable)
    Dimensions & Weight
    Dimensions 150 x 86 x 140mm
    Environmental
    Humidity 89% ~ 92% (at 20% ~ 100% loading)
    Temperature 0° C - 40° C
