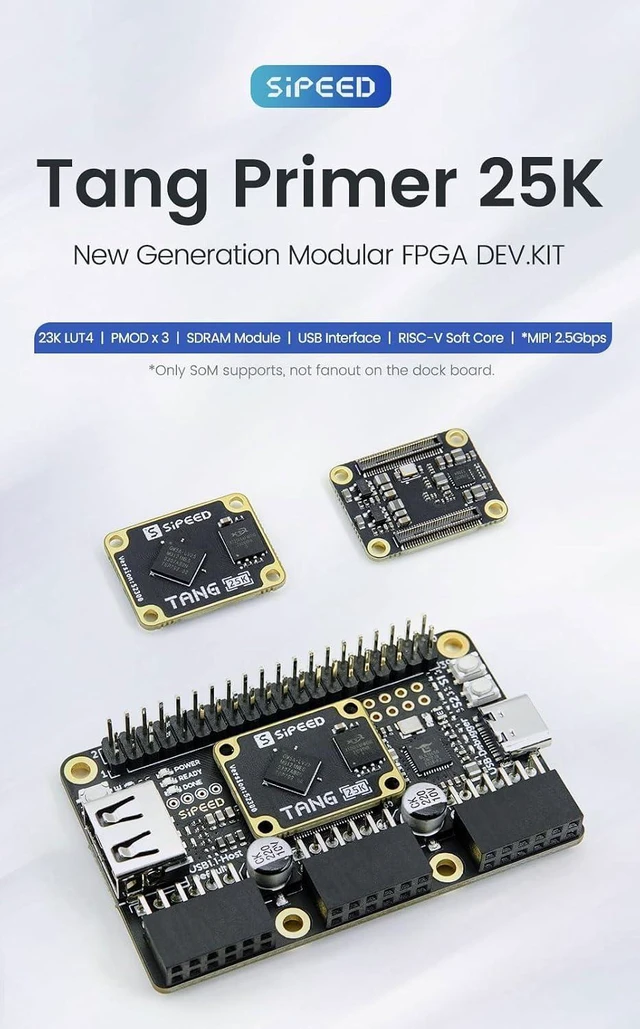

Tang Primer 25K FPGA Development Board FPGA Dock Board with Gowin GW5A RISC-V MCU 23K LUT4 USB-JTAG 3 PMOD 40P Header 76 GPIO 4-Lane MIPI 2.5Gbps 64Mbit SPI FLASH 3 Power Outputs
- Item #: 9SIVUX4M8T1951
- Mfr. Part #: 399672567374
- Modular dock board design with a USB-JTAG debugger for programming and debugging connections.
- Includes 3 PMOD interfaces for connecting supported HDMI, gamepad, and LED modules.

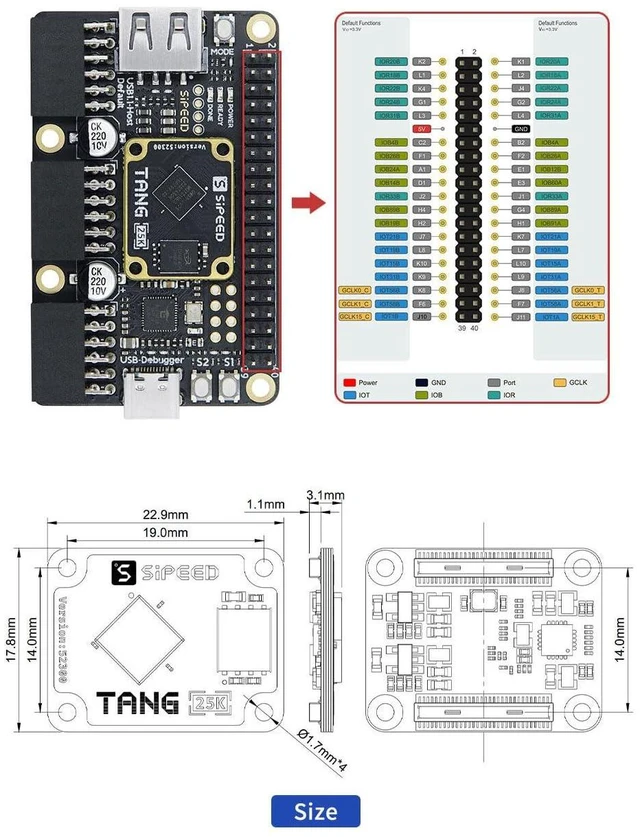

- Features a 40P pin header interface for connections to SDRAM modules and dual DVP camera modules.
- Integrated SoM design includes the GW5A-LV25MG121 device, 64Mbit SPI flash, DC-DC power supply, and BTB connector.
- Provides 76 GPIOs for interfacing with connected modules and peripheral hardware.
- Equipped with 1 hard-core 4-lane MIPI D-PHY interface; the title specifies MIPI 2.5Gbps.
- Offers 3 power outputs as part of the SoM board connectivity configuration.
- Designed to operate when supplied with 5V and configured correctly.
- Compact, highly integrated SoM board fits its integrated components into an area smaller than a coin.
+
+
Overview
Specs
Reviews
Product Description:

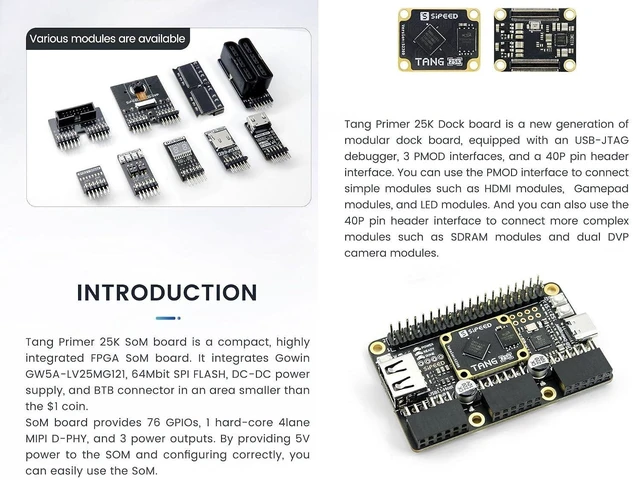

Modular FPGA dock board designed for development projects using PMOD modules and 40P pin-header modules. It includes a USB-JTAG debugger and supports connections for modules such as HDMI, gamepad, LED, SDRAM, and dual DVP camera modules.
Core Selling Points:
The compact, highly integrated SoM board combines the FPGA device, SPI flash, DC-DC power supply, and BTB connector. It provides multiple expansion interfaces, 76 GPIOs, a hard-core 4-lane MIPI D-PHY, and three power outputs for modular development.
Technical Specifications:
FPGA: Gowin GW5A-LV25MG121. Logic capacity: 23K LUT4. Memory: 64Mbit SPI FLASH. Debug interface: USB-JTAG. Expansion: 3 PMOD interfaces and 40P pin header interface. GPIO: 76. MIPI: 1 hard-core 4-lane MIPI D-PHY, 2.5Gbps. Power: DC-DC power supply; 3 power outputs; 5V SoM supply requirement.
Before Purchase:
Supply the SoM with 5V and configure it correctly before use. Confirm that your intended modules use the available PMOD or 40P pin-header interfaces.
