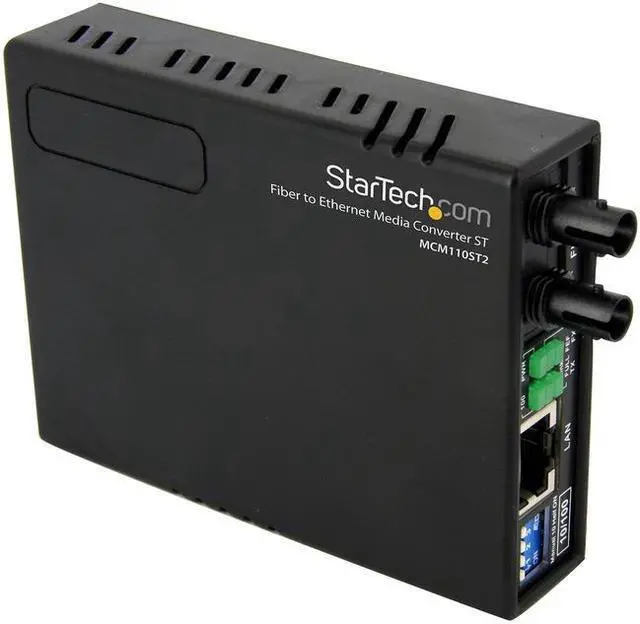

StarTech MCM110ST2 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km - UTP to 100Base-Fx - Fiber Optic Media Converter MM

Type: Multi Mode ST - 10/100 Mbps

Supports a maximum multi mode fiber optic cable distance of 2 km
Supports full or half-duplex operation
Compatible with 3com, Cisco, Lucent and Nortel networks
Supports Link Fault Pass through (LFP)
Supports IEEE 802.3 10Base-T, 802.3u 100Base-TX and 100Base-FX industry standards
Supports IEEE 802.1q Tag VLAN pass thru
Supports Q in Q double tagged frame transparent
LED Indicators for simple Ethernet/Fiber network link monitoring
Support flow control (Pause)

Overview

Specs

Reviews (1)

Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode

Model
Brand	StarTech.com
Model	MCM110ST2

Details
Device Type	Converter
Standards	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-FX IEEE 802.3u 100BASE-TX
Wavelength	1310nm
Fiber Cable	Multi-mode Optical Fiber
Ports	1 x Fiber Optic ST Duplex Female 1 x RJ-45 Female
Max Distance	2 km (1.2 mi)
Transfer Rate	10/100 Mbps
LEDs	1 x Ethernet Link & Activity (ON x Fiber Link ok, Blinking x Activity on Fiber Link) 1 x FEF [Far End Fault](On x Fault Detected, Off x No Fault 1 x Fiber Link & Activity (On x Fiber Link ok, Blinking x Activity on Fiber Link) 1 x Full ( Full duplex / Half duplex) 1 x Power 1 x Speed (10 or 100 Mbps)
Power Adapter	Center Tip Polarity: Positive Input Voltage: 115V AC Output Current: 0.2A Output Voltage: 12 DC Plug Type: M Power Consumption (In Watts): 2.4 Power Source: AC Adapter Included

Environmental
Temperature	Operating Temperature: 0 ~ 50 degree Celsius (32 ~ 122 degree Fahrenheit) Storage Temperature: -10 ~ 70 degree Celsius (14 ~ 158 degree Fahrenheit)

Features
Feature	Supports a maximum multi mode fiber optic cable distance of 2 km Supports full or half-duplex operation Compatible with 3COM, Cisco, Lucent and Nortel networks Supports Link Fault Pass through (LFP) Supports IEEE 802.3 10Base-T, 802.3u 100Base-TX and 100Base-FX industry standards Supports IEEE 802.1q Tag VLAN pass thru Supports Q in Q double tagged frame transparent LED Indicators for simple Ethernet / Fiber network link monitoring Support flow control (Pause)

Dimensions & Weight
Dimensions	0.80" x 3.70" x 3.00"
Weight	0.18 lb.

Package Contents
Package Contents	1 x Media Converter 1 x Power Adapter 1 x Instruction Manual
