    SUPERMICRO SYS-6017R-WRF 1U Rackmount Server Barebone Dual LGA 2011 Intel C602 DDR3 1600/1333/1066/800

    (2) Write a Review
    • Dual LGA 2011
    • Support Dual Intel Xeon E5-2600 (up to 130W TDP) Series
    • 16 x 240 Pin Memory Slots
    • Supports up to 512 GB DDR3 ECC Registered memory (RDIMM)
    • Supports up to 192 GB DDR3 ECC Un-Buffered memory (UDIMM)
    +
    +
    Overview
    Specs
    Reviews (2)


    SUPERMICRO SYS-1027R-WRF4+ 1U Rackmount Server Barebone

    Key Features


    PHILIPS
    1. 1. Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
    2. 2. Up to 1TB ECC DDR3, up to 1866MHz; 16x DIMM sockets
    3. 3. Add on card support: 2 PCI-E 3.0 x16 full-height, Half-length slots
    4. 4. Intel® i350 Dual port Gigabit Ethernet Controller; 2x LAN ports
    5. 5. 4x 3.5" Hot-swap SAS/SATA HDD Bays for Customizable Storage
    6. 6. 700W Redundant Power Supplies Gold Level Certified


    Specifications

    Product SKUs
    SYS-6017R-WRF
    • SuperServer 6017R-WRF (Black)
    Motherboard
    Super X9DRW-iF
    Processor/Cache
    CPU
    • Dual Socket R (LGA 2011)
    • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 130W TDP)
    Note † BIOS version 3.0 or above is required
    Cache
    • Up to 30MB
    System Bus
    • QPI up to 8 GT/s
    System Memory
    Memory Capacity
    • 16x 240-pin DDR3 DIMM sockets
    • Up to 1TB DDR3 ECC LRDIMM
    • Up to 512GB DDR3 ECC Registered memory (RDIMM)
    • Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)
    Memory Type
    • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
    DIMM Sizes
    • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
    Memory Voltage
    • 1.5 V, 1.35 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)
    On-Board Devices
    Chipset
    • Intel® C602 Chipset
    SATA
    • Via SATA directly
    • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
    • SATA 3.0 6Gbps with RAID 0, 1
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • Renesas SH7757 BMC
    Network Controllers
    • Intel® i350 Gigabit Ethernet Controller
    • Virtual Machine Device Queues reduce I/O overhead
    • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    • 1x Realtek RTL8211E PHY (dedicated IPMI)
    Graphics
    • G200 (Renesas SH7757 BMC)
    Input / Output
    SATA/SAS
    • Customizable storage
    LAN
    • 2x RJ45 Gigabit Ethernet LAN ports
    • 1x RJ45 Dedicated IPMI LAN port
    USB
    • 6x USB 2.0 ports total
      (4x rear + 2x via header)
    VGA
    • 1x VGA port
    Serial Port / Header
    • 1x Fast UART 16550 port / 1 Header

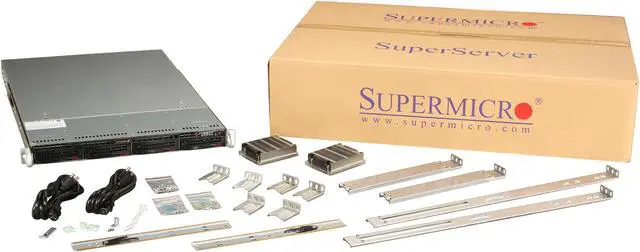

    What's in the Box

    PHILIPS

    Designed for optimal performance, the dual-processor SuperServers support the QPI (8.0GT/s) format Xeon processor E5-2600 family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.
