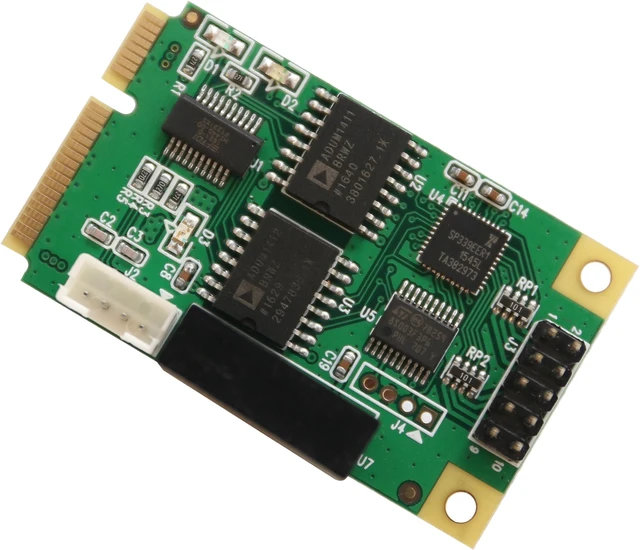

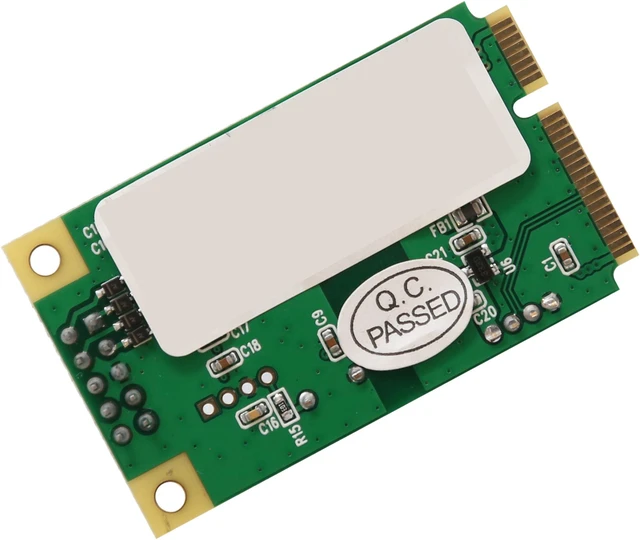

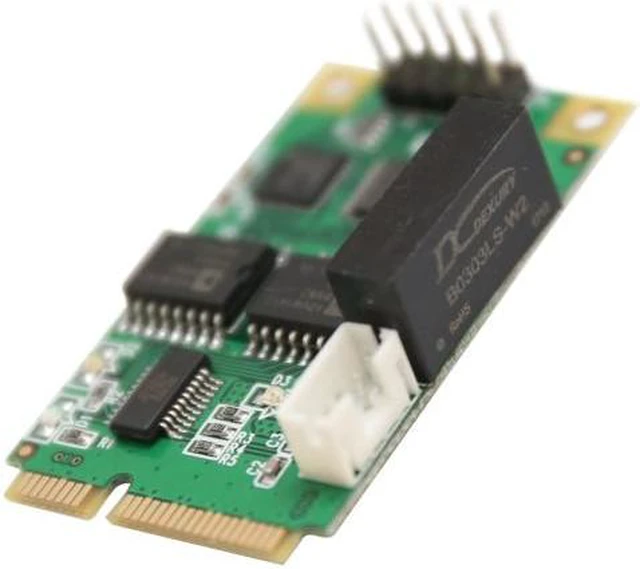

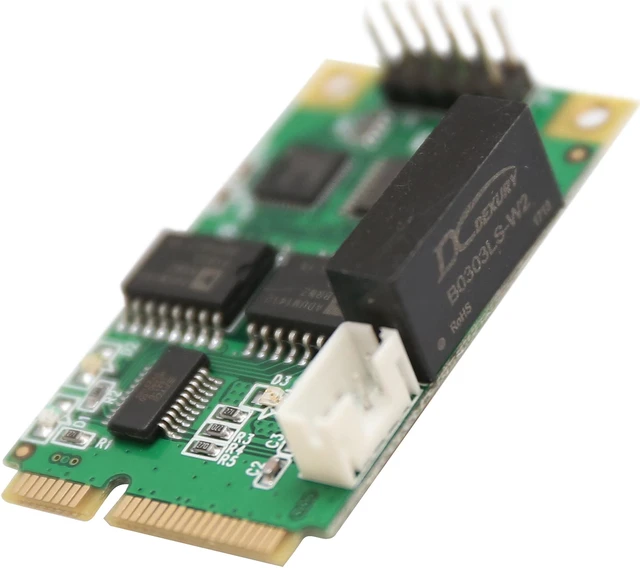

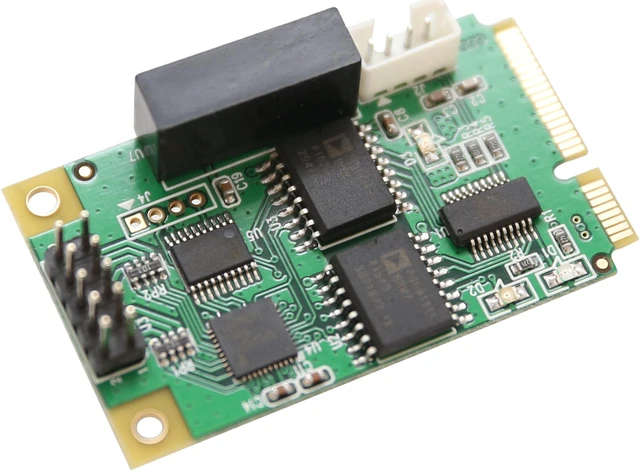

SYBA SI-MPE15062 Full Size Mini PCIe card or USB 2.0 1 Port Serial DB9 RS232 / 422 / 485 Adapter
- Item #: 9SIA4DZK1H4371
- Mfr. Part #: SI-MPE15062
- UNSPSC: 43201401
- RS232 Data Rates: 300bps to 1 Mbps
- RS422/RS485 Data Rates: 300bps to 10 Mbps
- FIFO Buffer: 4K byte transfer, 4K byte receiver
- UART interface support for 7 or 8 data bits, 1 or 2 stop bits and even/odd/mark/space/none, Flow control none, hardware and xon/xoff
- USB 2.0 High Speed (480 Mbits/sec.) and Full Speed (12 Mbits/sec.) compatible
- MiniPCIe via USB & USB pin header. Full size Mini PCIe module type combo
+
+
Specs
Reviews
Learn more about the Syba SI-MPE15062
| Brand | SYBA |
|---|---|
| Model | SI-MPE15062 |
| Changer Type | USB to DB9 (RS-232) |
|---|---|
| Specifications | RS232 Data Rates: 300bps to 1 Mbps RS422/RS485 Data Rates: 300bps to 10 Mbps FIFO Buffer: 4K byte transfer, 4K byte receiver UART interface support for 7 or 8 data bits, 1 or 2 stop bits and even/odd/mark/space/none, Flow control none, hardware and xon/xoff USB 2.0 High Speed (480 Mbits/sec.) and Full Speed (12 Mbits/sec.) compatible MiniPCIe via USB & USB pin header. Full size Mini PCIe module type combo Isolation voltage: 2500V High common-mode transient immunity: >25 kV/µs 500W surge protection and ±23KV ESD protection Signal indication: indicator lights for Power (PWR), Send (TXD) and Receive (RXD) Operating Temperature: -40 to +85 degree C |
| Features | This Mini PCIe to Serial Adapter will allow you to bring new life to your Serial devices. By being Mini PCIe, it will fit into smaller form factor computers, allowing you to place these devices in smaller, out of the way spaces. |
|---|

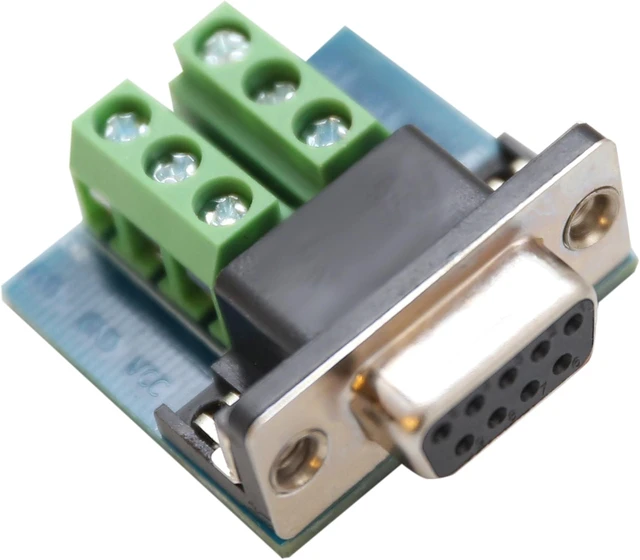

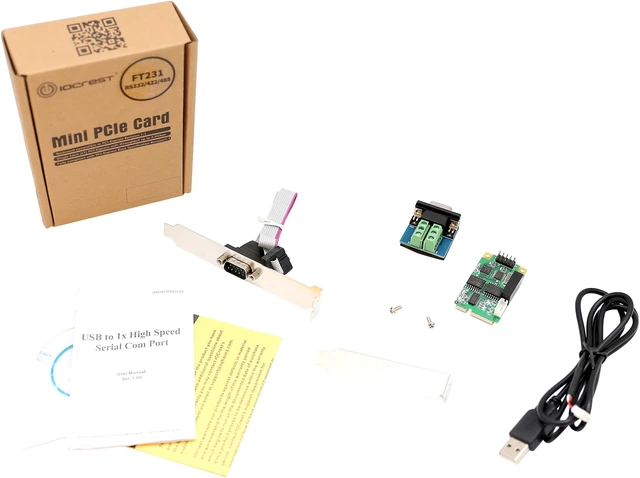

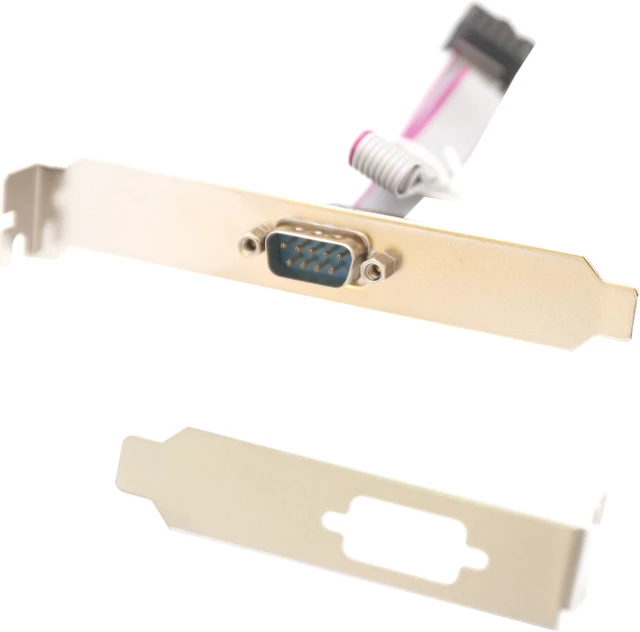

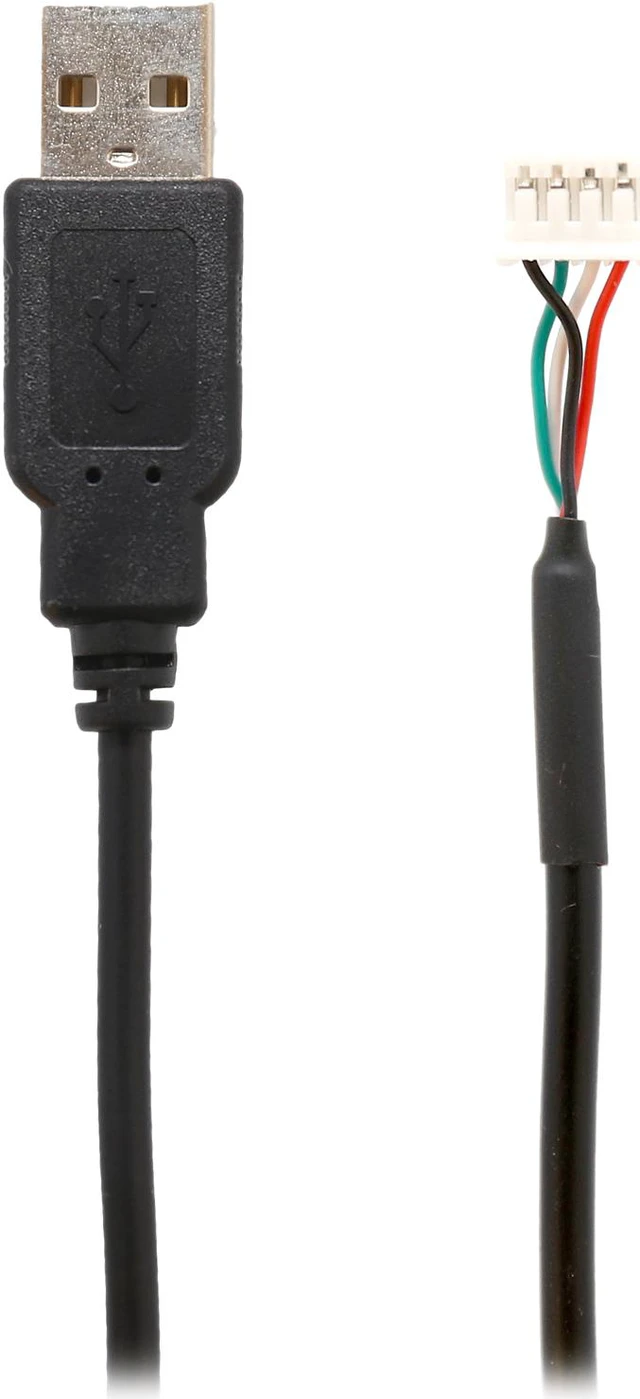

| Package Contents | 1 x MiniPCI-E Serial DB9 Serial Adapter 1 x Full Height PCI Bracket 1 x Half Height PCI Bracket 1 x Serial Ribbon Cable 1 x DB9 Terimal Adapter 1 x USB Cable |
|---|
| First Listed on Newegg | September 28, 2023 |
|---|
