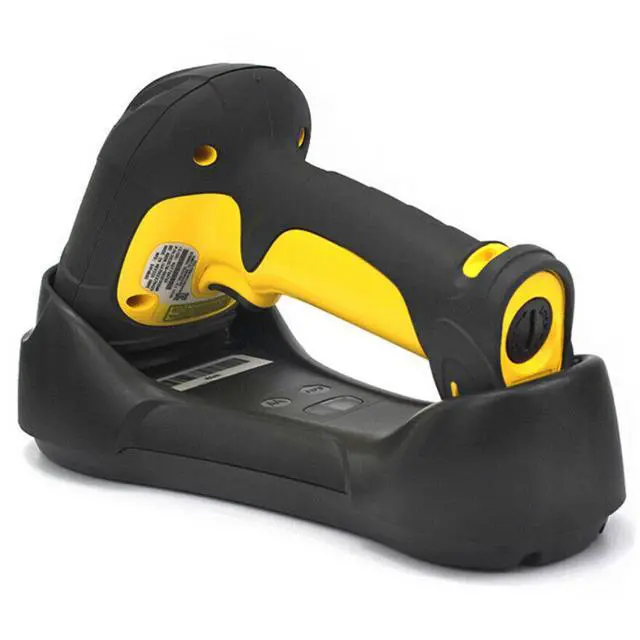

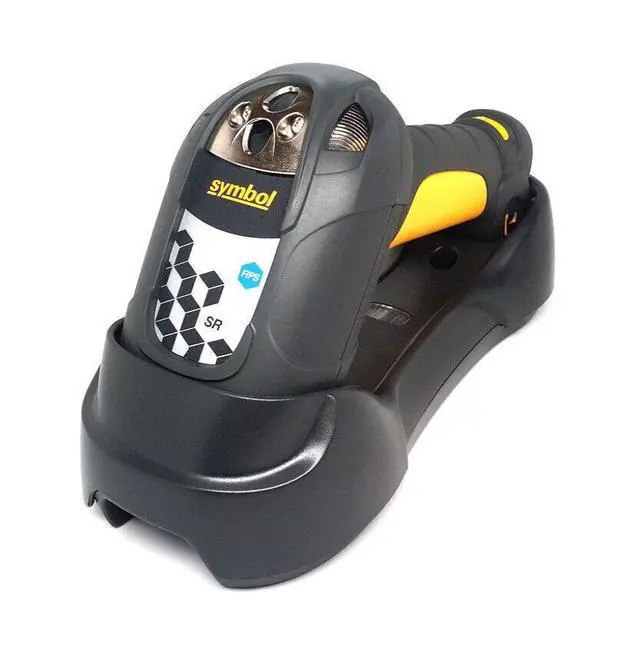

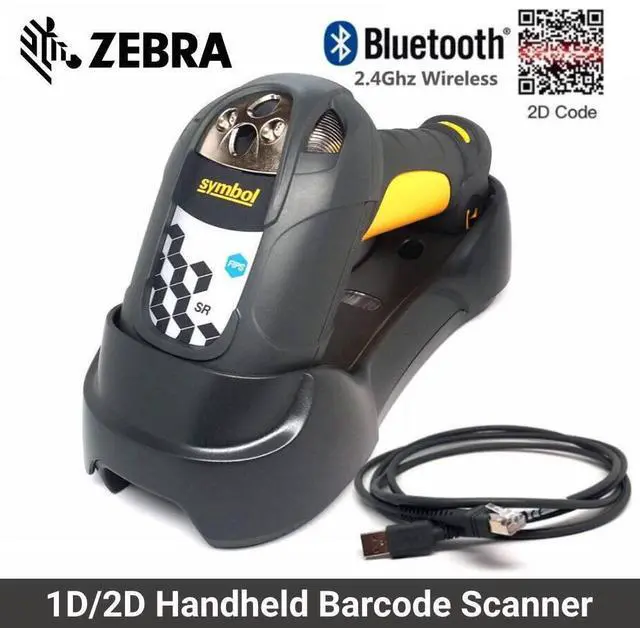

Symbol DS3578-HD 1D 2D Bluetooth Barcode Scanner Reader USB Kit W/ Cradle

Description:

DS3578-HD: Optimized for complex 2D barcode acquisition

The DS3578-HD functions the same as the DS3578-SR, but it is optimized for very fine and dense 2D bar codes, which are commonly used in warehousing, transportation logistics and manufacturing environments. In the manufacturing process, the DS3578-HD makes it easy to scan small bar codes on very small parts to check that the right accessories are used properly. This will not only improve quality, but also increase customer satisfaction and retain more customers. Real-time inventory monitoring enables manufacturers to reduce standard inventory levels, reduce inventory space requirements, and increase inventory turnover and profitability. If you find a non-conforming accessory, you can easily track the whereabouts of the non-conforming product and implement targeted recalls faster to protect your brand image, gain customer understanding and reduce recall costs. Companies that are engaged in the storage, shipping, and transportation of smaller items can easily read small, dense 2D bar codes on smaller packages.



Features:


Ability to read both 1D and 2D bar codes

Increases productivity by providing one device that can read all industry-standard bar codes



Powerful 624 MHz processor, fast sensor shutter speed and patent pending fast pulse illumination

Superior performance on 1D and 2D bar codes, improving productivity in a wide variety of applications



Ability to capture high density bar codes

Increases productivity by enabling users to read high density 2D bar codes in addition to all industry-standard bar codes



Integrated Bluetooth Class II, Version 1.2

Cable-free convenience; secure wireless transmissions; reduces repairs due to cable failure



Exceptional motion tolerance

Enables extraordinary scanning speed for all bar codes, increasing throughput and productivity regardless of application



Unique aiming pattern

Bright central laser dot ensures quick, accurate scanning -- even in bright sunlight



Cordless scanning

Enables real-time bar code data collection unrestricted by a cable, reducing repairs from cable failure



Omni-directional scanning

Speeds reading time by eliminating the need to line up the bar code with the scan line



Rugged design withstands multiple 6.5 ft. /2 m drops to concrete

Ensures maximum reliability with less downtime resulting from accidental drops



IP65-rated sealing

Protects against water and dust for reliable performance in harsh industrial conditions



Multiple on-board interfaces and universal cable set

Ensures flexible connectivity with different hosts; enables easy upgrading of hosts and cable replacement; provides investment protection



Bright LED, beeper with adjustable volume and vibrating pager motor

Multiple confirmation modes for positive user feedback in noisy environments



Advanced data formatting

Eliminates costly modifications to the host software



Supports 123Scan2 scanner configuration tool

Enables rapid and easy customized set-up through a free, wizard-based PC software tool



Supports RSM (Remote Scanner Management)

Lowers IT expenses and TCO by enabling remote management from a central location

Specifications

:

Technical Information

Connectivity Technology:

Wireless
Scanning Capability:
1D
2D
Barcode Symbology Supported:
1D Codes:

Code 39 (Standard, Full ASCII, Trioptic)
Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
Code 93
Codabar/NW7
Code 11 (Standard, Matrix 2 of 5)
MSI Plessey
I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
Base 32 (Italian Pharmacode)
PDF417 (And Variants):

PDF417 (Standard, Macro)
MicroPDF417 (Standard, Macro)
Composite Codes (CC-A, CC-B, CC-C)
2D Codes:

TLC-39
Aztec (Standard, Inverse)
MaxiCode
DataMatrix/ECC 200 (Standard, Inverse)
QR Code (Standard, Inverse, Micro)
Postal Codes:

U. S. Postnet
U. S. Planet
U. K. Postal
Japan
Postal
Australian Postal
Dutch Postal
4State Postal
Image Sensor Type:
CMOS
Imager
Depth of Field:
1.1" - 1.6" @3mil - Code 39
3.5" @4mil - Code 39
4.2" @5mil - Code 39
5.4" @ 7.5 mil - Code 39
1.1" - 9.2" @20mil - Code 39
0.8" - 6.2" @13mil - 100% UPC
3.7" @ 6.67 mil - PDF417
4.5" @10mil - PDF417
3.2" - 5.6" @15mil - PDF417
1" - 2.1" @4mil - Data Matrix
0.4" - 2.7" @5mil - Data Matrix
3.5" @ 7.5 mil - Data Matrix
4.4" @10mil - Data Matrix
1.1" - 1.4" @4mil - QR Code
0.5" - 2.2" @5mil - QR Code
3.3" @ 7.5 mil - QR Code
4"@10mil - QR Code
Scan Pattern:

Omni-directional



Network & Communication

Bluetooth:

Yes



Interfaces/Ports

Host Interface: USB



Battery Information

Battery Chemistry: Lithium Ion (Li-Ion)

Physical Characteristics

Color: Twilight Black, Yellow

Height: 7.3"

Width: 4.8"

Depth: 2.9"

Weight (Approximate): 13.79 oz

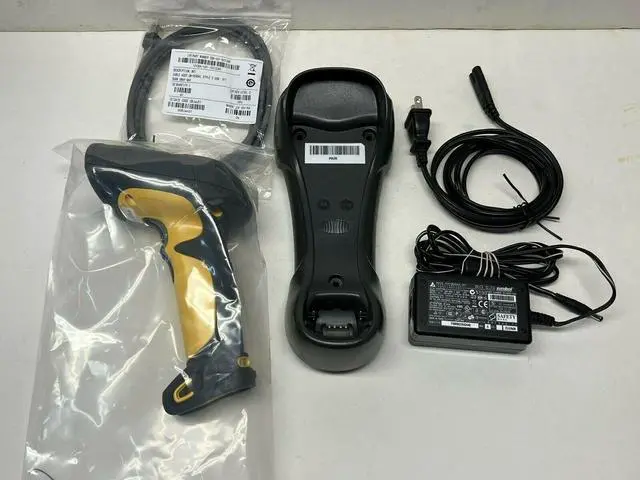

Package included:


1X Wireless Barcode Scanner (DS3578-HD)

1X Cradle

1X USB Cable

1X manual
