CM-63 Cardioid Condenser Instrument Microphone with Clip | XLR Gold-Plated Diaphragm, 30Hz-20kHz Response, Low-Noise FET, Low-Cut & -10dB Pad Switch, Requires 48V Phantom Power.
- Item #: 9SIVVH3M921862
- Mfr. Part #: 963716086817
- CM-63 adopt a gold-plated diaphragm, and precise cardioid pointing design for recording pure and delicate sound. Besides, the CM-63 microphone with a good transient reflective ability, to avoid sound distortion.
- High sensitivity(-35dB±2dB), wide frequency response(30Hz-20kHz), low distortion, and large dynamic range. It can pick up the sound of each frequency domain acutely, Suited for studio stage performance instrument Recording.
- Peak SPL is 130dB and low noise, which has the sound pressure processing capability to prevent distortion during overload and is suitable for picking up various audio sources.
- Independent innovation of moisture resistance technology plays in a variety of climatic environments as usual, and Built-in typical low-noise field-effect tube for the pre-stage impedance conversion.

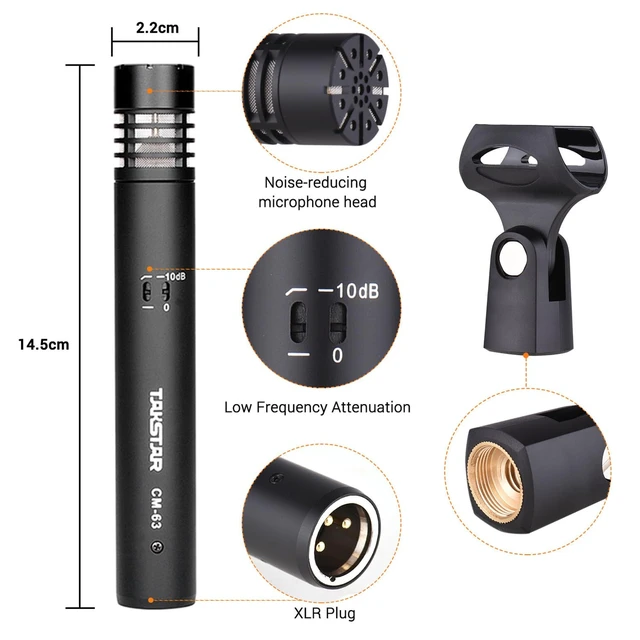

- Special low-frequency attenuation and sensitivity attenuation switches adapt to different places of application, and adopt high fidelity OTL class A amplifier, low impedance output, reducing the transmission loss of the line.
+
+
Overview
Specs
Reviews
The use of anti-humidity technology ensures stable performance in all weather conditions. Wide frequency response, high sensitivity. Gold-plated diaphragm condenser capsule, excellent transient response prevents unwanted harmonic distortion. Built-in classic low-noise FET for pre-impedance conversion. Low-frequency attenuation and sensitivity attenuation switch suitable for various applications. Hi-Fi OTL Class A amplification and low impedance output reduces cable transmission loss. Multiple finish process for long life.
Element: Gold-plated Diaphragm Capsule
Transducer Principle: Pressure Gradient Transducer
Polar Pattern: Cardioid

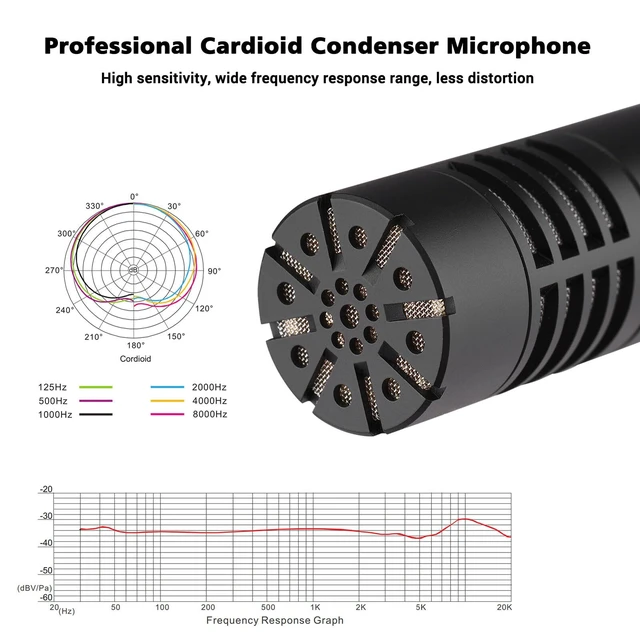

Frequency Response: 30Hz-20KHz
Sensitivity: -35dB±2dB (0dB=1V/Pa at 1KHz)
Equivalent Noise Level: 20dB A (IEC 581-5)
Max. Input SPL: 130dB (T.H.D1% at 1KHz)140dB (with 10dB pad)(T.H.D1% at 1KHz)
Dynamic Range: 110dB
Bass Filter: 12dB/octave at 100Hz
Output Impedance: 200±30% (at 1KHz)
Load Impedance: 1000

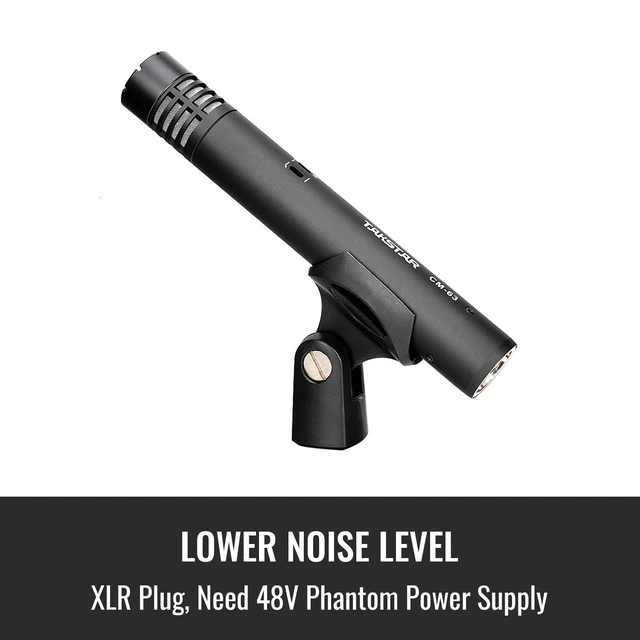

Power Requirements: 48V DC Phantom Power
