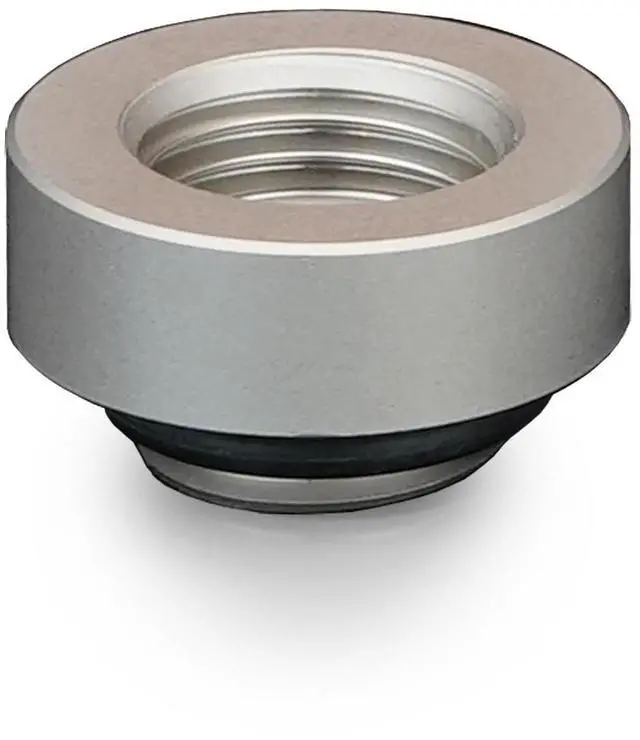

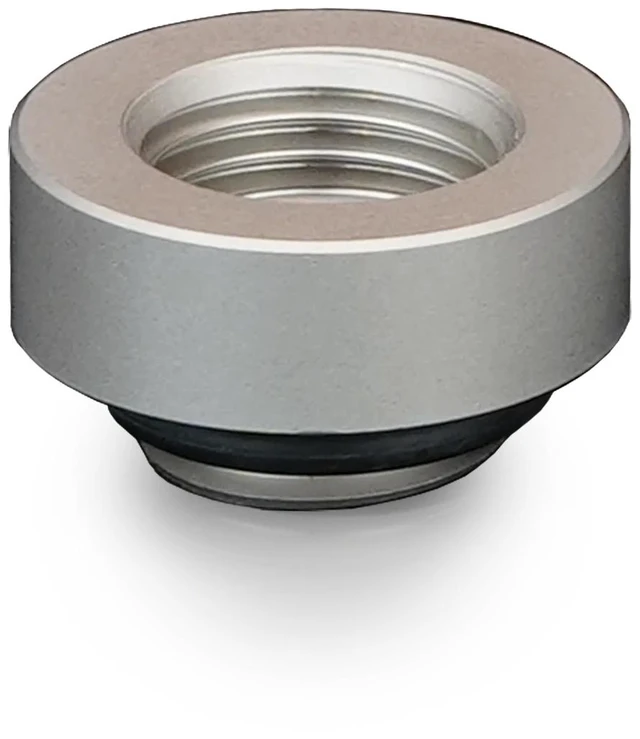

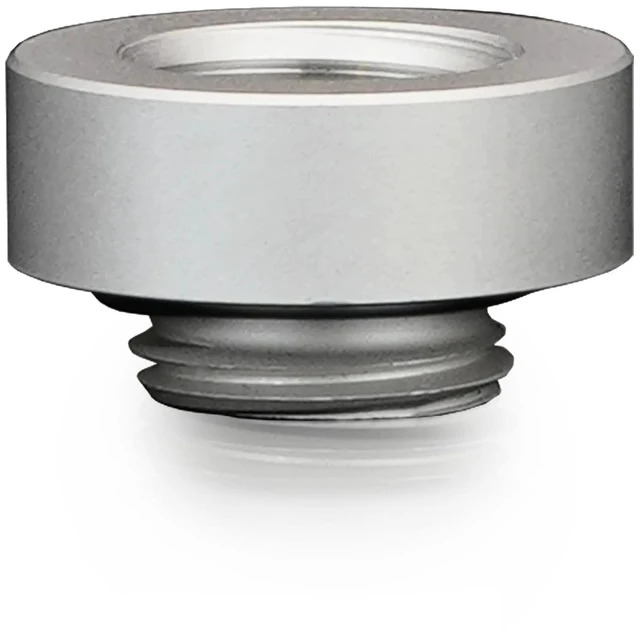

Thermal Grizzly DeltaMate 7mm Male to Female Extender Fitting - MF7 - Matte Nickel, G1/4, Brass (TG-DM-FIT-0205)

Thermal Grizzly's DeltaMate 7mm Male to Female Extender Fitting (MF7) in Matte Nickel is a fixed length extension fitting. It is installed between a water-cooling component's port and the fitting, increasing the spacing by 7 mm. The same extender comes in black and as a matte nickel 6 pack.

Properties

• Added spacing: 7 mm, fixed length
• Threads: G1/4" male to G1/4" female
• Material: Brass, matte nickel plating
• O-rings: EPDM
• Install: 8mm hex key
• Weight: 14 g, 16 g boxed

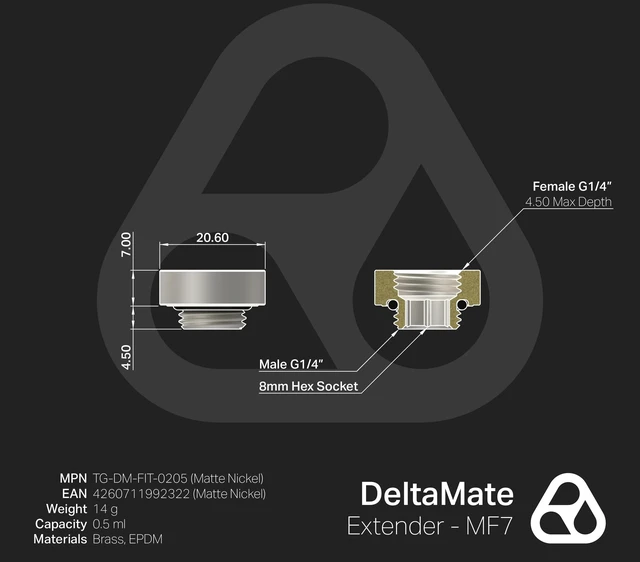

Threads and spacing

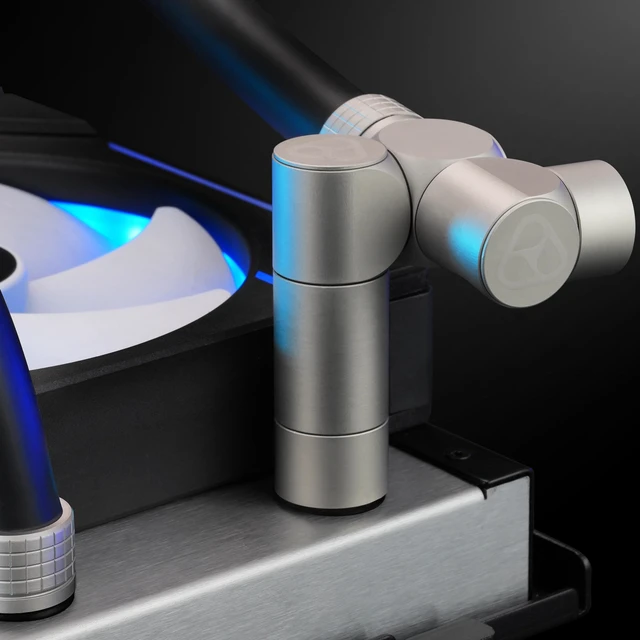

The MF7 features one G1/4" male thread and one G1/4" female thread. It is a practical way to increase the distance between ports and fittings by a set 7mm. Two DeltaMate Rotary - 90° fittings can be combined with it to create a Double Rotary with an offset of 28mm. Note the maximum thread depth: 4.5mm! The other matte nickel lengths are the MF10, MF14 and MF28.

General information

DeltaMate Extender Fittings are the water cooling connectors Thermal Grizzly designed for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, the extender is precisely machined from brass. Brass is an alloy of copper and zinc. It offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper. The sealing rings (O-rings) are made from EPDM (ethylene propylene diene rubber), which is highly elastic and resistant to ozone and UV radiation. The extender is finished with a matte nickel plating that's both premium in appearance, in Thermal Grizzly's words, and easy to clean.

Installation

The robust design allows for installation using an 8 mm hex key. Every DeltaMate fitting has the same uniform, consistent outer diameter, which ensures completely seamless integration of the extender with all the other fittings used in a loop.

In the box

• 1x DeltaMate MF7 extender fitting, matte nickel
