Thermal Grizzly DeltaMate 10mm Male to Female Extender Fitting - MF10 - Matte Nickel, G1/4, Brass (TG-DM-FIT-0206)
- Item #: 9SIV1R4KSC6222
- Mfr. Part #: TG-DM-FIT-0206
- DeltaMate Extender Fittings are water cooling connectors designed for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, the extender fittings are precisely machined from brass. Brass, as an alloy of c
- The sealing rings (O-rings) are made from highly elastic EPDM (ethylene propylene diene rubber), which is resistant to ozone and UV radiation. The robust design of the DeltaMate fittings allows for installation using an 8 mm hex key. The uniform oute
- The DeltaMate Extender - MF10 features one G1/4 male thread and one G1/4 female thread, and is finished with a matt nickel plating thats both premium in appearance and easy to clean. Used as an extension fitting, its installed between the water-c

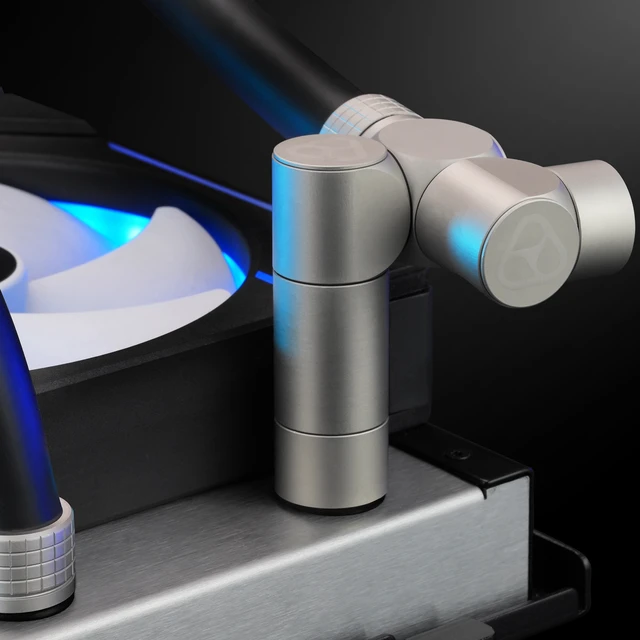

- Can be combined with a DeltaMate Rotary to create a direct replacement for conventional rotary fittings.
- Practical fixed length extender to increase the spacing between ports and fittings by 10.5mm.
+
+
Overview
Specs
Reviews

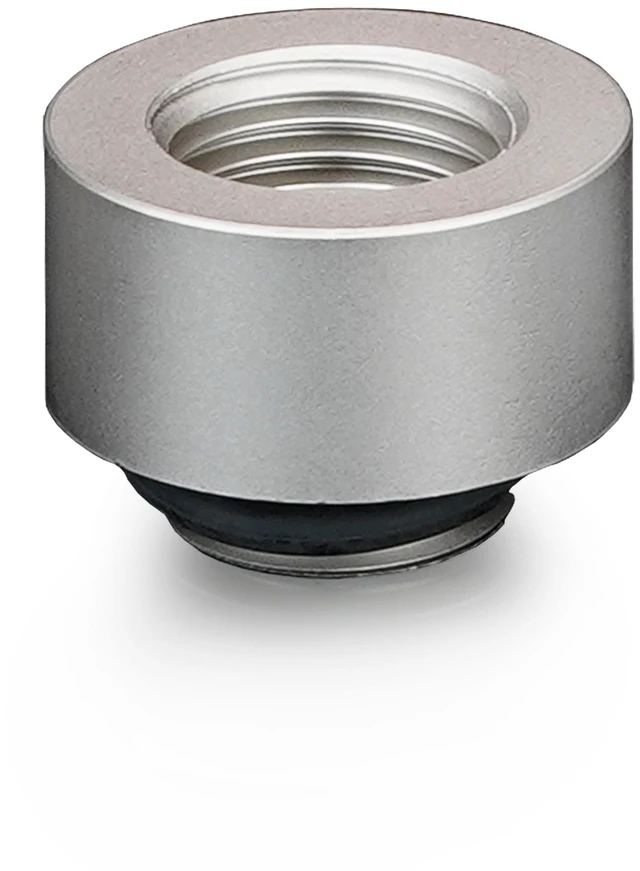

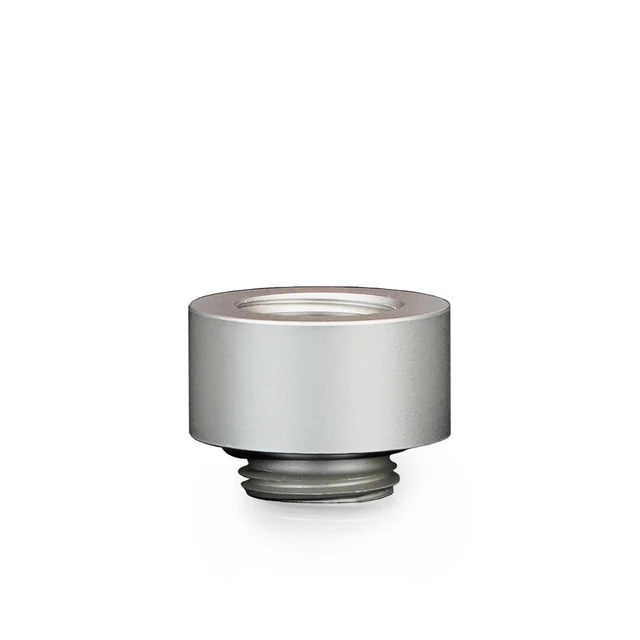

Thermal Grizzly's DeltaMate 10mm Male to Female Extender Fitting (MF10) in Matte Nickel is a fixed length extension fitting. It is installed between a water-cooling component's port and the fitting, increasing the spacing by 10 mm. The same extender comes in black and as a matte nickel 6 pack.
Properties
- Added spacing: 10 mm by name, 10.5 mm per the data sheet
- Threads: G1/4" male to G1/4" female
- Material: Brass, matte nickel plating
- O-rings: EPDM
- Install: 8mm hex key
- Weight: 22 g, 24 g boxed
Threads and spacing

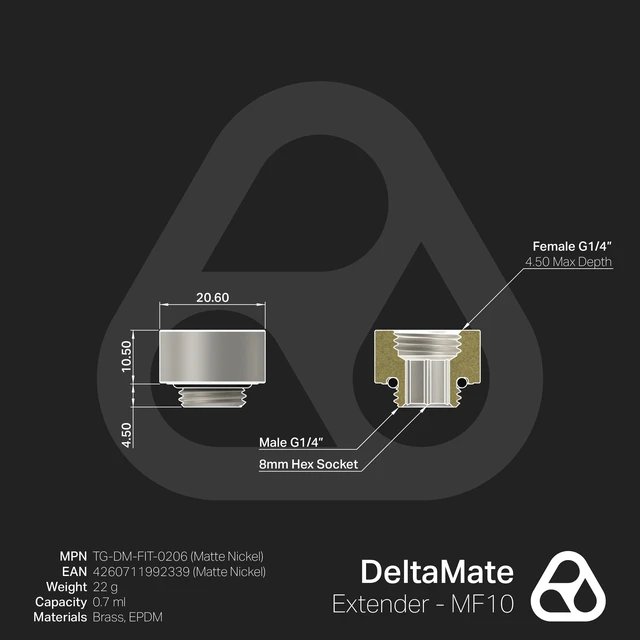

The MF10 features one G1/4" male thread and one G1/4" female thread. It is a practical way to increase the distance between ports and fittings: 10mm by name, 10.5mm in Thermal Grizzly's properties list and data sheet. It can be combined with a DeltaMate Rotary, such as the 90° in matte nickel, to create a direct replacement for conventional rotary fittings. Note the maximum thread depth: 4.5mm! The other matte nickel lengths are the MF7, MF14 and MF28.
General information
DeltaMate Extender Fittings are the water cooling connectors Thermal Grizzly designed for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, the extender is precisely machined from brass. Brass is an alloy of copper and zinc. It offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper. The sealing rings (O-rings) are made from EPDM (ethylene propylene diene rubber), which is highly elastic and resistant to ozone and UV radiation. The extender is finished with a matte nickel plating that's both premium in appearance, in Thermal Grizzly's words, and easy to clean.
Installation
The robust design allows for installation using an 8 mm hex key. Every DeltaMate fitting has the same uniform, consistent outer diameter, which ensures completely seamless integration of the extender with all the other fittings used in a loop.
In the box
- 1x DeltaMate MF10 extender fitting, matte nickel
