Thermal Grizzly DeltaMate 28mm Male to Female Extender Fitting - MF28 - Matte Nickel, G1/4, Brass (TG-DM-FIT-0208)
- Item #: 9SIV1R4KSC6230
- Mfr. Part #: TG-DM-FIT-0208
- DeltaMate Extender Fittings are water cooling connectors designed for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, the extender fittings are precisely machined from brass. Brass, as an alloy of c
- The sealing rings (O-rings) are made from highly elastic EPDM (ethylene propylene diene rubber), which is resistant to ozone and UV radiation. The robust design of the DeltaMate fittings allows for installation using an 8 mm hex key. The uniform oute
- The DeltaMate Extender - MF28 features one G1/4 male thread and one G1/4 female thread, and is finished with a matt nickel plating thats both premium in appearance and easy to clean. Used as an extension fitting, its installed between the water-c

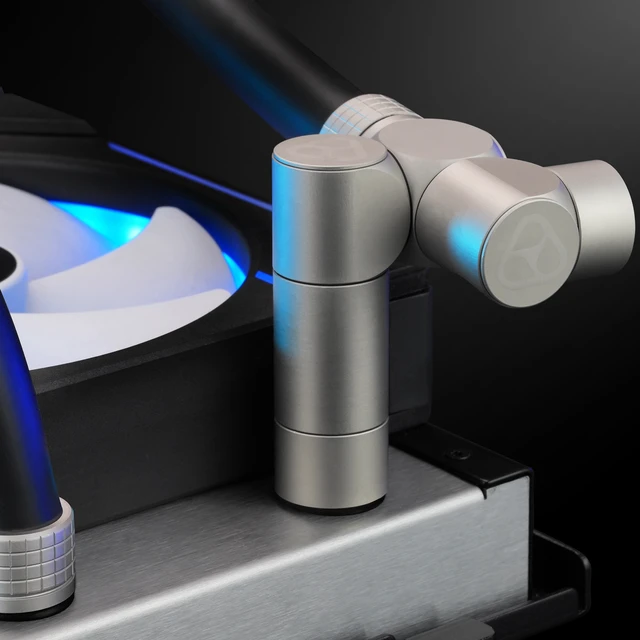

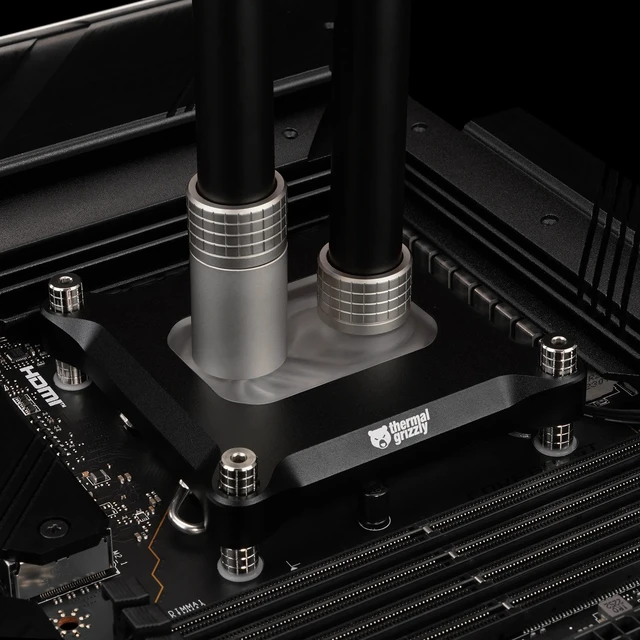

- Commonly used to add clearance for memory modules and fans or two parallel tubes in the same plane.
- Practical fixed length extender to increase the spacing between ports and fittings by 28mm.
+
+
Overview
Specs
Reviews

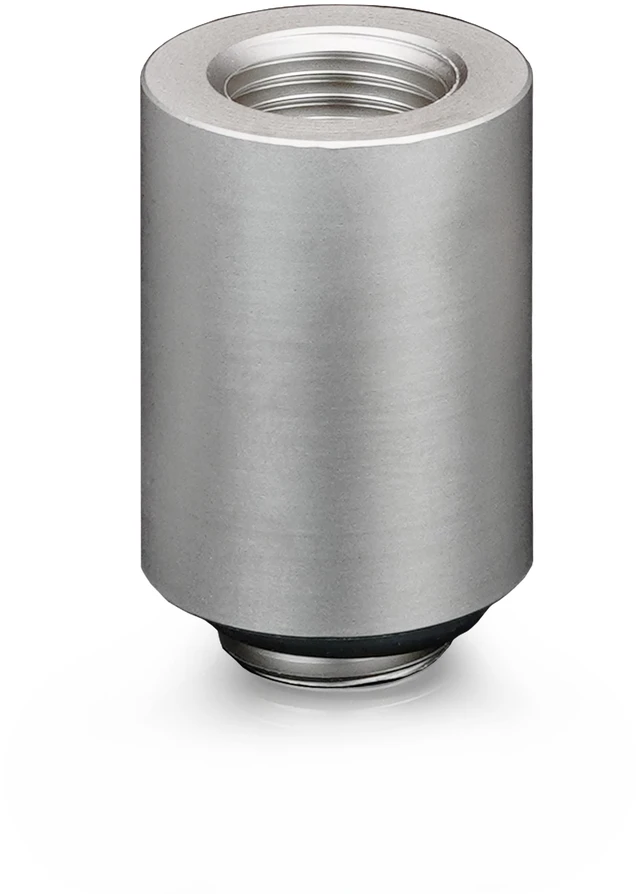

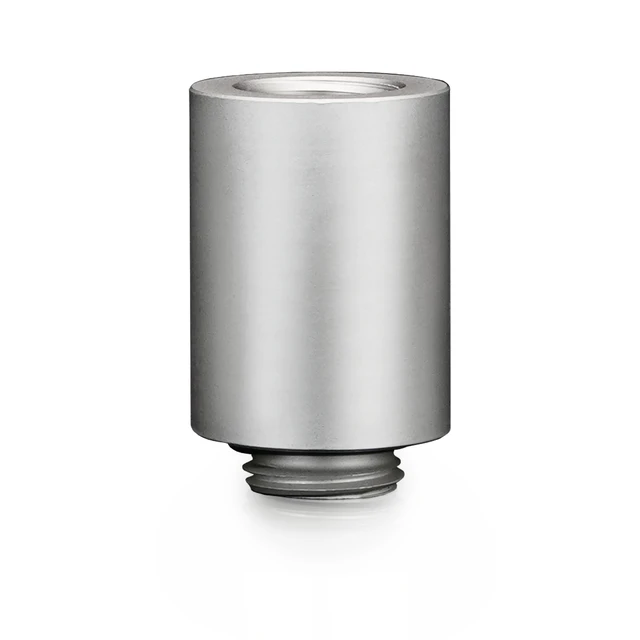

Thermal Grizzly's DeltaMate 28mm Male to Female Extender Fitting (MF28) in Matte Nickel is a fixed length extension fitting. It is installed between a water-cooling component's port and the fitting, increasing the spacing by 28 mm. The same extender comes in black and as a matte nickel 6 pack.
Properties
- Added spacing: 28 mm, fixed length
- Threads: G1/4" male to G1/4" female
- Material: Brass, matte nickel plating
- O-rings: EPDM
- Install: 8mm hex key
- Weight: 63 g, 65 g boxed

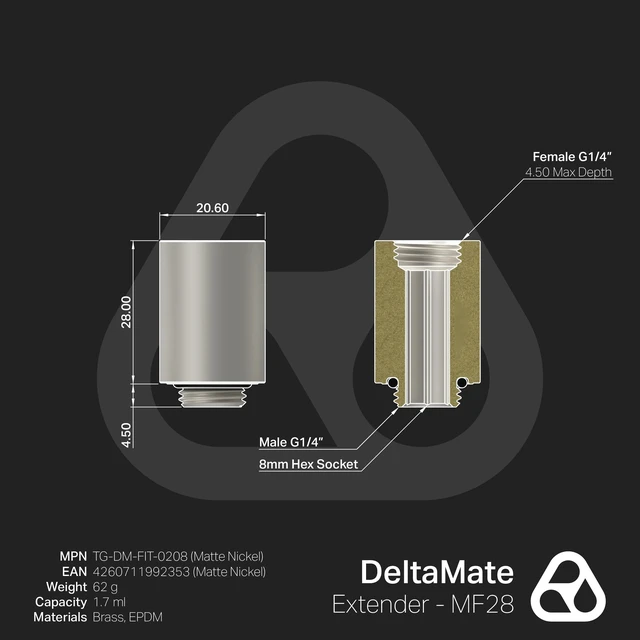

Threads and spacing
The MF28 features one G1/4" male thread and one G1/4" female thread. It is a practical way to increase the distance between ports and fittings by a set 28mm. It is commonly used to add clearance for memory modules and fans, or for two parallel tubes in the same plane. Note the maximum thread depth: 4.5mm! The other matte nickel lengths are the MF7, MF10 and MF14.
General information
DeltaMate Extender Fittings are the water cooling connectors Thermal Grizzly designed for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, the extender is precisely machined from brass. Brass is an alloy of copper and zinc. It offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper. The sealing rings (O-rings) are made from EPDM (ethylene propylene diene rubber), which is highly elastic and resistant to ozone and UV radiation. The extender is finished with a matte nickel plating that's both premium in appearance, in Thermal Grizzly's words, and easy to clean.
Installation
The robust design allows for installation using an 8 mm hex key. Every DeltaMate fitting has the same uniform, consistent outer diameter, which ensures completely seamless integration of the extender with all the other fittings used in a loop.
In the box
- 1x DeltaMate MF28 extender fitting, matte nickel
