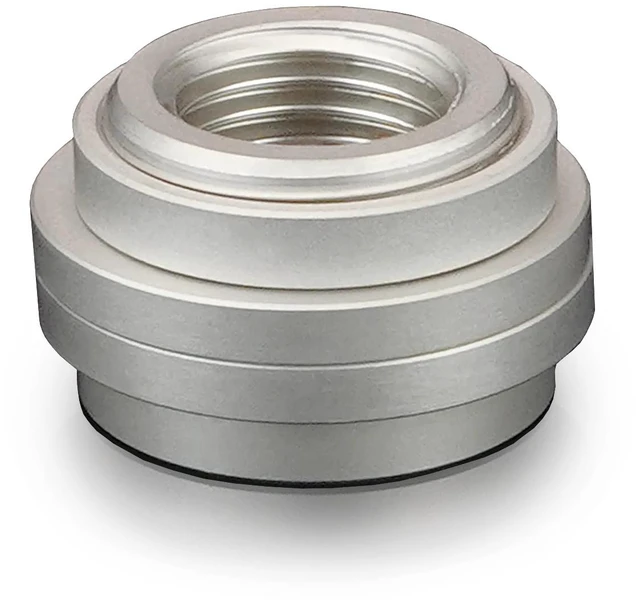

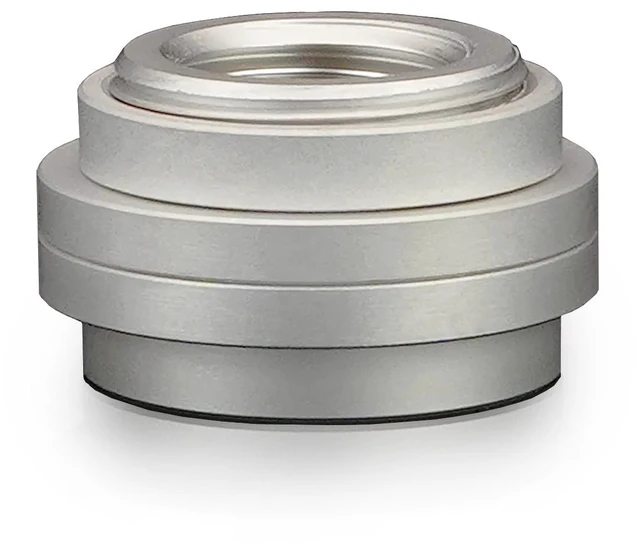

Thermal Grizzly DeltaMate Female to Female Passthrough Fitting - Matt Nickel, G1/4, Brass (TG-DM-FIT-0216)

DeltaMate fittings are water-cooling hose fittings for the individual components of a custom water-cooling system. In the usual Thermal Grizzly quality, the fittings are precision-machined from brass. As an alloy of copper and zinc, brass offers the advantage of being anodically compatible with other metals while also being harder and more corrosion-resistant than copper. The robust design of DeltaMate fittings allows installation using an 8 mm hex key. The uniform outer diameter of all DeltaMate ports enables seamless integration of the individual products.

General information

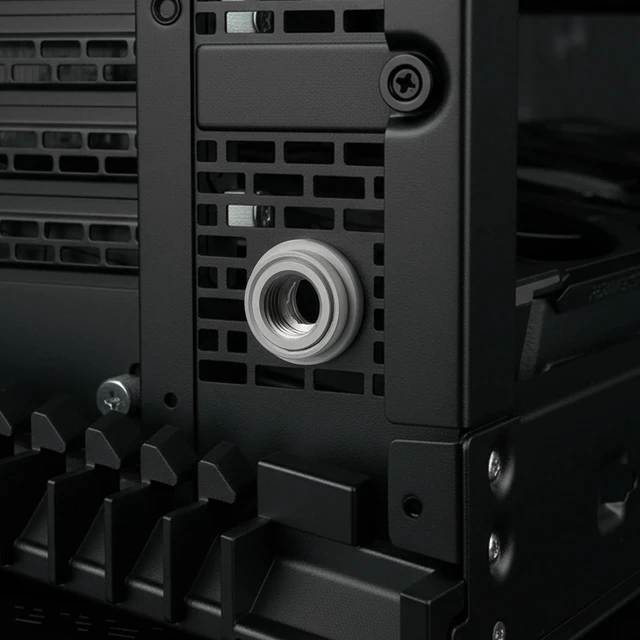

The matt nickel-plated DeltaMate Pass Through Fitting is used in a pass-through opening in a panel, such as a case wall or a PCI slot bracket. The panel thickness can be up to 5.5 mm, and the diameter of the opening can be between 18 and 22 mm. Pass-through openings of this type are present on the case (usually on the rear) or can be retrofitted in the form of a PCI slot bracket. They are designed to connect two chambers within a case or to enable the use of an external radiator.

Properties

• Simple adapter that enables the connection of two male-thread fittings through a panel.

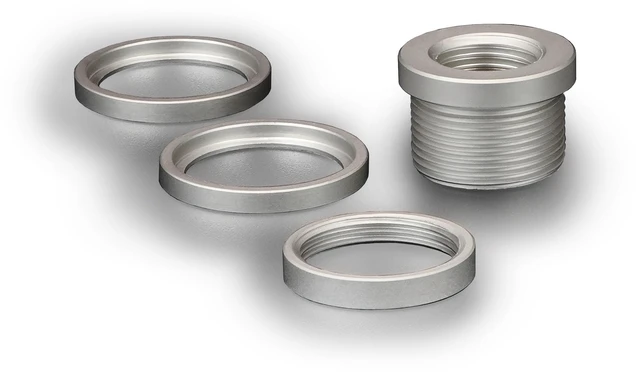

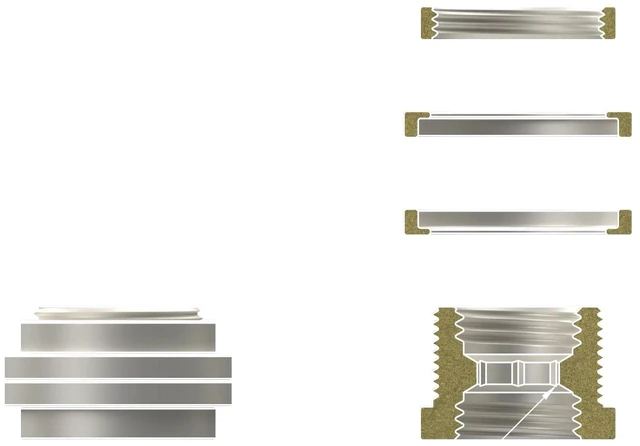

• Configurable spacers enable a clean installation across a wide range of different panel thicknesses.


• Uniform outer diameter across all DeltaMate ports for completely seamless integration.


• Robust construction allows installation using an 8 mm hex key.
