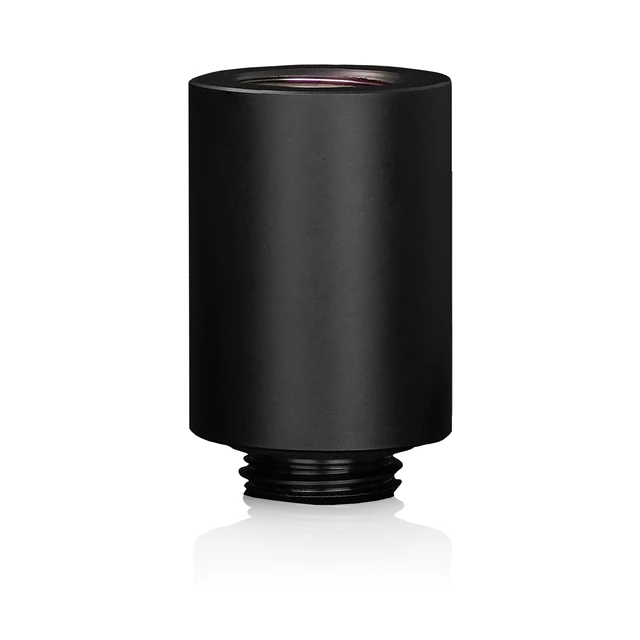

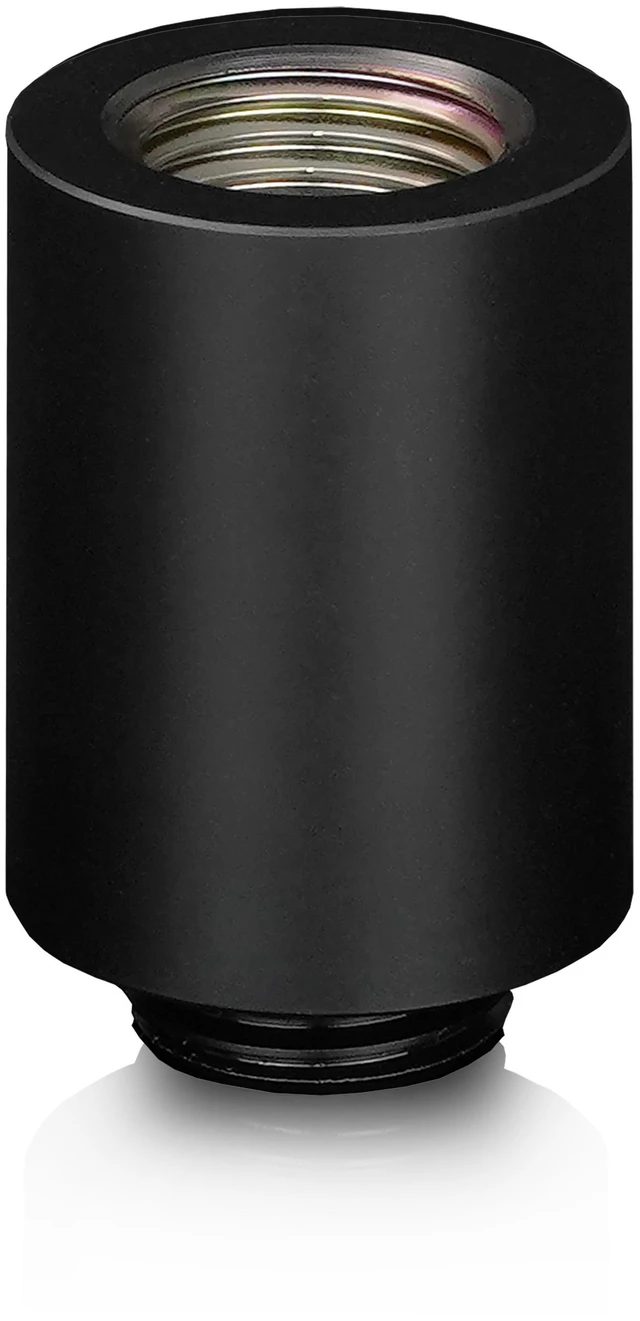

Thermal Grizzly DeltaMate 28mm Male to Female Extender Fitting - MF28 - Black - 6 Pack, G1/4, Brass (TG-DM-FIT-6008)
- Item #: 9SIV1R4KUE4701
- Mfr. Part #: TG-DM-FIT-6008
- DeltaMate Extender Fittings are water cooling connectors designed for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, the extender fittings are precisely machined from brass. Brass, as an alloy of c
- The sealing rings (O-rings) are made from highly elastic EPDM (ethylene propylene diene rubber), which is resistant to ozone and UV radiation. The robust design of the DeltaMate fittings allows for installation using an 8 mm hex key. The uniform oute
- The DeltaMate Extender - MF28 features one G1/4 male thread and one G1/4 female thread, and is finished with a matt-black chromium plating thats both premium in appearance and easy to clean. Used as an extension fitting, its installed between the
- Commonly used to add clearance for memory modules and fans or two parallel tubes in the same plane.
- Practical fixed length extender to increase the spacing between ports and fittings by 28mm.
+
+
Overview
Specs
Reviews
A 6 pack of Thermal Grizzly's DeltaMate 28mm Male to Female Extender Fitting (MF28) in Black. Each one sits between a G1/4 port and the fitting screwed into it and adds 28 mm of spacing. The 6 pack also comes in matte nickel.
Properties
- Pack: 6 fittings
- Added spacing: 28 mm, fixed length
- Threads: One G1/4" male, one G1/4" female
- Material: Brass with matte-black chromium plating, EPDM O-rings
- Tool: 8mm hex key
- Weight: 63 g each, 424 g for the boxed 6 pack
Where it goes

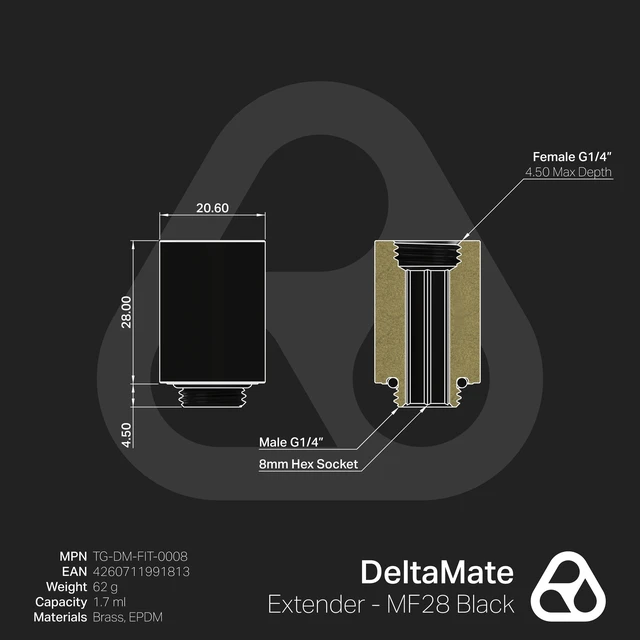

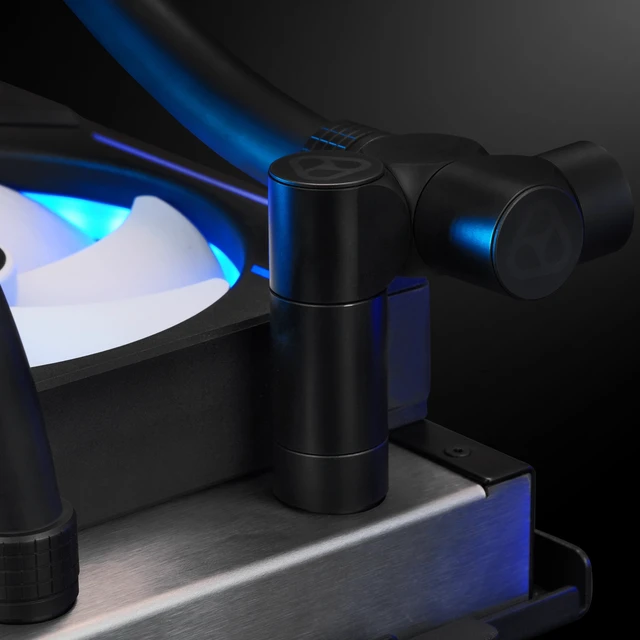

The MF28 features one G1/4" male thread on one end and one G1/4" female thread on the other. Used as an extension fitting, it's installed between the water-cooling component's port and the fitting, increasing the gap by a fixed length. That makes it a practical way to increase the spacing between ports and fittings by a set 28mm. This length is commonly used to add clearance for memory modules and fans, or to run two parallel tubes in the same plane. Thermal Grizzly notes a maximum thread depth of 4.5 mm.
General information
Thermal Grizzly designed its DeltaMate Extender Fittings as water cooling connectors for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, to use the maker's phrase, each extender is precisely machined from brass. Brass is an alloy of copper and zinc. It offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper. The sealing rings (O-rings) are made from EPDM (ethylene propylene diene rubber), which is highly elastic and resistant to ozone and UV radiation. The extender is finished with a matte-black chromium plating that's both easy to clean and, in Thermal Grizzly's words, premium in appearance.
Installation
The robust design allows for installation using an 8 mm hex key. The outer diameter is uniform and consistent with all DeltaMate fittings, which Thermal Grizzly says ensures completely seamless integration of individual components.
In the box

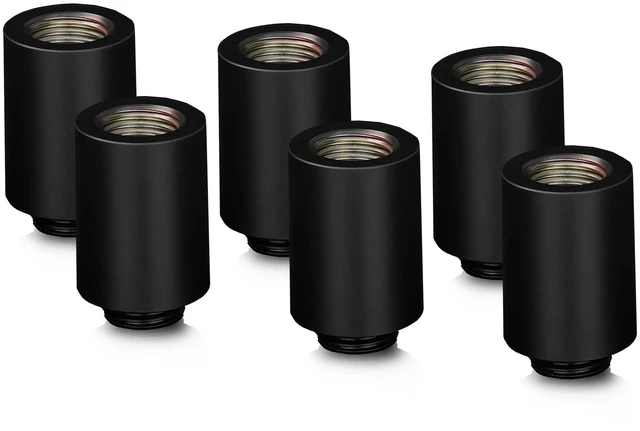

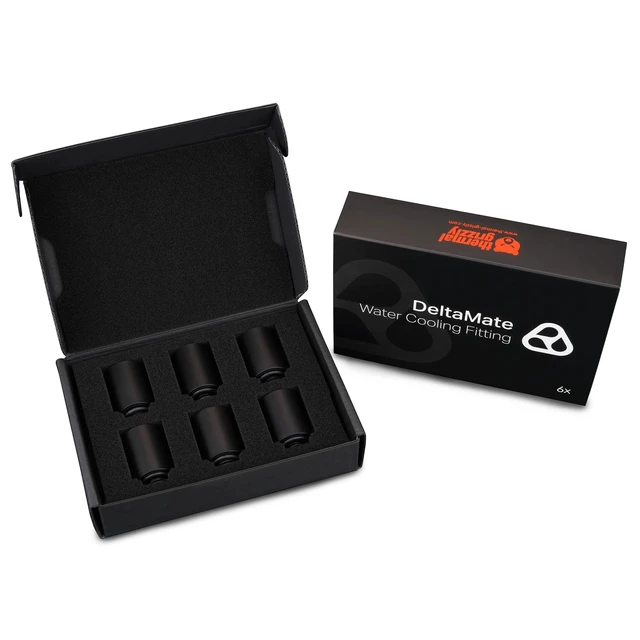

- 6x DeltaMate Extender MF28 fittings in Black (1x 6 pack)
