Thermalright Phantom Spirit 120 Digital EVO CPU Air Cooler, 7 Heat Pipes, Dual TL-K12 2150RPM PWM ARGB Fans, Digital Top Cover, 160mm Dual Tower, Intel/AMD
- Item #: 9SIVHMKM5A8720
- Mfr. Part #: Phantom Spirit 120 Digital EVO
- UNSPSC: 43201538
- Digital Top Cover Design Magnetic digital top cover connects through motherboard 9-pin USB and adds a cleaner display-focused look to the dual-tower air cooler

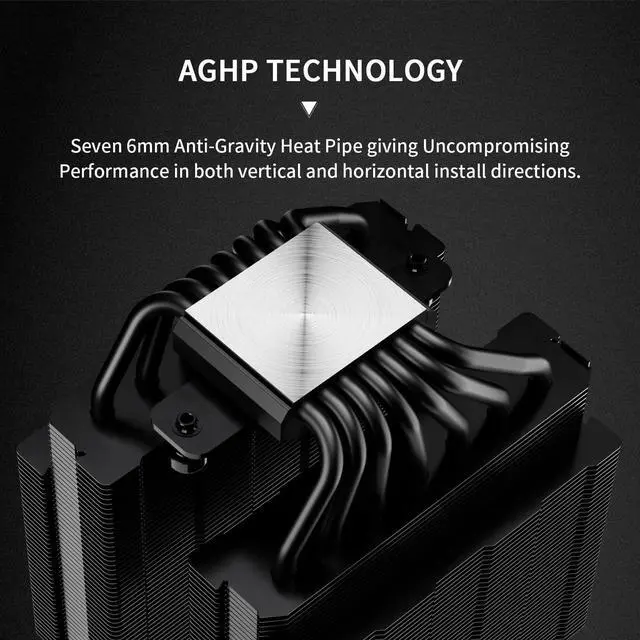

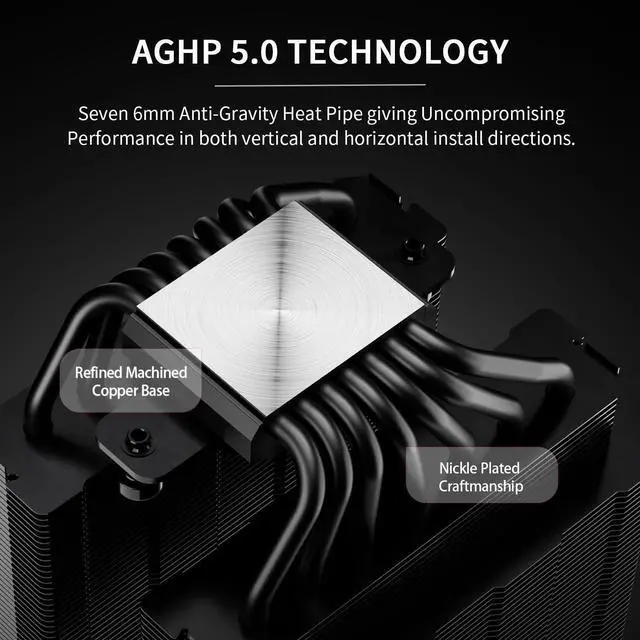

- 7 Heat Pipe Dual-Tower Heatsink 125 x 135 x 160mm cooler body with 7 x 6mm heat pipes and C1100 nickel-plated copper base supports strong CPU heat transfer
- Dual TL-K12 PWM ARGB Fans Two 120mm fans run up to 2150RPM with 69CFM airflow, 2.87mmH2O pressure and 27dBA noise for balanced airflow and noise control
- S-FDB V2 Bearing and ARGB Lighting 4-pin PWM fan control, 5V 3-pin ARGB lighting and S-FDB V2 bearings help match modern gaming PC builds
- Intel and AMD Socket Support Compatible with Intel LGA115X/1200/1700/1851 and AMD AM4/AM5 platforms; check 160mm case clearance before installation
+
+
Overview
Specs
Reviews

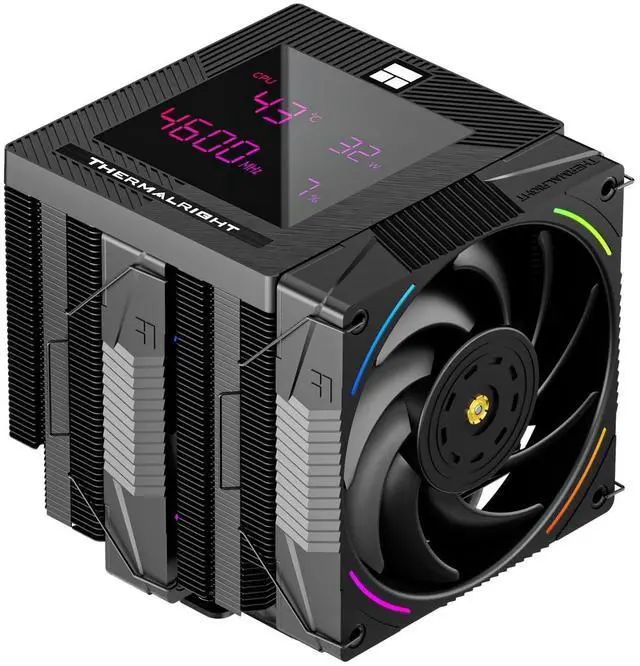

Thermalright Phantom Spirit 120 Digital EVO is a dual-tower CPU air cooler designed for desktop PC builders who want strong air-cooling hardware, ARGB lighting, and a digital top cover design. With 7 heat pipes, dual TL-K12 PWM ARGB fans, and a 160mm cooler height, it fits performance-focused gaming PCs and modern desktop systems with proper case clearance.
Dual-Tower Cooling Design
- Cooler Dimensions: 125 x 135 x 160mm
- Heat Pipes: 7 x 6mm heat pipes
- Base Material: C1100 nickel-plated copper base
- Digital Connector Type: Motherboard 9-pin / USB connector

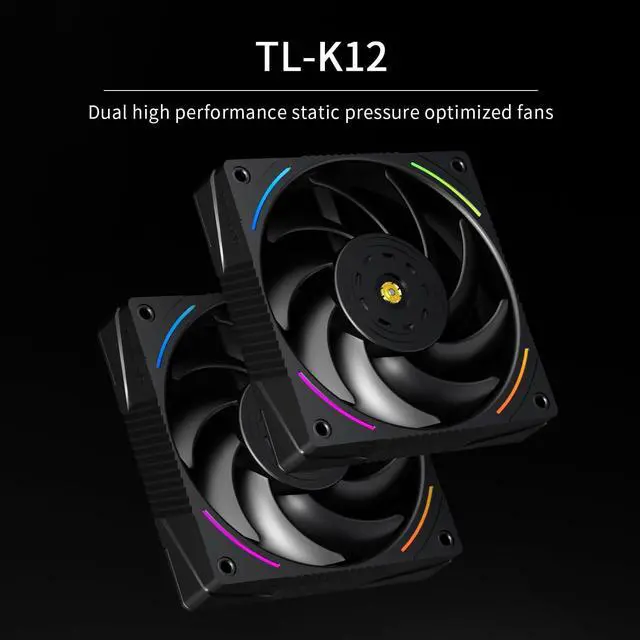

TL-K12 PWM ARGB Fan System
- Fan Model: TL-K12
- Fan Dimensions: 120 x 120 x 25mm
- Fan Speed: 2150RPM ±10% MAX
- Airflow: 69CFM MAX
- Static Pressure: 2.87mmH2O MAX
- Noise Level: 27dBA
- Fan Connector: 4-Pin PWM
- ARGB Connector: 3-Pin 5V
- Bearing Type: S-FDB V2 Bearing

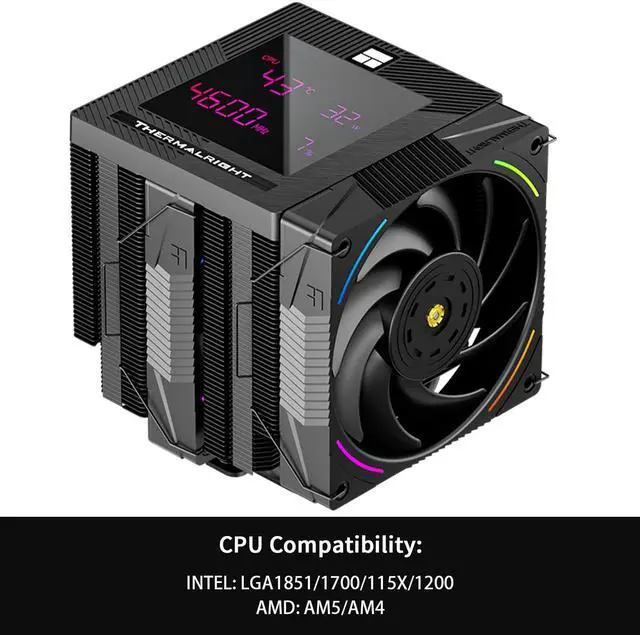

Platform Compatibility
- Intel: LGA115X / 1200 / 1700 / 1851
- AMD: AM4 / AM5

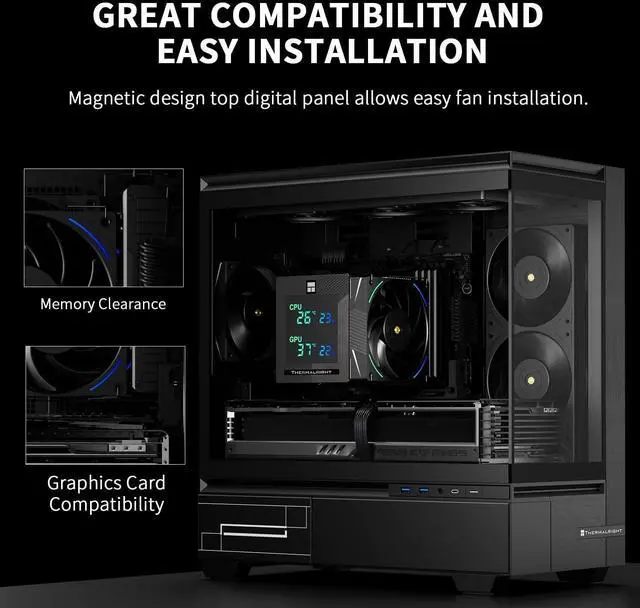

- Please check case CPU cooler height clearance, memory clearance, motherboard headers, and socket mounting requirements before installation.
Build Use
Phantom Spirit 120 Digital EVO is suitable for users who want a high-performance dual-tower air cooler with ARGB fans and a digital top cover design. It should be listed as part of the Phantom Spirit 120 EVO Series model variation and kept separate from AIO liquid cooler listings.

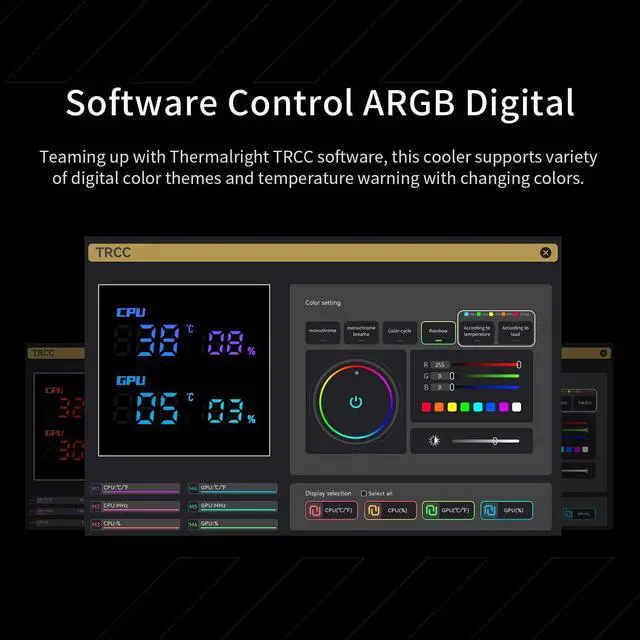

Software Notes:
The digital display power supply and data communication are provided through the motherboard 9-pin USB header. Please confirm the USB connection is complete before installing the software.
The software can be downloaded from the official Thermalright support page. Extract the file and double-click the installer to begin installation.
Double-click the TRCC icon on the desktop to run the software.
Real-time monitoring, data transfer, and display on/off functions are controlled by the software. After installation, the program starts with the system and stays active in the background. Please do not force close it.
If an unexpected issue occurs, reconnect the USB cable and restart the system.
*All data above comes from the Thermalright laboratory and is for reference only.
