PS-DCP-1000FNFAGU-2

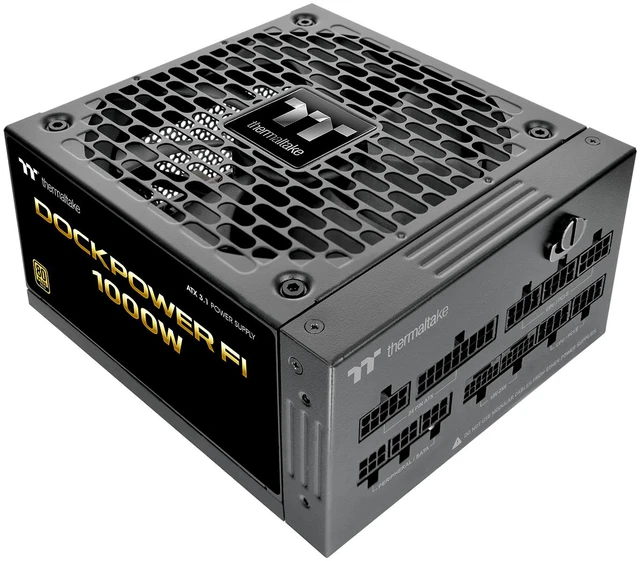

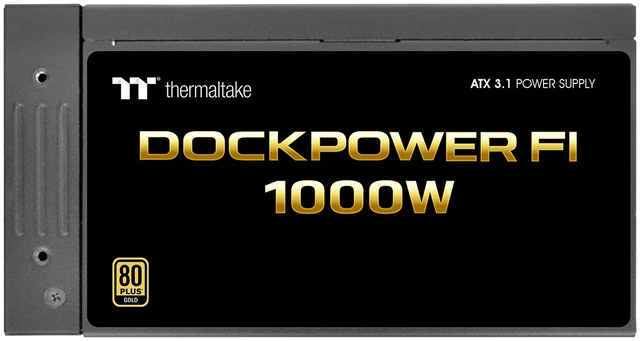

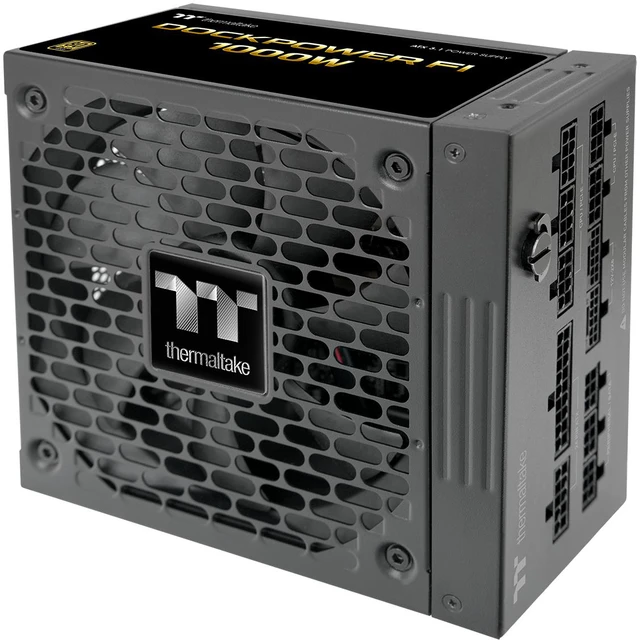

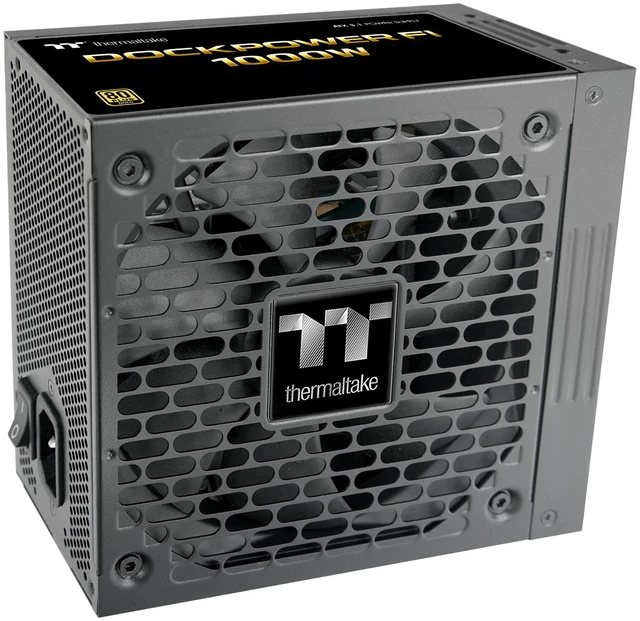

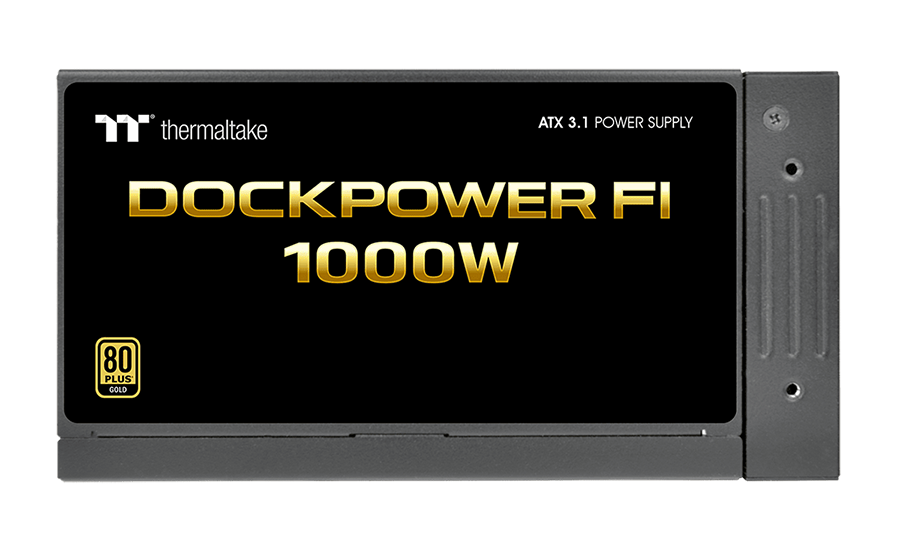

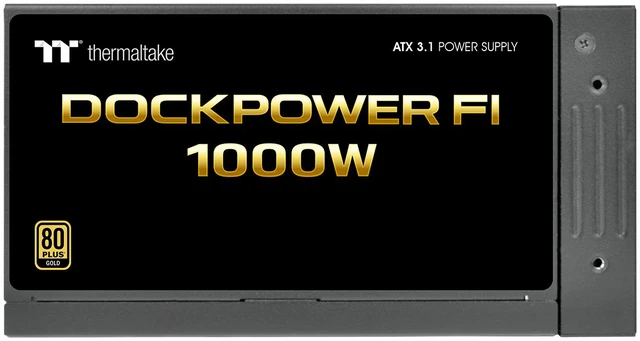

Dockpower FI 1000W

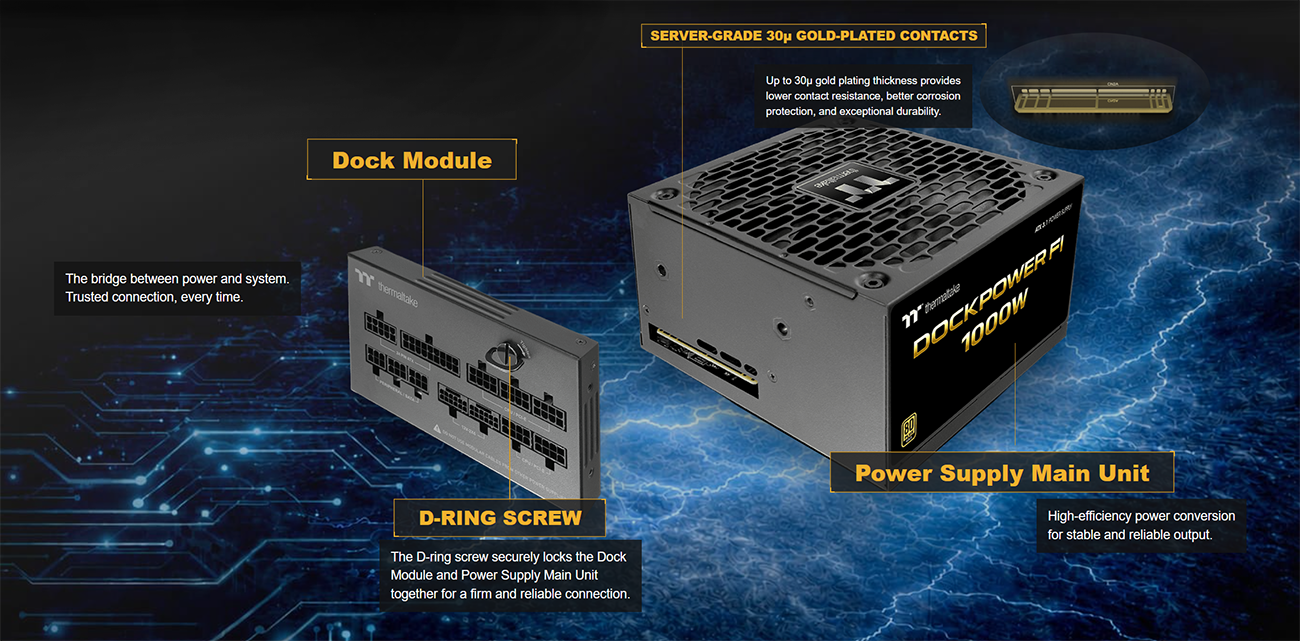

Build Faster. Upgrade Smarter. The Dockpower Series features a patent filed docking power architecture that separates cable management from power installation, solving one of the biggest challenges of installing a power supply in confined PC chassis. Cables can be pre-installed and reused across future upgrades, allowing you to simply swap the power supply main unit without touching a single cable. Combined with server-grade 30µ gold-plated contacts, ATX 3.1 compatibility, native PCIe Gen 5.1 support, and 80 PLUS Gold efficiency, Dockpower delivers a smarter, faster, and more reliable way to build and upgrade your PC.
THE NEXT GENERATION DOCKING POWER ARCHITECTURE
BUILD FASTER
EVERY MINUTE COUNTS.

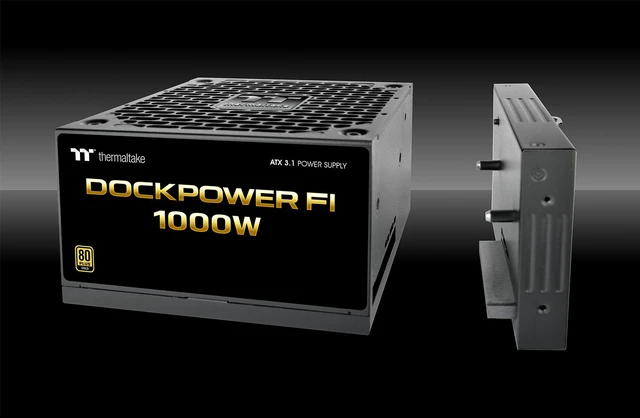

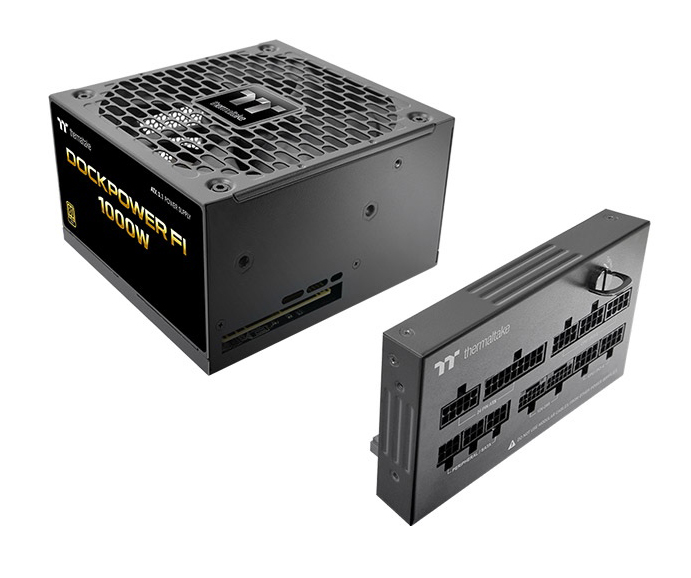

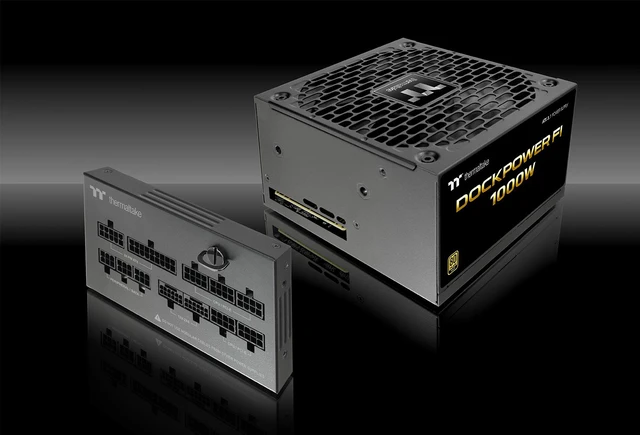

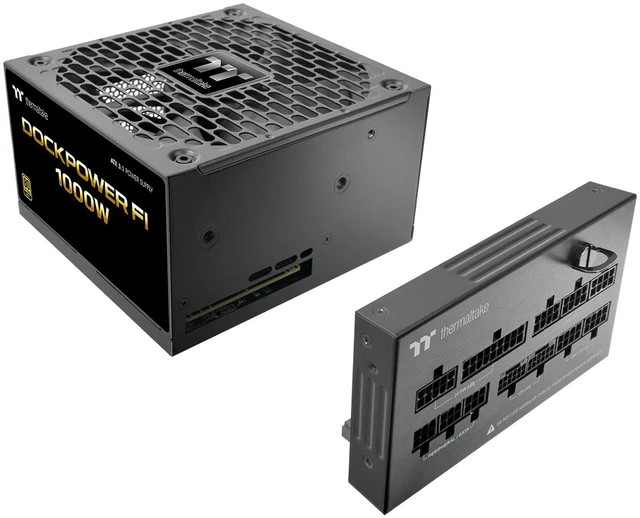

Dockpower separates cable management from power installation. Pre-install the cables once, then simply dock the power supply main unit. Designed to eliminate the challenges of installing a PSU in confined chassis spaces, Dockpower removes the need to connect cables inside the case or lay the chassis on its side during installation, delivering a faster, cleaner, and more user-friendly building experience.
1
INSTALL
POWER SUPPLY MAIN UNIT
2
CABLES PRE-INSTALLED
WITH DOCK MODULE
3
DOCK & LOCK
POWER ON
UPGRADE SMARTER
SWAP. DOCK. DONE.
With Dockpower, upgrading your PSU is as simple as swapping the power supply main unit. The dock module and all cables remain in place, eliminating the need to disconnect, re-route, or reinstall cables during upgrades. Simply replace the power supply main unit and get back to powering your system in minutes.
1
UNLOCK & REMOVE
Power Supply Main Unit.
2
INSERT NEW, DOCK & LOCK
POWER ON
OUR PHILOSOPHY
BUILD FASTER. UPGRADE SMARTER.
ATX 3.1 / PCIe GEN 5.1
READY FOR NEXT-GEN HARDWARE
Dockpower is fully compliant with the latest ATX 3.1 and PCIe Gen 5.1 standards, featuring a native 12V-2x6 connector with a dual-color design for easy visual confirmation of a secure connection, delivering the power and stability your high-performance system demands.
Notes:
1. Recommended wattage is an estimation of system power demand. Actual power demands may vary based on specific components, usage, and many other factors.
2. Please follow the recommended power requirements from the GPU manufacturers before using the 12V-2x6 cable.

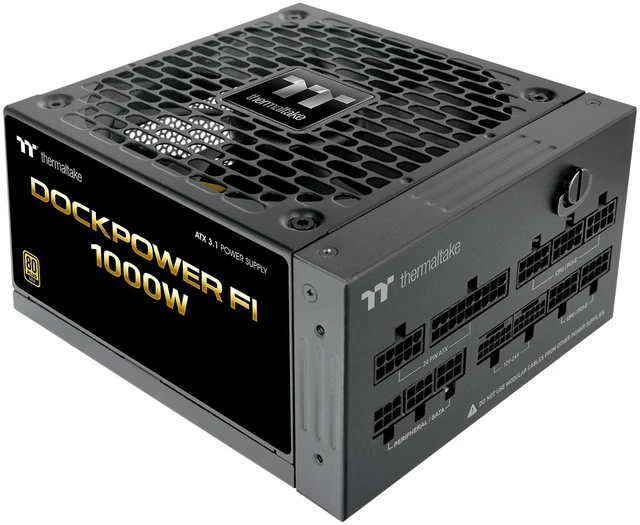

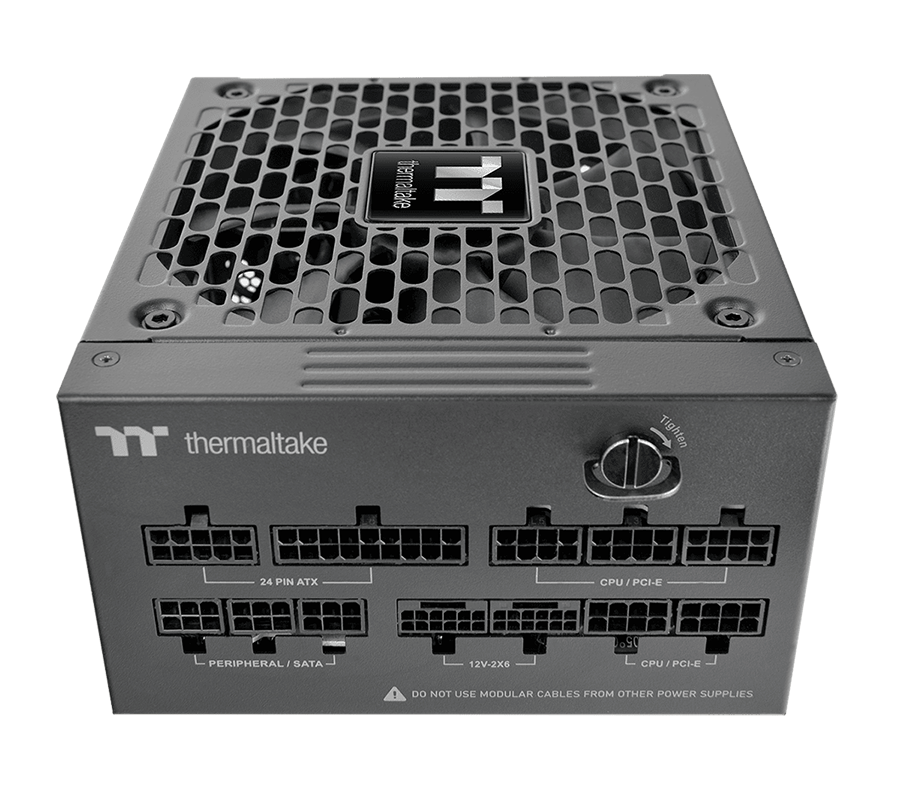

Fully Modular Low-Profile Cables
Fully modular, low-profile black cables make cable management simple and reduce clutter for improved airflow and a cleaner interior.
| Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
| Main Power (20+4Pin) |
X 1 |
|
X 1 | 550mm |
| ATX 12V (4+4Pin) |
X 2 |
|
X 2 | 700mm |
| PCIe (6+2Pin) |
X 5 |
|
X 1 | 600mm |
|
X 2 | 600mm+150mm | ||
| 12V-2x6 (12+4Pin) 600W |
X 1 |
|
X 1 | 600mm |
| SATA (5Pin) |
X 6 |
|
X 2 | 450mm+150mm +150mm |
| Peripheral (4Pin) |
X 4 |
|
X 1 | 450mm+150mm +150mm+150mm |

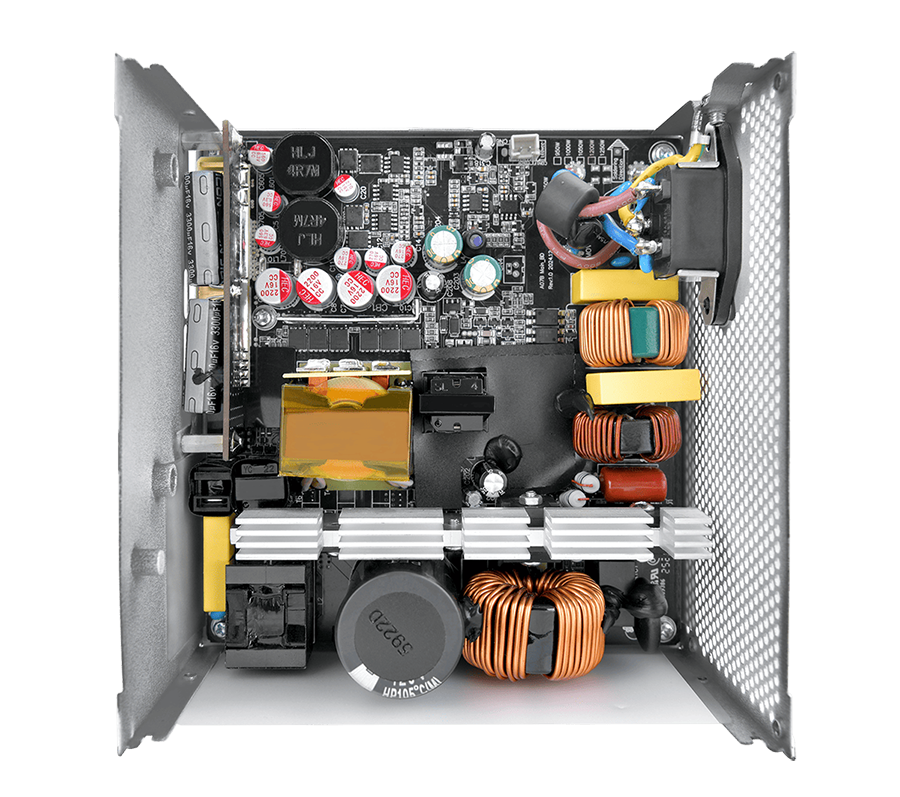

High Amperage Single +12V Rail Advanced Circuit Design
A robust single +12V rail delivers stable, high-current power for broad system compatibility. Advanced DC to DC and high-efficiency regulation help maintain voltage precision and clean output for demanding builds.
| AC Input | Input Voltage: 100-240Vac Input Current: 15A - 10A Frequency: 50Hz - 60Hz |
||||
| DC Output | +3.3V | +5V | +12V | -12V | +5VSB |
| Max Output Current | 20A | 20A | 83.3A | 0.3A | 3A |
| Max Output Power | 100W | 999.6W | 3.6W | 15W | |
| Total Power | 1000W | ||||
Industry-Grade Safety Protections
Built-in protections including Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Power Protection (OPP), Over Temperature Protection (OTP), and Short Circuit Protection (SCP) safeguard your system against electrical faults, providing peace of mind and reliable operation.
OCP
Over Current Protection
OVP
Over Voltage Protection
UVP
Under Voltage Protection
OPP
Over Power Protection
SCP
Short Circuit Protection
OTP
Over Temperature Protection
80 PLUS Gold Certified
Dockpower series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold.
Energy Efficiency & Environmental Compliance
Supports Intel C6/C7 states and Deep Power Down for improved energy savings and meets Energy Star 5.0 and ErPenergy standards for efficient performance. It also complies with EU WEEE and RoHS directives, underscoring environmentally responsible design and manufacturing.
