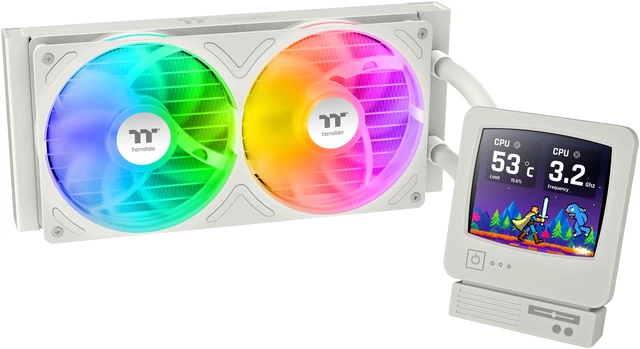

Learn more about the Thermaltake Retro 240 Ultra ARGB Sync AIO Liquid Cooler
Model| Brand | Thermaltake |
|---|
| Series | Retro 240 Ultra |
|---|
| Model | Retro 240 Ultra ARGB Sync AIO Liquid Cooler |
|---|
| Part Number | CL-W509-PL12SW-A |
|---|
| Type | Liquid Cooling System |
|---|
Block| Block Compatibility | Intel LGA 2066/2011-3/2011/1851/1700/1366/1200/1156/1155/1151/1150; AMD AM5/AM4 |
|---|
| Block Compatibility - AMD | AM5 / AM4 |
|---|
| Block Compatibility - Intel | LGA 2066 / 2011-3 / 2011 / 1851 / 1700 / 1366 / 1200 / 1156 / 1155 / 1151 / 1150 |
|---|
| Block Material | Copper |
|---|

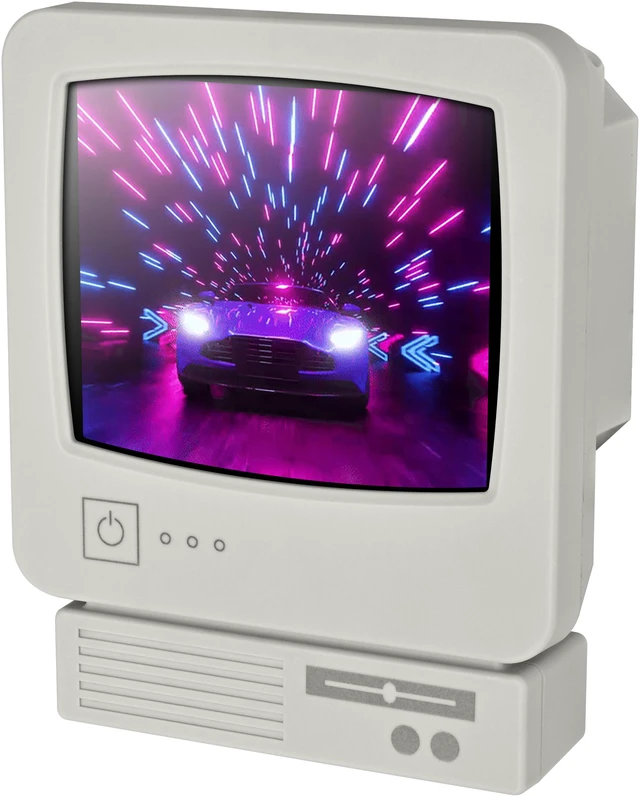

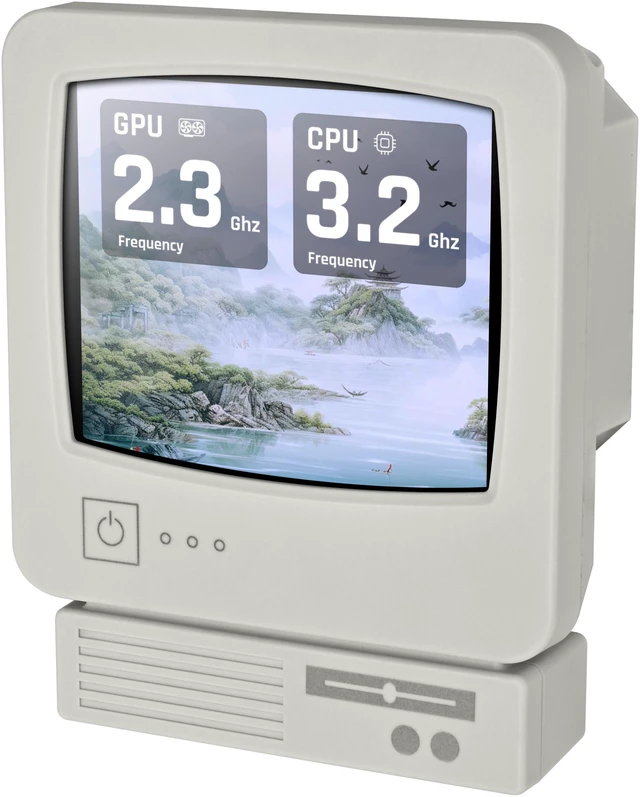

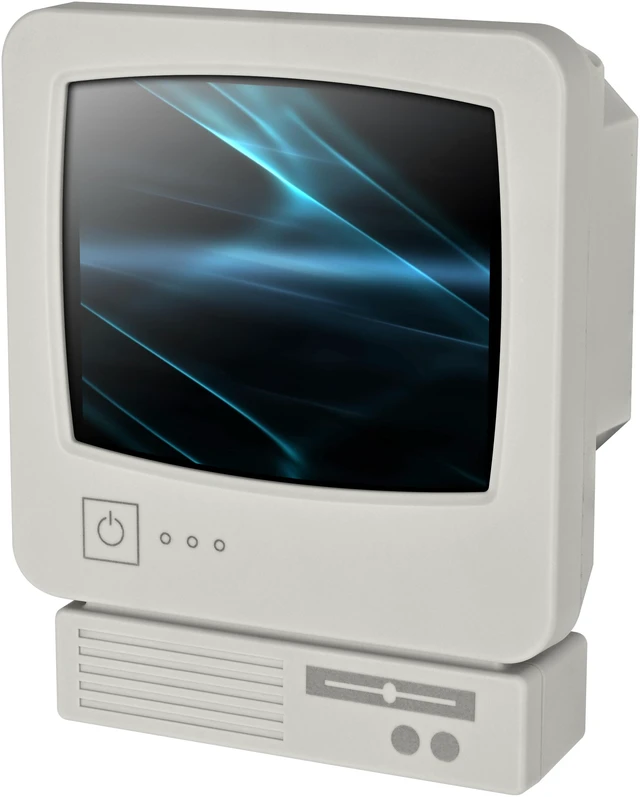

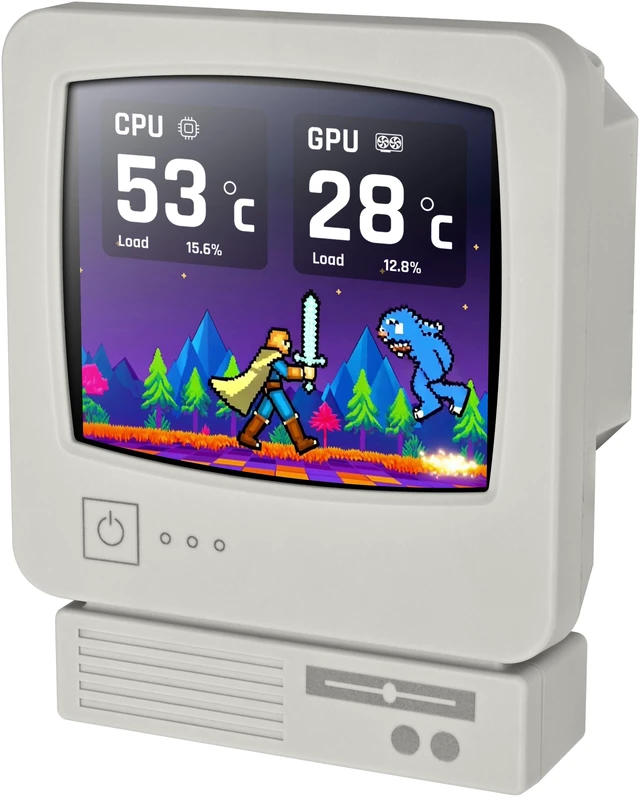

| Display | 3.7" TFT-LCD, 720 x 608 (RGB) px CRT-style display |
|---|
Pump| Pump Speed | PWM 800~2500 RPM |
|---|

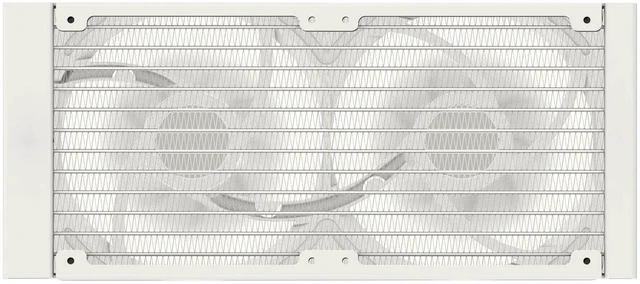

Radiator| Radiator Size | 277 x 120 x 27 mm |
|---|
| Radiator Material | Aluminum |
|---|

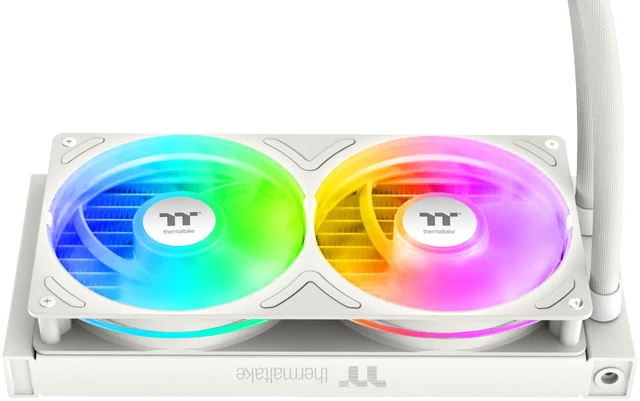

Fan| Fan Size | 2 Fan Slots (120 mm) |
|---|
| Fan Dim. | 240 x 120 x 25 mm |
|---|
| Fan RPM | PWM 500~2500 RPM |
|---|
| Fan Air Flow | 85.29 CFM (per fan) |
|---|
| Fan Noise | 37.8 dB-A (per fan) |
|---|
| Fan Connector | 2510 - 4 Pin (PWM) / ARGB - 3 Pin |
|---|
| LED Color | ARGB |
|---|
| Pressure | 3.86 mm-H2O (per fan) |
|---|
Tube| Tube Dim. | 460 mm |
|---|
| Tube Material | Rubber |
|---|
Screen| Screen Size | 3.7" |
|---|
| Resolution | 720 x 608 (RGB) px |
|---|
Features| Features | CRT-style 3.7" TFT-LCD display with AI Forge custom background creation; single-frame fan design for simplified installation and cleaner cable management; high-performance ARGB fans up to 2500 RPM; copper water block; 355W TDP support; Micro USB to USB (9-pin) interface; supports Windows 10 / 11 |
|---|
Additional Information| First Listed on Newegg | August 28, 2026 |
|---|
