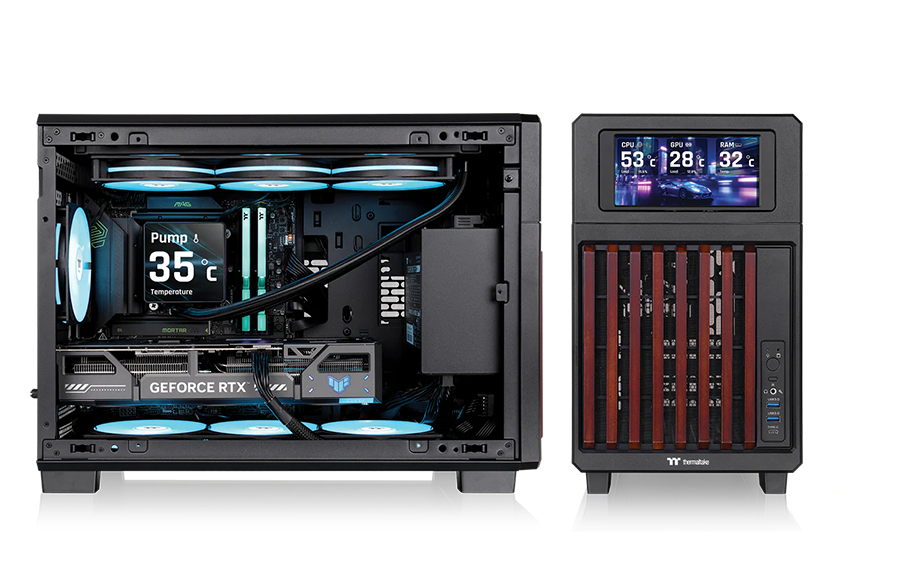

TR200 WS Micro Chassis
Built-in GPU support arm with 365mm GPU clearance.
Fits up to 7 x 120mm fans and a 360mm radiator.
Supports 5.25" optical drive or accessory.
Easy-access side panels and dust filters.
Optional 6.0" LCD Screen Kit compatible.

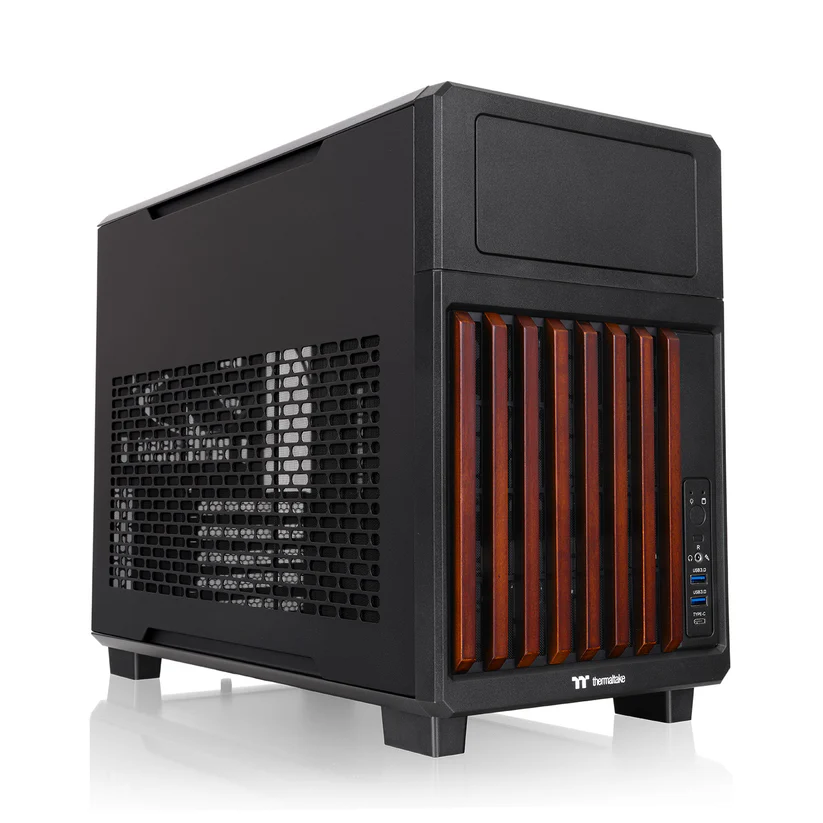

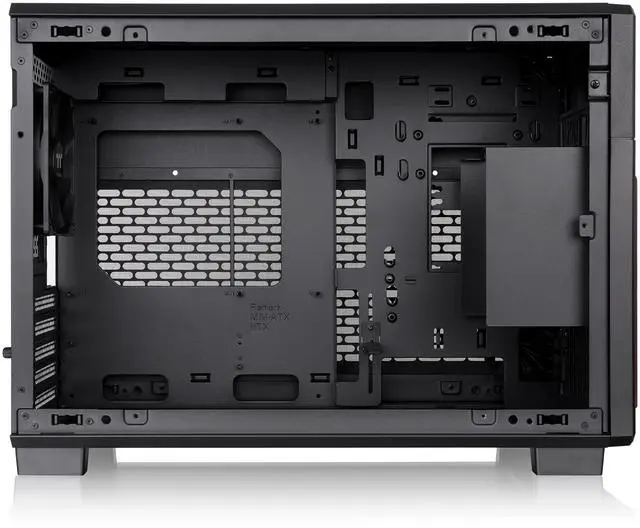

TR200 Wood Series Micro Chassis
Built for Micro-ATX and Mini-ITX systems with full-size hardware support, featuring room for up to 365mm GPUs, 175mm CPU coolers, and 258mmm PSUs.
* The images are for reference only.
Motherboard
Mini ITX / Micro ATX
Fan Support
Up to seven 120mm fans
AIO Support
360 / 280 / 240 / 140 / 120mm
Clearance (mm)
CPU Cooler: 175
GPU: 365
Power Supply: Up to 258
Storage
2 × 3.5" HDD
2 × 2.5" SSD
* The image is for reference only.

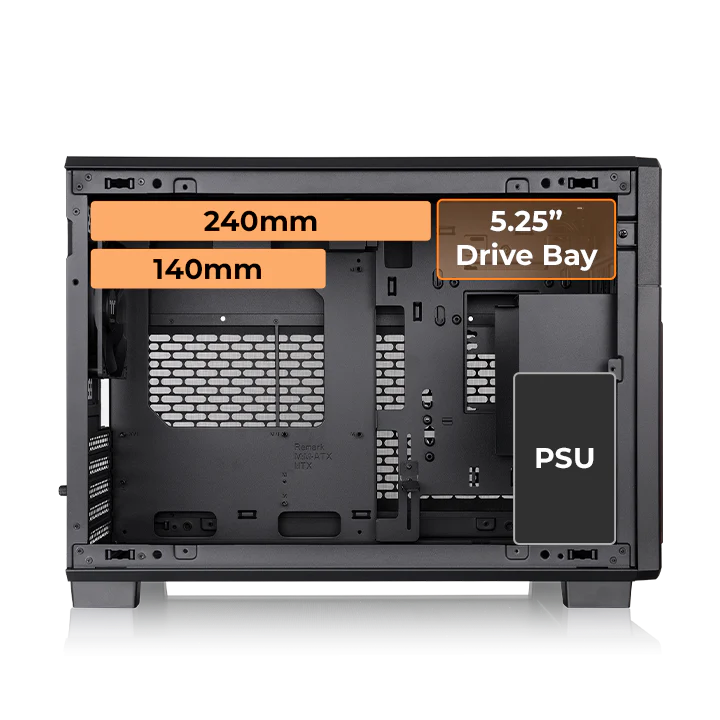

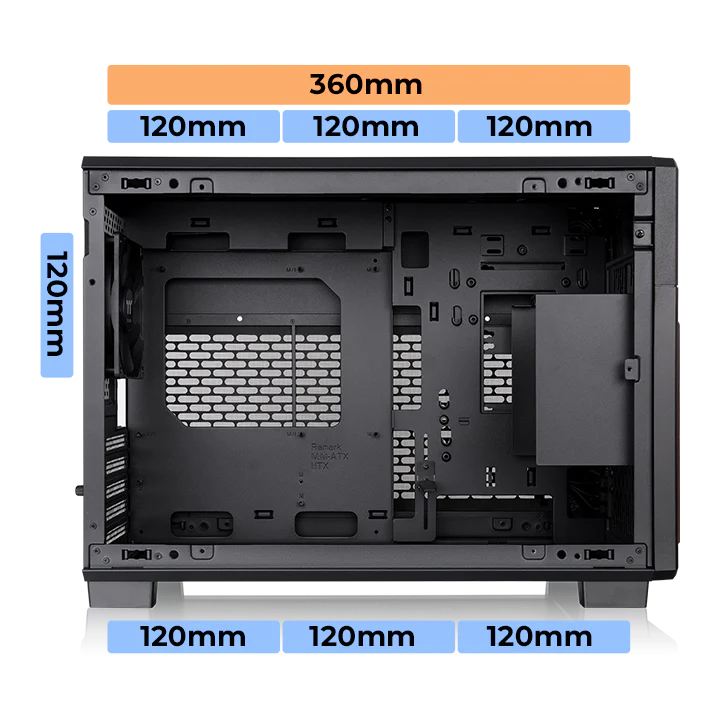

Flexible Cooling Layout
Supports up to seven 120mm fans and up to a 360mm top radiator for high-airflow or liquid-cooled builds.
5.25" Expansion Ready
Adds support for optical drives, additional storage, fan controllers, or other 5.25" accessories.
Build-Friendly Convenience
Features easy-access panels, removable dust filters, and an adjustable GPU support bracket for easier building and maintenance.

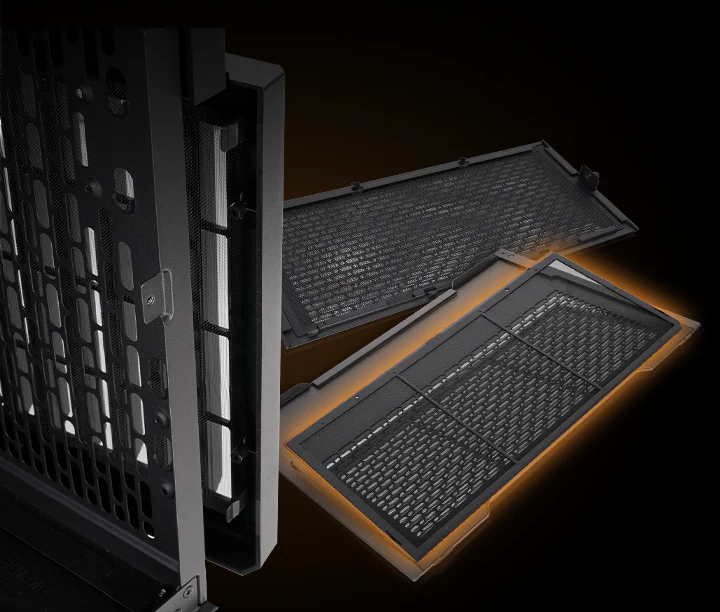

Removable Dust Filters
for easier cleaning.

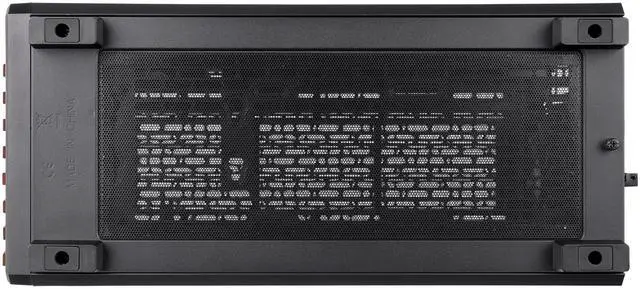

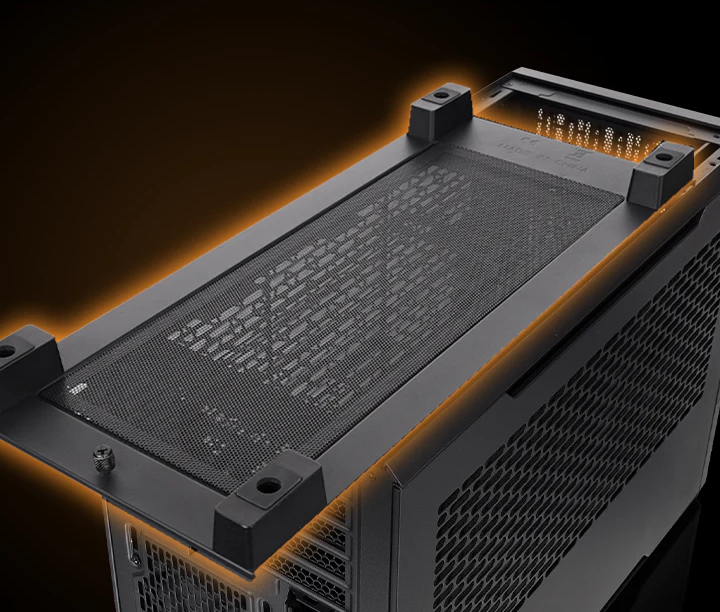

Easy Bottom Access
for fan installation, cleaning, or cable adjustment.

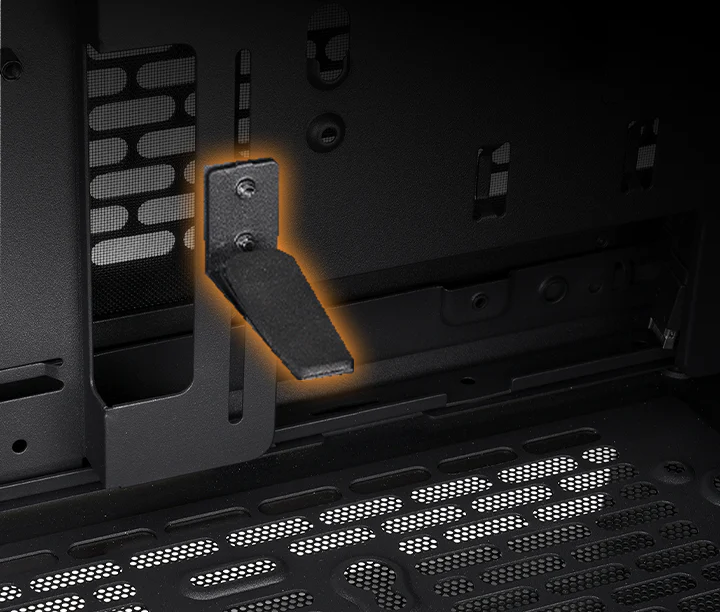

Adjustable GPU Support
to help reduce GPU sag.

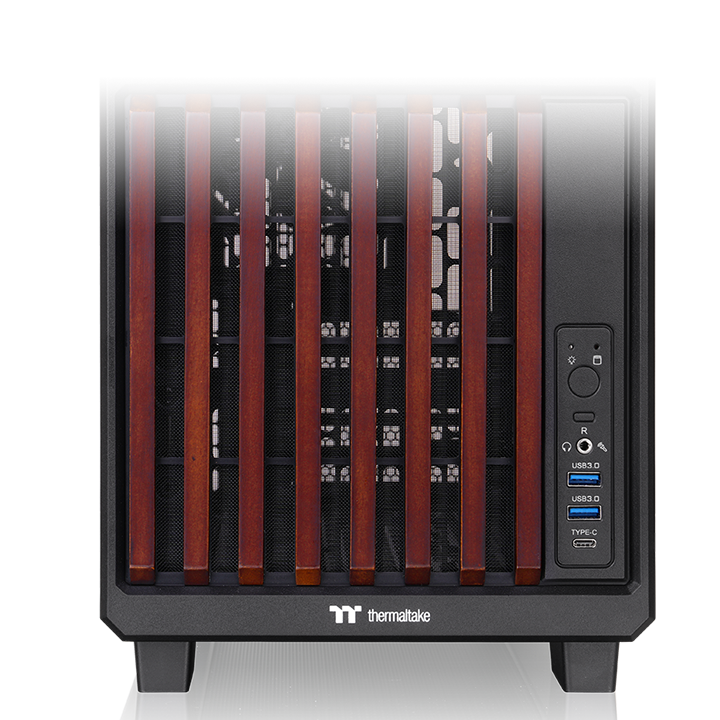

Handy I/O Ports
- Power Button
- Reset Button
- HD Audio
- 2 x USB 3.0 Type-A
- 1 x USB 3.2 Gen 2 Type-C
* The image is for reference only.
Storage for Your Storage
Supports HDD, SSD, and 5.25" drive configurations for expanding your setup.

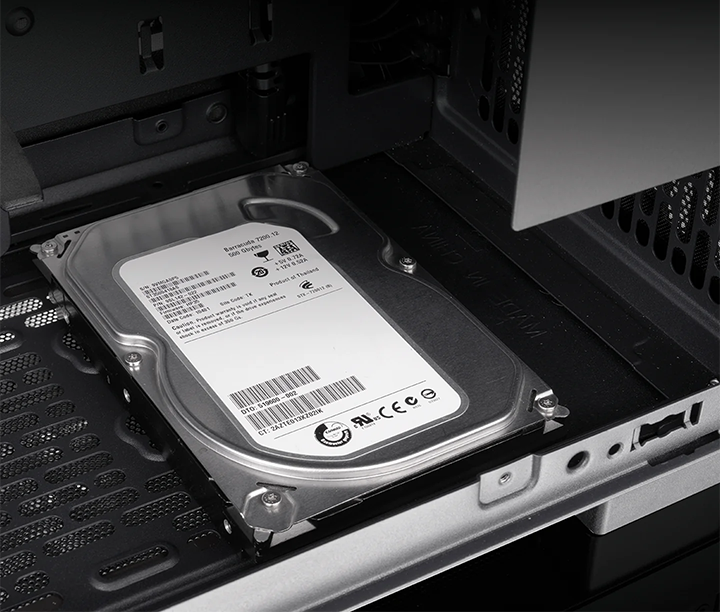

Additional HDD Support
dedicated support for 1 x 3.5" HDD mount.

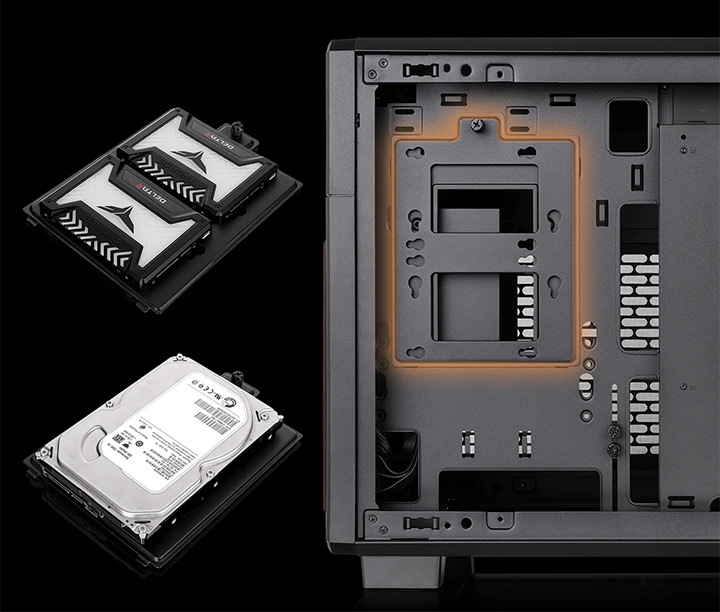

Flexible Drive Plate Design
supports up to 2 x 2.5" SSDs or 1 x 3.5" HDD.

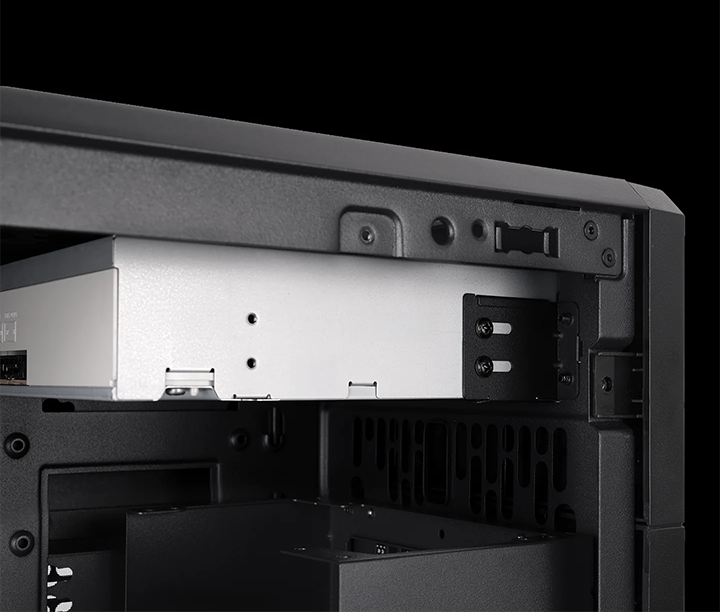

5.25" Expansion Ready
compatible with optical drives and other 5.25" accessories.

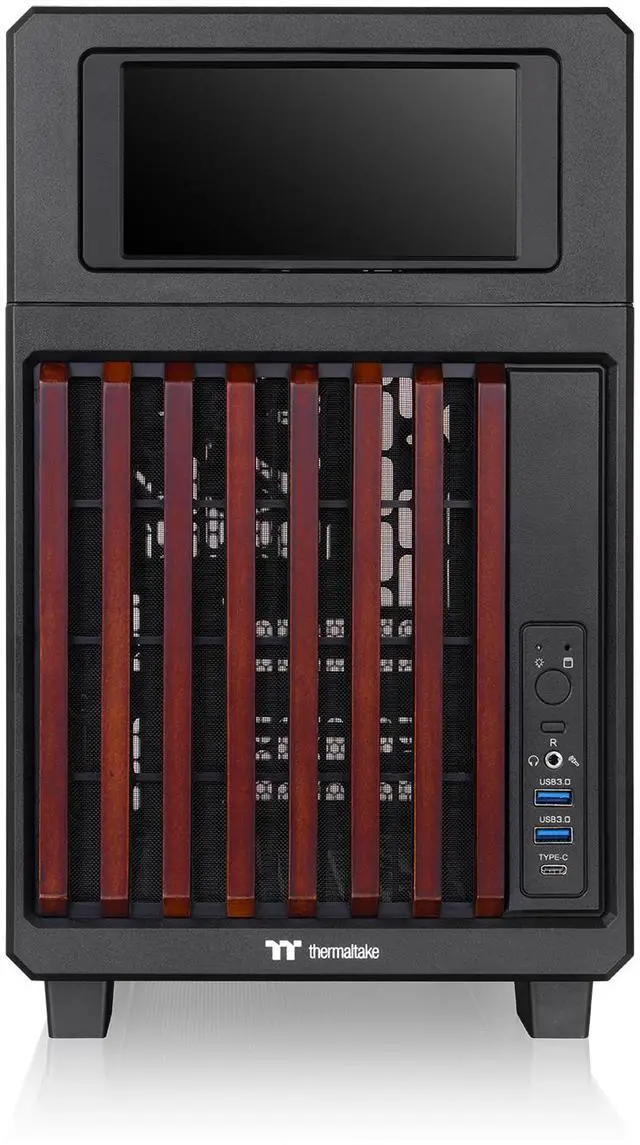

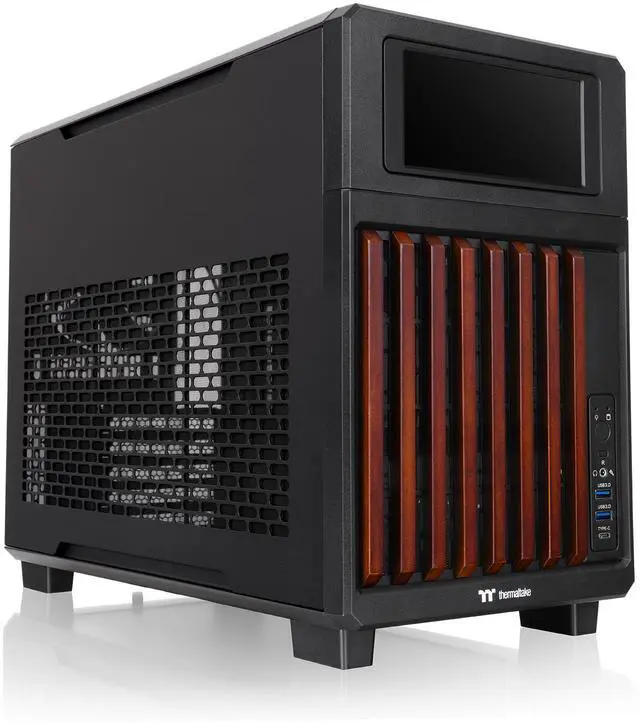

Smart Personalization Ready
Through TT RGB Plus, the 6" LCD display presents real-time information and plays JPG and GIF files with 1480x720 resolution. It comes with six default background styles, and users can upload up to 20 custom images. Additionally, the display can show time and weather information, enhancing both visual appeal and customization options for your build.
* The images are for reference only.
GIFs
Real-Time Information
Time
Weather
