TURCK NI35U-CK40-AN6X2-H1141 Inductive sensor NPN
- TURCK NI35U-CK40-AN6X2-H1141 Inductive sensor NPN
+
+
Overview
Specs
Reviews

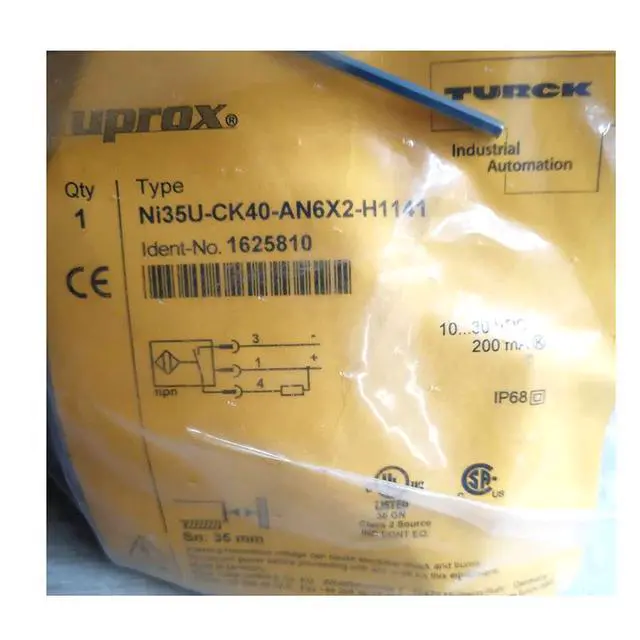

TURCK NI35U-CK40-AN6X2-H1141 Inductive sensor

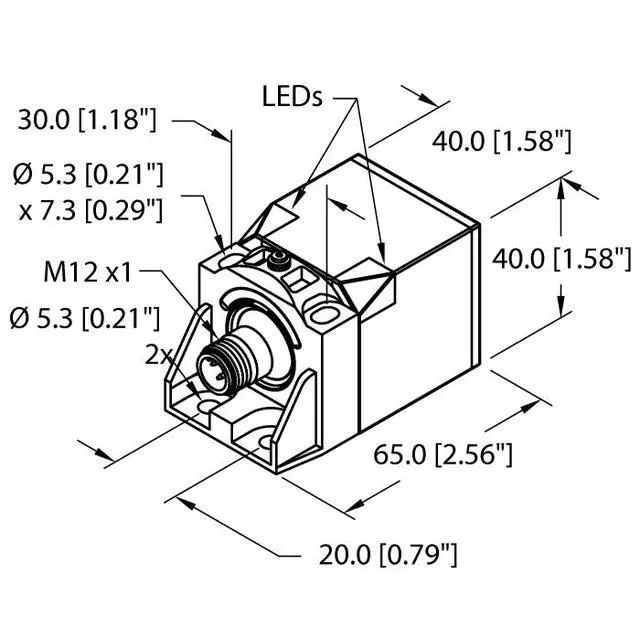

NPN Order number: 1625810 Rectangular, height 40 mm Variable orientation of active face in 5 directions Plastic, PBT-GF30-V0 High luminance corner LEDs Optimum view on supply voltage and switching state from any position Factor 1 for all metals Increased switching distance Protection class IP68 Resistant to magnetic fields Extended temperature range High switching frequency Auto-compensation protects against pre-attenuation DC 3-wire, 10…30 VDC NO contact, NPN output M12 x 1 male connector Country of origin None Weight 121 g Technical Data Design Rectangular Construction size Rectangular, CK40, 65 x 40 x 40 mm Rated switching distance 35 Operating voltage DC Switching element function NO contact Output function NPN Electrical connection Connector Connector type M12 × 1 Housing material Plastic Housing quality PBT-GF20-V0 Housing surface Black Mounting Non-flush Special features uprox®+, -Factor 1, -Resistant to magnetic fields
NPN Order number: 1625810 Rectangular, height 40 mm Variable orientation of active face in 5 directions Plastic, PBT-GF30-V0 High luminance corner LEDs Optimum view on supply voltage and switching state from any position Factor 1 for all metals Increased switching distance Protection class IP68 Resistant to magnetic fields Extended temperature range High switching frequency Auto-compensation protects against pre-attenuation DC 3-wire, 10…30 VDC NO contact, NPN output M12 x 1 male connector Country of origin None Weight 121 g Technical Data Design Rectangular Construction size Rectangular, CK40, 65 x 40 x 40 mm Rated switching distance 35 Operating voltage DC Switching element function NO contact Output function NPN Electrical connection Connector Connector type M12 × 1 Housing material Plastic Housing quality PBT-GF20-V0 Housing surface Black Mounting Non-flush Special features uprox®+, -Factor 1, -Resistant to magnetic fields
