Watercool HEATKILLER IV PRO (INTEL LGA 1X00) BLACK COPPER PVD CPU Water Block, G1/4 (18091)

A CPU water block for Intel LGA 1150, 1151, 1155, 1156, 1200, 1700 and 1851 with a black PVD-coated copper top and a nickel-plated copper base, in the PRO version. The Watercool HEATKILLER IV PRO (INTEL LGA 1X00) BLACK COPPER PVD mounts tool-free with Watercool's Easy-Mount system and takes connection types up to 19 mm.

Properties

• Sockets: Intel LGA 1150, 1151, 1155, 1156, 1200, 1700, 1851
• Top: Copper, black PVD (DLC) coating

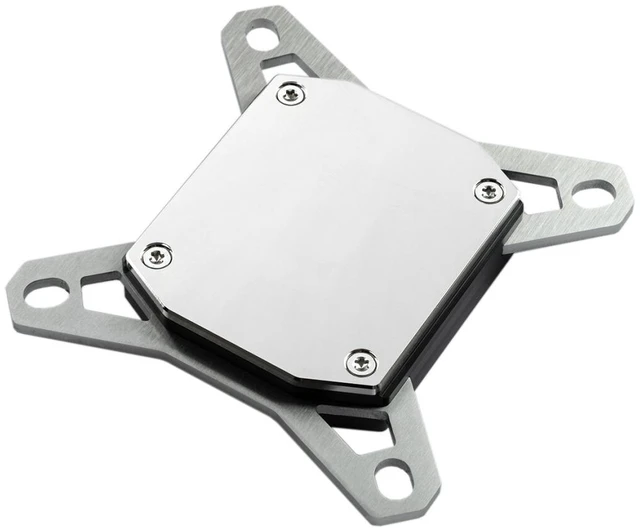

• Base: Nickel-plated copper
• Ports: 2x G1/4, 25 mm apart
• Size: 66 x 59 x 17 mm

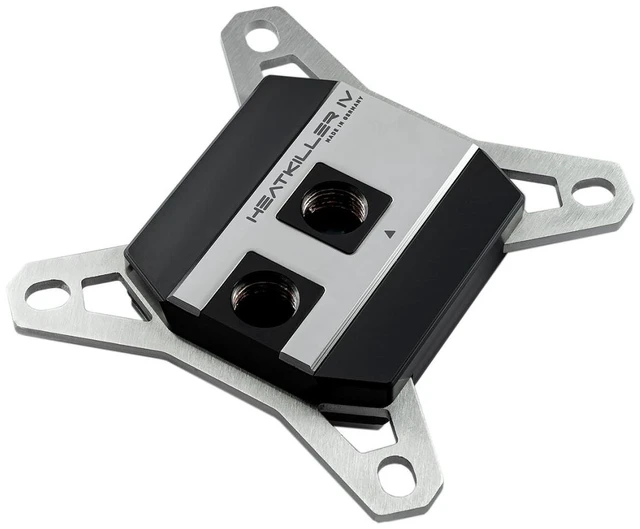

The black copper PVD top

This is Watercool's latest HEATKILLER IV in Black Copper PVD. Its top features a high-quality, black, diamond-like carbon coating (Diamond Like Carbon, DLC), applied using a modern plasma process. Watercool describes the surface as extremely hard and wear-resistant. It says the surface provides a stunning deep black appearance while offering optimal protection and long-lasting quality.

What changed in the HEATKILLER IV

Against the previous model, or predecessor, Watercool lists these points:

• Up to 3 °C better temperatures and cooling performance
• Increased flow rate thanks to a larger nozzle and collection channel (bigger jet plate nozzle and channel layout), resulting in fewer blockages and less clogging
• Tool-free Easy Mount system
• Extra large connectors and fittings thanks to 25 mm spacing

New cooling structure and optimized flow

The cooling structure, which Watercool also calls the cooling engine, underwent the most significant redesign. Watercool equipped the cooler with considerably finer, thinner fins to provide a larger surface area and thus better heat dissipation. It also ensured that the fins were designed in such a way that the flow was not compromised.

Compared to the previous model, Watercool eliminated the nozzle plate (jet plate) and integrated it directly into the lid. Watercool writes that this innovative design "allowed us to increase performance", improve flow and optimize reliability.

Technical data

• Top material: Copper, PVD black
• Base plate material: Copper, nickel-plated
• Mounting bracket and inlay material: Stainless steel, polished
• EasyMountSystem material: Stainless steel
• Cooler dimensions (L x W x H): 66 x 59 x 17 mm
• Seals: NBR 70
• Connection threads: 2 x G1/4 inch (DIN ISO 228-1)
• Distance between connection threads: 25 mm
• Temperature resistant to: 95 °C (PRO)
• Socket compatibility: Intel 1150, 1151, 1155, 1156, 1200, 1700 and 1851

Notes

• Watercool's manual has a page on the orientation of the block on the CPU; read it before you mount.
• A metal washer belongs between spring and mounting bracket on every socket, and a plastic washer between stud and mainboard.

In the box

• HEATKILLER® IV PRO (INTEL processor) BLACK COPPER PVD
• Mounting hardware
• Installation instructions
