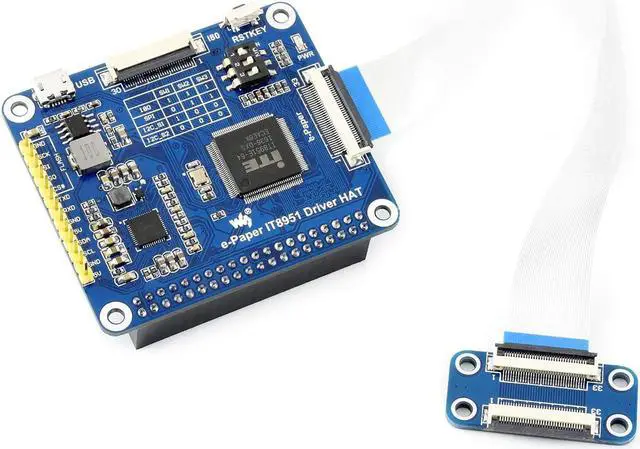

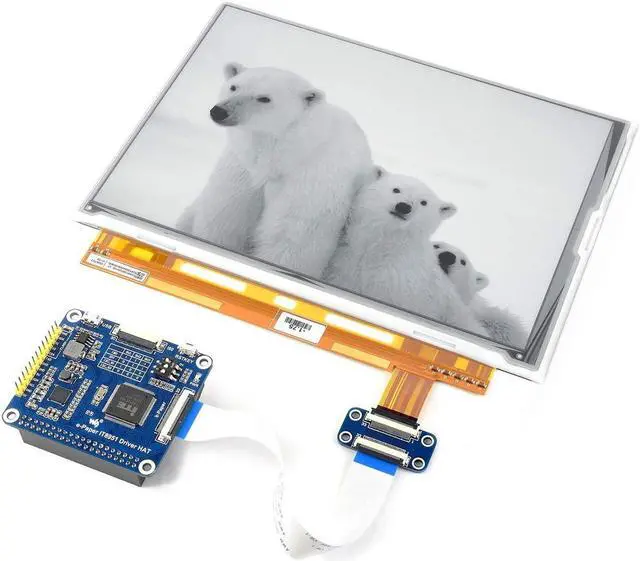

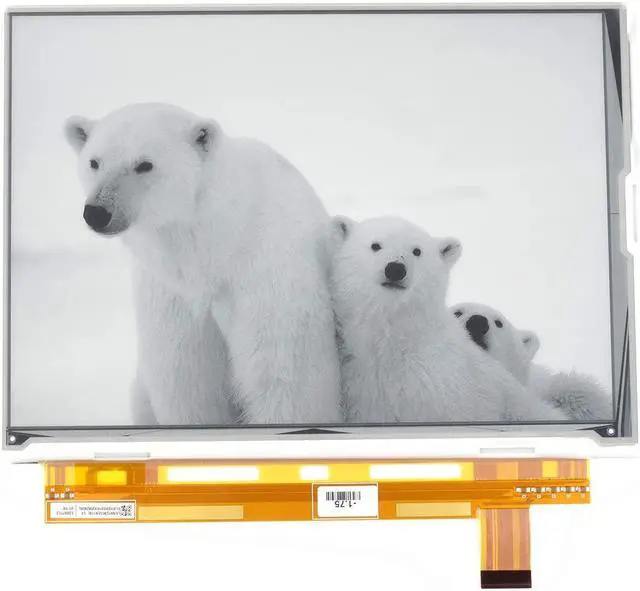

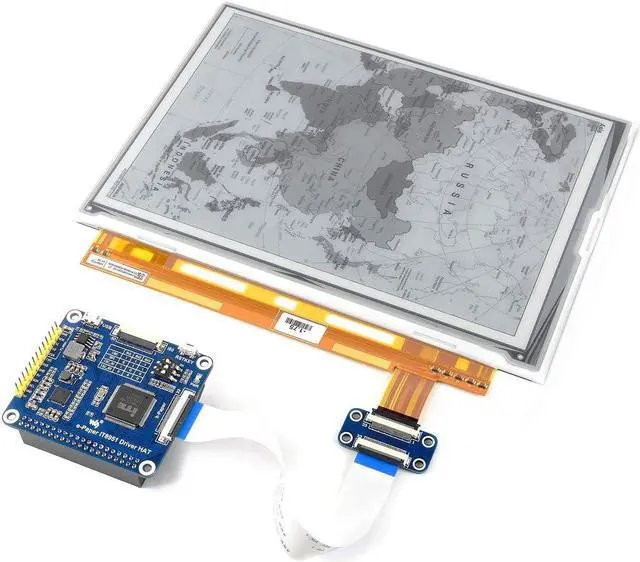

Waveshare 9.7 Inch E-Paper Display HAT 1200x825 Resolution E-Ink Screen LCD Module USB/SPI/I80/I2C Interface with Embedded IT8951 Controller for Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
- Item #: 9SIVAMDJN53292
- Mfr. Part #: OB07GNHB432
- No backlight, keeps displaying last content for a long time even when power down
- Low power consumption, basically power is only required for refreshing

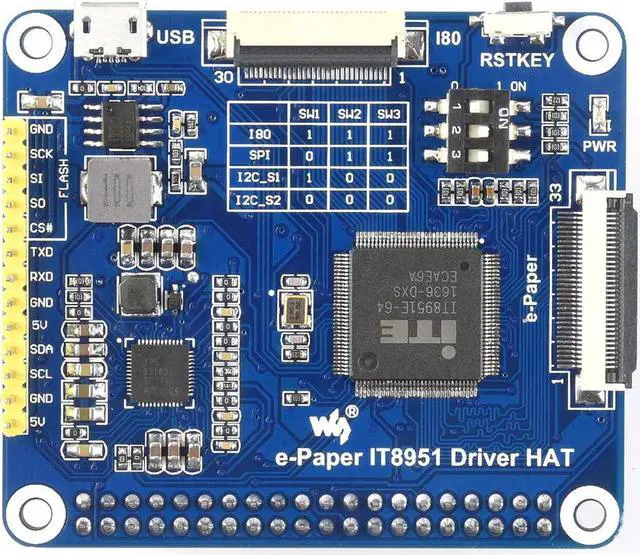

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- USB/SPI/I80 interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.
- Comes with development resources and manual (examples for Raspberry Pi/STM32)
+
+
Overview
Specs
Reviews

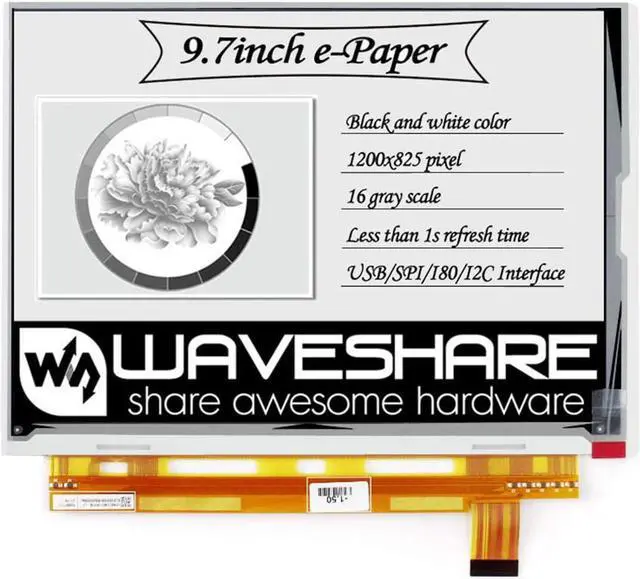

Specifications
Operating voltage: 5V
Interface: USB/SPI/I80
Outline dimension: 218.8mm × 156.425mm × 1.15mm
Display size: 202.8mm × 139.425mm
Dot pitch: 0.169 × 0.169
Resolution: 1200 × 825
Display color: black, white
Gray scale: 2-16 (1-4 bit)
Full refresh time: <1s
Total refresh power: 0.6W(typ.)
Total standby power: 0.3W(typ.)
Viewing angle: >170°
Operating voltage: 5V
Interface: USB/SPI/I80
Outline dimension: 218.8mm × 156.425mm × 1.15mm
Display size: 202.8mm × 139.425mm
Dot pitch: 0.169 × 0.169
Resolution: 1200 × 825
Display color: black, white
Gray scale: 2-16 (1-4 bit)
Full refresh time: <1s
Total refresh power: 0.6W(typ.)
Total standby power: 0.3W(typ.)
Viewing angle: >170°
