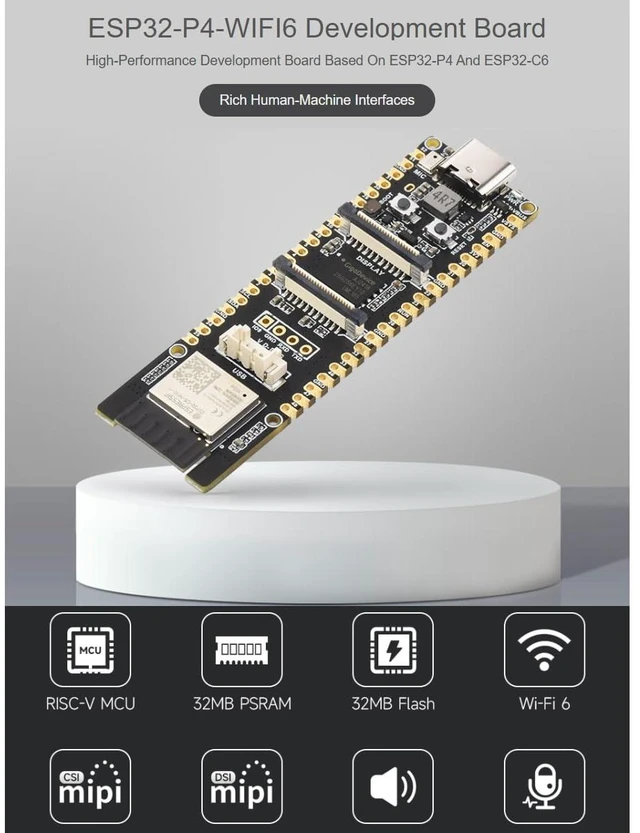

ESP32-P4-WIFI6 Development Board with Pre-soldered Header,32MB PSRAM | Based On ESP32-P4NRW32X,Integrated ESP32-C6,Support Wi-Fi 6 and BLE 5,RISC-V 32-bit Dual-core and Single-core Processors

Development Board Introduction

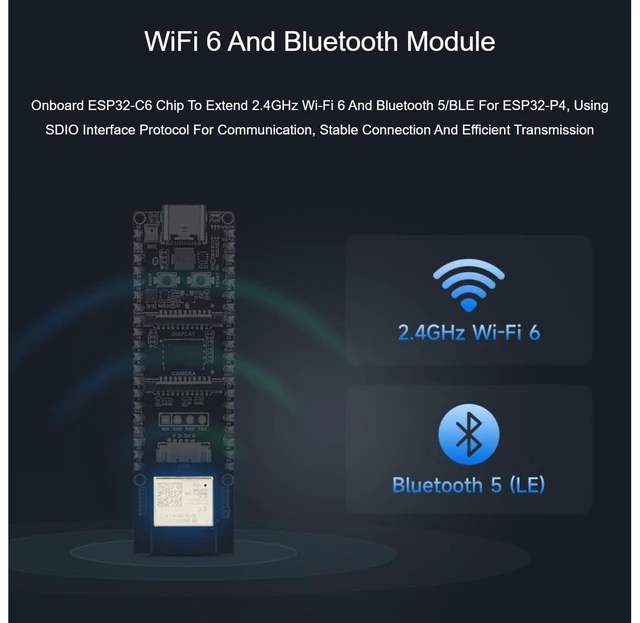

This product is a multimedia development board based on ESP32-P4 with integrated ESP32-C6, supports Wi-Fi 6 and Bluetooth 5 wireless connection.

Additionally, it supports USB OTG 2.0 HS, and onboard 40PIN GPIO header which is compatible with some Raspberry Pi Pico HATs, enabling a wider range of

application adaptability.

The ESP32-P4 adopts a 400MHz dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI/DSI, H.264 encoder, and other

peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates the Digital Signature

Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security

applications, the ESP32-P4-WIFI6 meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion.

Key features include:

High-performance MCU with RISC-V 32-bit dual-core and single-core processors

128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM

Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator,

Image Signal Processor, H264 encoder

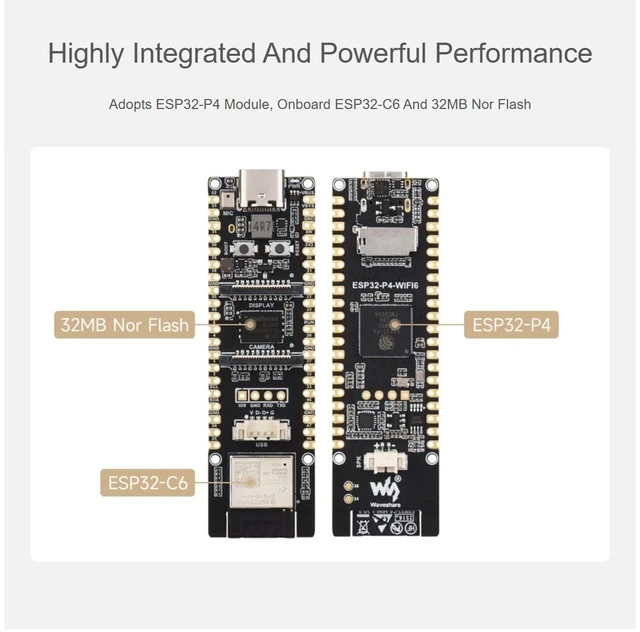

32MB PSRAM in the chip's package, with onboard 32MB Nor Flash

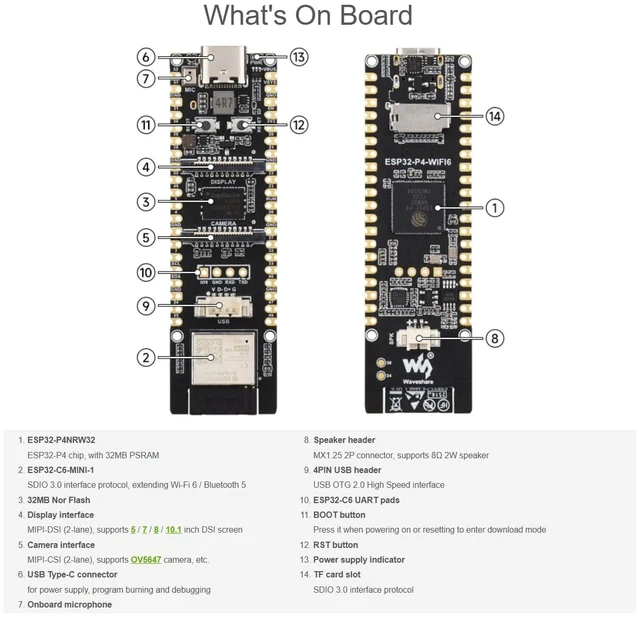

Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, SDIO 3.0 TF card slot, microphone, and speaker header, etc.

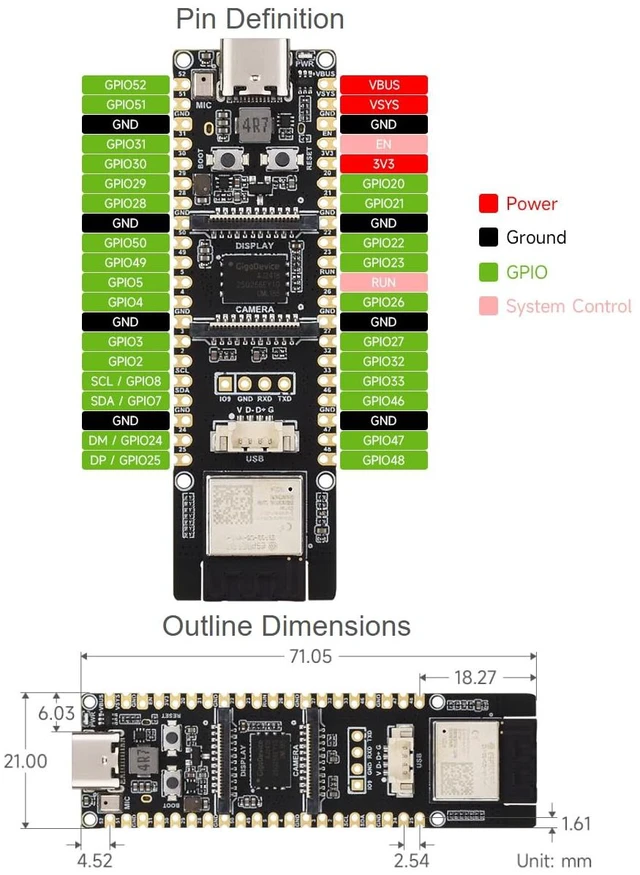

Adtaping 2*20 GPIO headers with 27 x remaining programmable GPIOs

Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable

Access Permission Management and Privilege Separation

Package Content

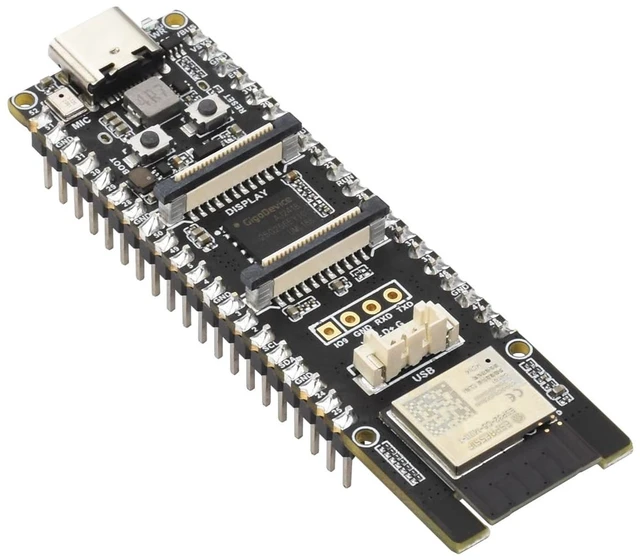

ESP32-P4-WIFI6 with pre-soldered header x1
