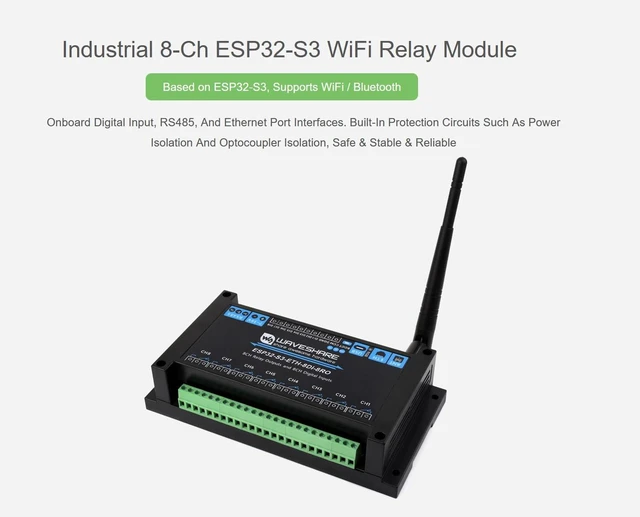

Industrial 8-Ch ESP32-S3 WiFi Relay Module, Onboard RS485, Digital Input, Relay, Ethernet Port and Multiple Isolation Protection Circuits, Supports RS485 and Bluetooth/WiFi Remote Control

Industrial 8-Channel ESP32-S3 WiFi Relay Module:

--Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz

--Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance

--High quality relay, contact rating: 10A 250V AC / 30V DC

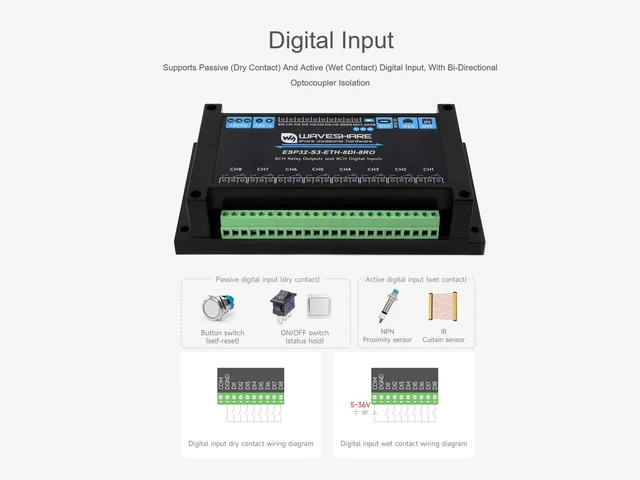

--Supports passive and active digital input, with bi-directional optocoupler isolation. The relay supports digital input linkage control

--Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors

--Onboard pin header, allowing access to other devices

--Onboard USB Type-C port for power supply, firmware downloading and debugging

--Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications

--Onboard RTC chip, supports scheduled tasks

--Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface

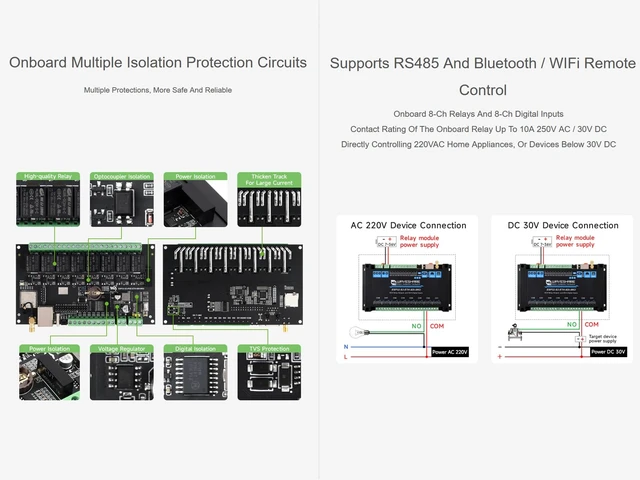

--Onboard optocoupler isolation to prevent interference from external high-voltage circuit connected to the relay

--Onboard digital isolation to prevent interference from external signal

--Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal

--Onboard TF card slot for external TF card storage of images and files

--Built-in buzzer, RGB LED, power supply and RS485 TX/RX indicators for monitoring the operating status of the devices

--Rail-mounted ABS case, easy to install, safe to use

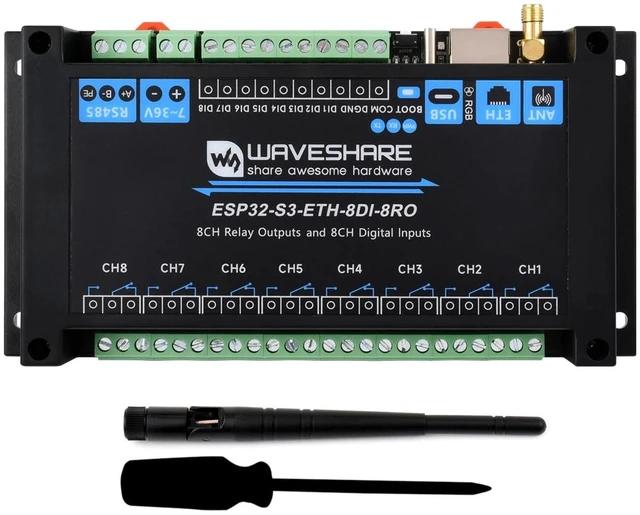

Package Content

ESP32-S3-ETH-8DI-8RO × 1

2.4G 4DB SMA antenna × 1

Screwdriver × 1

NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
