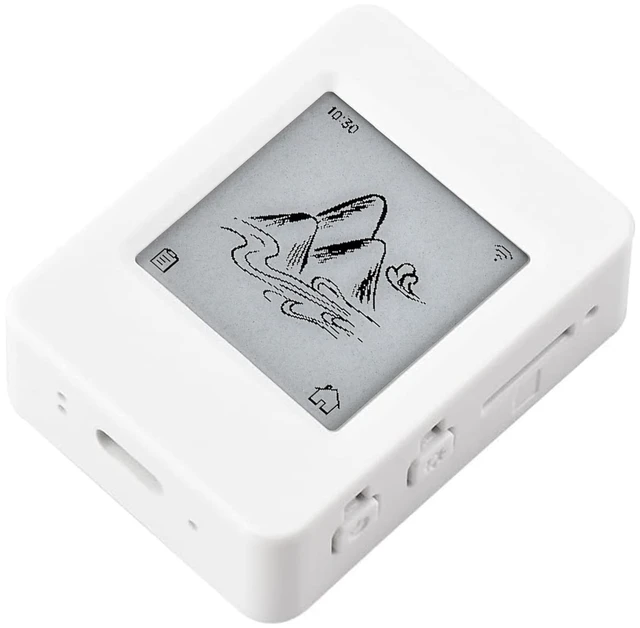

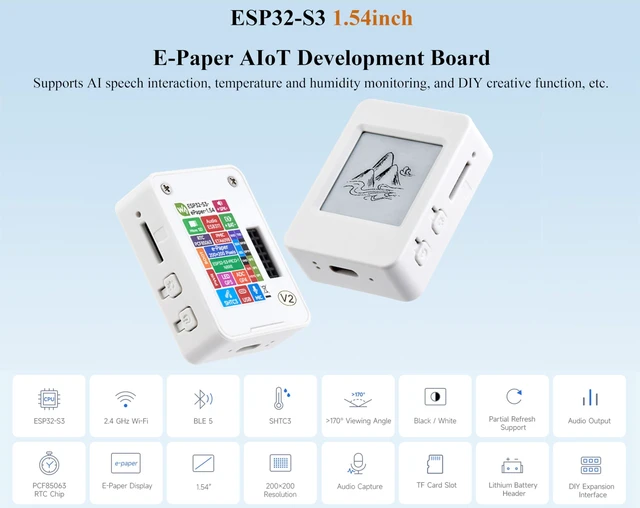

ESP32-S3 1.54inch e-Paper AIoT Development Board, Supports AI Speech Interaction, Temperature and Humidity Monitoring, DIY, etc. 200 x 200, Black/White, Wi-Fi and BLE Dual-Mode Communication

Introduction

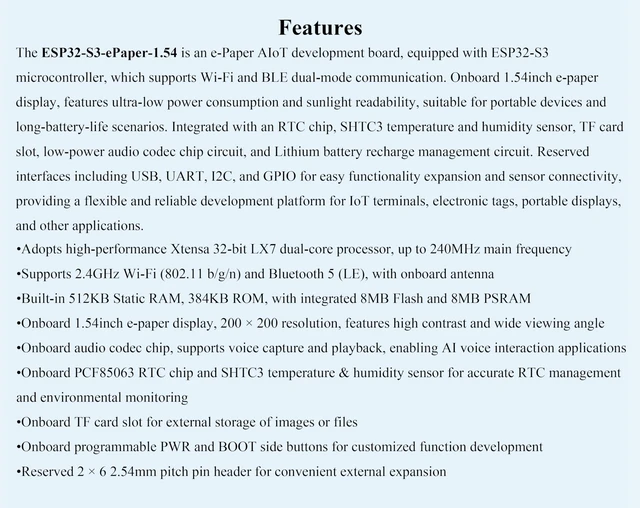

---The ESP32-S3-ePaper-1.54 is an e-Paper AIoT development board, equipped with ESP32-S3 microcontroller, adopts high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.

Suitable for Voice Interaction and e-Reader, etc.

--- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Built-in 512KB SRAM, 384KB ROM, with integrated Flash and PSRAM.

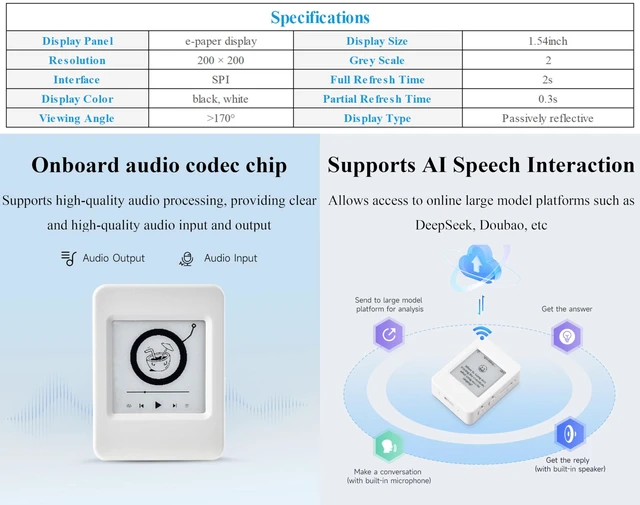

---Onboard 1.54inch e-paper display, 200 × 200 resolution, features high contrast and wide viewing angle.

---Onboard audio codec chip, supports voice capture and playback, enabling AI voice interaction applications.

---Supports AI Speech Interaction: Allows access to online large model platforms such as DeepSeek, Doubao, etc.

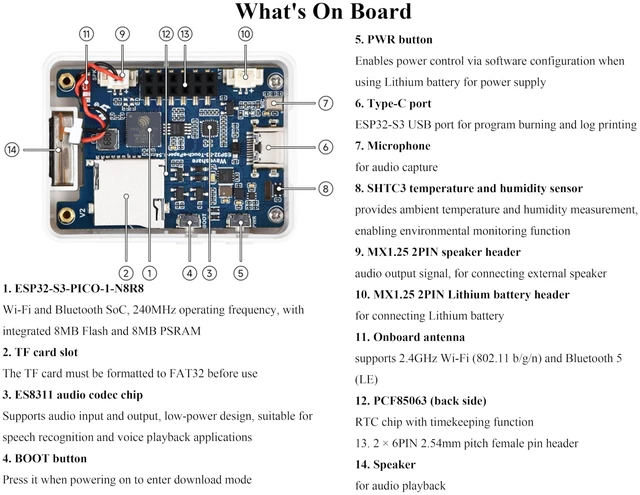

--- Onboard PCF85063 RTC chip and SHTC3 temperature & humidity sensor for accurate RTC management and environmental monitoring.

---Onboard TF card slot for external storage of images or files.

---Onboard programmable PWR and BOOT side buttons for customized function development.

---Reserved 2 × 6 2.54mm pitch pin header for convenient external expansion.

Supports ESP-IDF, Ardui IDE: Comprehensive SDK, dev resources, and tutorials to help you easily get started: n9.cl/tseakv

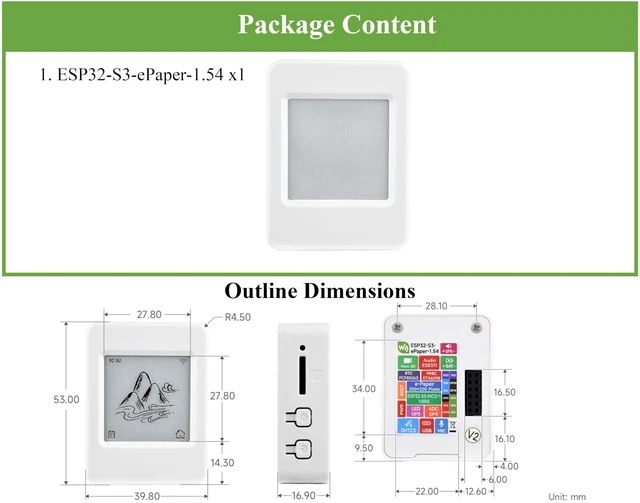

Package Content

ESP32-S3-ePaper-1.54-EN x1

Note: the MX1.25 3.7V Lith batt is not included
