Yealink YEA-EXP40 T4 series Expansion Module
- YEA-EXP40
+
+
Overview
Specs
Reviews

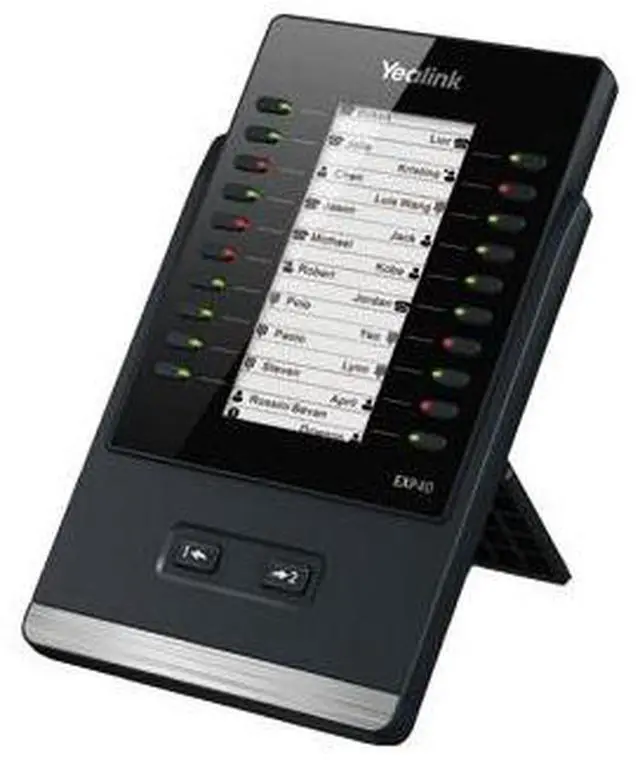

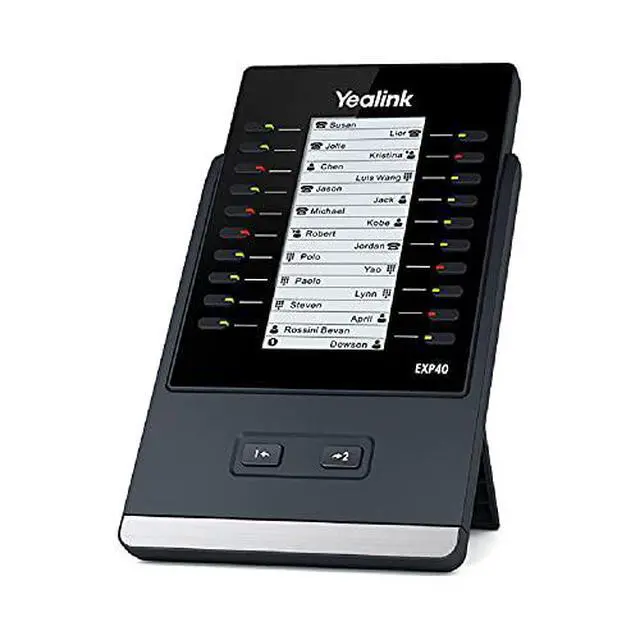

Yealink LCD Expansion Module - YEA-EXP40
The EXP40 Expansion Module for the SIP-T46G and SIP-T48G, expanding the functional capability of your sip phone to a whole new level. It features a large graphic LCD. Two pages of 20 flexible buttons are shown on the display can be programmed up to 40 various features, the productivity-enhancing features include BLF/BLA, speed dialing, call forward, transfer, park, pickup, etc.
- An exclusive collection with quality and detailed designs
- Rich visual experience with 160x320 graphic LCD
- 20 physical keys each with a dual-color LED
- 2 independent control keys are used for fast switch pages
- Stand with 2 adjustable angles
- Wall mountable
Features & Benefits
Revolutionarily new design
New design pursuing tiniest details for matching elegantly with the look and feel of T46G, rubber covers on the feet that contact the desk surface help prevent the phone from sliding, The new foot stand allows two posi-tions for the device, support application of wall mountable, the backlit display eliminates the need for external light.
A rich visual experience for applications
Equipped with a 160x320 graphic LCD with Backlight. 20 physical keys each with a dual-color LED and two page views are possible, this allows 40 additional programmable keys that can be used for speed dialing, BLF/BLA, call forward, transfer, park, pickup, etc. 2 independent control keys are used for fast switch pages.
Expandability
Supports up to 6 Expansion Modules for an attendant console application, adding up to 240 additional buttons. it has to be powered by a conventional power supply (5V/1.2A) if exceed 2 connections .
Specification
Display
- 160x320 graphic LCD with 16-level grayscales
- LCD Backlight
- Two page views are possible
- Different icons for each function shown on the LCD
Features Keys and Indicator
- 20 physical keys each with a dual-color LED
- 20 additional keys through page switch
- 2 independent control keys are used for fast switch pages
- Programmable for Shared Line, BLF List, BroadSoft Group, Call Park, Conference,Forward, Group pickup Group listening, LDAP, Pick UP, XML Browser, Zero-SP-Touch......
Physical Feature
- Wall mountable
- Stand with 2 adjustable angles
- Expansion module (=2) is powered by the host phone
- Supports up to 6 modules daisy-chain
- 2xRJ12(6P6C)ports for data in and out
- Dimension (W*D*H*T):127mm*213mm*167mm*45mm
- Applies to Yealink IP Phone
- Operating temperature: -10~50°C
- Operating humidity: 10-95%
Package features
- Qty/CTN: 10 PCS
- N.W/CTN: 6.7 kg
- G.W/CTN: 7.6 kg
- Giftbox size: 237mm*154mm*100mm
- Carton Meas: 520mm*317mm*247mm
The EXP40 Expansion Module for the SIP-T46G and SIP-T48G, expanding the functional capability of your sip phone to a whole new level. It features a large graphic LCD. Two pages of 20 flexible buttons are shown on the display can be programmed up to 40 various features, the productivity-enhancing features include BLF/BLA, speed dialing, call forward, transfer, park, pickup, etc. Key Features and Benefits
Revolutionarily new design
New design pursuing tiniest details for matching elegantly with the look and feel of T46G, rubber covers on the feet that contact the desk surface help prevent the phone from sliding, The new foot stand allows two posi-tions for the device, support application of wall mountable, the backlit display eliminates the need for external light. A rich visual experience for applications
Equipped...
Features: Busy Lamp Field (BLF)
Features: Busy Line Answer (BLA)
Features: Speed Dial
Features: Call Forward
Features: Call Transfer
Features: Conference Call
Features: Call Park
Features: Group
Pick-upScreen Type: LCD
Form Factor: Wall Mountable
Height: 6.6W
idth:
5"Depth: 8.4""
Revolutionarily new design
New design pursuing tiniest details for matching elegantly with the look and feel of T46G, rubber covers on the feet that contact the desk surface help prevent the phone from sliding, The new foot stand allows two posi-tions for the device, support application of wall mountable, the backlit display eliminates the need for external light. A rich visual experience for applications
Equipped...
Features: Busy Lamp Field (BLF)
Features: Busy Line Answer (BLA)
Features: Speed Dial
Features: Call Forward
Features: Call Transfer
Features: Conference Call
Features: Call Park
Features: Group
Pick-upScreen Type: LCD
Form Factor: Wall Mountable
Height: 6.6W
idth:
5"Depth: 8.4""
