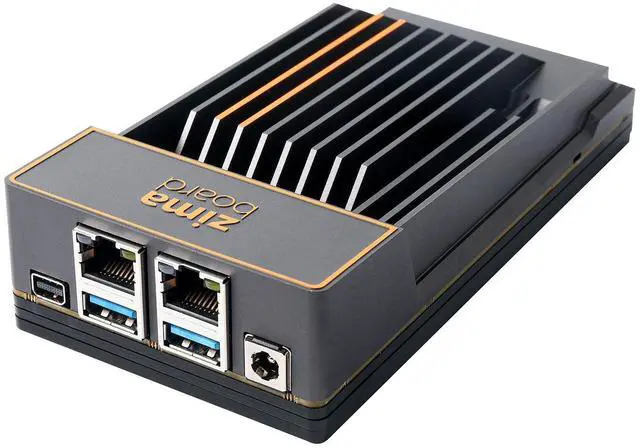

What is ZimaBoard ?
Single Board Server for Creators
ZimaBoard is a low-cost single board server exclusively designed for makers and geeks. It has both the expandability of an x86 single-board computer (SBC), and the appropriate power of a micro server.

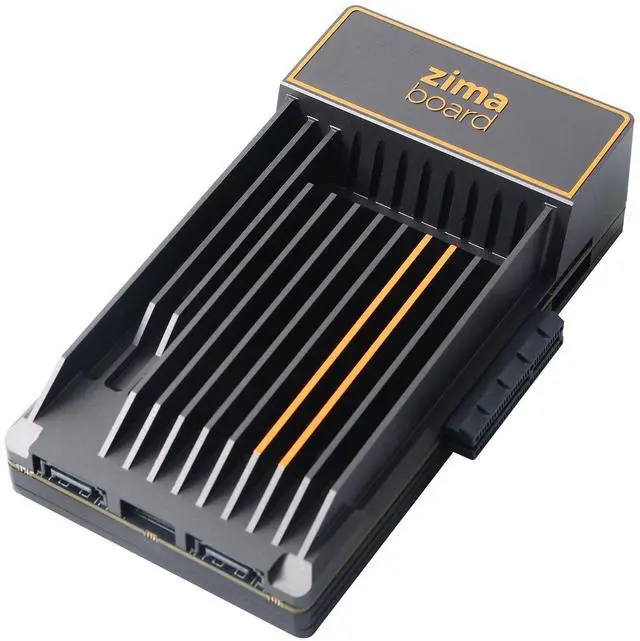

PCIe x4 Onboard - Fully Customizable and Expandable
Expandability is the core of ZimaBoard's design concept.
It packs with an onboard PCIe x4 interface as PCIe is the major physical interface that caters to a variety of user needs. Also, with a large number of PCIe accessories available in the market, you can easily extend your ZimaBoard setup with 2.5Gbe, NVMe NGFF SSD, WIFI dongle, XMOS/DAC module, and many more!
Personal Cloud
- Up to 36TB Storage Space
- 100MB/sec Write Speed
- 0 Recurring Fee
ZimaBoard allows you to easily expand to 36TB disk space (2 x SATA) as your data grows. Enjoy fast reading and writing experience just like your local hard disk when connected via gigabit network.
Software Router
- OpenWRT Compatible
- pfSense Compatible
- 6W TDP
With its superior compatibility offered by the x86 chipset, you can turn ZimaBoard into a hardware router. Create secure VPN connection, run lightweight services like FTP Server, BitTorrent Client, perform Traffic-Shaping and QoS, or even set up a private access to your office computer.
Plex Media Server
- 0TB-36TB Capacity
- 4K/60Hz Streaming
- Transcoding Yes
With the Plex Media Server installed on ZimaBoard, get all your media organized, stream your favorite collections of movies, TV shows anywhere on all your devices, and enjoy millions of high-resolution tracks via Tidal. Transforming the way you browse and enjoy your personal media library.
File Share & Collaboration
- Nextcloud Compatible
- Self-hosting Compatible
- GDPR Compliant
Boost your teamwork seamlessly on documents and spreadsheets in a protected environment. With ZimaBoard, you can set up a large-volume shared disk right at home or in the office. Edit your videos, photos, and documents with others on multiple systems in real-time.
ZimaBoard FAQ
Q:Does the power supply support 110v?
No. We recommend that you use the official 12V/3A power adapter for ZimaBoard.
Q:Does ZimaBoard support a single 8T hard drive??
ZimaBoard can be expanded to 36TB HDD (2x18TB) via two SATA ports onboard. Please note that external power supply for 3.5inch HDDs will be needed as power supply from the ZimaBoard could be insufficient
Q:Does SSH need to go into the server and open the port itself?
SSH is opened by default
| Products | |||
|---|---|---|---|
| Model | ZimaBoard 832 | ZimaBoard 432 | ZimaBoard 216 |
| CPU | Intel Celeron N3450 Quad Core 1.1-2.2GHz | Intel Celeron N3450 Quad Core 1.1-2.2GHz | Intel Celeron N3350 Dual Core 1.1-2.4GHz |
| RAM | 8G LPDDR4 | 4G LPDDR4 | 2G LPDDR4 |
| Onboard Storage | 32GB eMMC | 32GB eMMC | 16GB eMMC |
| LAN | Dual Gigabit Ethernet LAN | Dual Gigabit Ethernet LAN | Dual Gigabit Ethernet LAN |
| PCle | PCle 2.0 4x | PCle 2.0 4x | PCle 2.0 4x |
| Pre-installed OS | CasaOS (Based on Debian) | CasaOS (Based on Debian) | CasaOS (Based on Debian) |
| USB | 2x USB 3.0 | 2x USB 3.0 | 2x USB 3.0 |
| HDD/SSD | 2x SATA 6.0 Gb/s Ports | 2x SATA 6.0 Gb/s Ports | 2x SATA 6.0 Gb/s Ports |
