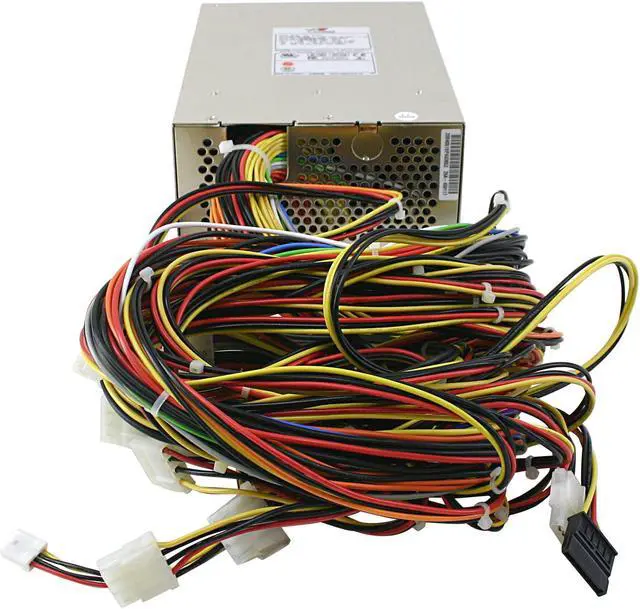

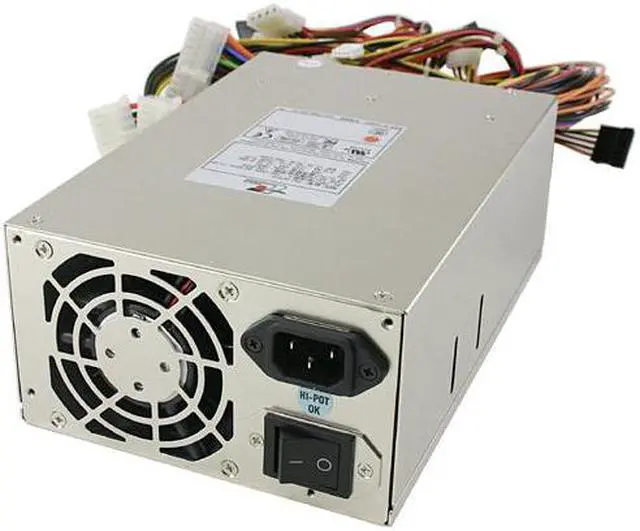

    ZIPPY PSL-6701P-SATA 700 W ATX 2.03, ATX12V(P4), EPS12V, WTX, AMD-GES Active PFC Power Supply

    • Item #: 9SIV2GEB094087
    • Mfr. Part #: PSL-6701P-SATA
    • UNSPSC: 39121004
    (3) Write a Review
    • ATX 2.03, ATX12V(P4), EPS12V, WTX, AMD-GES
    • 90 - 264 V 47 - 63 Hz
    • +3.3V@30A, +5V@35A, +12V@45A, -5V@0.8A, -12V@1A, +5VSB@2A
    +
    +
    Specs
    Reviews (3)

    Learn more about the ZIPPY PSL-6701P-SATA

    General
    Brand ZIPPY
    Model PSL-6701P-SATA
    Details
    Type ATX 2.03, ATX12V(P4), EPS12V, WTX, AMD-GES
    Maximum Power 700 W
    Fans 1 x 80mm DC FAN
    PFC Active
    Main Connector 24Pin
    +12V Rails Single
    SLI No
    Modular No
    Hold-up Time 16ms min.
    Efficiency > 70%
    Over Voltage Protection +5V: 5.7V ~ 6.5V, 3.3V: 3.9 ~ 4.3V, 12V: 13.6 ~ 15V
    Overload Protection 110 ~ 160% MAX
    Input Voltage 90 - 264 V
    Input Frequency Range 47 - 63 Hz
    Input Current 11/5A
    Output +3.3V@30A, +5V@35A, +12V@45A, -5V@0.8A, -12V@1A, +5VSB@2A
    Approvals UL 1950, CSA 22.2 NO/950, TÜV IEC 950

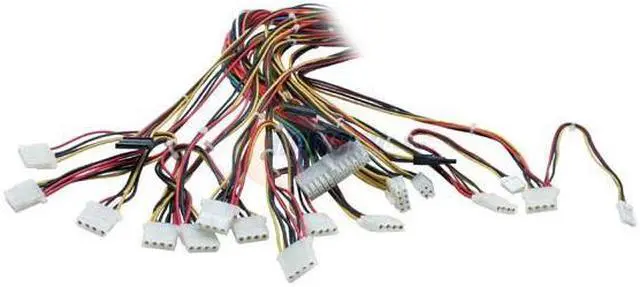

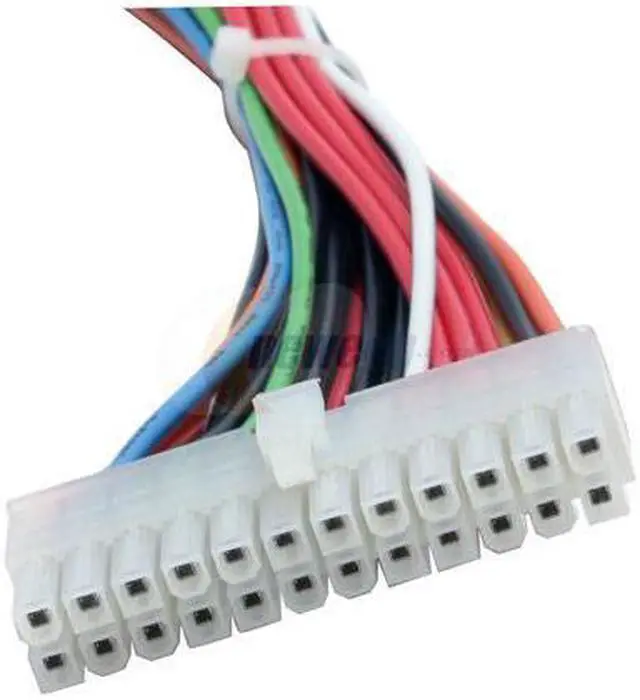

    Connectors 1 x Main connector (24-pin)
    1 x 12V(P4)
    1 x 12V(8pin)
    12 x peripheral
    4 x SATA
    2 x Floppy
    Features
    Features Active Pfc (full Range), Meet Iec-1000-3-2 Class D
    12v Max. Current : 45a
    Temperature Range : Operating 0°C~40°C, Storage –20°C~ 70°C
    Humidity:operating:20%-95%, Non-operating:10%-95%
    Remarks:85% Is Normal Condition And 95% Is With Special Coating Process
    Remote On / Off Control
    EMI : Meet Fcc Class B, Cispr22 Class B

    Additional Information
    First Listed on Newegg February 06, 2020
