Product Overview

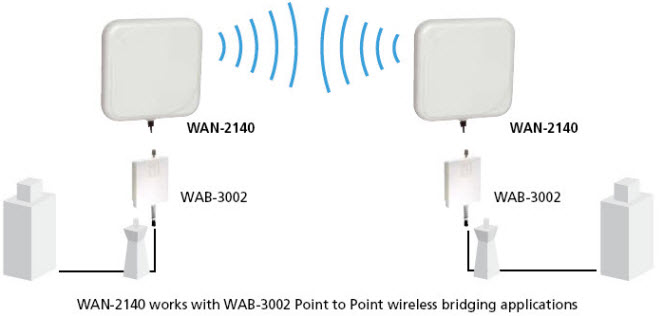

LevelOne WAN-2140 outdoor grid antenna is a high performance directional flat patch WiFi antenna suitable for indoor/outdoor directional applications. This antenna increases wireless signal coverage and improves signal strength/quality for existing 802.11b/g wireless devices in the range between 2.4Ghz to 2.5Ghz frequency bands.The WAN-2140 is especially designed for outdoor point-to-point wireless bridge applications. The waterproof surface keeps the antenna workable in any rogue environment.
The WAN-2140 has been tested for interoperating with LevelOne's wireless product which comply with IEEE802.11b/g standards and are equipped with an N male connector.
Key Features
- For IEEE 802.11b/g/n applications at the range between 2.4~2.5GHz frequency band
- Easy to install for vertical or horizontal polarization
- Directional operation provides extended point to point coverage
- Integrated N-Type female connector
Package Contents
- WAN-2140
- Wall & Pole Mounting
Antenna Comparison
| Model # | WAN-7100 | WAN-2185 | WAN-2140 | WAN-2181 | WAN-2218 |
| Description | Directional Dual-Polarization | Directional Pico Cell | Directional Panel | Directional Panel | Directional Yagi |
| Frequency Range | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz |
| Indoor/Outdoor | Indoor/Outdoor | Indoor/Outdoor | Outdoor | Outdoor | Outdoor |
| Gain | 10.5dBi | 8.5dBi | 14dBi | 18dBi | 18dBi |
| Range (Estimated) | 200~800m | 350~1200m | 300~3500m | 1500~5000m | 1500~5000m |
| Extension Cable | 3m | - | - | - | - |
| IP Rating | - | IPX5 | - | IP67 | IPX5 |
| Connector | SMA-RPSMA | N-Jack | N-Jack | N-Jack | N-Jack |
