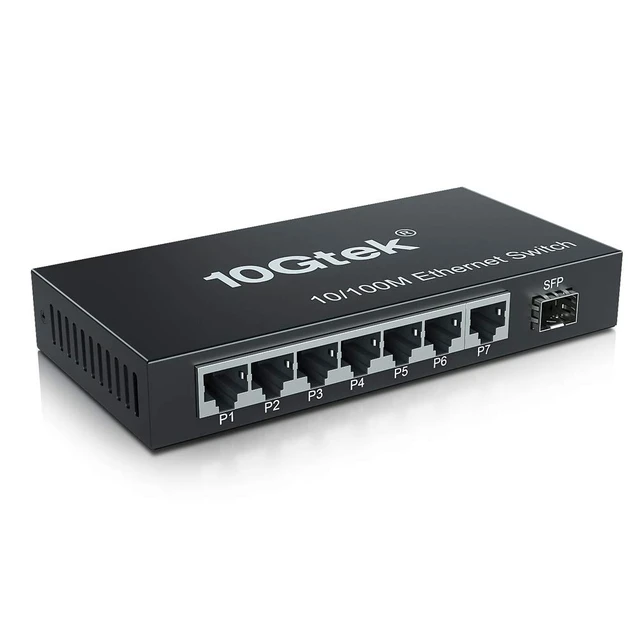

8-Port Fast Ethernet Switch, 1 Port SFP (Without Transceiver), 7 Port RJ45 (10/100Base-Tx)
- Item #: 9SIVV5XM997955
- [Port Situation] 1 Port Fiber: 1 SFP slot, without transceiver; 7 Ports RJ45: 10/100Mbps, full/half duplex auto-negotiation, MDI/MDIX auto-crossover, UTP/STP Cat.5.
- [Controller] Designed with IC+ IP178C chip to ensure stability and ultra-low time-delay data transmission.
- [Standards] Complied with IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX and 100Base-FX Fast Ethernet.
- [Easy Installation and Use] Modulization configuration design, support hot-swappable, plug and play. LED indicators for TP1, TP2, TP3, TP4, TP5, TP6, TP7, LINK/ACT, SFP, POWER can dynamic feedback link connection state and fault detection to easily monitor network status.
- [Warranty] 3-year warranty and lifetime technical support.
+
+
Overview
Specs
Reviews
Description:

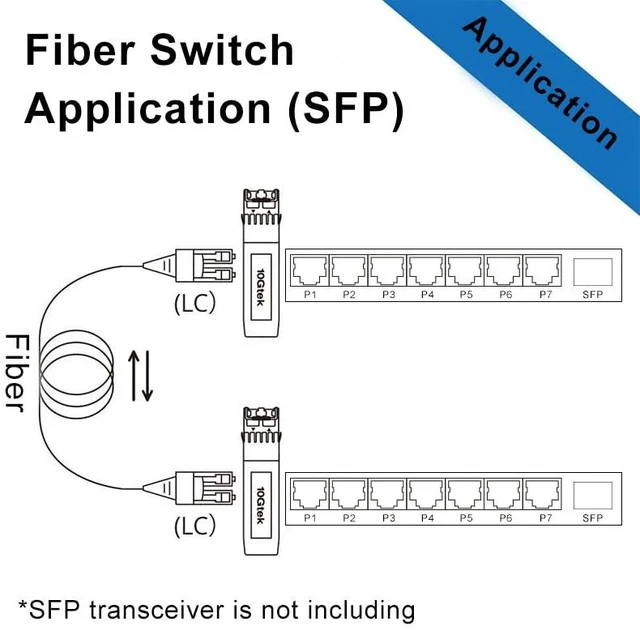

The 10Gtek 8-Port Fast Ethernet Switch is an excellent all-purposed Optical Fiber Switch with work group, it can be used as switch equipment in small network . The switch is with 7 ports 10/100Base-T RJ45 and 1 port SFP slot. All the 10/100Mbps RJ45 ports support half or full duplex modes and each of them can be joined by Twist Pairs with Hubs, Switches, Routers, Servers or NICs etc. Also it is unnecessary to distinguish MDI or MDI-X because this Optical Fiber Switch can work in 100Mbps steadily. The SFP port can be joined by Corresponding Fiber with another Fiber Media Converter, Hubs, Switches, Routers, Servers or Fiber NIC etc. Ethernet fiber equipments. The SFP port is set to full duplex.
Technical Specifications:
Operating standards:
IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX and 100Base-FX Fast Ethernet
ANSI/IEEE STD 802.3 10/100M auto-negotiated
Protocol: CSMA/CD
Data Transmitting Rate:
10Mbps (Half Duplex)
20Mbps (Full Duplex)
100Mbps (Half Duplex)
200Mbps (Full Duplex)
Cable: UTP/STP Cat.5, the max distance up to 100m
Fiber: SFP Slot
Duplex choose: each port of RJ45 supports N-WAY auto-choose Full/Half Duplex

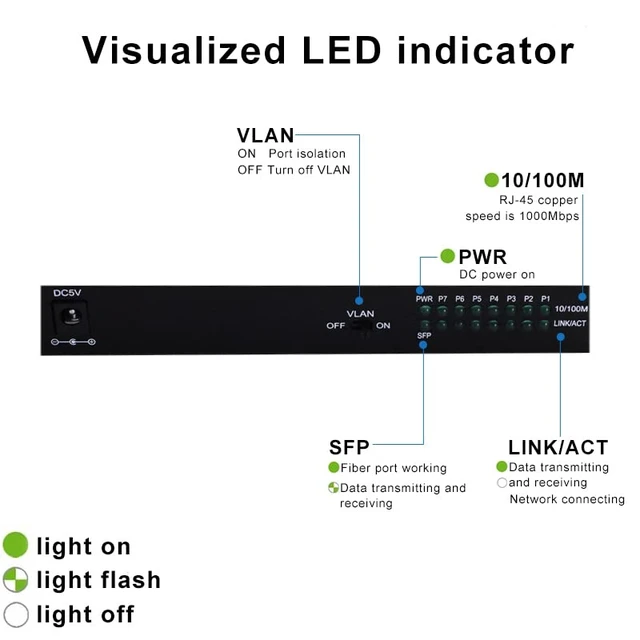

LED indicators: POWER, TP1, TP2, TP3, TP4, TP5, TP6, TP7, 100M, Link/Act
MAC address table: 1K
Physical Characteristics:
Power supply: AC100 ~ 260V, 50Hz, DC5V 1A
Power: 5W
Environment temperature: 0 ~ +50
Storage temperature: -25 ~ +70
Humidity: 5% ~ 90%
Dimensions: 83(L) x 160(W) x 25(H)mm
