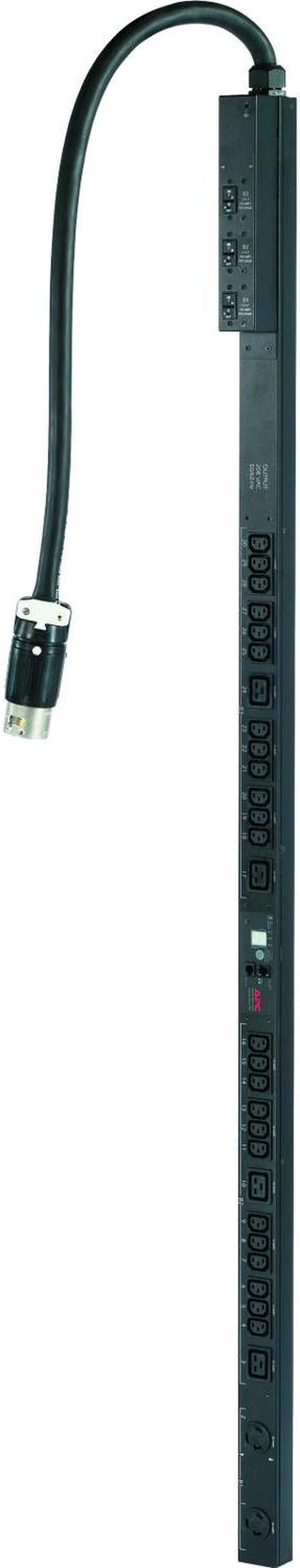

Main image of APC AP7869B Metered Rack Pdu - Power Distribution Unit (Rack-Mountable) - Ac 208 V - 14.4 Kw - 3-Phase - Rs-232 - Input: Cs8365 - Output Connectors: 30 - 0U - 35.8 In - Black

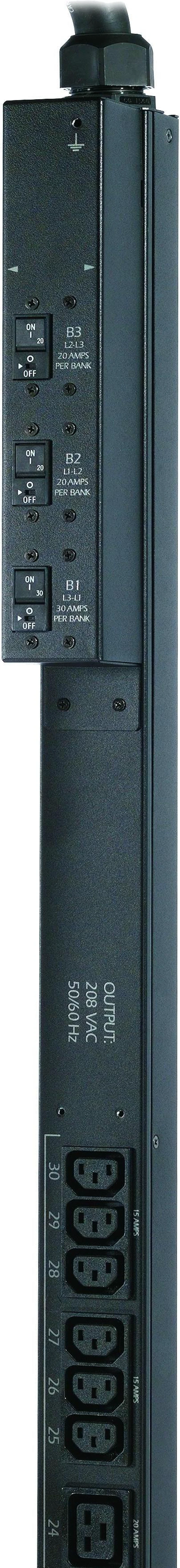

Alt view image 2 of 7 - APC AP7869B Metered Rack Pdu - Power Distribution Unit (Rack-Mountable) - Ac 208 V - 14.4 Kw - 3-Phase - Rs-232 - Input: Cs8365 - Output Connectors: 30 - 0U - 35.8 In - Black

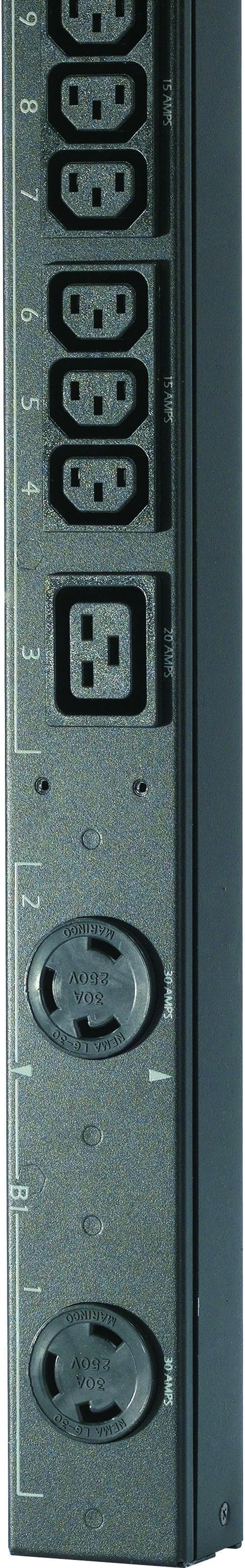

Alt view image 3 of 7 - APC AP7869B Metered Rack Pdu - Power Distribution Unit (Rack-Mountable) - Ac 208 V - 14.4 Kw - 3-Phase - Rs-232 - Input: Cs8365 - Output Connectors: 30 - 0U - 35.8 In - Black

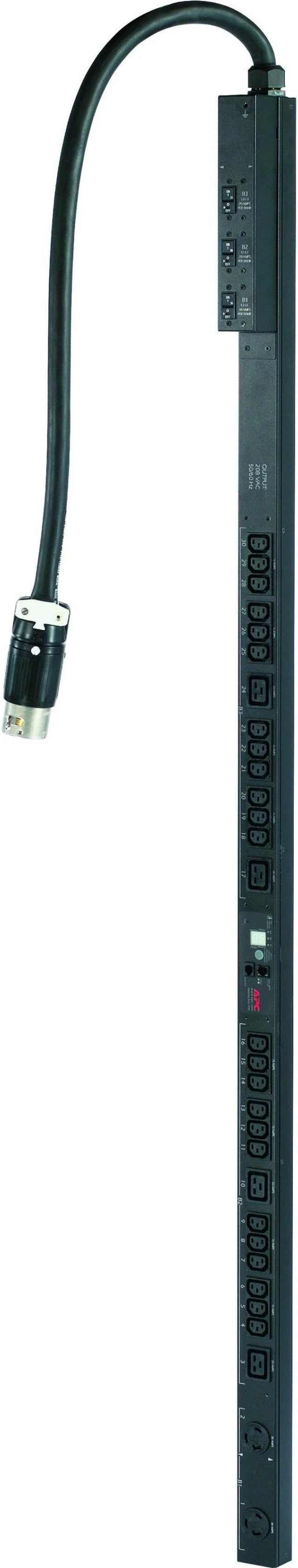

Alt view image 4 of 7 - APC AP7869B Metered Rack Pdu - Power Distribution Unit (Rack-Mountable) - Ac 208 V - 14.4 Kw - 3-Phase - Rs-232 - Input: Cs8365 - Output Connectors: 30 - 0U - 35.8 In - Black

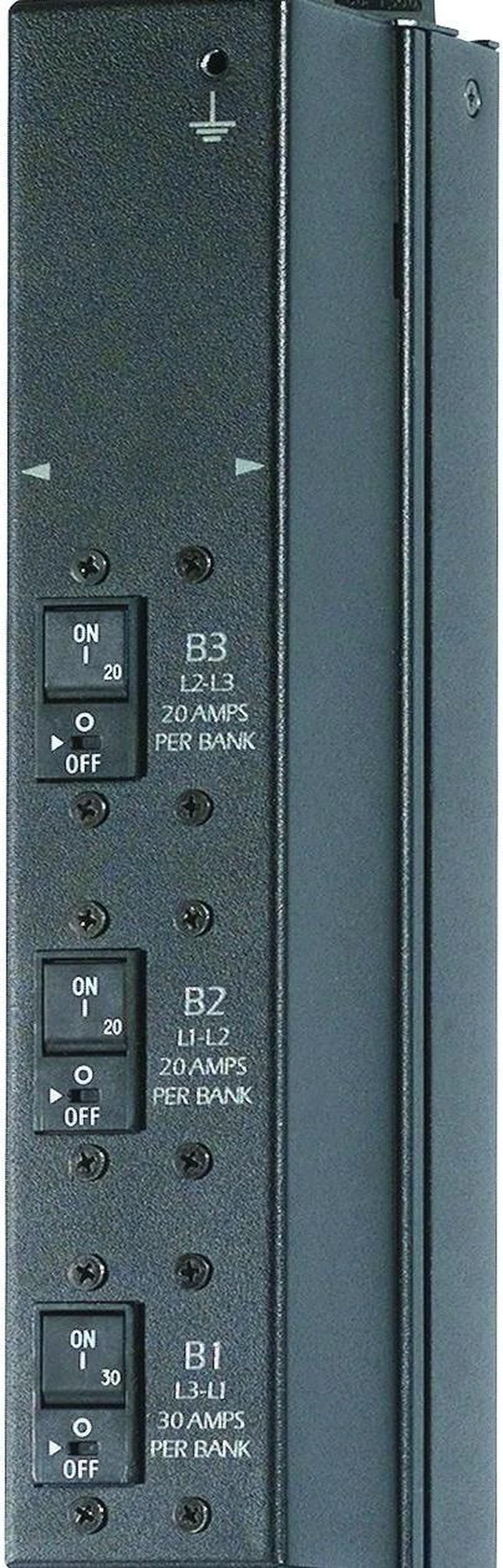

Alt view image 5 of 7 - APC AP7869B Metered Rack Pdu - Power Distribution Unit (Rack-Mountable) - Ac 208 V - 14.4 Kw - 3-Phase - Rs-232 - Input: Cs8365 - Output Connectors: 30 - 0U - 35.8 In - Black

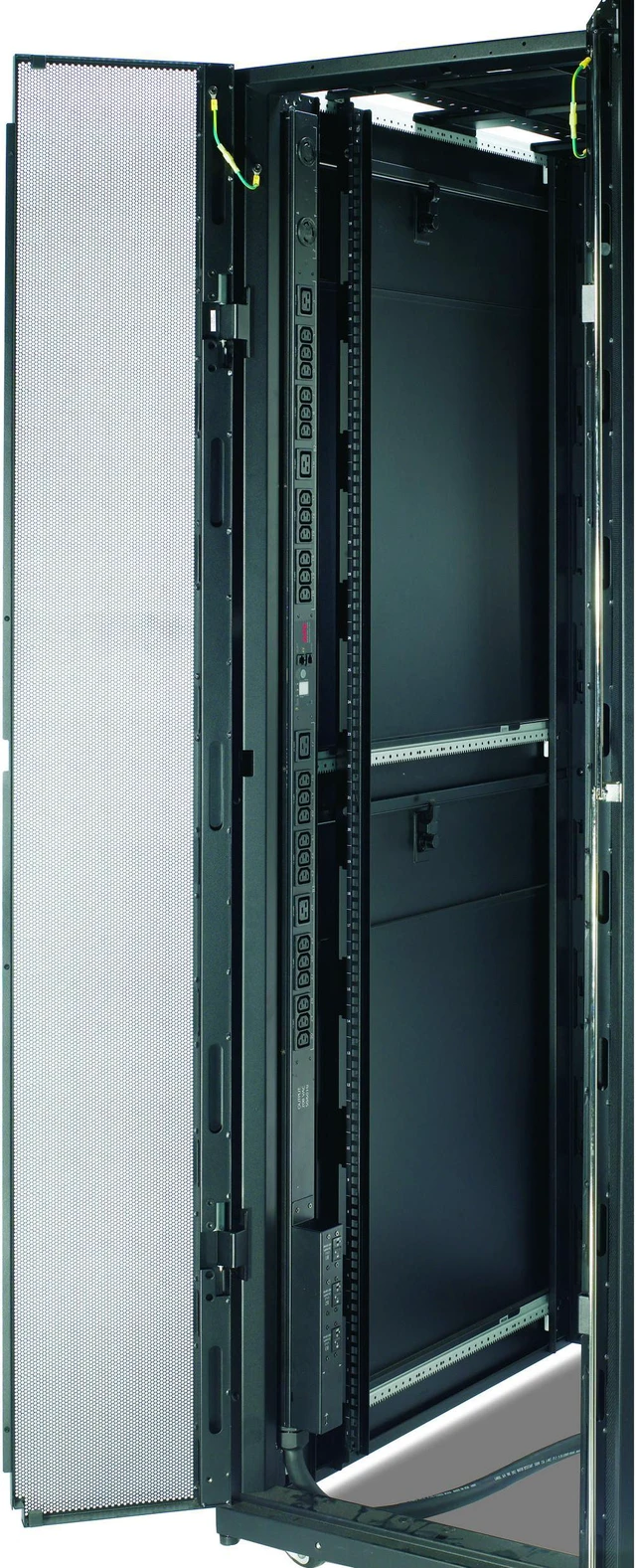

Alt view image 6 of 7 - APC AP7869B Metered Rack Pdu - Power Distribution Unit (Rack-Mountable) - Ac 208 V - 14.4 Kw - 3-Phase - Rs-232 - Input: Cs8365 - Output Connectors: 30 - 0U - 35.8 In - Black

Alt view image 7 of 7 - APC AP7869B Metered Rack Pdu - Power Distribution Unit (Rack-Mountable) - Ac 208 V - 14.4 Kw - 3-Phase - Rs-232 - Input: Cs8365 - Output Connectors: 30 - 0U - 35.8 In - Black

Shop All APC Products | Visit Sams Online Traders Store

APC AP7869B Metered Rack Pdu - Power Distribution Unit (Rack-Mountable) - Ac 208 V - 14.4 Kw - 3-Phase - Rs-232 - Input: Cs8365 - Output Connectors: 30 - 0U - 35.8 In - Black

Item #: 9SIVUE0M985758
Mfr. Part #: AP7869B

Be the first to review this product...

208V
50A
3.0 Feet

Overview

Specs

Reviews

Metered Rack Pdu - Power Distribution Unit (Rack-Mountable) - Ac 208 V - 14.4 Kw - 3-Phase - Rs-232 -
Input: Cs8365 -
Output Connectors: 30 - 0U - 35.8 In - Black

Model
Brand	APC
Model	AP7869B

Details
Type	Metered
Rack Size	0U
Certifications	cUL Listed, CSA, FCC Part 15 Class A, ICES-003, Industry Canada, METI Denan, UL 60950, UL Listed
ROHS	Yes

Input
Input Voltage	208V
Input Frequency	50/60 Hz
Maximum Input Current	50A
Regulatory Derated Input Current	40A
Cord Length	3.0 Feet

Output
Output Voltage	208V
Output Connector(s)	24 x IEC 320 C13 (Battery Backup) 2 x NEMA L6-30R (Battery Backup) 4 x IEC 320 C19 (Battery Backup)

Environmental
Operating Environment	-5 - 45 ºC
Operating Relative Humidity	5 - 95%
Operating Elevation	0 - 3000 m
Storage Temperature	-25 - 65 ºC
Storage Relative Humidity	5 - 95%
Storage Elevation	0 - 15000 m

Feature
Features	Local and web-based monitoring Status available to customers both in the data center and remotely Local Current Monitoring Display The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. Wide range of input and output connections Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip. Alarm Thresholds Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip. Load indicator LED Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Dimensions & Weight
Dimensions	2.20" x 3.76" x 70.00"
Weight	22.80 lbs.

Details
Package Includes	Rack PDU, Cord Retention Bracket(s), Documentation CD, Installation Guide, Rack Mounting Brackets, RS-232 configuration cable, Toolless Mounting Kit
