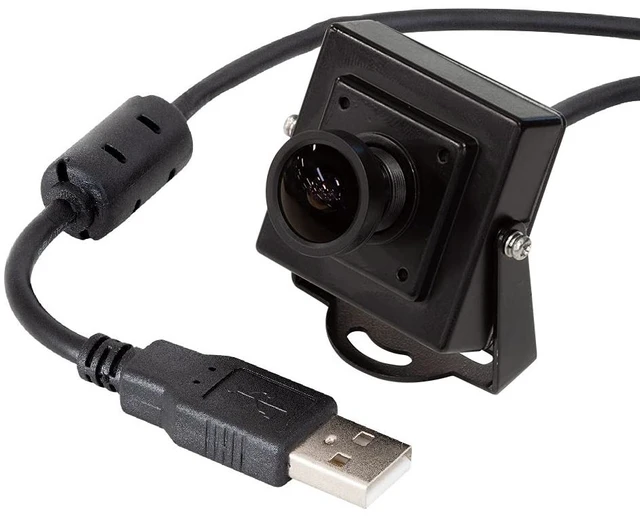

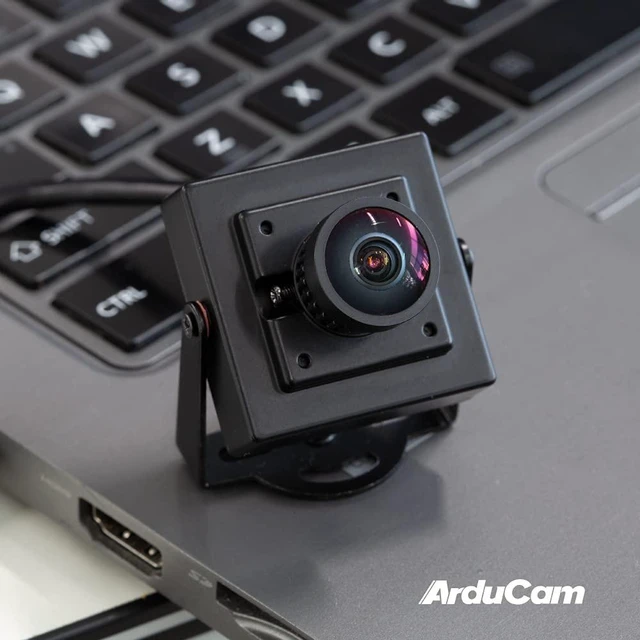

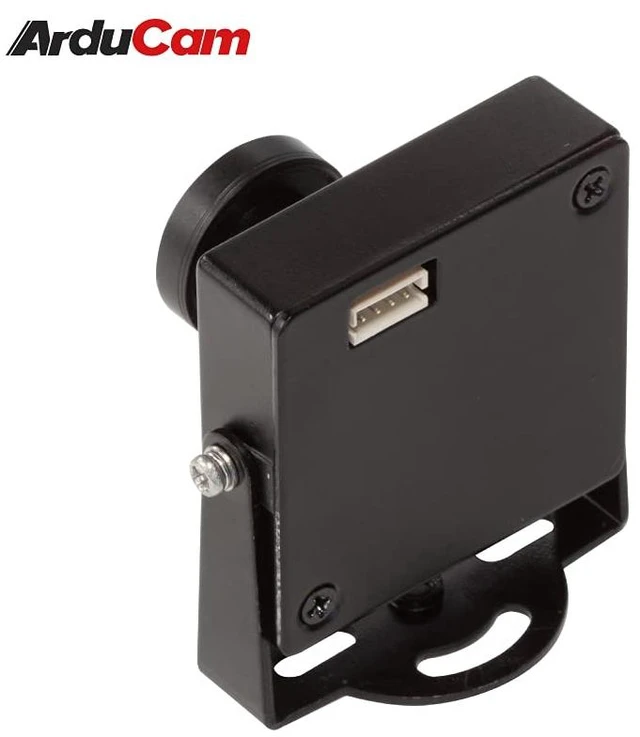

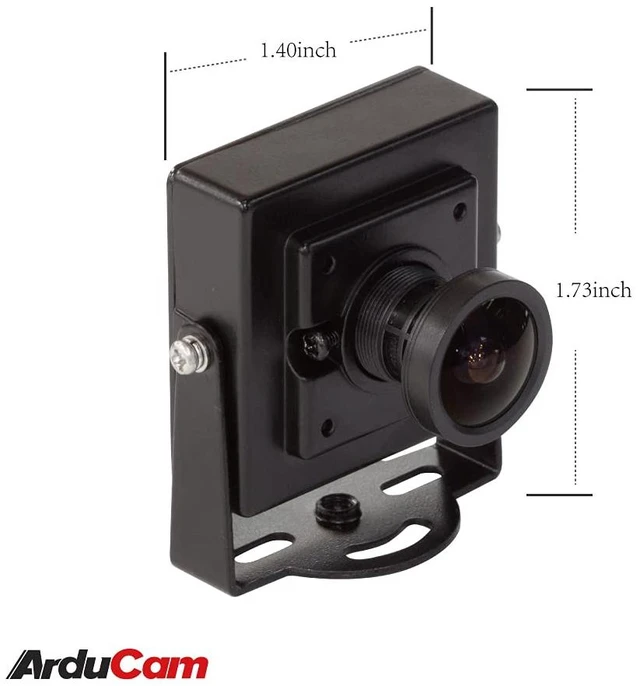

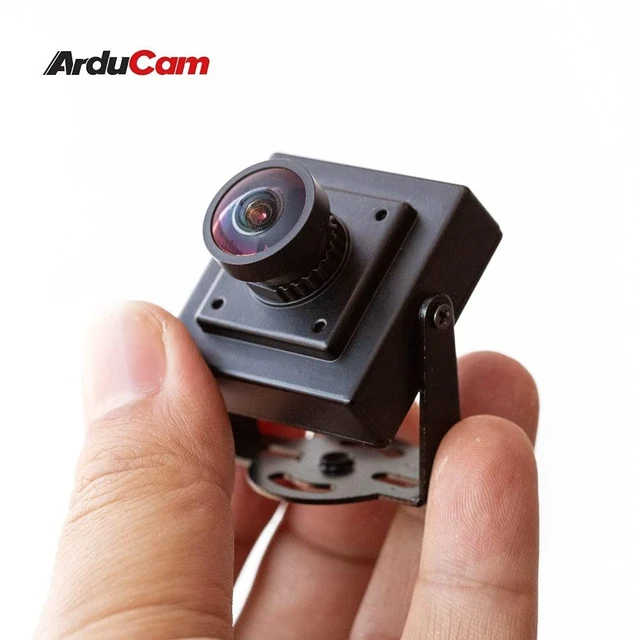

Arducam 16MP Wide Angle USB Camera with Metal Case, 1/2.8" CMOS IMX298 Mini UVC USB2.0 4K Video Webcam with Microphone, with 3.3ft/1m Cable for Laptop
- Item #: 9SIVVD9M954292
- Ultra HD: This small camera module adopts a 16MP IMX298 sensor for sharp image and accurate color reproduction, still picture resolution: 4656 x 3496 Max.
- Wide Angle: Mounted a High quality 105-degree wide view angle (horizontal) M12 lens with IR filter, provides a wilder Field of View.

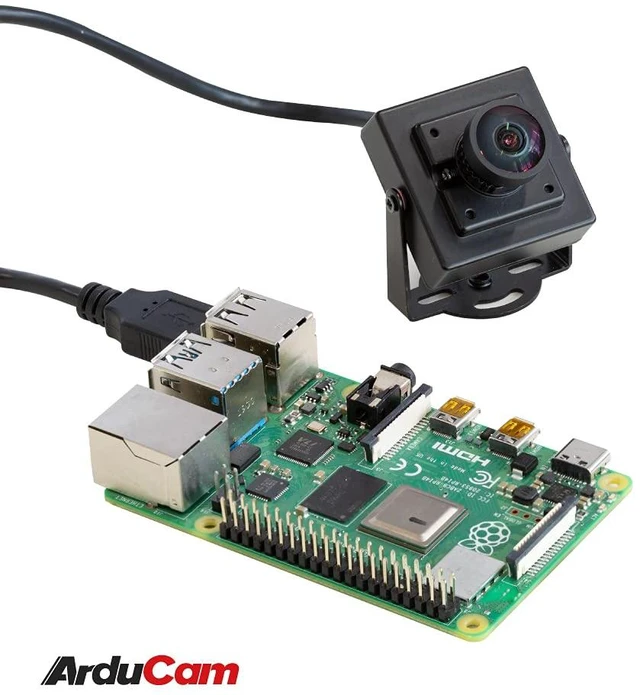

- Plug&Play: Assemble with a mini metal case and rotatable bracket, you can easily put on the desk or any flat surface, or mount on the wall or tripod mount. UVC-compliant, just connect the camera to a PC computer, laptop, Android device, or Raspberry Pi with the USB cable without extra drivers to be installed. For Mac OS, please please open the native software facetime and select the video camera Arducam IMX298 Camera.
- High Frame Rates: MJPG 10fps@4656x3496/3264x2448/ 2592x1944, 30fps@1080P/720P/1024x768;YUY2 10fps@1024x768/640x768
- Applications: This tiny camera can be installed in the most narrow position, highly recommended for a home video surveillance system, dashcam, and other vision applications demand high resolution.
+
+
Overview
Specs
Reviews
Arducam High-Resolution Camera Module is based on 1/2.8 16MP IMX298 image sensor, mounted a high quality 105 degree (H) M12 Lens, UVC compliant USB 2.0 cameras.
No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
SPECS
Camera
Sensor: 1/2.8 IMX298
Resolution: 16MP 4656H x 3496V
Data Format: MJPG/YUY2
Frame Rate: MJPG 10fps@4656x3496/3264x2448/2592x1944/, 30fps@1080P/720P/1024x768; YUY2 8fps@1024x768, 10fps@640x768
Lens
Field of View (FOV)H= 105°
Lens Mount: M12
Focusing Range: 3.3ft (1M) to infinity
IR Sensitivity: Integral IR filter, visible light only
MORE SPECIFICATIONS
Functionality and Compatibility
Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
System Compatibility: Windows, Linux, and Mac with UVC
Power
Power Supply: DC 5V
Working Current: MAX 200mA
Physical
Operating Temp.: -4°F~167°F (-20°C~+75°C)
Cable Length: 3.3ft (1M)
APPLICATION
Video conference
Home video surveillance system
Day&night low light vision security camera system
Dash cam
Monitoring 3D printer
Baby Camera
Robot and machine vision
No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
SPECS
Camera
Sensor: 1/2.8 IMX298
Resolution: 16MP 4656H x 3496V
Data Format: MJPG/YUY2
Frame Rate: MJPG 10fps@4656x3496/3264x2448/2592x1944/, 30fps@1080P/720P/1024x768; YUY2 8fps@1024x768, 10fps@640x768
Lens
Field of View (FOV)H= 105°
Lens Mount: M12
Focusing Range: 3.3ft (1M) to infinity
IR Sensitivity: Integral IR filter, visible light only
MORE SPECIFICATIONS
Functionality and Compatibility
Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
System Compatibility: Windows, Linux, and Mac with UVC
Power
Power Supply: DC 5V
Working Current: MAX 200mA
Physical
Operating Temp.: -4°F~167°F (-20°C~+75°C)
Cable Length: 3.3ft (1M)
APPLICATION
Video conference
Home video surveillance system
Day&night low light vision security camera system
Dash cam
Monitoring 3D printer
Baby Camera
Robot and machine vision
