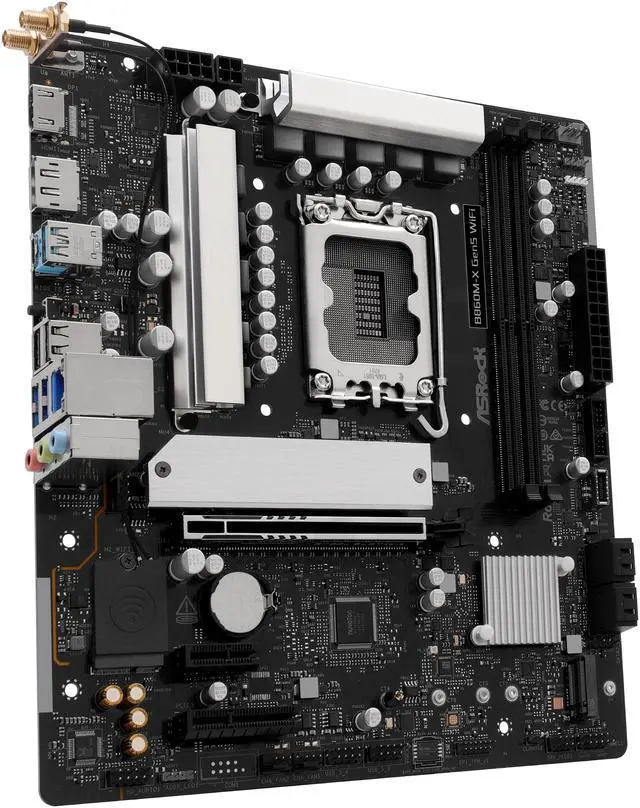

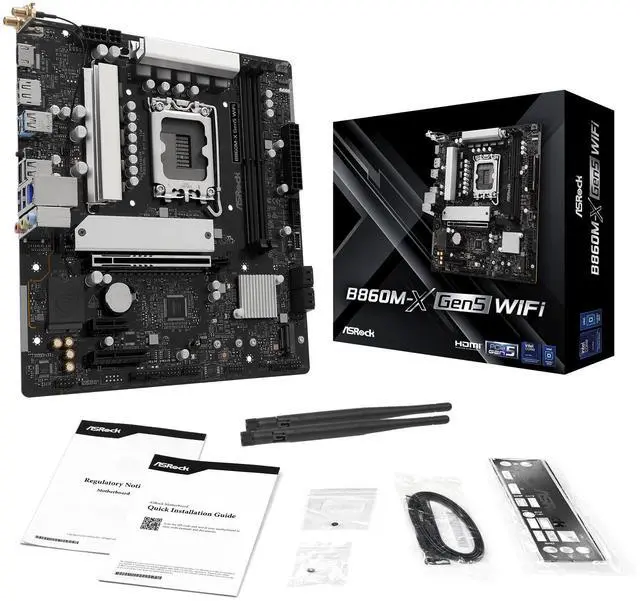

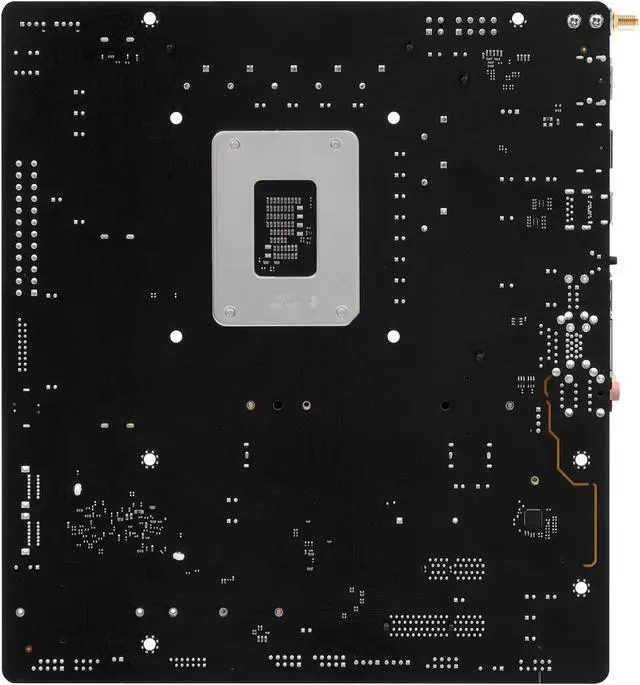

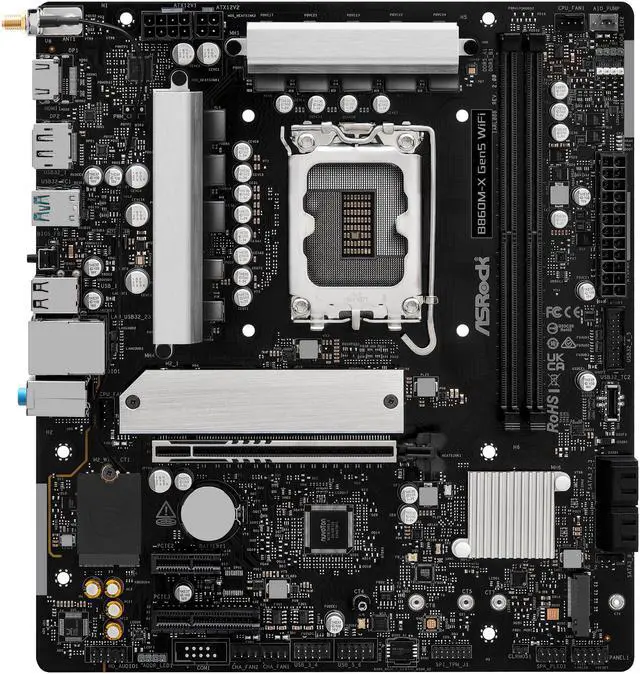

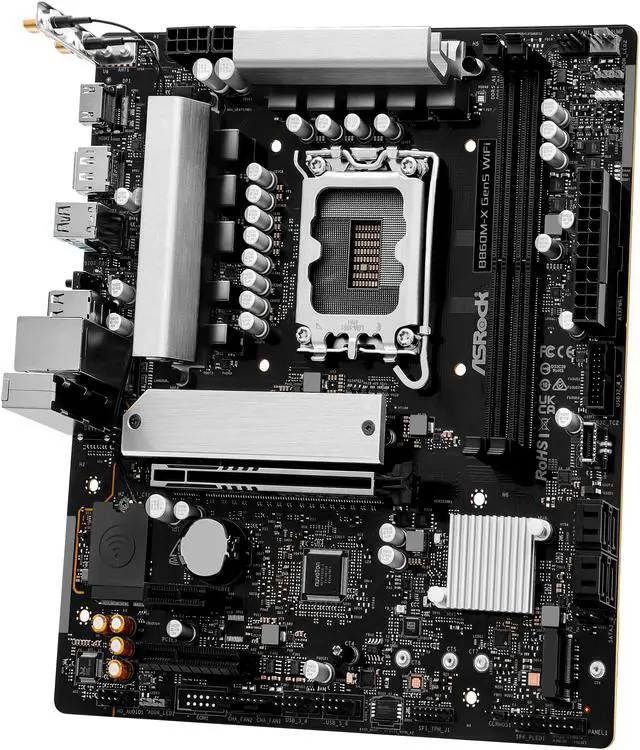

    ASRock B860M-X GEN5 WIFI LGA 1851 Intel B860 SATA 6Gb/s DDR5 Intel Core Ultra Micro ATX Motherboard

    • Item #: 9B-13-162-241
    • Mfr. Part #: B860M-X GEN5 WIFI
    • UNSPSC: 43201513
    Be the first to review this product...
    • Supports Intel Core Ultra Processors (Series 2) (LGA1851)
    • 7+1+1+1+1 Power Phase
    • 2 x DDR5 DIMMs
    • Supports Dual Channel, up to 9066+ (OC)
    • 1 PCIe 5.0 x16, 1 PCIe 4.0 x4, 1 PCIe 4.0 x1
    • Graphics Output Options: 1 HDMI, 1 DisplayPort
    • Realtek ALC897 7.1 CH HD Audio Codec
    • 4 SATA3
    • 1 Blazing M.2 (PCIe Gen5x4)
    • 1 Hyper M.2 (PCIe Gen4x4)
    • 1 USB 3.2 Gen2x2 Type-C (Rear)
    • 1 USB 3.2 Gen1 Type-C (Front)
    • 5 USB 3.2 Gen1 (3 Rear, 2 Front)
    • 6 USB 2.0 (2 Rear, 4 Front)
    • Realtek 2.5G LAN
    • 802.11axe Wi-Fi 6E + Bluetooth
    • Supports BIOS Flashback
    +
    +
    Specs
    Reviews

    Learn more about the Detailed Specifications

    Model
    Brand ASRock
    Series B860M
    Supported CPU
    CPU Socket Type LGA 1851
    CPU Type Intel Core Ultra Processors (Series 2) (LGA1851)
    Supported CPU Technologies Hybrid Technology
    Turbo Boost Max Technology 3.0
    Thermal Velocity Boost
    Adaptive Boost Technology
    Chipsets
    Chipset Intel B860
    Onboard Video
    Onboard Video Chipset Intel Xe Graphics
    Memory
    Number of Memory Slots 2x288pin (DDR5)
    Memory Standard DDR5 9066
    Maximum Memory Supported 128GB
    Channel Supported Dual Channel
    ECC Supported Non-ECC
    Buffer Supported Un-buffered
    Expansion Slots
    PCI Express 5.0 x16 1 x PCI Express 5.0 x16
    PCI Express 4.0 x16 0 x PCI Express 4.0 x16
    PCI Express x16 1 x PCI Express x16
    PCI Express x4 1 x PCI Express x4
    PCI Express x1 1 x PCI Express x1
    Other Slots 1 x M.2 Socket (Key E)
    Storage Devices
    Serial ATA (SATA) 4 x SATA 6Gb/s
    M.2 2 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
    SATA RAID 0/1/5/10
    Onboard Audio
    Audio Chipset Realtek ALC897
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Realtek RTL8125BG
    Max LAN Speed 2.5Gbps
    Wireless LAN WiFi IEEE 802.11 a / b / g / n / ac / ax / axe
    Bluetooth Yes
    Rear Panel Ports
    Back I/O Ports 2 x Antenna Ports, 1 x HDMI, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen2x2 Type-C, 3 x USB 3.2 Gen1, 2 x USB 2.0, 1 x RJ-45 LAN, 1 x BIOS Flashback Button, 3 x HD Audio Jacks (Line in / Front Speaker / Microphone)
    Video Ports HDMI + Display Port
    HDMI 1 x HDMI
    RJ45 1 x RJ45
    DisplayPort 1 x DisplayPort
    USB 3.1 6 x USB 3.1
    USB 3.0 7 x USB 3.0
    USB 1.1/2.0 6 x USB 2.0
    USB Type-C 1 x USB Type-C port, with USB 3.2 Gen2x2 support; 1 x USB Type-C port, with USB 3.2 Gen1 support
    Audio Ports 3 Ports
    Internal I/O Connectors
    Onboard USB 1 x USB 3.2 Gen1 Type-C header, 1 x USB 3.2 Gen1 header, 2 x USB 2.0 headers
    Software Feature
    Windows 11 Supported
    Physical Spec
    Form Factor Micro ATX
    LED Lighting None RGB
    Dimensions (W x L) 9.6" x 8.6"
    Power Pin 24 Pin
    Additional Information
    First Listed on Newegg February 13, 2026
