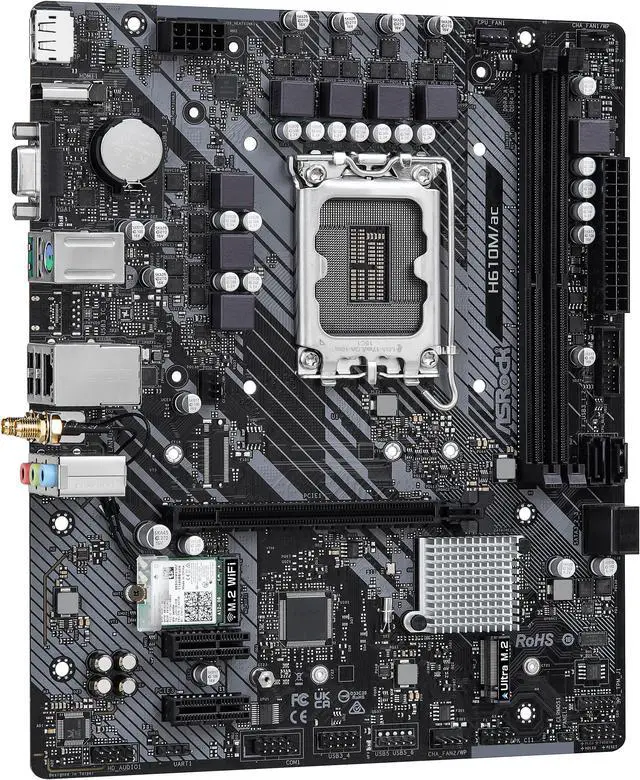

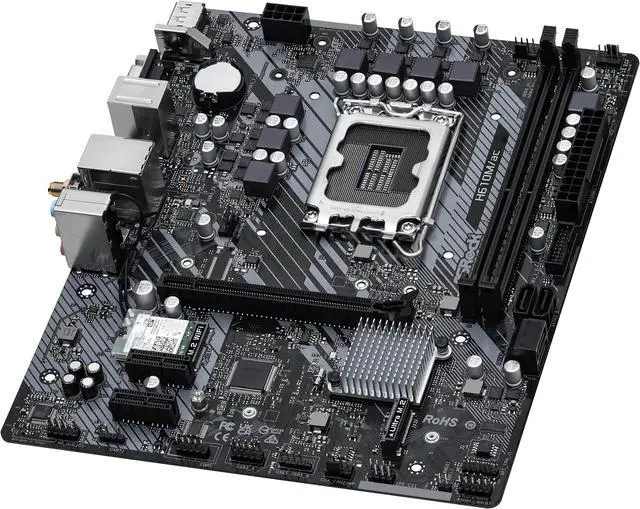

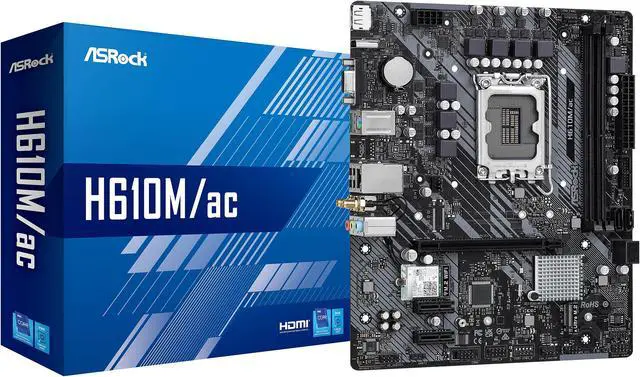

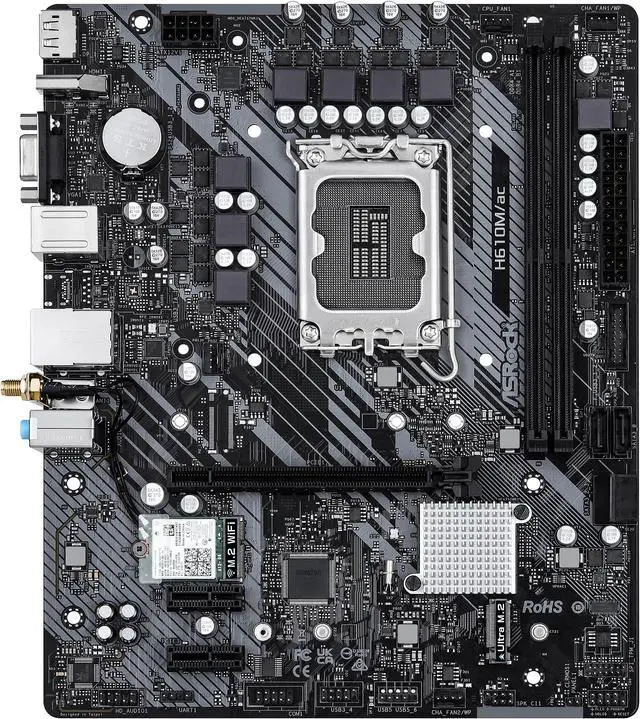

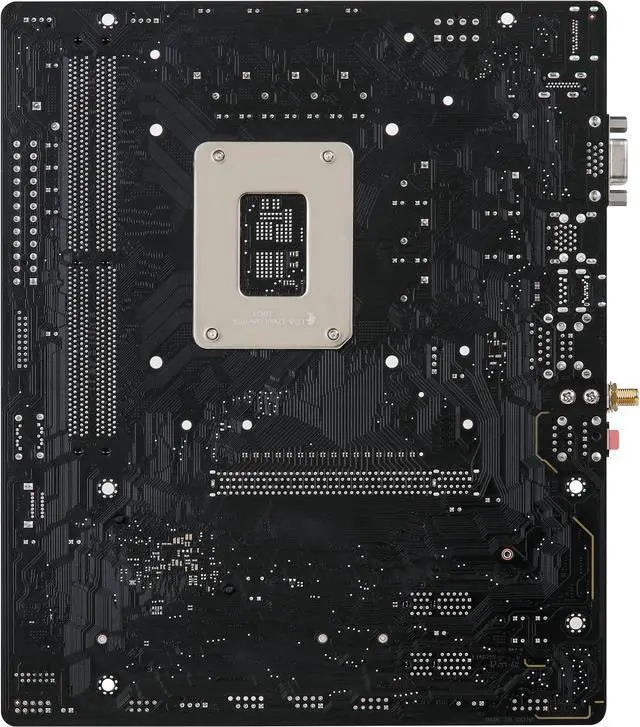

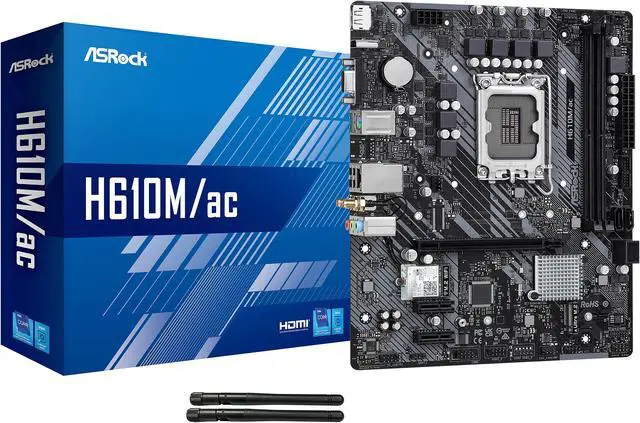

    ASRock H610M/ac Intel LGA 1700 (14th/13th/12th Gen) mATX Motherboard (DDR4, PCIe 4.0, Ultra M.2, WiFi 5, Gigabit LAN, HDMI/DP/D-Sub, USB 3.2 Gen1)

    • Item #: 9B-13-162-075
    • Mfr. Part #: H610M/AC
    • UNSPSC: 43201513
    Be the first to review this product...
    • INTEL LGA 1700 SOCKET - Supports 14th, 13th, and 12th Gen Intel Core processors with 2 x DDR4 DIMM slots up to 3200 (OC), 64GB max, XMP 2.0, and a 6-phase Digi Power design
    • FAST STORAGE & CONNECTIVITY - PCIe 4.0 x16 slot, one Ultra M.2 (PCIe Gen3 x4 & SATA3), 4 x SATA3, Intel Gigabit LAN, 802.11ac WiFi with Bluetooth 4.2, and USB 3.2 Gen1
    • FLEXIBLE DISPLAY & PROTECTION - Triple graphics output via HDMI, DisplayPort 1.4, and D-Sub, Realtek 7.1-channel HD audio, plus ASRock Full Spike Protection on all USB, audio, and LAN ports
    +
    +
    Specs
    Reviews

    Learn more about the ASRock H610M/AC

    Model
    Brand ASRock
    Model H610M/AC
    Supported CPU
    CPU Socket Type LGA 1700
    CPU Type Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700)
    Chipsets
    Chipset Intel H610
    Memory
    Number of Memory Slots 2x288pin (DDR4)
    Memory Standard Up to DDR4 3200
    Maximum Memory Supported 64GB
    Channel Supported Dual Channel
    ECC Supported Non-ECC
    Buffer Supported Un-buffered
    Expansion Slots
    PCI Express 4.0 x16 CPU:
    - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    PCI Express x1 Chipset:
    - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
    *Supports NVMe SSD as boot disks
    Storage Devices
    Serial ATA (SATA) 4 x SATA 6Gb/s **

    ** If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
    M.2 Chipset:
    - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*

    *Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
    Onboard Audio
    Audio Chipset Realtek ALC897
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Intel I219-V
    Max LAN Speed 1Gbps
    Wireless LAN Wi-Fi 802.11 ac
    Bluetooth Bluetooth 4.2
    Rear Panel Ports
    Back I/O Ports 2 x Antenna Ports
    1 x PS/2 Mouse/Keyboard Port
    1 x D-Sub Port
    1 x HDMI Port
    1 x DisplayPort 1.4
    2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    2 x USB 2.0 Ports (Supports ESD Protection)
    1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    HD Audio Jacks: Line in / Front Speaker / Microphone
    Internal I/O Connectors
    Onboard USB 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
    1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
    Other Connectors 1 x COM Port Header
    1 x SPI TPM Header
    1 x Chassis Intrusion and Speaker Header
    1 x CPU Fan Connector (4-pin)*
    1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
    2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
    1 x Front Panel Audio Connector

    *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
    **The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    ***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.
    Software Feature
    BIOS Feature 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    ACPI 6.0 Compliant wake up events
    SMBIOS 2.7 Support
    CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
    Windows 11 Supported
    Physical Spec
    Form Factor Micro ATX
    LED Lighting None RGB
    Dimensions (W x L) 9.6" x 7.9"
    Power Pin 1 x 24 pin ATX Power Connector
    1 x 8 pin 12V Power Connector
    Features
    Features ASRock Super Alloy
    - Premium Power Choke
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    802.11ac WiFi
    ASRock Ultra M.2 (PCIe Gen3x4 & SATA3)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
    Packaging

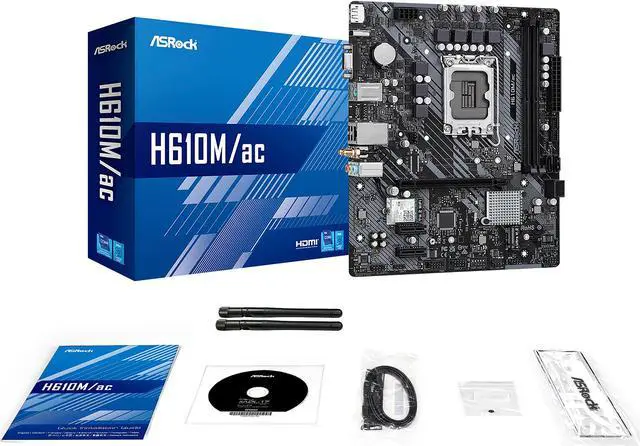

    Package Contents I/O Shield
    2 x SATA Data Cables
    2 x ASRock WiFi 2.4/5 GHz Antennas
    1 x Screw for M.2 Socket
