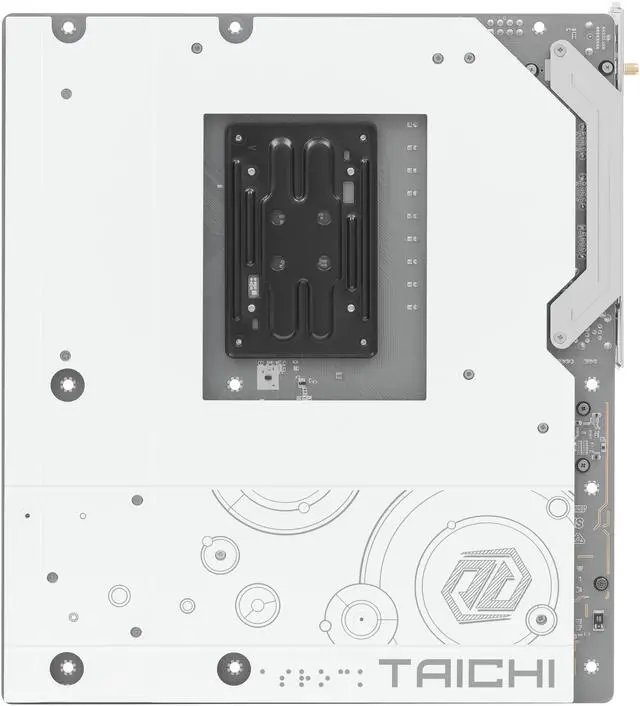

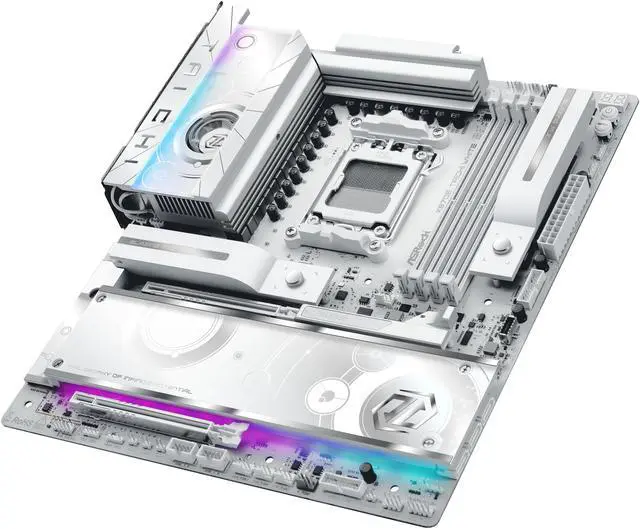

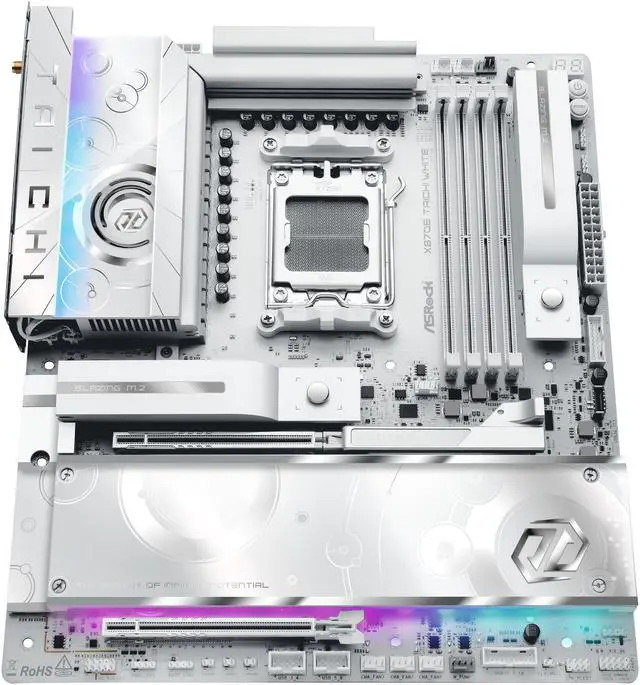

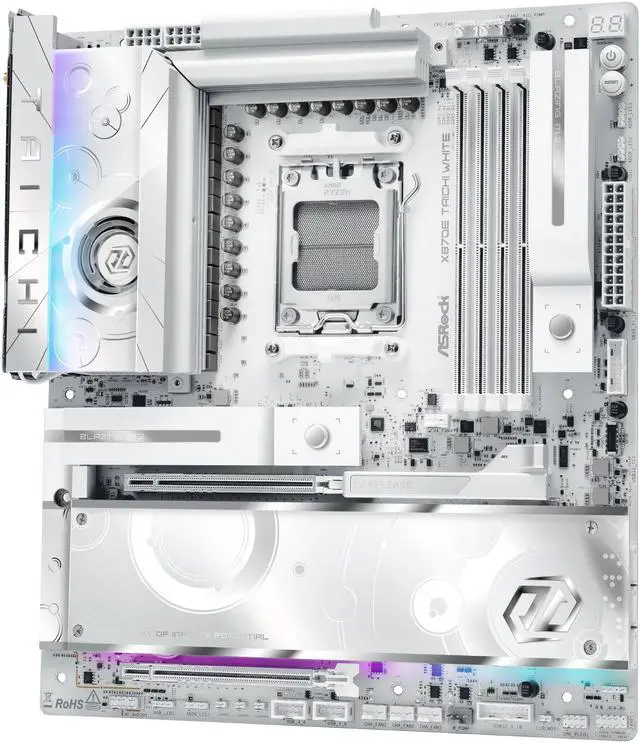

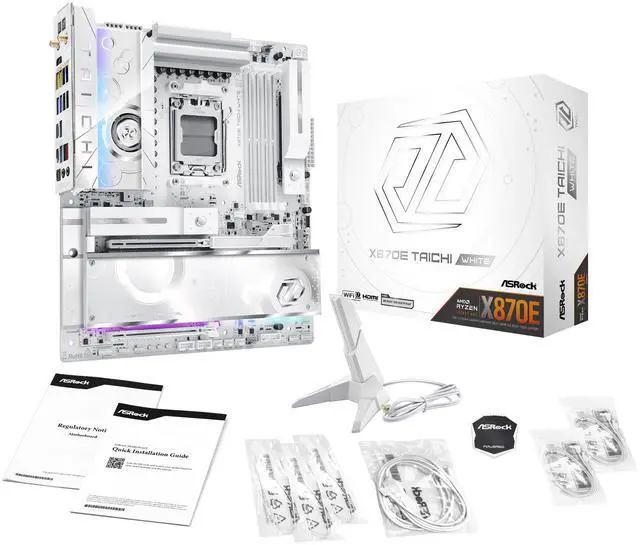

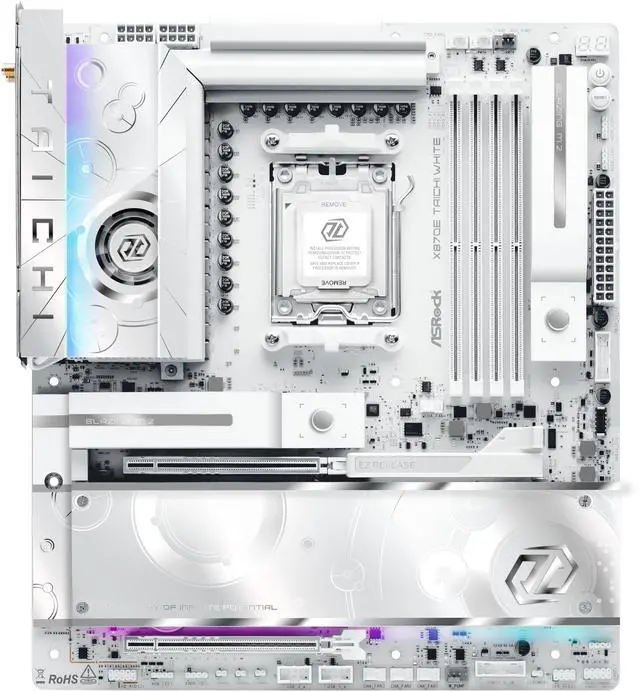

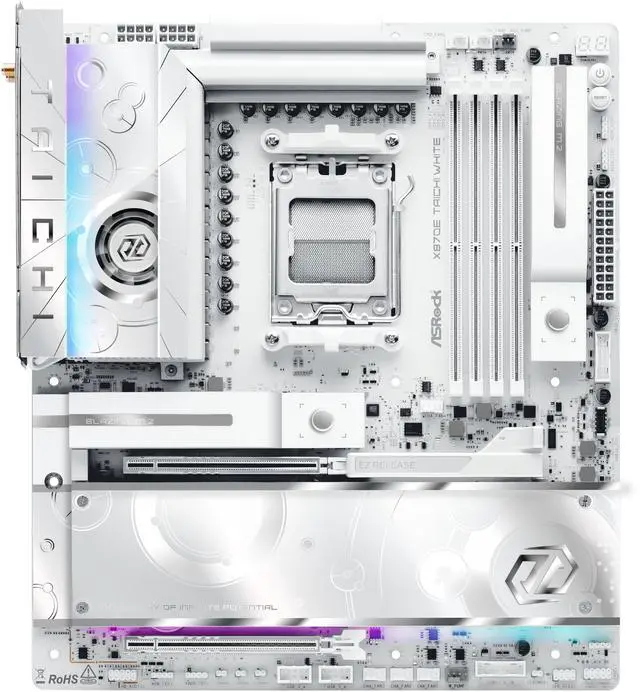

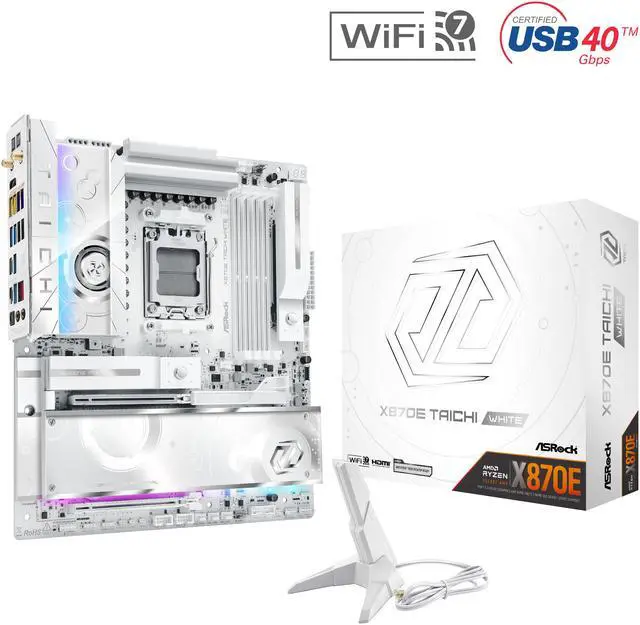

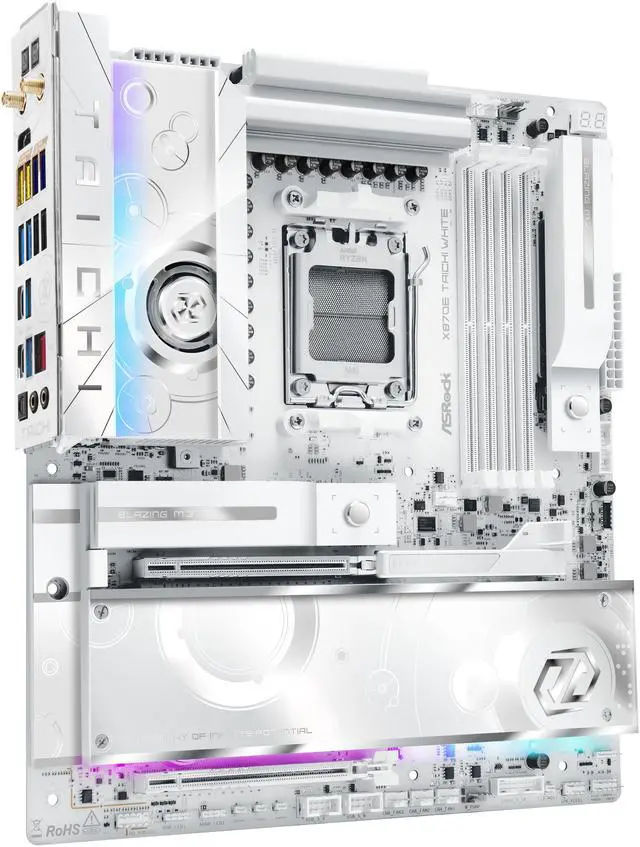

    ASRock X870E Taichi White AM5 AMD X870E EATX Motherboard - Wi-Fi 7, PCIe 5.0, USB4, DDR5 8200+ (OC), 10GbE LAN

    Be the first to review this product...
    • X870E TAICHI
    • X870E TAICHI LITE
    • X870E NOVA WIFI
    • X870 STEEL LEGEND WIFI
    • X870 PRO RS
    • X870 PRO RS WIFI
    • X870 LiveMixer WiFi
    • X870 Nova WiFi
    • X870 TAICHI CREATOR
    • X870E TAICHI WHITE
    • Black
    • White
    • AM5 FLAGSHIP PLATFORM - Supports AMD Ryzen 9000, 8000 and 7000 Series processors on the AMD X870E chipset with a 24+2+1 phase power design (110A SPS), 8-layer 2oz copper server-grade low loss PCB, and 512Mb BIOS
    • HIGH-SPEED DDR5 MEMORY - 4 x DDR5 DIMM slots with dual channel support up to 8200+ MHz (OC) and AMD EXPO / Intel XMP one-click overclocking profiles
    • PCIE 5.0 & BLAZING M.2 - 2 x PCIe 5.0 x16 slots with Graphics Card EZ Release, plus 1 x Blazing M.2 (PCIe Gen5x4), 3 x Hyper M.2 (PCIe Gen4x4) with toolless XXL heatsinks, and 3 x SATA3 connectors
    • NEXT-GEN CONNECTIVITY - 802.11be Wi-Fi 7 with Bluetooth, AQUANTIA 10GbE LAN, dual USB4 Type-C (40Gbps) rear ports, and a front USB 3.2 Gen2x2 Type-C header (20Gbps)
    • PREMIUM AUDIO & WHITE AESTHETIC - ESS SABRE9219 DAC with WIMA audio caps and Nahimic Audio, refined all-white EATX design, Polychrome RGB with SignalRGB support, and DIY-friendly BIOS Flashback
    +
    +
    Specs
    Reviews

    Learn more about the Detailed Specifications

    Model
    Brand ASRock
    Series Taichi
    Supported CPU
    CPU Socket Type AM5
    CPU Type Ryzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series
    Chipsets
    Chipset AMD X870E
    South Bridge AMD X870E
    Memory
    Number of Memory Slots 4x288pin (DDR5)
    Memory Standard DDR5 8200
    Maximum Memory Supported 256GB
    Channel Supported Dual Channel
    ECC Supported Yes
    Buffer Supported Un-buffered
    Expansion Slots
    PCI Express 5.0 x16 2 x PCI Express 5.0 x16
    PCI Express 4.0 x16 2 x PCI Express 4.0 x16
    PCI Express x16 2 x PCI Express x16
    Other Slots 1 x M.2 (Key E)
    Storage Devices
    Serial ATA (SATA) 3 x SATA 6Gb/s
    M.2 4 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
    SATA RAID 0/1
    Onboard Video
    Onboard Video Chipset AMD RDNA Graphics
    Onboard Audio
    Audio Chipset Realtek ALC4082
    Audio Channels 5.1 Channels
    Onboard LAN
    LAN Chipset Marvell AQC113
    Max LAN Speed 10Gbps
    Wireless LAN WiFi IEEE 802.11 a / b / g / n / ac / ax / be
    Bluetooth Yes

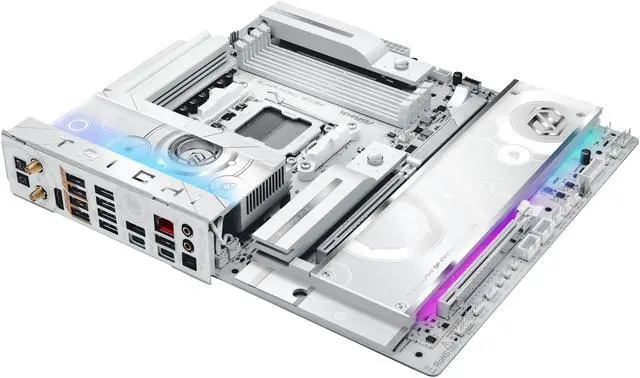

    Rear Panel Ports
    Video Ports HDMI
    HDMI 1 x HDMI
    RJ45 1 x RJ45
    USB 3.1 10 x USB 3.1
    USB 3.0 10 x USB 3.0
    USB 1.1/2.0 6 x USB 2.0
    USB Type-C 2 x USB4 Type-C, 1 x USB 3.2 Gen2x2 Type-C
    S/PDIF Out 1 x Optical
    Audio Ports 5 Ports
    Internal I/O Connectors
    Onboard USB 1 x USB Type-C® header, with USB 3.2 Gen 2x2 + 2 x USB 3.2 + 2 x USB 2.0
    Physical Spec
    Form Factor EATX
    LED Lighting RGB
    Dimensions (W x L) 12.0" x 10.5"
    Power Pin 24 Pin
    Software Feature
    Windows 11 Supported
    Additional Information
    First Listed on Newegg July 02, 2026

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Limited Warranty period (parts): 3 years
    • Limited Warranty period (labor): 3 years

    Return Policies

    • Return for refund within: 30 days
    • Return for replacement within: 30 days
    • Restocking Fee: Yes
    • This item is covered by NeweggBusiness.com's Standard Return Policy.
    • Read full return policy for details.
