This means the product was tested and repaired as required to meet the standards of the refurbisher, which may or may not be the original manufacturer. Any exceptions to the condition of the item outside the manufacturer’s information should be provided in the listing, up to and including warranty details.
4 x SATA2 3.0 Gb/s and 2 x SATA3 6.0 Gb/s by Intel Z77, support RAID 0, RAID 1, RAID 5, RAID 10
Onboard Audio
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Broadcom BCM57781
Max LAN Speed
1Gbps
Rear Panel Ports
Back I/O Ports
1 x eSATA 6GB/S / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.0
PS/2
1 x PS/2 keyboard/mouse port
Video Ports
D-Sub + DVI
HDMI
1 x HDMI
USB 3.0
4 x USB 3.0
USB 1.1/2.0
2 x USB 2.0
eSATA
1 x eSATA 6Gb/s
S/PDIF Out
1 x Optical
Audio Ports
5 Ports
Internal I/O Connectors
Onboard USB
2 x USB 3.0 + 6 x USB 2.0
Other Connectors
1 x IR header1 x CIR header1 x COM port header1 x HDMI_SPDIF header1 x Power LED headerCPU/Chassis/Power FAN connector24 pin ATX power connector8 pin 12V power connectorFront panel audio connector1 x Dr. Debug with LED
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12" x 8.6"
Power Pin
24 Pin
Features
Features
Premium Gold CapsDigi Power Design, 8 + 4 Power Phase DesignSupports Dual Channel DDR3 2800+(OC)2 x PCIe 3.0 x16 Slots, Supports AMD Quad CrossFireX, CrossFireX and NVIDIA Quad SLI, SLIPCIE Gigabit LANSupports Intel HD Graphics with Built-in VisualsMulti VGA Output options : DVI-D, D-Sub, HDMICombo Cooler Option (C.C.O.)7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec), Supports THX TruStudioSupports ASRock XFast RAM, XFast LAN, XFast USB, OMG, Internet Flash, UEFI System BrowserSupports Intel Smart Connect, Intel Rapid Start, Lucid Virtu Universal MVPFree Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite
Additional Information
First Listed on Newegg
March 23, 2019

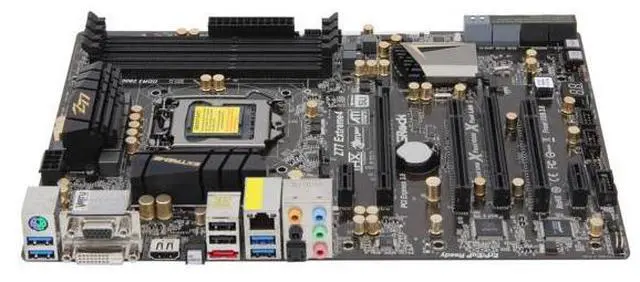

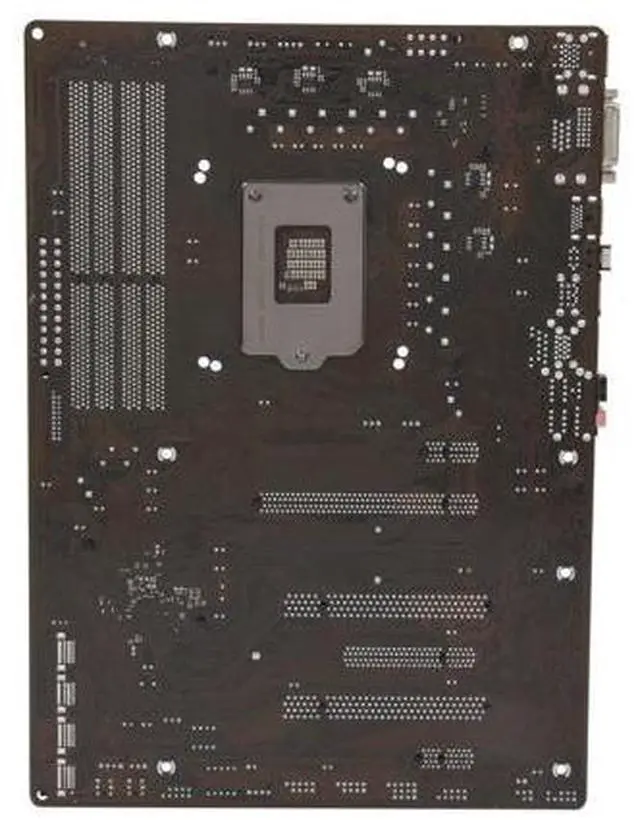

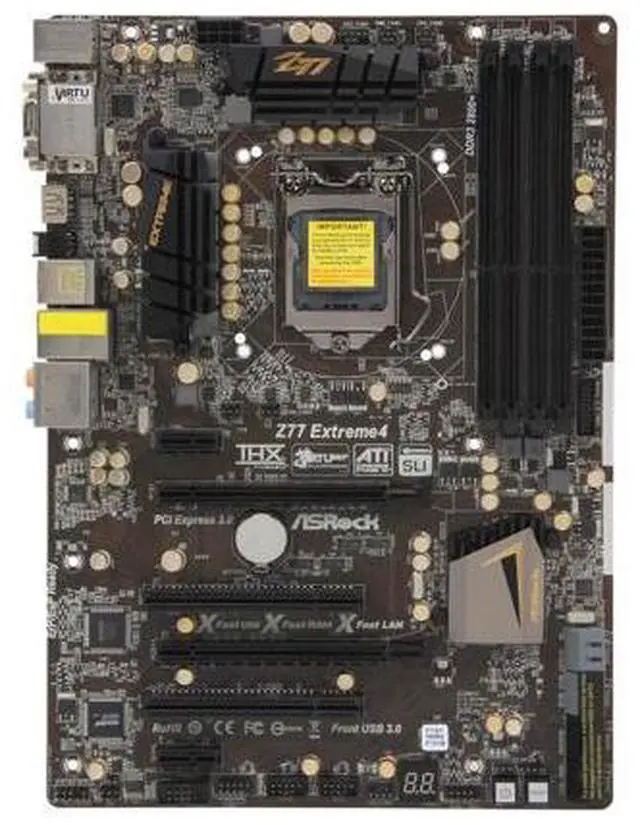

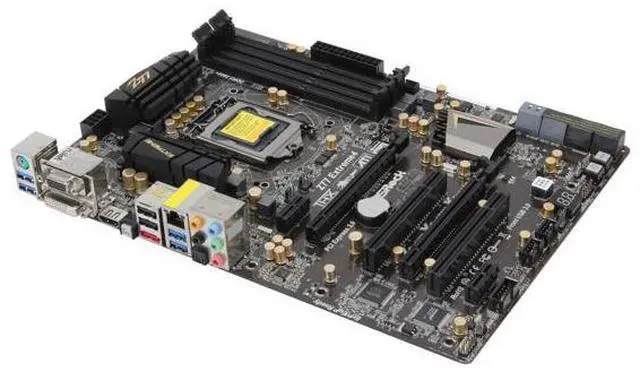

Customer Reviews of the ASRock Z77 Extreme4
There are no reviews yet.
Do you own this product?
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
