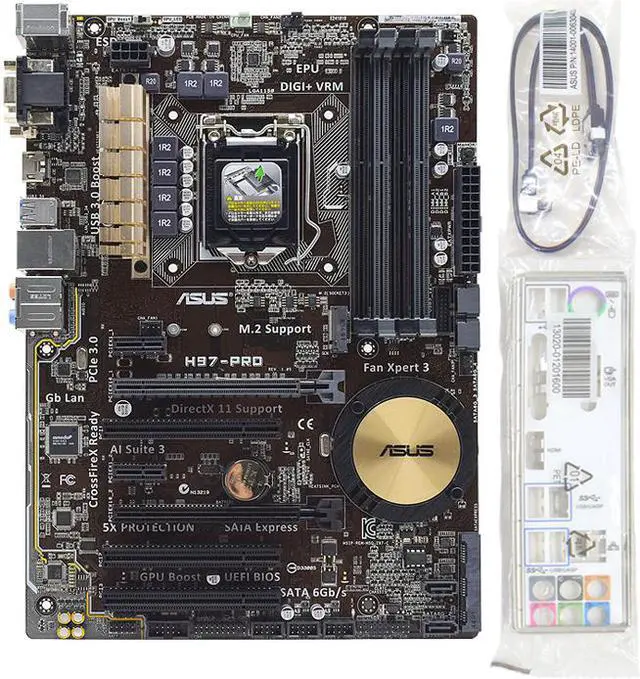

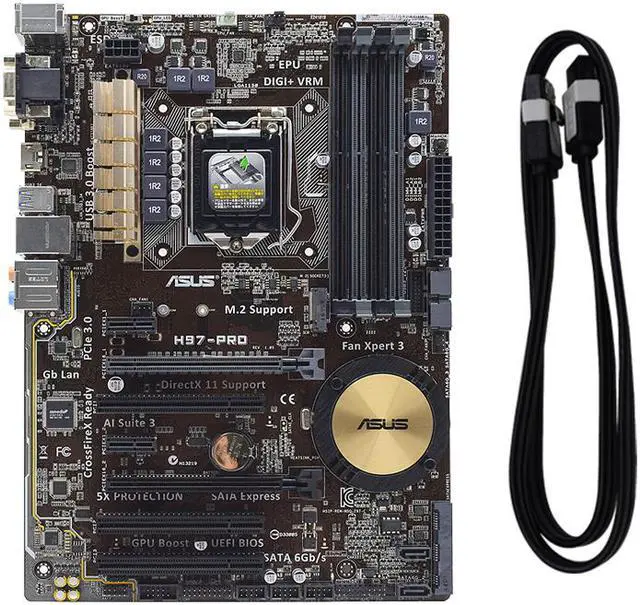

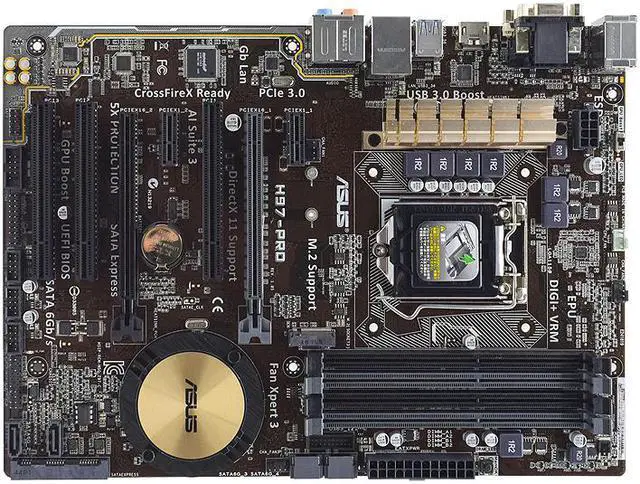

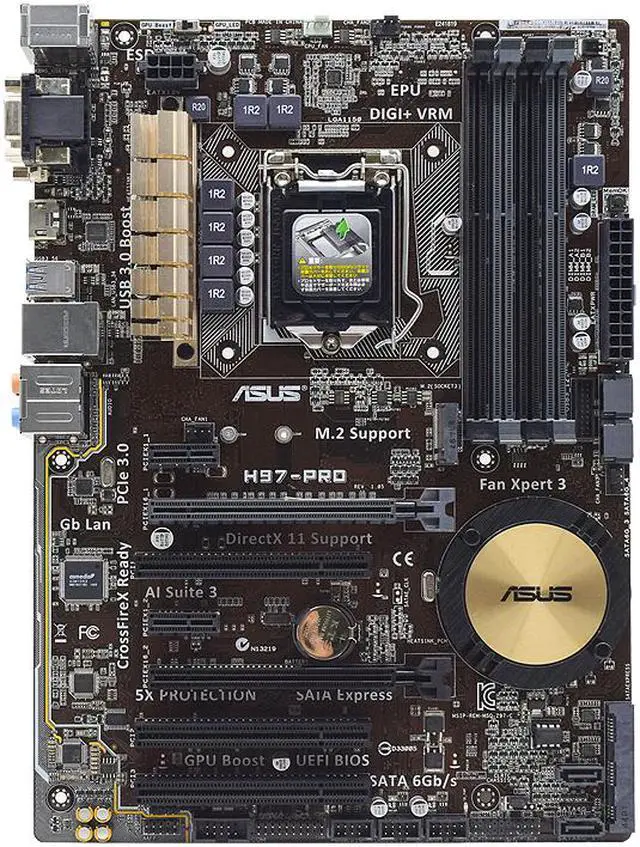

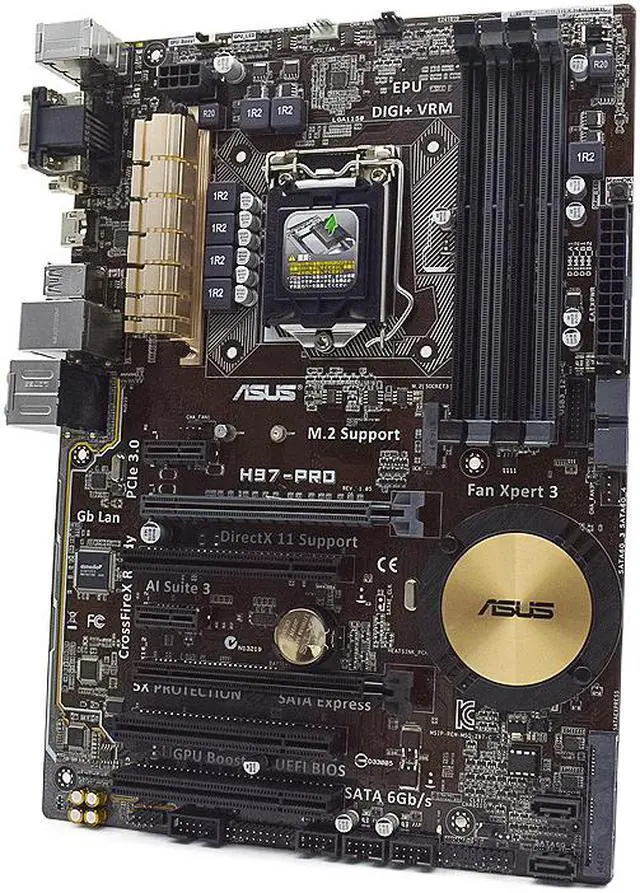

ASUS H97-PRO LGA 1150 Intel H97 HDMI SATA 6Gb/s USB 3.0 ATX Intel Motherboard

Model Brand ASUS Model H97-PRO Supported CPU CPU Socket Type LGA 1150 CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1150) Chipsets Chipset Intel H97 Onboard Video Onboard Video Chipset Supported only by CPU with integrated graphic Memory Number of Memory Slots 4×240pin Memory Standard DDR3 1600/1333 Maximum Memory Supported 32GB Channel Supported Dual Channel Expansion Slots PCI Express 3.0 x16 1 x PCI Express 3.0 x16 PCI Express 2.0 x16 1 (x4 mode) PCI Express x1 2 x PCI Express x1 PCI Slots 3 x PCI Slots Storage Devices SATA 6Gb/s 4 x SATA 6Gb/s SATA Express 1 x SATA Express M.

2 1 x M. 2 SATA RAID 0/1/5/10 Onboard Audio Audio Chipset Realtek ALC892 Audio Channels 8 Channels Onboard LAN LAN Chipset Intel I218V Max LAN Speed 10/100/1000Mbps Rear Panel Ports PS/2 1 x PS/2 keyboard/mouse port Video Ports 1 x DVI-D 1 x D-Sub HDMI 1 x HDMI RJ45 1 x RJ45 USB 3.0 4 x USB 3.0 USB 1.1 / 2.0 2 x USB 2.0 Audio Ports 6 Ports Internal I/O Connectors Onboard USB 2 x USB 3.0 + 6 x USB 2.0 Other Connectors 1 x TPM header 1 x COM port (s) connector (s) 1 x CPU Fan connector (s) (1 x 4 -pin) 3 x Chassis Fan connector (s) (3 x 4 -pin) 1 x S/PDIF out header (s) 1 x 24-pin EATX Power connector (s) 1 x 8-pin ATX 12V Power connector (s) 1 x Front panel audio connector (s) (AAFP) 1 x System panel (s) (Q-Connector) 1 x MemOK! button (s) 1 x GPU Boost switch (es) 1 x Clear CMOS jumper (s) Physical Spec Form Factor ATX Dimensions (W x L) 12.0" x 8.6" Power Pin 24 Pin Features Features Proven quality - 5X Protection.

1000+ compatible devices. 7000+ validation hours. Onboard M. 2 and SATA Express with 10Gbit/s transfer speeds Crystal Sound 2 and Intel Gigabit Ethernet - a game-winning combo! Fan Xpert 3 - Advanced fan controls for ultimate cooling and quietness Media-acclaimed UEFI BIOS with new EZ Tuning Wizard ASUS HomeCloud - A digital PC hub perfect for sharing and home theater ASUS 5X
Protection: - ASUS DIGI+ VRM - 6 Phase digital power design - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5 x long lifespan with excellent durability - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
ASUS EPU: -
EPU ASUS Exclusive Features: - GPU Boost - MemOK! - AI Suite 3 - Ai Charger - Anti-Surge - USB 3.0 Boost - Disk Unlocker - Turbo LAN - Crystal Sound 2 Interactive HomeCloud - Media Streamer ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution & MOS Heatsink - ASUS Fan Xpert 3
ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS UEFI BIOS EZ Mode -
Push Notice ASUS Q-Design: - ASUS Q-Shield - ASUS Q-Slot - ASUS Q-Connector
