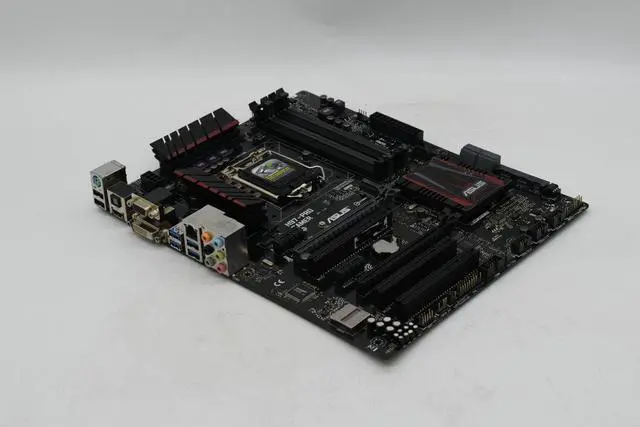

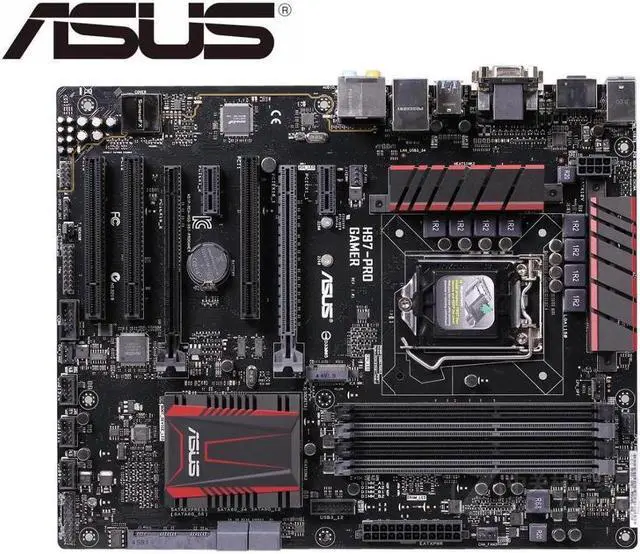

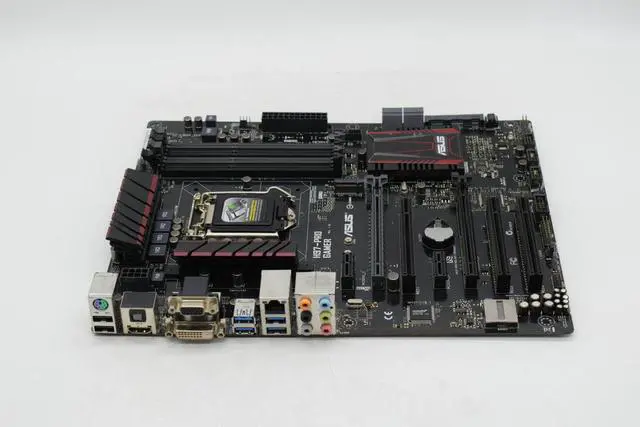

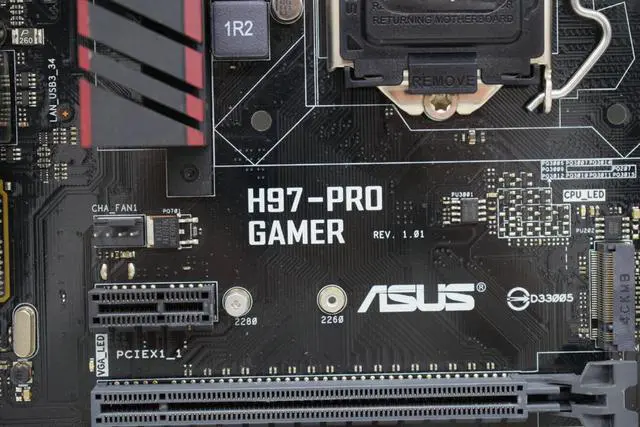

ASUS H97-PRO GAMER LGA 1150 Intel H97 HDMI SATA Express 6Gb/s USB 3.0 ATX Intel Motherboard

Package includes: 1pcs motherboard+ 1pcs I/O shield, Shipping
way: DHL
Warranty: 1 year
Note: It without CMOS battery due to air transport safety, please know this before you buy, thanks!
Brand: ASUS
Model: H97-PRO GAMER
Platform type: Intel chipset Main /
Northbridge chip: Intel
H97 Integrated graphics: requires a processor with built-in GPU
Display output interface: HDMI / DVI-D / RGB Support
CPU Interface type: LGA 1150
Compatible series: 4th / 5th generation Core i7 / Core i5 / Core i3 / Pentium / Celeron processor
RAM Memory specifications: DDR3
Memory slot: 4 x ddr3 memory slot
Memory standard: DDR3 1066/1333 / 1600MHz Non-ECC memory
Maximum memory capacity: 32GB
Dual channel support: support
Three-channel support: not supported PCI expansion
Multi-graphics support: Support AMD? Quad-GPU Cross
FireX? Technology PCI Express x16 1 x PCIe 3.0 / 2.0 x16 expansion card slot (x16 mode, gray) 1 x PCIe 2.0 x16 expansion card slot (max x4 mode, black) PCI Express x1 2 2 PCI slots Storage device IDE None SATA 1 x SATA Express interface, compatible with 2 x SATA 6.0 Gb / s 1 x M. 2, type 2260/2280 4 x SATA 6Gb / s interface, gray Disk array support RAID supports RAID 0, RAID 1, RAID 5, RAID 10 SATA interface range 5-8 Onboard sound card Sound card type Supreme
FX Number of channels 7.1 channels Sound Card Features-Supreme
FX Shielding? Technology-ELNA Premium Audio Capacitor-Rear side panel with optical fiber S / PDIF digital output connection-Sonic Radar II-High-quality 115 dB stereo playback output-High-fidelity audio OP AMP Onboard network card NIC type Intel? I218V Maximum network speed 10M / 100M / 1000M Onboard interface Built-in audio interface 1 group USB expansion interface 1 x USB 3.0 interface Extensible 2 sets of external USB 3.0 interface (19-pin) 3 x USB 2.0 interface Extensible 6 sets of external USB 2.0 interface COM expansion interface 1 group CPU fan socket 2 groups System fan socket 3 groups S / PDIF socket 1 set Other sockets 1 x SATA Express interface; 1 x M. 2 Socket 3; 1 x temperature sensor interface Rear interface PS / 2 1 x PS / 2 keyboard and mouse interface VGA interface 1 x VGA interface DVI interface 1 x DVI interface HDMI interface 1 x HDMI interface RJ 45 network interface 1 x RJ45 interface USB 4 x USB 3.0 interface (blue) 2 x USB 2.0 interface Audio interface 6 x 3.5 mm interface Physical specifications Plate structure ATX Power interface 24 + 8
