ASUS Prime A320M-K AMD Ryzen AM4 DDR4 HDMI VGA M.2 Micro-ATX A320 Motherboard

Item #: 9SIV296JRR4708
Mfr. Part #: Prime A320M-K
UNSPSC: 43201513

(54) Write a Review

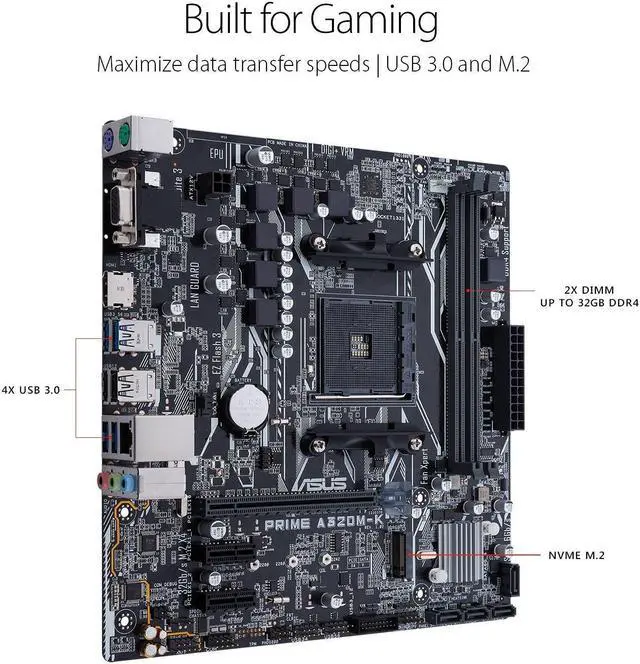

Powered by AMD Ryzen AM4, 7th generation Athlon processors to maximize connectivity and speed with NVMe M.2, support for 32GB of DDR4, USB 3.1 and Gigabit LAN
5X Protection III Hardware-level safeguards provide component longevity and reliability
Unique SafeSlot Core fortified PCIe slot prevents damage from heavyweight GPUs
Fan Xpert delivers advanced fan controls for optimized cooling

Overview

Specs

Reviews (54)

Asus PRIME A320M-K Desktop Motherboard.
Brand New
Includes Three Year Warranty
. . The Asus PRIME A320M-K Desktop Motherboard supports 7th generation A-series AMD Ryzen™ and Athlon™ processors. Asus LANGuard is a hardware level networking protection that employs signal coupling technology and premium anti-EMI surface mounted capacitors ensuring a more reliable connection. The circuit is designed with built-in voltage regulators to protect the chipset, connectivity ports, and audio codecs from damage. The Asus DIGI+ VRM intelligently delivers power to the processor based on real time demands, reducing energy usage and improving system stability.
.
.
PRIME A320M-K Desktop Motherboard

Model
Brand	ASUS
Model	Prime A320M-K

Supported CPU
CPU Socket Type	AM4
CPU Type	AMD AM4 Socket Ryzen with Radeon Vega Graphics / Ryzen 1st Generation / 7th Generation A-series /Athlon X4 Processors

Chipsets
Chipset	AMD A320

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	AMD Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors DDR4 3200(O.C.)/ 2933(O.C.)/ 2666/ 2400/ 2133 AMD 7th Generation A-Series/ Athlon X4 Processors DDR4 2400/ 2133 * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	AMD Ryzen 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 or dual x8) AMD Ryzen with Radeon Vega Graphics / 7th Generation A-Series/Athlon X4 Processors 1 x PCIe 3.0/2.0 x16 (x8 mode)
PCI Express x16	None
PCI Express x1	2 x PCIe 2.0 x1

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s port(s), gray
M.2	AMD Ryzen with Radeon Vega Graphics/ Ryzen 1st Generation Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode) AMD 7th Generation A-series/Athlon Processors: 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x2 mode)
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics/ 7th Generation A-Series APU Multi-VGA output support: HDMI/RGB ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 2048MB (for iGPU exclusively)

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps

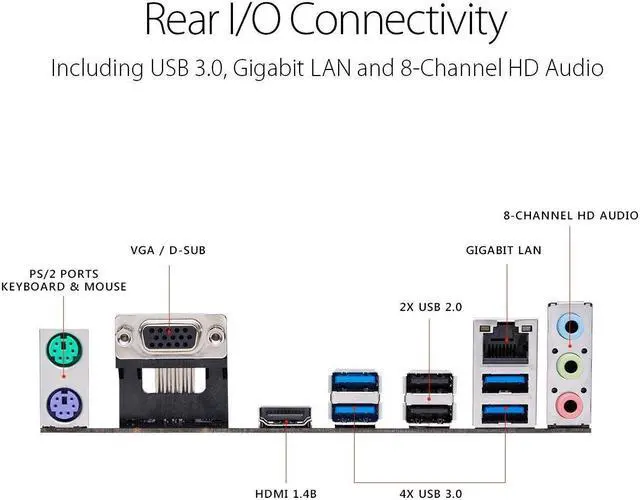

Rear Panel Ports
PS/2	1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green)
Video Ports	1 x D-Sub
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.1	4 x USB 3.1 Gen 1 (blue)
USB 3.0	4 x USB 3.0 (blue)
USB 1.1/2.0	2 x USB 2.0
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x COM port(s) connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x Chassis Fan connector(s) (1 x 4-pin) 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector

Physical Spec
Form Factor	Micro ATX
LED Lighting	None RGB
Dimensions (W x L)	8.9" x 8.7"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s)

Software Feature
Windows 11	Supported

Features
Features	Special Features: ASUS 5X Protection III: - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features: - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - Multi-language BIOS ASUS Q-Design: - ASUS Q-Slot - ASUS Q-DIMM Operating System Support: Windows 10, 64-bit BIOS: 128MB Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control

Packaging

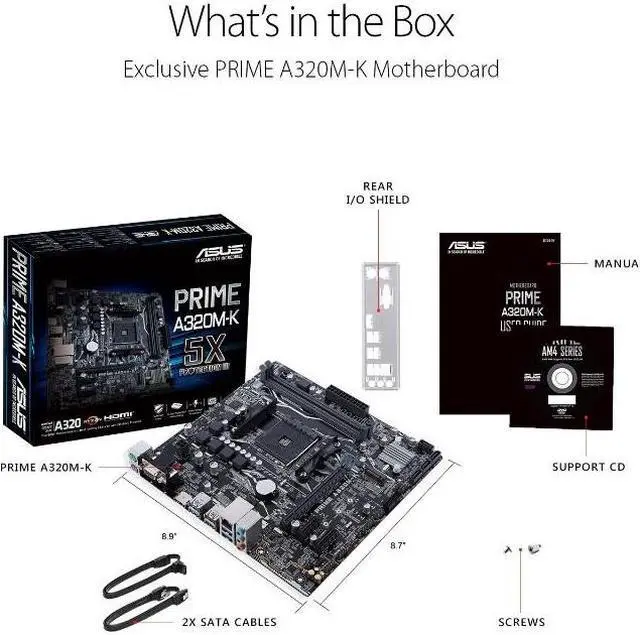

Package Contents	Accessories: User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD

Additional Information
First Listed on Newegg	December 20, 2022
