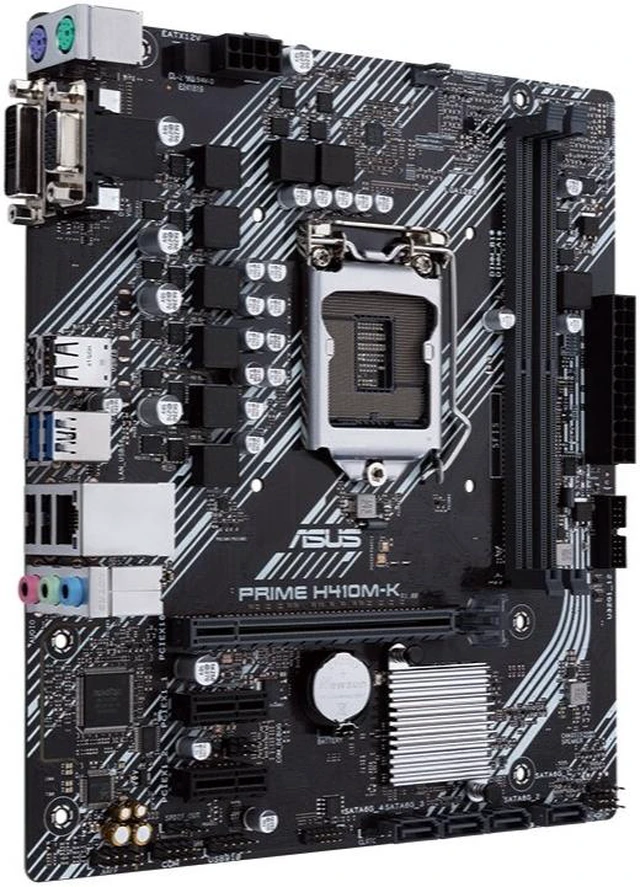

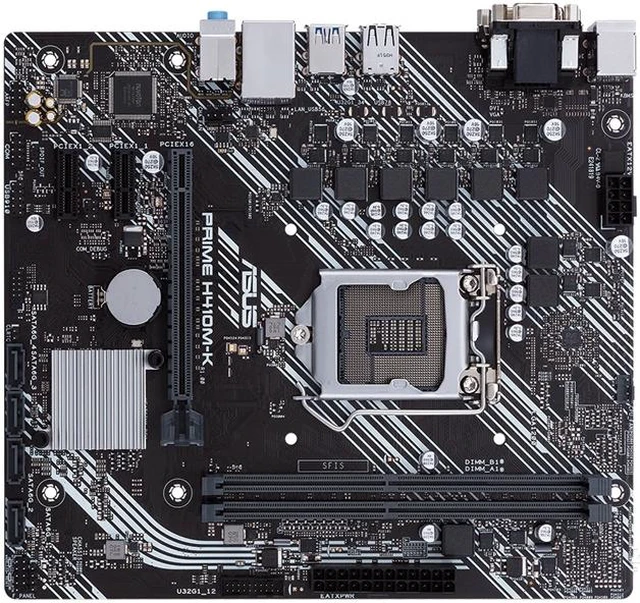

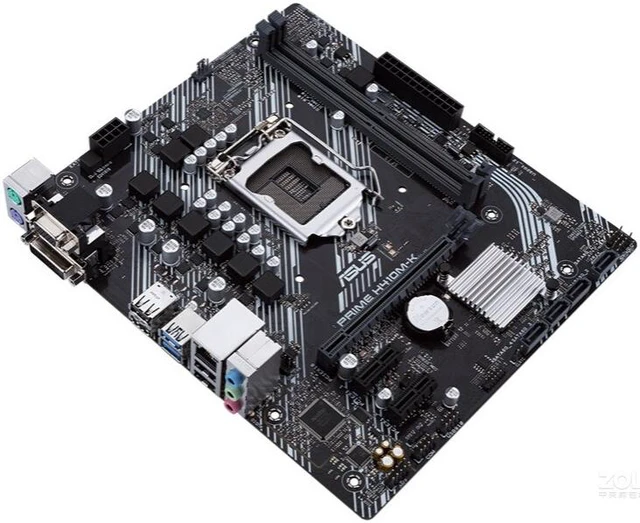

Learn more about the ASUS PRIME H410M-K
Model| Brand | ASUS |
|---|
| Model | PRIME H410M-K |
|---|
Supported CPU| CPU Socket Type | LGA 1200 |
|---|
| CPU Type | Supports 10th Gen Intel Core Processors
Supports Intel Pentium Gold and Celeron Processors
* Refer to www.asus.com for CPU support list. |
|---|
| Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|---|
Chipsets| Chipset | Intel H410 |
|---|
Onboard Video| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
Memory| Number of Memory Slots | 2x288pin (DDR4) |
|---|
| Memory Standard | DDR4 2933 / 2800 / 2666 / 2400 / 2133*
* 10th Gen Intel Core i9 / i7 CPUs support 2933 / 2800 / 2666 / 2400 / 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
|---|
| Maximum Memory Supported | 64GB |
|---|
| Channel Supported | Dual Channel |
|---|
Expansion Slots| PCI Express 3.0 x16 | 1 x PCIe 3.0 x16 *
* Actual support may vary by CPU. |
|---|
| PCI Express x1 | 2 x PCIe 3.0 x1 |
|---|
Storage Devices| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|
Onboard Audio| Audio Chipset | Realtek ALC887/897 |
|---|
| Audio Channels | 7.1 Channels |
|---|
Onboard LAN| LAN Chipset | Realtek RTL8111H |
|---|
| Max LAN Speed | 1Gbps |
|---|

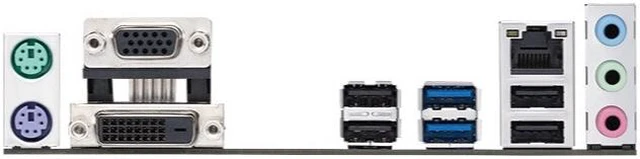

Rear Panel Ports| Back I/O Ports | 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0
3 x Audio jack(s) |
|---|
Internal I/O Connectors| Onboard USB | 1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) |
|---|
| Other Connectors | 1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector |
|---|
Physical Spec| Form Factor | Micro ATX |
|---|
| Dimensions (W x L) | 8.9" x 8.0" |
|---|
| Power Pin | 1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors |
|---|
Features| Features | Software Features:
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features:
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
BIOS:
128 MB Flash ROM, UEFI AMI BIOS
Manageability:
WOL by PME, PXE
Operating System:
Windows 10 64-bit |
|---|

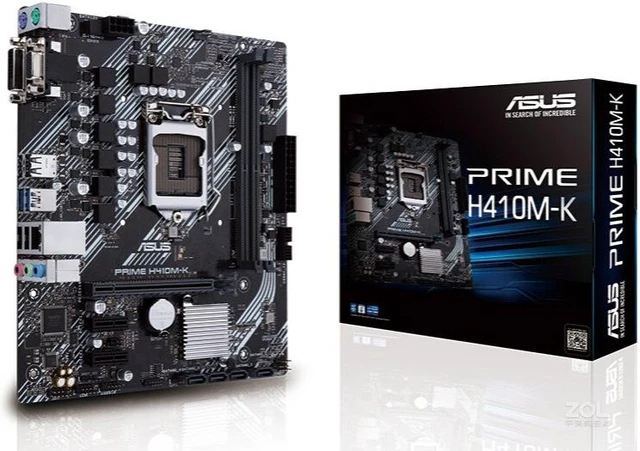

Packaging| Package Contents | Accessories:
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
User manual |
|---|
Additional Information| First Listed on Newegg | October 16, 2025 |
|---|
