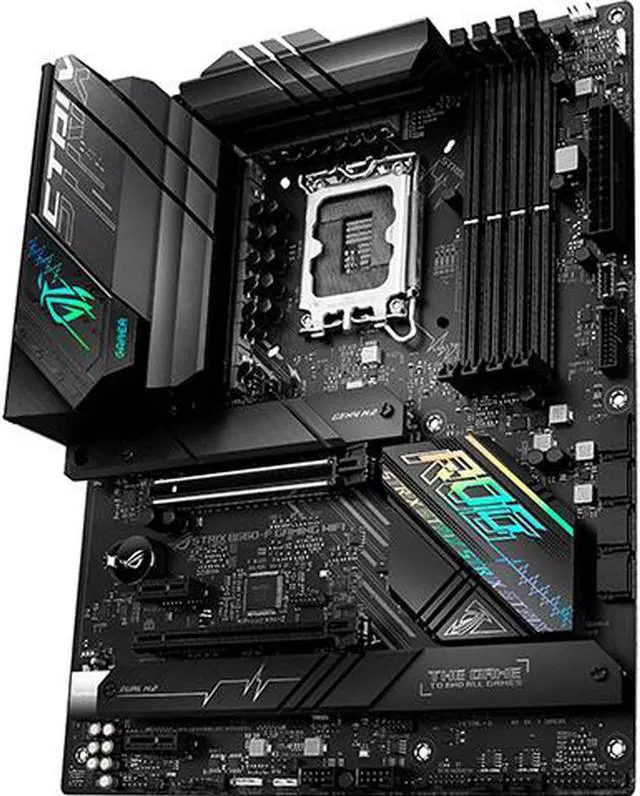

Main image of ASUS ROG STRIX B660-F GAMING WIFI LGA 1700 ATX Intel Motherboard

Shop All ASUS Products | Visit Xujiajia Store

ASUS ROG STRIX B660-F GAMING WIFI LGA 1700 ATX Intel Motherboard

Item #: 9SIVNP2KJ72411
Mfr. Part #: ROG STRIX B660-F GAM
UNSPSC: 43201513

REFURBISHED

Be the first to review this product...

Intel B660
Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors
DDR5 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800

Overview

Specs

Reviews

Intel B660
Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors
DDR5 6000 (OC) / 5800 (OC) / 5600 (OC) / 5400 (OC) / 5200 (OC) / 5000 (OC) / 4800

Model
Brand	ASUS
Series	ROG
Model	STRIX B660-F GAMING WIFI

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors* * Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets
Chipset	Intel B660

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800 * Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16 * Actual support may vary by CPU.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16 * Supports x4 mode. * The PCIEX16(G3) shares bandwidth with the PCIEX1(G3)_1 and PCIEX1(G3)_2. When either PCIEX1(G3) slot enables, PCIEX16(G3) will run x2 mode.
PCI Express x1	2 x PCI Express 3.0 x1

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	Intel 12th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel B660 Chipset: M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4) Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6 802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

Rear Panel Ports
Back I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 ports (1 x Type-A) 5 x USB 3.2 Gen 1 ports (4 x Type-A, 1 x USB Type-C) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel I225-V 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack button 1 x Clear CMOS button

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x S/PDIF Out header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header

Software Feature
Windows 11	Ready

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector

Packaging
Package Contents	Accessories: Cables 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 Q-Latch package 1 x M.2 Q-Latch package for M.2 backplate 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User manual

Additional Information
First Listed on Newegg	July 29, 2025
