ASUS ROG STRIX X870E-H S MIKU motherboard & CPU & Case & Power Supply Combo, GAMING WIFI7 HATSUNE MIKU EDITION, AMD Ryzen 5 9600X, ROG GX601S Helios Mid-Tower Hatsune Miku Case, ROGTHOR1200P3MIKU

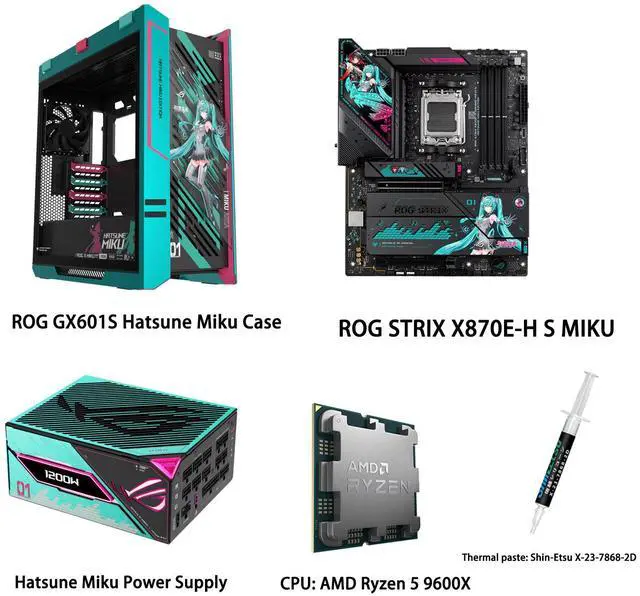

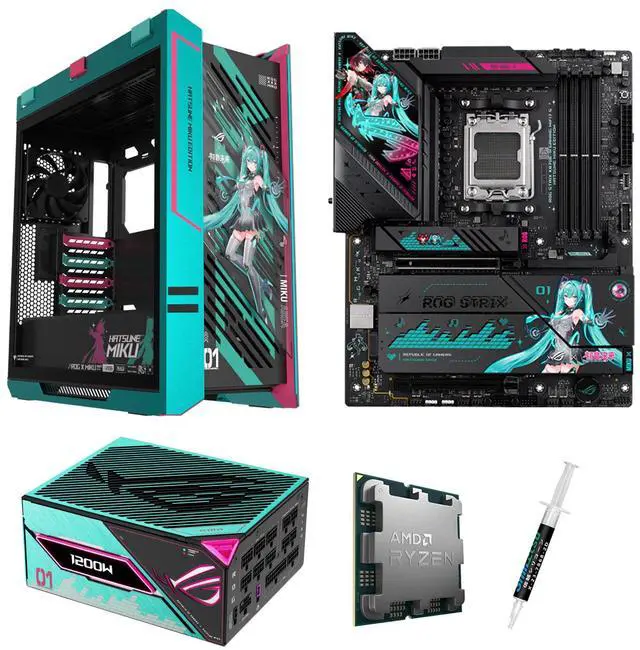

ASUS ROG STRIX X870E-H S MIKU motherboard & CPU & Case & Power Supply Combo

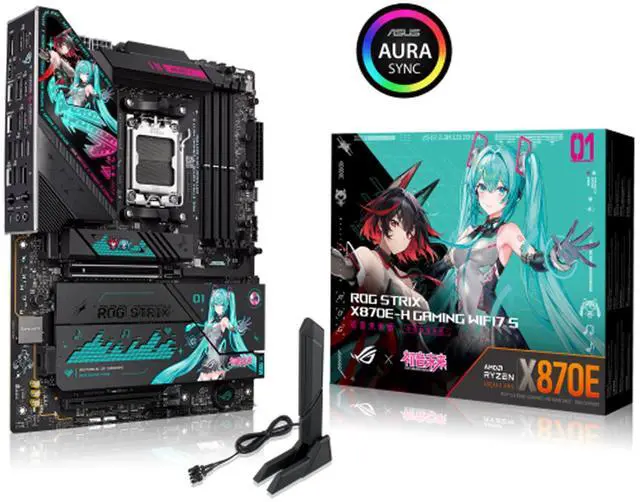

ASUS ROG STRIX X870E-H S MIKU motherboard

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications

AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors

Intelligent Control: ASUS AI Advisor, AI Cache Boost, AI Cooling II, AI Networking II and AEMP to simplify setup and improve performance

Robust Power Solution: 16+2+1 power solution rated for 80A per stage with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors

Optimized Thermal Design: Massive heatsinks with integrated I/O cover, and high-conductivity thermal pads

Latest M.2 Support: Two onboard PCIe® 5.0 M.2 slots and two PCIe 4.0 M.2 slots, all with substantial cooling solutions

Abundant Connectivity: Dual USB4® Type-C ports, USB 20Gbps Type-C® front-panel connector, one USB 10Gbps Type-C® rear I/O port with PD 3.0 up to 30W and USB Wattage Watcher, three additional USB 10Gbps ports

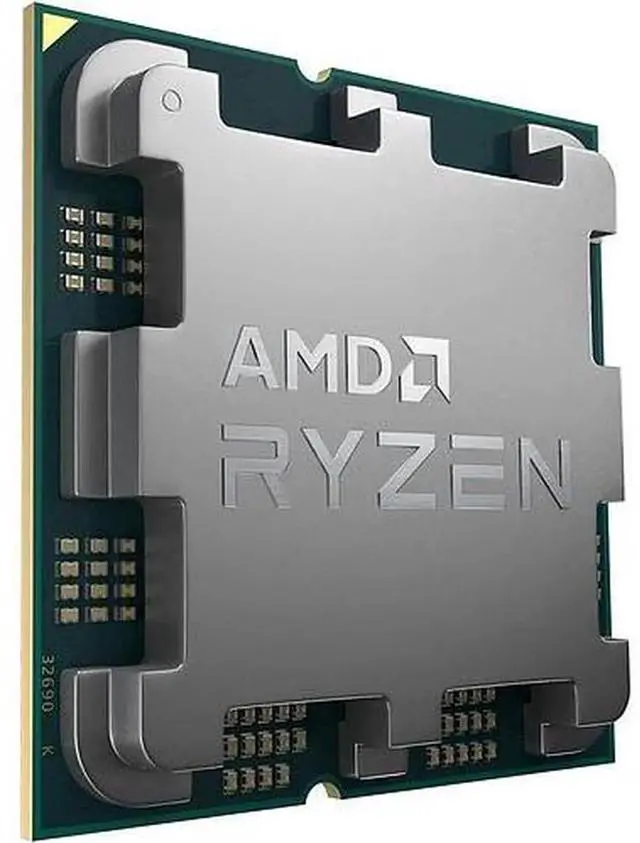

AMD Ryzen 5 9600X CPU

1. CES 2025 Innovation Award Honoree: Recognized in the Computer Hardware & Components Experience exceptional gaming performance with smooth 100+ FPS in the most popular games.
2. This processor features 6 cores and 12 threads, based on AMD's "Zen 5" architecture.
3. It boasts a 5.4 GHz max boost clock, is unlocked for overclocking, and includes a 38 MB cache.
4. It supports DDR5-5600 memory and is designed for the cutting-edge Socket AM5 platform, with PCIe 5.0 support on select motherboards.
5. Please note that a cooler is not included.

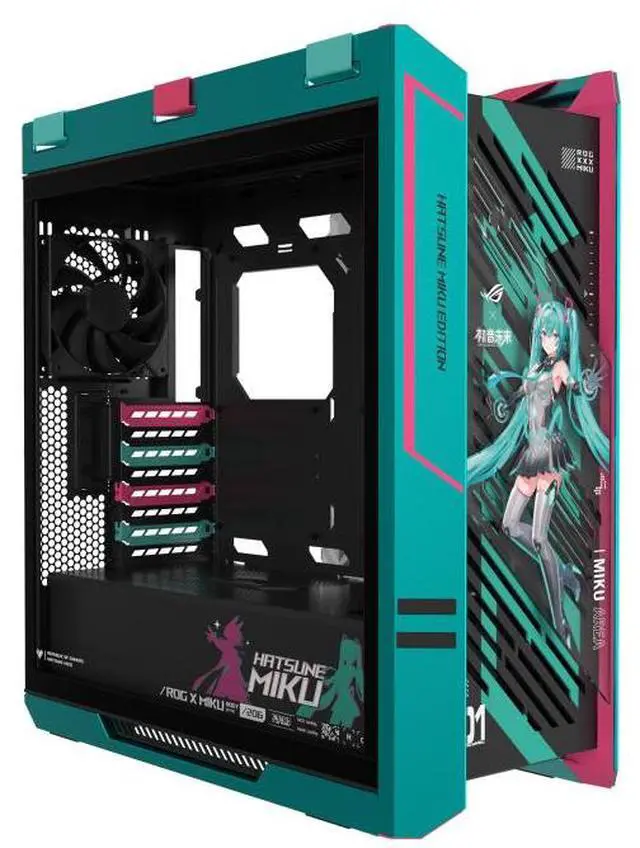

ROG GX601S Helios Mid-Tower Hatsune Miku Case

1. Stunning Aesthetics: Hatsune Miku-themed paint job + exquisite artwork
2. Built for Durability: Aluminum alloy exoskeleton + 50kg load-bearing two-tone handle
3. Steals the Show: 4 × 14cm fans (front and rear) for powerful cooling
4. Show Off Your Setup: Extra-large tempered glass side panels for a confident display
5. Specifications: Mid-Tower Case
6. Motherboard Compatibility: EATX (12 x 10.9), ATX, Micro-ATX, Mini-ITX
7. Storage Bays: 4 x 2.5 drive bays, 2 x 2.5/3.5" combo drive bays
8. Expansion Slots: 8, 2 (additional vertical expansion slots)
9. Front I/O Ports: 1 x Headphone/Microphone, 2 x USB 3.2 Gen 2x2 Type-C, 4 x USB 3.2 Gen 1
10. Tempered Glass: Front, Left Side, Right Side
11. Liquid Cooler Compatibility (Front): 120 mm, 140 mm, 240 mm, 280 mm, 360 mm, 420 mm
12. Liquid Cooler Compatibility (Top): 120 mm, 140 mm, 240 mm, 280 mm, 360 mm
13. Liquid Cooler Compatibility (Rear): 120 mm, 140 mm
14. Fan Compatibility (Front): 3 x 120 mm, 3 x 140 mm
15. Air Cooler Compatibility (Top): 3 x 120 mm, 2 x 140 mm
16. Air Cooler Compatibility (Rear): 1 x 120 mm, 1 x 140 mm
17. Pre-installed Fans (Front): 3 x 140 mm, PWM
18. Pre-installed Fans (Rear): 1 x 140 mm
19. Maximum CPU Cooler Height: 190 mm
20. Maximum GPU Length Supported: 450 mm
21. Maximum PSU Length Supported: 220 mm
22. Removable Dust Filters: Front, Top, Bottom
23. Maximum Cable Management Space: 33 mm
24. Dimensions: 250 x 565 x 591 mm
25. Weight: 18 kg
26. AURA SYNC: ARGB
27. Accessories: Extension Hub supporting PWM fans x 6, ARGB LED strips x 6

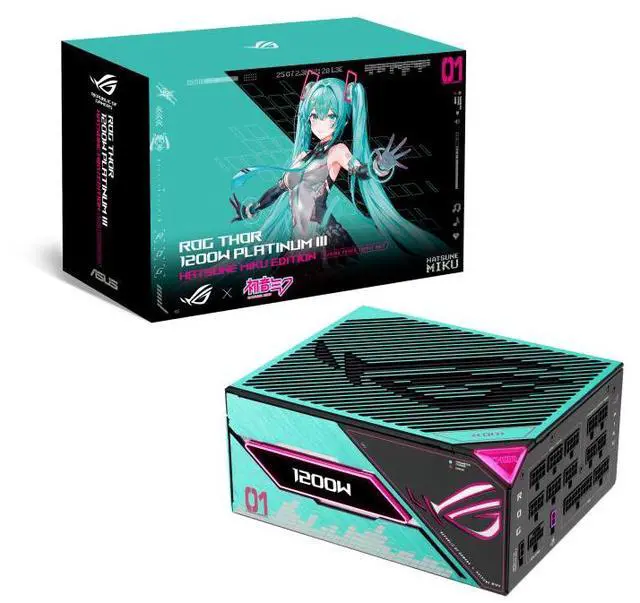

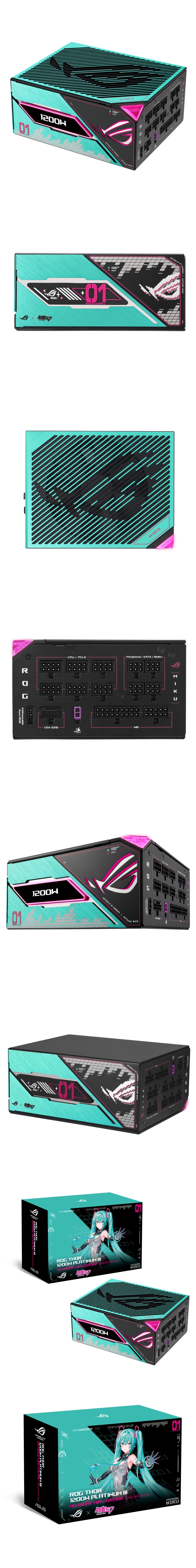

Power Supply:ROG Thor 1200W Platinum III Hatsune Miku Edition

1. Featuring a GaN MOSFET, GPU-First patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1200W Platinum III Hatsune Miku Edition delivers unmatched performance and rock-solid stability for your ultimate PC build
2. Co-branded edition combines unbeatable ROG performance and sci-fi-inspired aesthetics with the signature blue-green and pink Hatsune Miku color scheme
3. GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation.
4. "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.
5. Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
6. Turbo Mode: Premium components and a fine-tuned fan curve unlock support for extended power excursions.
7. ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control.
8. Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs.
9. ATX 3.1 compatible: ROG Thor Platinum III Hatsune Miku Edition is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware.
10. Lambda A++ Certification: Certified low noise levels, below 15 dB.
11. Etched modular cables with a pliable premium mate
12.

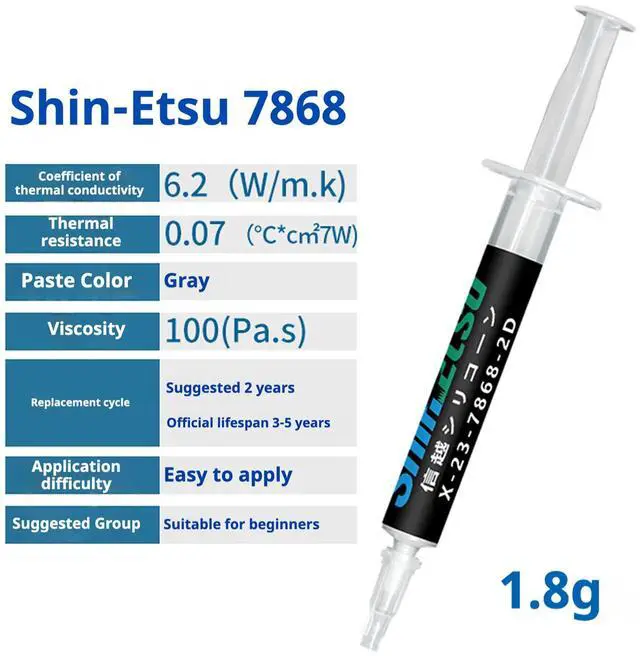

Thermal paste: Shin-Etsu X-23-7868-2D

Weight: 1.8g

Model: X2378682D

Brand: ShinEtsu

Coefficient of thermal conductivity:6.2 (W/m.k)

Thermal resistance:0.07 (°C·cm²/W)

Paste Color:Gray

Viscosity:100 (Pa.s)

Replacement cycle:Suggested 2 years / Official lifespan 35 years

Application difficulty:Easy to apply

Suggested Group:Suitable for beginners
