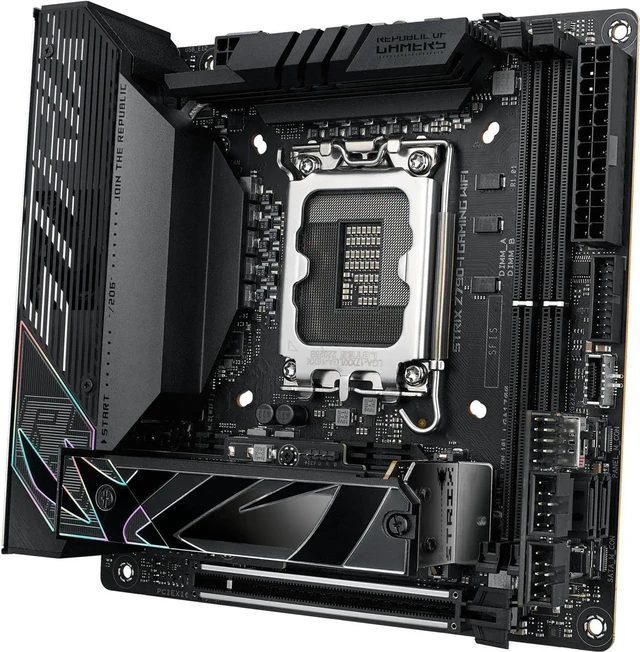

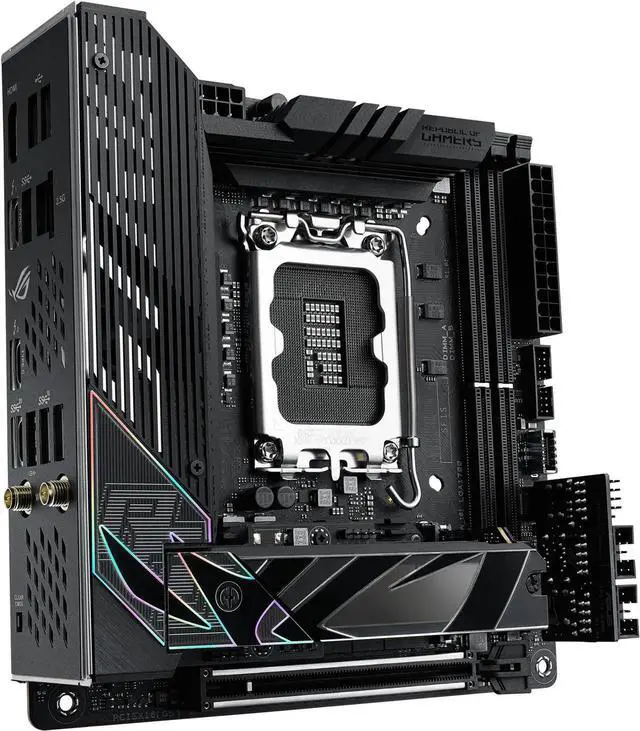

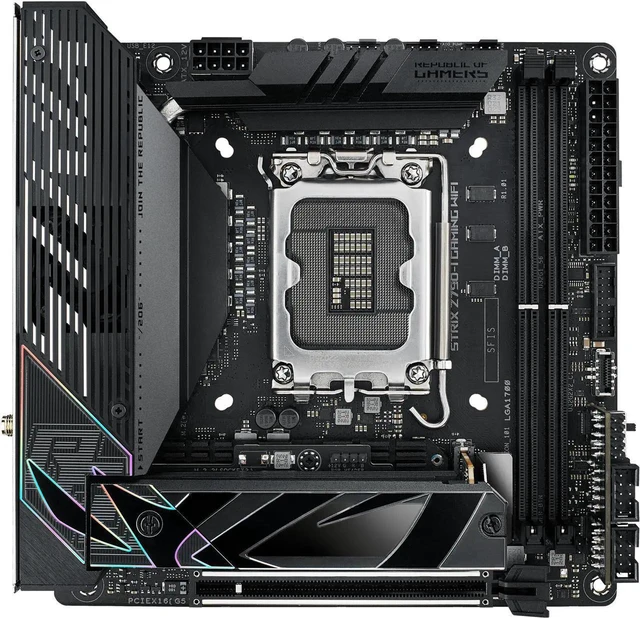

    ASUS ROG Strix Z790-I Gaming WiFi 6E LGA 1700 (Intel 14th & 13th & 12th Gen) mini-ITX gaming motherboard (PCIe 5.0,DDR5,10+1 power stages,Thunderbolt 4,2.5 Gb LAN,USB 3.2 Gen 2x2 front panel Type-C,

    • Item #: 9SIVU3WM559339
    • Mfr. Part #: ROG STRIX Z790-I GAMING WIFI
    • UNSPSC: 43201513
    REFURBISHED Product Type
    Be the first to review this product...
    • BIOS update may be required when used with some 14th generation Intel Core processors, visit ASUS support website for more information
    • Intel LGA 1700 socket: Ready for 14th & 13th & 12th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
    • SFF Innovations: ROG Strix Hive moves OC controls and connectivity to the desktop while allowing for a larger audio solution, and the ROG FPS-II Card vertically mounts USB and SATA ports for a better building experience
    • Robust Power Solution: 10 + 1 power solution rated for 105A per stage with ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
    • Optimized VRM Thermals: Thick heatsinks with integrated I/O cover high-conductivity thermal pads, and connected with an L-shaped heatpipe
    • Multi-Layer M.2 Stack: Both a PCIe5.0 M.2 slot and a PCIe 4.0 M.2 are sandwiched between thick heatsinks in a space-saving and thermally-efficient array
    +
    +
    Specs
    Reviews

    Learn more about the ASUS STRIX Z790-I GAMING WIFI

    Model
    Brand ASUS
    Series ROG
    Model STRIX Z790-I GAMING WIFI
    Part Number 90MB1CM0-M0AAY0
    Supported CPU
    CPU Socket Type LGA 1700
    CPU Type Intel® Socket LGA1700 for 14th & 13th & 12th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to www.asus.com for CPU support list.

    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
    Chipsets
    Chipset Intel Z790
    Memory
    Number of Memory Slots 2x288pin (DDR5)
    Memory Standard 2 x DIMM, Max. 64GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
    Maximum Memory Supported 256GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 5.0 x16 Intel® 14th & 13th & 12th Gen Processors*
    1 x PCIe 5.0 x16 slot (supportsx16 or x8/x8 mode)
    * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

    - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
    Storage Devices
    Serial ATA (SATA) 2 x SATA 6Gb/s
    M.2 Intel® 14th & 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode// PCIe 4.0 x4 mode)***
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    2 x SATA 6Gb/s ports****
    *** M.2_1 comes from Intel® Z790 Chipset when switched to PCIe 4.0 x4 mode
    **** Install ROG FPS-II Card to support 2 x SATA 6Gb/s ports.
    Onboard Audio
    Audio Chipset Realtek ALC4050
    Audio Channels ROG High Definition Audio CODEC ALC4050
    - Supports: Jack-detection
    - High quality 118 dB SNR stereo playback output and 94 dB SNR recording input
    - Supports up to 32-Bit/384 kHz playback
    Audio Features
    - ROG Hyper-Grounding Technology
    - ESS SABRE9260Q DAC
    - Silver-plated audio jacks
    - Optical S/PDIF out port & USB Type-C port with indepent power solution
    *** All audio functions on ROG STRIX Z790-I GAMING WIFI are supported through the ROG STRIX HIVE.
    Onboard LAN
    Max LAN Speed 1 x Intel 2.5Gb Ethernet
    ASUS LANGuard // TUF LANGuard
    Wireless LAN Wi-Fi 6E
    2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5/6GHz frequency band*
    * WiFi 6E 6GHz regulatory may vary between countries.
    Bluetooth Bluetooth v5.3

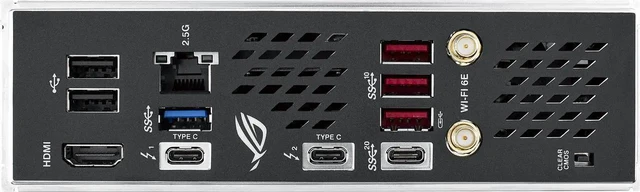

    Rear Panel Ports
    Back I/O Ports 2 x Thunderbolt 4 USB Type-C port(s)
    1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C )
    3 x USB 3.2 Gen 2 port(s) (3 x Type-A) (supports ROG STRIX HIVE)
    1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
    2 x USB 2.0 port(s) (2 x Type-A)
    1 x HDMI port
    1 x Wi-Fi Module
    1 x Intel 2.5Gb Ethernet port
    1 x Clear CMOS button
    Internal I/O Connectors
    Onboard USB 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C )
    1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports
    Other Connectors Fan and Cooling related
    1 x 4-pin CPU Fan header(s)
    1 x 4-pin AIO Pump header(s)
    1 x 4-pin Chassis Fan header(s)

    Storage related
    2 x M.2 slots (Key M)

    Miscellaneous
    1 x Addressable Gen 2 header(s)
    1 x Aura RGB header(s)
    1 x Thermal Sensor header
    2 x USB Type-C connectors to Install ROG FPS-II card
    ROG FPS-II card
    2 x SATA 6Gb/s ports
    1 x CPU Over Voltage jumper
    1 x Thermal Sensor header
    1 x Front Panel header
    1 x Alternative PCIe Mode switch
    2 x USB 2.0 header(s) support(s) additional 3 USB 2.0 ports
    Software Feature
    Windows 11 Supported
    Physical Spec
    Form Factor Mini ITX
    Dimensions (W x L) 6.7" x 6.7"
    Power Pin 1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Features
    Features Extreme Engine Digi+
    - 5K Black Metallic Capacitors
    ASUS Q-Design
    - M.2 Q-Latch
    - Q-DIMM
    - Q-Slot
    ASUS Thermal Solution
    - M.2 heatsink backplate
    - M.2 heatsink
    - VRM heatsink design
    ASUS EZ DIY
    - Clear CMOS button
    - CPU Socket lever protector
    - ProCool II
    - Pre-mounted I/O shield
    - SafeSlot
    - SafeDIMM
    Aura Sync
    - Aura RGB header(s)
    - Addressable Gen 2 header(s)
    ROG STRIX HIVE
    1 x USB Type-C connects to Motherboard
    1 x USB 3.2 Gen 2 port(s) (1 x USB Type-C)
    1 x USB 2.0 port(s) (1 x Type-A with BIOS FlashBack)
    1 x Headphone jack with Mic in
    1 x Mic in jack with Optical S/PDIF out
    1 x AI OC button
    1 x FlexKey button
    1 x BIOS FlashBack button
    1 x Volume Control Knob with Mute Button
    Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

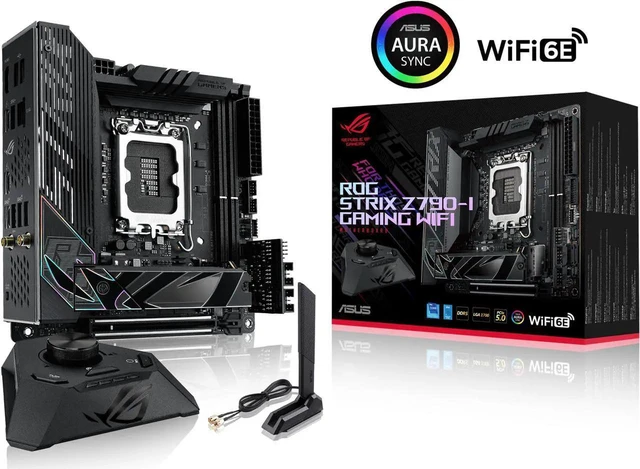

    Packaging
    Package Contents Cables
    2 x SATA 6Gb/s cables
    1 x ROG USB2.0 splitter cable
    1 x Panel Cable
    ROG FPS-II Card
    1 x ROG FPS-II Card
    ROG STRIX HIVE
    1 x ROG STRIX HIVE
    1 x USB Type-C power connection cable
    Additional Cooling Kit
    1 x Thermal pad for M.2
    Miscellaneous
    1 x ASUS Wi-Fi moving antennas
    1 x Cable ties pack
    1 x Rubber Package(s) for M.2
    1 x Q-Latch package(s) for M.2
    1 x ROG key chain
    1 x ROG Strix stickers
    1 x ROG Strix thank you card
    Documentation
    1 x User guide
