OEM Alienware m15 R7 AMD USB Ports IO Circuit Board HD Cam RTX 3060 and DKM5M

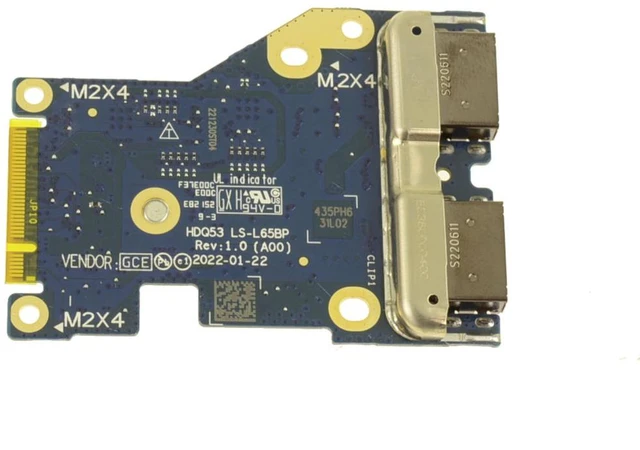

This is the right-side USB IO Circuit Board with two USB ports- sometimes called a databoard or daughterboard, for the Alienware m15 R7 AMD laptop with the optional RTX 3060 graphics or higher and the standard HD camera. The m15 R7 was offered with different hardware configurations- with different IO board part numbers. This part number is specifically for m15 R7 systems that have the optional RTX 3060 graphics or higher and the HD camera. Match your part number before ordering.

Compatible Dell Laptops:
Alienware m15 R7 AMD with RTX 3060 / 3070Ti / 3080Tiand HD Cam

DPN: DKM5M

alternate Part Number's:
HDQ53
LS-L65BP

NOTE: The m15 R7 AMD was offered with different hardware configurations. This part number is specifically for m15 R7 AMD systems that have the optional RTX 3060graphics or higher and the HD camera. Match your part number before ordering.
This is not for systems that have the optional IR camera- it does not have the connector for the IR cam cable /pig tail.
