This means the product was tested and repaired as required to meet the standards of the refurbisher, which may or may not be the original manufacturer. Any exceptions to the condition of the item outside the manufacturer’s information should be provided in the listing, up to and including warranty details.
The item is in very good condition. Tested,100% working,no original packaging.
Only the motherboard and I/O shield are included in the package.
Warranty: 60 days
+
+
Overview
Specs
Reviews (2)
The item is in very good condition. Tested, 100% working, no original packaging. Only the motherboard and I/O shield are included in the package. Warranty: 60 days

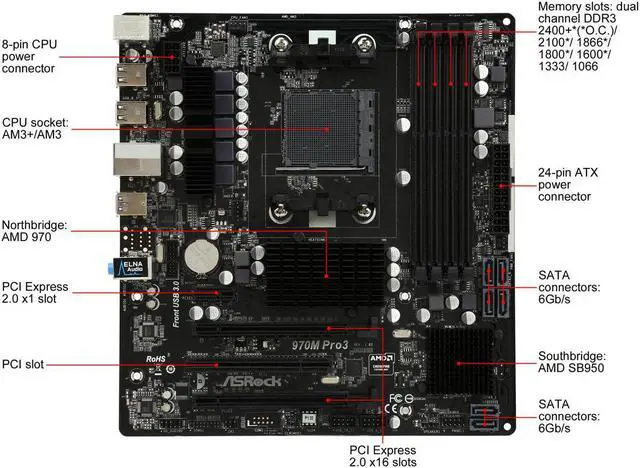

Learn more about the DoDo DIY 970M Pro3
Model
Brand
ASRock
Model
970M Pro3
Supported CPU
CPU Socket Type
AM3+/AM3
CPU Type
Phenom II / Athlon II / Sempron
Chipsets
Chipset
AMD 970
South Bridge
AMD SB950
Memory
Number of Memory Slots
4x240pin
Memory Standard
DDR3 1333
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
ECC Supported
Non-ECC
Buffer Supported
Un-buffered
Expansion Slots
PCI Express 2.0 x16
2 x PCI Express 2.0 x16
PCI Express x1
1 x PCI Express x1
PCI Slots
1 x PCI Slot
Storage Devices
Serial ATA (SATA)
6 x SATA 6Gb/s
SATA RAID
0/1/5/10
Onboard Video
Onboard Video Chipset
None
Onboard Audio
Audio Chipset
Realtek ALC892
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
Realtek RTL8111E
Max LAN Speed
1Gbps
Rear Panel Ports
Back I/O Ports
1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 6 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) 2 x USB 3.1 Gen1 Ports (Etron EJ188H) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone
Physical Spec
Form Factor
Micro ATX
Power Pin
1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector
Additional Information
First Listed on Newegg
July 25, 2022
