ELP 8mp USB Camera Module with Microphone Wide Angle PC Camera for Computer 4K Lightburn Camera for Laser Engraver Mini Strip Fixed Lens Web Camera CCTV USB Security Camera for Raspberry Pi Laptop
- Item #: 9SIVV5XM931686
- Ultra HD: still picture resolution: 3264x2448 Max.
- Wide angle 105degree low distortion lens, wide angle of view, HFOV about 105degree.
- Built in Microphone: Capture video with audio, Super small and mini strip size for your lightburn laser engraver. Compact lightburn laser camera for all kinds of machine vision.
- Mini strip size, light weight, small outline and thin profile for embedded machine vision.

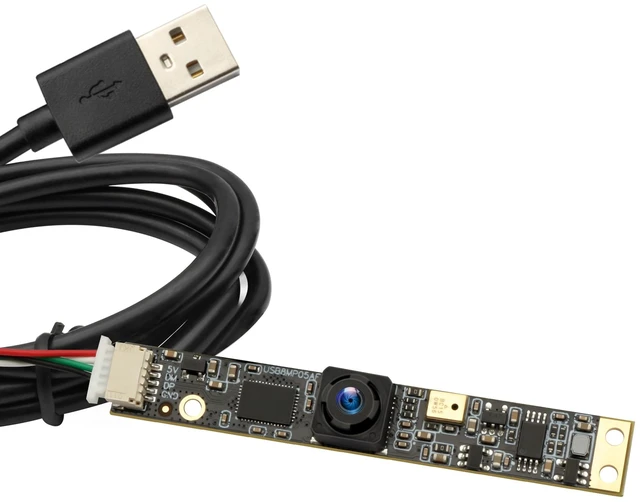

- Embedded with 1/3.2 Imx179 image sensor for better picture performance, mini strip usb camera,with 1meter/3.3ft USB cable for laptop.
- Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial.
- Compatible with raspberry pi, Ubuntu, Opencv, Amcap and many other USB web camera software and hardware.
- Plug&Play: UVC compliant, just connect the camera to PC, laptop, Android device with the included USB cable without extra drivers to be installed.
- Applications: ELP 8mp fixed focus usb camera with microphone is highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking, Bar code QR code identification scan, mini lightburn camera for laser engraver, or other machine vision applications which demand high resolution.
+
+
Overview
Specs
Reviews
Mode: ELP-USB8MP05AF-FF105
Sensor: IMX179
Sensor Size: 1/3.2 inch
Pixel Size: 1.4µm x 1.4µm
Image Area: 6.18mm x 5.85mm
Max. Resolution: 3264(H) X 2448(V) 8 Megapixel
Default Resolution: 3264(H) X 2448(V)
Compression Format: MJPEG / YUY2 (YUYV)
Resolution&Frame Rate:
3264X2448 MJPEG@15fps YUY2@1fps 2592X1944 MJPEG@15fps YUY2@2fps
2048X1536 MJPEG@15fps YUY2@3fps 1600X1200 MJPEG@30fps YUY2@5fps
1920X1080 MJPEG@30fps YUY2@5fps 1280X960 MJPEG@30fps YUY2@5fps
1280X720 MJPEG@30fps YUY2@10fps 1024X768 MJPEG@30fps YUY2@10fps
800X600 MJPEG@30fps YUY2@25fps 640X480 MJPEG@30fps YUY2@30fps
320X240 MJPEG@30fps YUY2@30fps
Focus: Fixed Focus
S/N Ratio: 34dB
Dynamic Range: 72.5dB
Sensitivity: 0.65V/Lux-sec@550nm
Min Illumination: 0.5 Lux
Shutter Type: Electronic Rolling Shutter / Frame Exposure
Connecting Port Type: USB2.0 High Speed
Free Drive Protocol: USB Video Class (UVC)
OTG Protocol: USB2.0 OTG
AGC Auto
AEC Auto
AWB Auto
Adjustable Parameters:
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight
Contrast, Exposure
Lens Parameter: Fixed Lens, HFOV about 105 degree

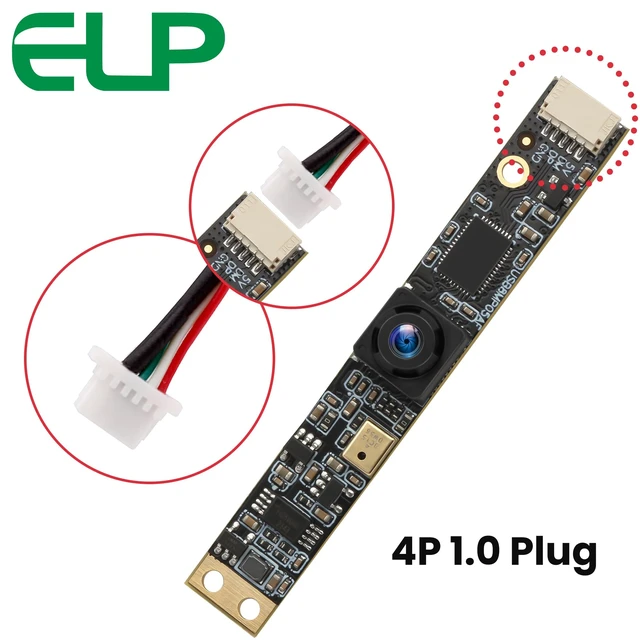

Power Supply: USB BUS POWER 4P-1.0mm socket
Operating Voltage DC 5V
Working Current: 150mA~240mA
Working Temperature: -10~70
Storage Temperature: -20~85

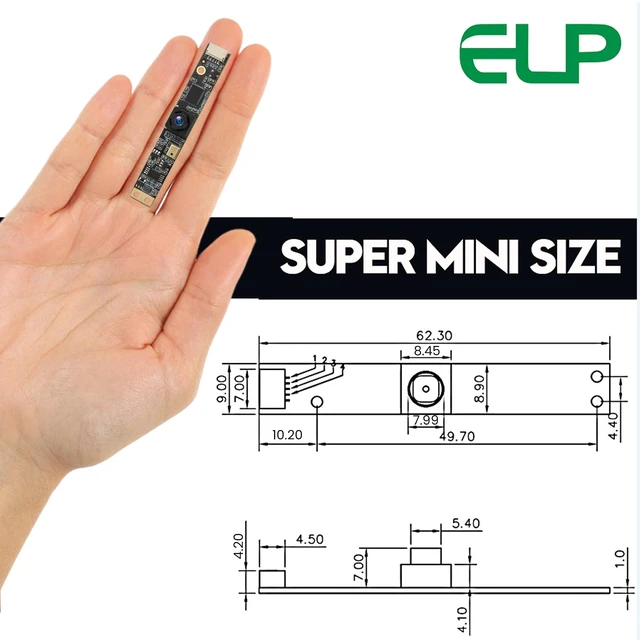

Board Size/Weight: 62.1x9x6.2mm/ about 20g
Cable Standard: 1.2m
Operating System Request:
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
