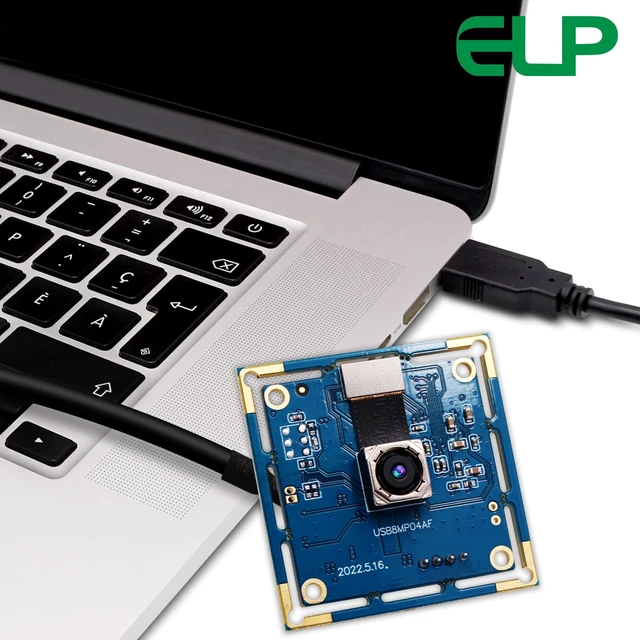

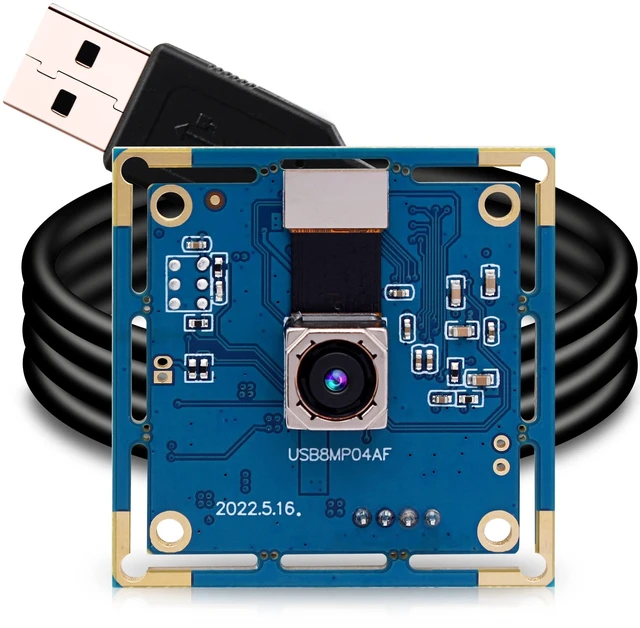

ELP 8MP USB Camera - Autofocus 4K PC & Raspberry Pi Mini UVC USB2.0 Webcam Board IMX179 Industrial Lightburn Camera for Laptop
- Item #: 9SIVV5XM930978
- Ultra HD: Embedded with 1/3.2 Imx179 image sensor for better picture performance, still picture resolution: 3264x2448 Max. 38x38/32x32mm mini micro usb camera,with 1meter/3.3ft USB cable for laptop.
- Autofocus: Shoot objects in close and distance on the same camera, automatically controlled without lens adjustment tool, clearer and easier than the fixed focus camera.Mini USB autofocus camera with none-distortion lens, DFOV is about 72 degree.
- Frame Rate: Support 3264x2448@15fps,3200X2440@25fps,800X600@30fps and YUV video streaming.High speed USB2.0 4K usb camera with Parameters changeable (Brightness, Contrast, Saturation, White Balance, Gamma, Definition, Exposure...)

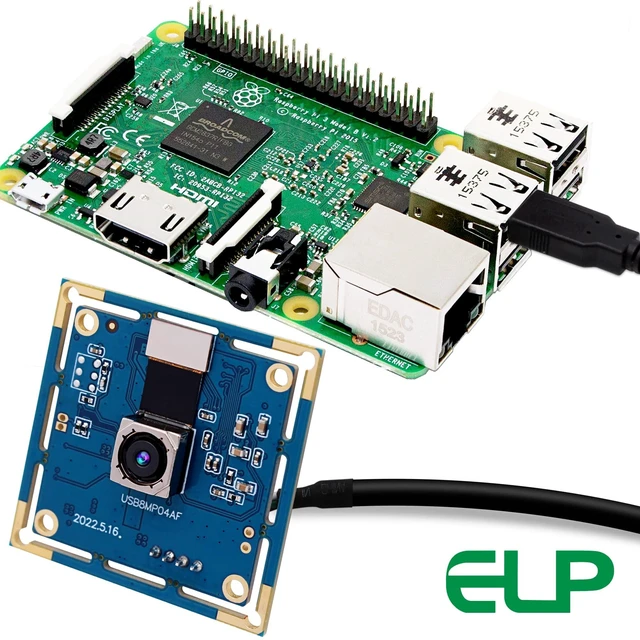

- Plug&Play: UVC compliant, just connect the camera to PC, laptop, Android device with the included USB cable without extra drivers to be installed.Compatible with raspberry pi, Ubuntu, Opencv, Amcap and many other USB web camera software and hardware.
- Applications: ELP 8mp autofocus usb camera is highly recommended for a home surveillance system, monitoring 3D Printer, object recognition and tracking, Bar code QR code identification scan, or other machine vision applications which demand high resolution.
+
+
Overview
Specs
Reviews
ModelELP-USB8MP04AF-V72
SensorIMX179
Sensor Size1/3.2 inch
Pixel Size1.4µm x 1.4µm
Image Area6.18mm x 5.85mm

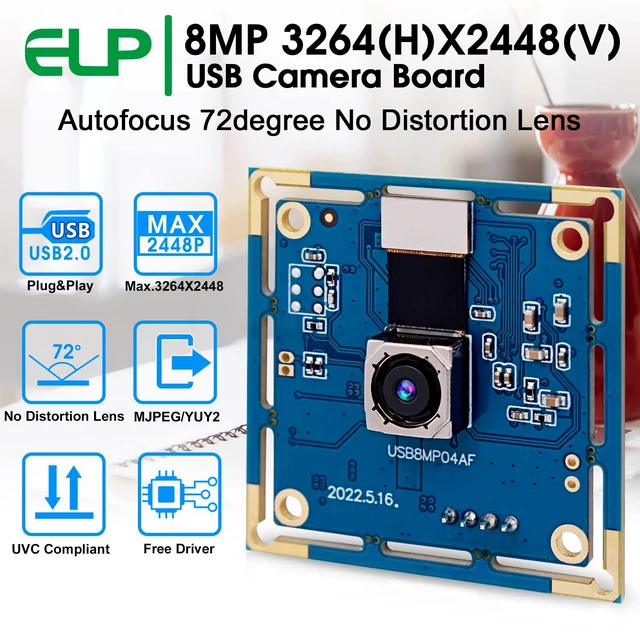

Max. Resolution3264(H) X 2448(V) 8 Megapixel
Compression formatMJPEG / YUY2 (YUYV)
Resolution & Frame Rate
3264X2448 MJPEG@15fps YUY2@1fps 2592X1944 MJPEG@20fps YUY2@2fps
2048X1536 MJPEG@15fps YUY2@3fps 1600X1200 MJPEG@25fps YUY2@5fps
1920X1080 MJPEG@25fps YUY2@5fps 1280X960 MJPEG@25fps YUY2@5fps
1280X720 MJPEG@25fps YUY2@10fps 1024X768 MJPEG@25fps YUY2@10fps
800X600 MJPEG@25fps YUY2@25fps 640X480 MJPEG@25fps YUY2@25fps
320X240 MJPEG@25fps YUY2@25fps
S/N Ratio34dB
Dynamic Range72.5dB
Sensitivity0.65V/Lux-sec@550nm
Min Illumination0.5 Lux
Shutter TypeElectronic Rolling Shutter / Frame Exposure
Connecting Port TypeUSB2.0 High Speed
Free Drive ProtocolUSB Video Class (UVC)
OTG ProtocolUSB2.0 OTG
AGC/AEC/AWBAuto
Adjustable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure
Lens ParameterAF LENS
Focus: 3.5mm , DFOV: 72 Degree
Power SupplyUSB BUS POWER 4P-2.0mm socket
Operating VoltageDC5V
Working Current150mA~240mA
Working Temperature-10~70
Storage Temperature-20~85

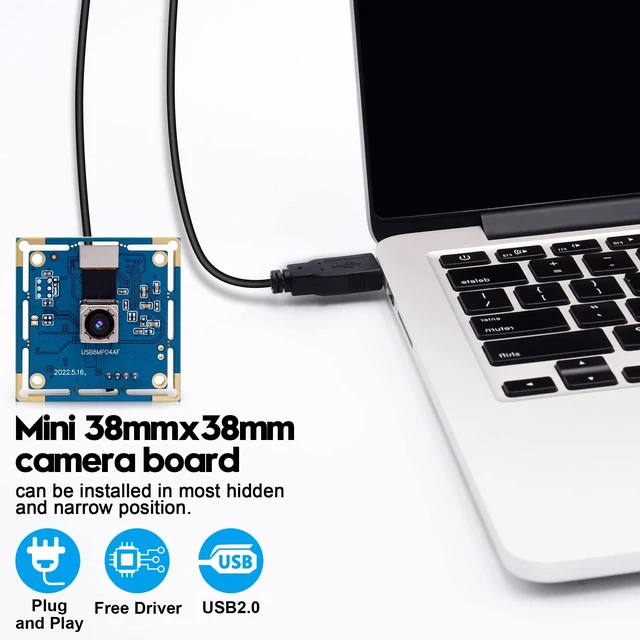

Board Size /Weight38X38mm (Compatible 32X33mm) / about 30g
CableStandard 1m / Optional 2m,3m,5m
Operating System Request
WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC (above Linux-2.6.26),MAC-OS X 10.4.8 or later,Android 4.0 or above with UVC
