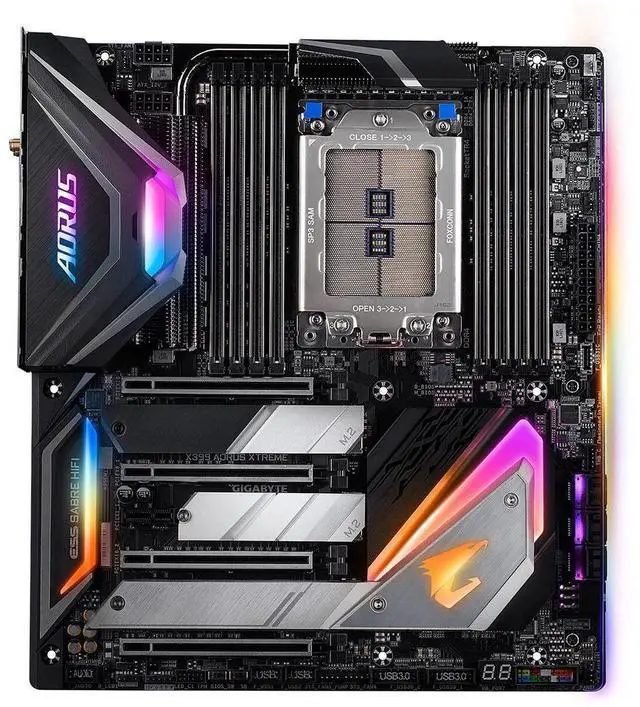

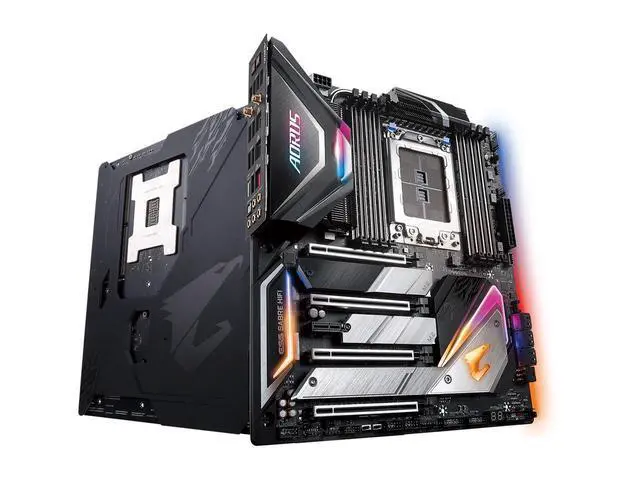

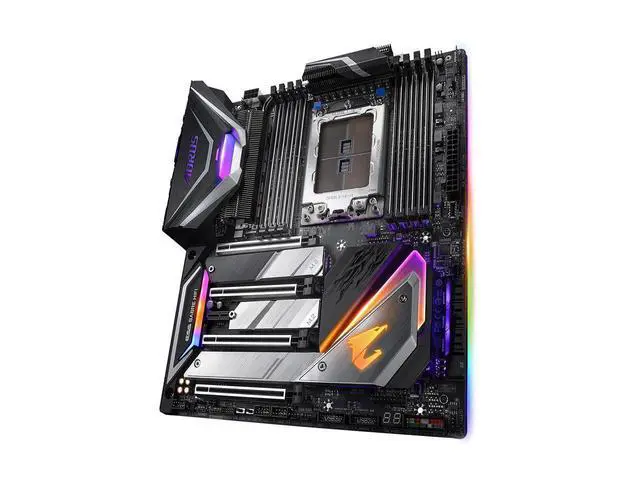

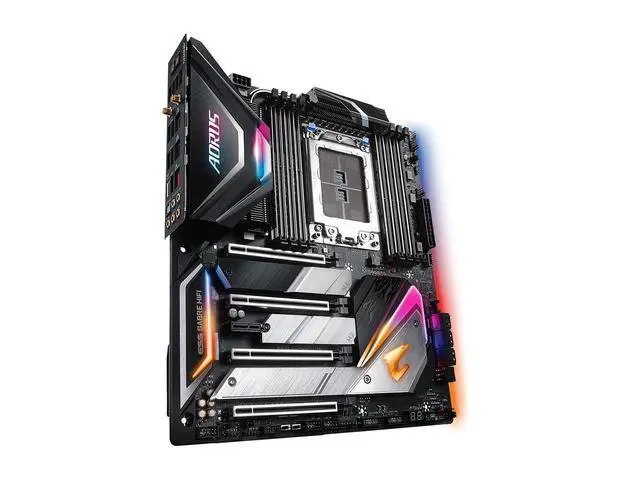

GIGABYTE sTR4 AMD X399 SATA 6Gbs USB 3.1 Extended ATX AMD Motherboard

Model

• Brand
   :   GIGABYTE
• Model
   :   X399 AORUS XTREME

Supported CPU

• CPU Socket Type
   :   sTR4
• CPU Type
   :   Socket
  TR4:
• AMD Ryzen Threadripper processor

Chipsets

• Chipset
   :   AMD X399

Memory

• Number of Memory Slots
   :   8×288pin
• Memory Standard
   :   Support for DDR4 3600+*(O. C. )/ 3466+(O. C. )/ 2933/ 2667/ 2400/ 2133 MHz memory modules
• * Recommend to use a 1st Gen. Ryzen Threadripper processor to achieve 3600 MHz (O. C. ) speed.
• Maximum Memory Supported
   :   128GB
• Channel Supported
   : Quad Channel

Expansion Slots
PCI Express 3.0 x16

• 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
• 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
• (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard. )
• PCI Express x1      1 x PCI Express x1 slot
• (The PCIEX1_1 slot conforms to PCI Express 2.0 standard. )

Storage Devices

• SATA 6Gb/s :   6 x SATA 6Gb/s
• M. 2 :   2 x M. 2 connectors (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2M) (M2Q)
• 1 x M. 2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2P)
• SATA RAID :     0/1/10

Onboard LAN

• LAN Chipset
   :   2 x Intel GbE LAN chips
• Second LAN Chipset
   : 1 x Aquantia GbE LAN chip
• Max LAN Speed
   :   10Gbps + Dual 10/100/1000Mbps
• Wireless LAN :   Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4 /5 GHz Dual-Band

Support for 11 ac wireless standard and up to 867 Mbps data rate
* Actual data rate may vary depending on environment and equipment.

• Bluetooth
   :   BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1 +EDR

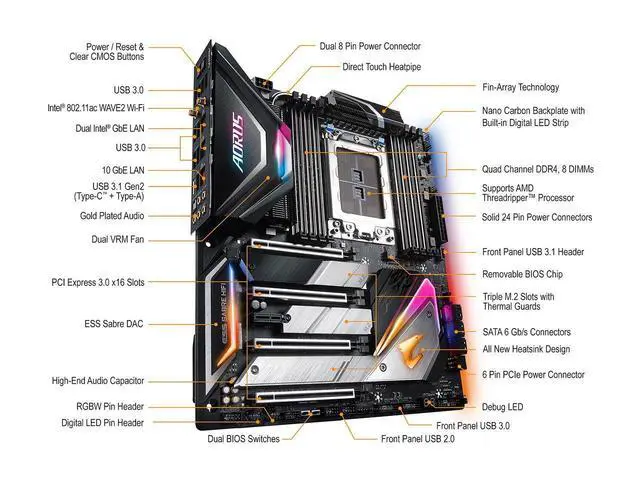

Rear Panel Ports

• RJ45 :   3 x RJ45
• USB 3.1KEY _TAB:   1 x USB Type-C port, with USB 3.1 Gen 2 support
• 1 x USB 3.1 Gen 2 Type-A port (red)
• 8 x USB 3.1 Gen 1 ports

Internal I/O Connectors

• Onboard USB :   1 x USB Type-C port, with USB 3.1 Gen 2 support
• 2 x USB 3.1 Gen 1 headers
• 2 x USB 2.0 / 1.1 headers
• Other Connectors
   :   1 x OC PEG power connector
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 3 x system fan headers
• 2 x system fan/water cooling pump headers
• 2 x digital (addressable) LED strip headers
• 2 x digital (addressable) LED strip power select jumpers
• 2 x RGB (RGBW) LED strip headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM 2.0 _S module only)
• 1 x BIOS switch
• 1 x Dual
  BIOS switch
• 2 x temperature sensor headers
• 1 x Clear CMOS jumper
