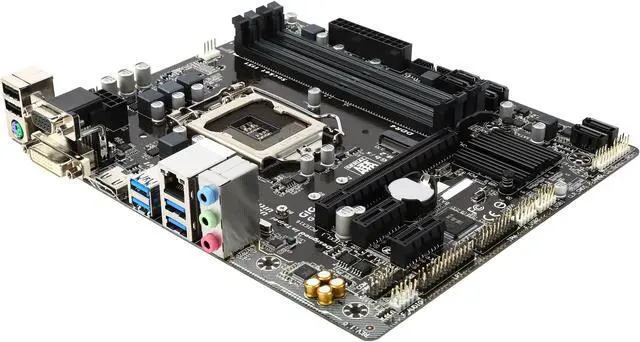

Main image of GIGABYTE GA-B150M-DS3H (rev. 1.0) Micro ATX Intel Motherboard

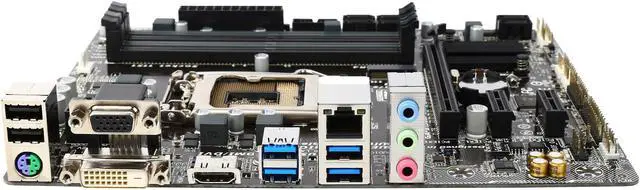

Alt view image 2 of 5 - GIGABYTE GA-B150M-DS3H (rev. 1.0) Micro ATX Intel Motherboard

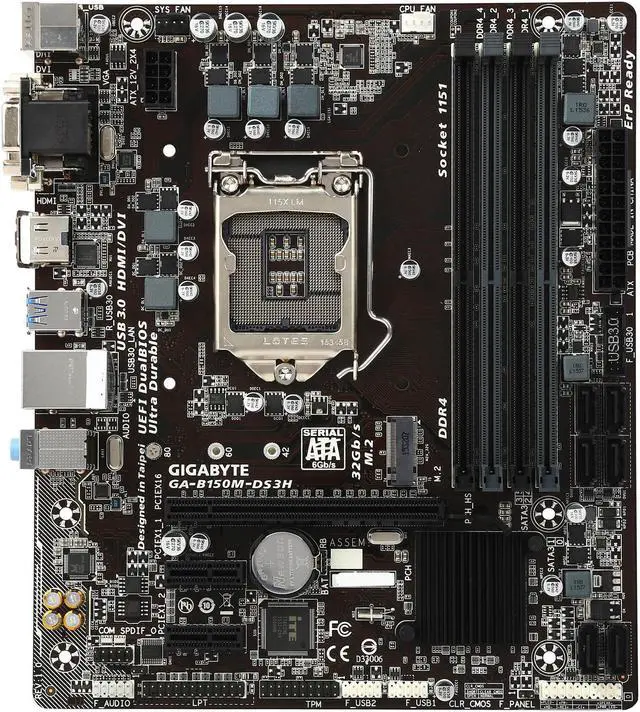

Alt view image 3 of 5 - GIGABYTE GA-B150M-DS3H (rev. 1.0) Micro ATX Intel Motherboard

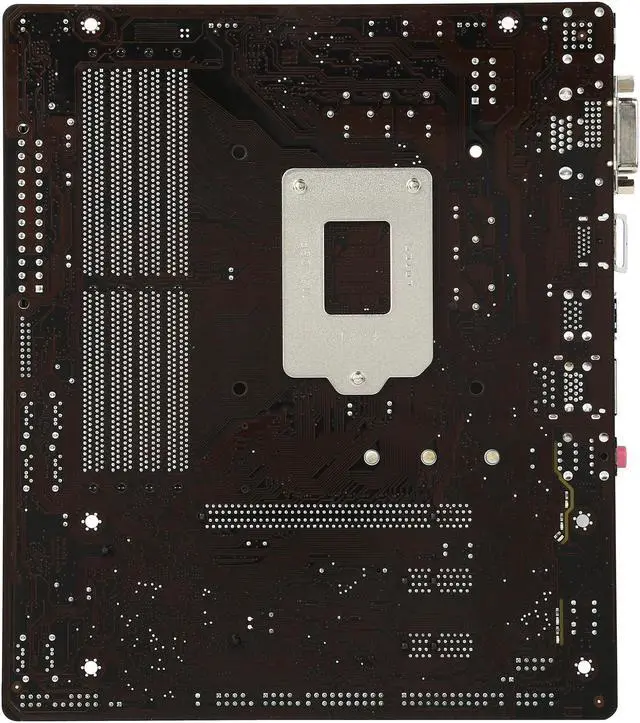

Alt view image 4 of 5 - GIGABYTE GA-B150M-DS3H (rev. 1.0) Micro ATX Intel Motherboard

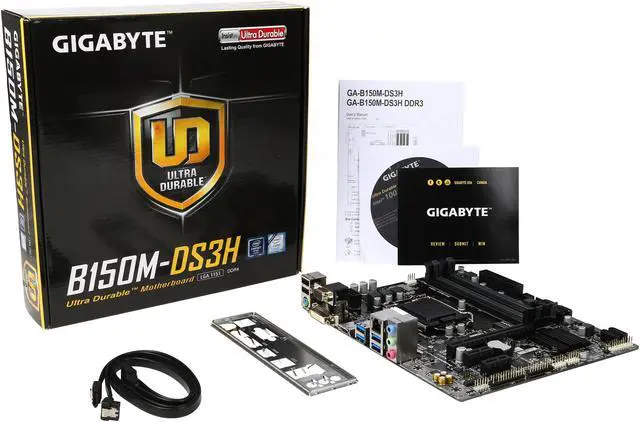

Alt view image 5 of 5 - GIGABYTE GA-B150M-DS3H (rev. 1.0) Micro ATX Intel Motherboard

Shop All GIGABYTE Products | Visit Voltrix Store

GIGABYTE GA-B150M-DS3H (rev. 1.0) Micro ATX Intel Motherboard

Item #: 9SIVTDYKWH8548
Mfr. Part #: GA-B150M-DS3H SNRFB
UNSPSC: 43201513

REFURBISHED

(1) Write a Review

Intel B150
Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
DDR4 2133

Overview

Specs

Reviews (1)

Memory Standard: DDR4 2133
Number of Memory Slots: 4x288pin (DDR4)
Audio Chipset: Realtek ALC887
PCI Express 3.0 x16: 1 x PCI Express x16 slot, running at x16 (PCIEX16)

(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Onboard Video Chipset: Integrated Graphics Processor - Intel HD Graphics support:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.

Support for up to 3 displays at the same time
Maximum shared memory of 512MB
Max LAN Speed: 10/100/1000Mbps
CPU Type: Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Maximum Memory Supp...

Model
Brand	GIGABYTE
Model	GA-B150M-DS3H (rev. 1.0)

Supported CPU
CPU Socket Type	LGA 1151
CPU Type	Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)

Chipsets
Chipset	Intel B150

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 2133
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (PCIEX16) / / (All of the PCI Express slots conform to PCI Express 3.0 standard.)
PCI Express x1	2 x PCI Express x1 slots / / (All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	2/4/5.1/7.1-channel / * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Onboard LAN
LAN Chipset	Realtek GbE LAN chip
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 2.0/1.1 / 4 x USB 3.0
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x D-Sub port / 1 x DVI-D port
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.0	4 x USB 3.0
USB 1.1/2.0	2 x USB 2.0
Audio Ports	3 x audio jacks (Line In, Line Out, Mic In)

Internal I/O Connectors
Onboard USB	1 x USB 3.0/2.0 header / 2 x USB 2.0/1.1 headers
Other Connectors	1 x 24-pin ATX main power connector / 1 x 8-pin ATX 12V power connector / 1 x CPU fan header / 1 x system fan header / 1 x front panel header / 1 x front panel audio header / 1 x S/PDIF Out header / 1 x Trusted Platform Module (TPM) header / 1 x serial port header / 1 x parallel port header / 1 x Clear CMOS jumper

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	8.9" x 7.6"
Power Pin	24 Pin

Features
Features	I/O Controller: / - iTE I/O Controller Chip / / H/W Monitoring: / - System voltage detection / - CPU/System temperature detection / - CPU/System fan speed detection / - CPU/System overheating warning / - CPU/System fan fail warning / - CPU/System fan speed control / * Whether the fan speed control function is supported will depend on the cooler you install. / / BIOS: / - 2 x 64 Mbit flash / - Use of licensed AMI UEFI BIOS / - Support for DualBIOS / - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 / / Unique Features: / - Support for APP Center / * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. / 3D OSD / @BIOS / AutoGreen / Cloud Station / EasyTune / Easy RAID / Fast Boot / Smart TimeLock / Smart Keyboard / Smart Backup / System Information Viewer / USB Blocker / - Support for Q-Flash / - Support for Smart Switch / - Support for Xpress Install / / Bundle Software: / - Norton Internet Security (OEM version) / - cFosSpeed / / Operating System: / - Support for Windows 10/8.1 64-bit / - Support for Windows 7 32-bit/64-bit / * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Additional Information
First Listed on Newegg	June 06, 2026
